1. Увод
The Technoline WS 7208 is a versatile weather station designed to provide accurate local weather information. It features a clear display for weather forecasts, temperature trends, and a radio alarm clock. This device monitors both indoor and outdoor temperatures, including minimum and maximum values, and supports up to three external transmitters. The package includes one TX16 external transmitter.
Кључне карактеристике укључују:
- Weather forecast and trend display
- Radio alarm clock function
- Internal and external temperature display with min/max memory
- Support for up to 3 external transmitters (one TX16 included)
- Wall-mountable or table-top placement

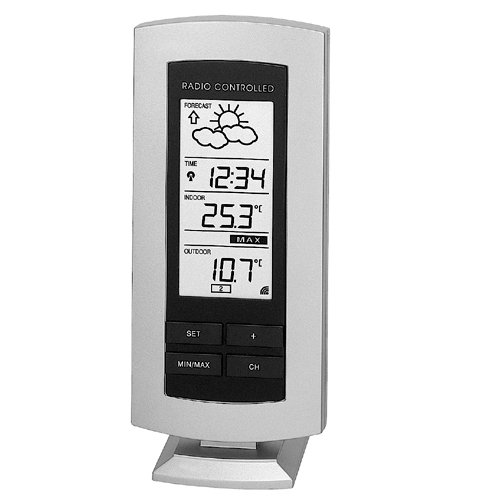

Figure 1: The Technoline WS 7208 Weather Station main unit. This image shows the front display and overall design of the weather station.
2. Садржај пакета
Пажљиво проверите садржај пакета. Ако неке ставке недостају или су оштећене, обратите се продавцу.
- Technoline WS 7208 Weather Station (Main Unit)
- TX16 External Transmitter
- Упутство за употребу (овај документ)
3. Подешавање
3.1. Инсталација батерије
Both the main weather station unit and the external transmitter require batteries for operation.
- Главна јединица: Open the battery compartment on the back of the main unit. Insert 2 x AA (LR06, stylus) 1.5 V batteries, ensuring correct polarity (+/-). Close the compartment.
- External Transmitter (TX16): Open the battery compartment on the back of the transmitter. Insert 2 x AA (LR06, stylus) 1.5 V batteries, ensuring correct polarity (+/-). Close the compartment.
Важно: Always replace all batteries at the same time. Do not mix old and new batteries, or different types of batteries.
3.2. Постављање сензора
Proper placement of the external transmitter is crucial for accurate outdoor temperature readings.
- Place the external transmitter in a shaded, dry location, protected from direct sunlight and rain.
- Ensure the transmitter is within the operational range of the main unit, which is up to 100 meters in an open field. Walls, metal structures, and electronic devices can reduce this range.
- The main unit can be placed on a table or mounted on a wall. Choose a location that allows for easy viewинг дисплеја.
4. Упутство за употребу
4.1. Почетна синхронизација
After battery installation, the main unit will automatically search for the external transmitter. This process may take a few minutes. Ensure both units are close to each other during initial setup.
- The indoor temperature is displayed immediately.
- Once synchronized, the outdoor temperature will appear on the display.
- The main unit receives data from the external transmitter approximately every 5 minutes.
4.2. Прикажи информације
The display provides various pieces of information:
- Унутрашња температура: Measured by the main unit.
- Спољна температура: Received from the external transmitter.
- Мин./Максимална температура: The station automatically records the minimum and maximum indoor and outdoor temperatures. Consult the specific buttons on your device (e.g., "MIN/MAX" button) to view and reset these values.
- Временска прогноза: Indicated by graphical icons (e.g., sun, clouds, rain) and a trend arrow. This forecast is based on atmospheric pressure changes.
- Radio Alarm Clock: The time is automatically set via radio signal. Refer to the device's buttons for setting alarms and other time-related functions.
4.3. Temperature Measurement Details
The device offers precise temperature measurements:
- Опсег унутрашње температуре: 0°Ц до 60°Ц
- External Temperature Range: -29.9°Ц до +69.9°Ц
- Тачност мерења: ±0.1°Ц
- Room Temperature Test Interval: Сваких 10 секунди
5. Одржавање
- Замена батерије: When the battery indicator appears on the display, replace the batteries in both the main unit and the external transmitter as described in Section 3.1.
- Чишћење: Clean the device and transmitter with a soft, damp тканина. Немојте користити абразивна средства за чишћење или раствараче.
- Складиштење: Ако уређај неће бити коришћен дуже време, извадите батерије да бисте спречили цурење.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| No outdoor temperature display (shows "----") |
|
|
| Нетачна временска прогноза |
|
|
| Екран је затамњен или празан | Слабе батерије у главној јединици. | Замените батерије у главној јединици. |
7. Спецификације
| Феатуре | Детаљ |
|---|---|
| Модел | ВС 7208 |
| Димензије главне јединице (Д x Ш x В) | 73 к 26 к 169 мм |
| External Transmitter Dimensions (L x W x H) | 59 к 22 к 65 мм |
| Унутрашњи температурни опсег | 0°Ц до 60°Ц |
| External Temperature Range | -29.9°Ц до +69.9°Ц |
| Temperature Measurement Error Margin | ±0.1°Ц |
| влажност Опсег | 1% to 99% (Error Margin ±1%) |
| Room Temperature Test Interval | Сваких 10 секунди |
| External Transmitter Data Reception | Сваких 5 минута |
| Распон преноса | До 100 м (отворено поље) |
| Main Unit Power Supply | 2 x AA (LR06, stylus) 1.5 V batteries |
| External Transmitter Power Supply | 2 x AA (LR06, stylus) 1.5 V batteries |
| Опције пласмана | Wall-mounted or table-top |
8. Гаранција и подршка
This Technoline WS 7208 Weather Station comes with a 2 година гаранције од датума куповине. Молимо вас да сачувате доказ о куповини за потребе гаранције.
For technical support, troubleshooting assistance, or warranty inquiries, please contact your retailer or the Technoline customer service department. Contact information can typically be found on the product packaging or the manufacturer's official webсајту.
