1. Увод
Thank you for choosing the Boss CX120DC Chaos Exxtreme 12-inch Subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your new subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.
The CX120DC is a high-performance 12-inch subwoofer designed for car audio systems, featuring dual 4-ohm voice coils and a non-press paper cone for powerful and clear bass reproduction.
2. Безбедносне информације
Увек се придржавајте следећих мера безбедности током инсталације и рада:
- Искључите акумулатор возила: Пре него што започнете било какве електричне радове, искључите негативни терминал акумулатора возила како бисте спречили кратке спојеве и оштећења.
- Препоручена професионална инсталација: If you are unsure about any aspect of installation, consult a qualified professional car audio installer.
- Правилно ожичење: Ensure all wiring is correctly connected, insulated, and secured to prevent shorts, overheating, and potential fire hazards. Use appropriate gauge wire for power and speaker connections.
- Избегавајте влагу и топлоту: Do not expose the subwoofer to excessive moisture, water, or extreme temperatures.
- Сигурна монтажа: Mount the subwoofer securely within a suitable enclosure to prevent movement during vehicle operation, which could cause damage or injury.
- Нивои јачине звука: Дуготрајно излагање високој јачини звука може проузроковати оштећење слуха. Подесите јачину звука на безбедан и удобан ниво.
3. Подешавање и инсталација
Proper installation is crucial for the performance and longevity of your subwoofer. The CX120DC is designed for flush mounting within a custom or pre-fabricated enclosure.
3.1 Захтеви за кућиште
The subwoofer requires a sealed or ported enclosure designed to match its specifications. Consult with a car audio specialist or use online resources to determine the ideal enclosure volume for your desired sound characteristics.
3.2 Монтажа
The mounting depth required for the CX120DC is 5-11/16 инча. Ensure your chosen enclosure provides sufficient depth and clearance for the subwoofer magnet and frame. Secure the subwoofer to the enclosure using appropriate screws, ensuring a tight, airtight seal.

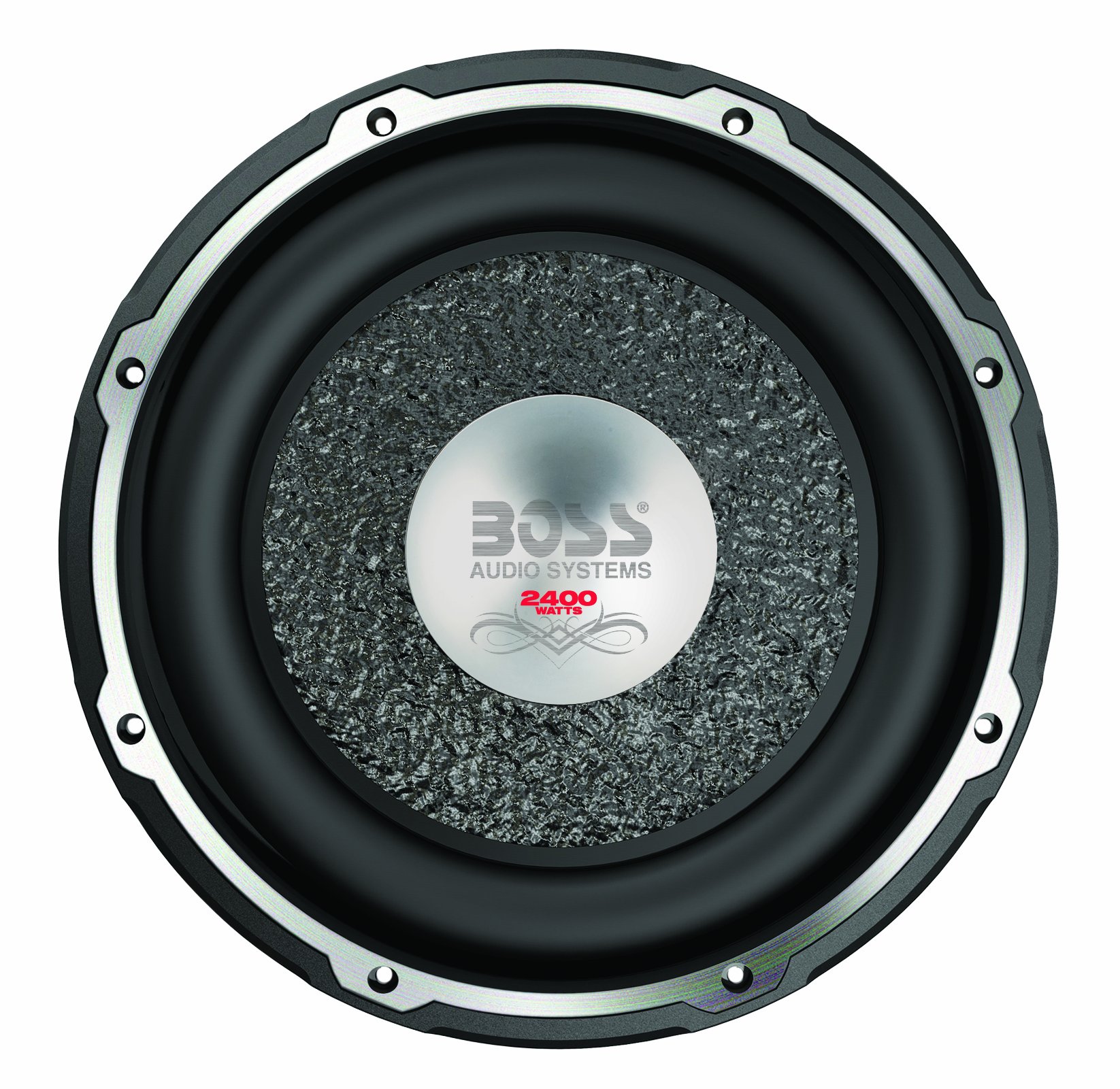

Image of the Boss CX120DC 12-inch subwoofer, showcasing its design and non-press paper cone.
3.3 Ожичење
The CX120DC features dual 4-ohm voice coils, offering versatility in wiring configurations. You can wire the voice coils in series for an 8-ohm load or in parallel for a 2-ohm load, depending on your amplifier's capabilities and desired impedance. Always ensure your ampНапајач је стабилан на изабраној импеданси.
- Parallel Wiring (2-ohm load): Connect the positive terminal of voice coil 1 to the positive terminal of voice coil 2. Connect the negative terminal of voice coil 1 to the negative terminal of voice coil 2. Then, connect the combined positive to the ampпозитивни излаз осветљивача и комбиновани негативни за ampнегативни излаз животног система.
- Series Wiring (8-ohm load): Connect the positive terminal of voice coil 1 to the amplifier's positive output. Connect the negative terminal of voice coil 1 to the positive terminal of voice coil 2. Connect the negative terminal of voice coil 2 to the ampнегативни излаз животног система.
Use high-quality speaker wire of appropriate gauge for your power levels and wire run length.
4. Упутство за употребу
Once installed, proper amplifier setup and tuning are essential for optimal performance and to prevent damage to your subwoofer.
- AmpПодударање са спасиоцем: Осигурајте своје amplifier's RMS power output matches the subwoofer's RMS power handling (1100 Watts). An underpowered or overpowered amplifier can damage the subwoofer.
- Подешавање појачања: Подесите amplifier's gain control carefully. Start with the gain at its minimum and slowly increase it until you achieve the desired volume without distortion. Do not use the gain control as a volume knob.
- Подешавања скретнице: Искористите своје amplifier's or head unit's low-pass filter (LPF) to send only low frequencies to the subwoofer. A typical LPF setting for a 12-inch subwoofer might be between 80Hz and 120Hz. The CX120DC has a frequency response of 30Hz - 1.5kHz, but it is designed to reproduce frequencies primarily below 200Hz.
- Период провале: Allow a break-in period of several hours of moderate listening before operating the subwoofer at maximum levels. This allows the suspension components to loosen up and perform optimally.
5. Одржавање
The Boss CX120DC subwoofer requires minimal maintenance to ensure long-term performance.
- Чишћење: Повремено обришите конус и оквир сабвуфера меком, сувом крпом да бисте уклонили прашину и прљавштину. Избегавајте употребу јаких хемикалија или прекомерну влагу.
- Провера везе: Occasionally check all wiring connections to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
- Услови животне средине: Заштитите сабвуфер од екстремних температура, директне сунчеве светлости и прекомерне влаге.
КСНУМКС. Решавање проблема
Ако имате проблема са сабвуфером, погледајте следеће уобичајене проблеме и решења:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Нема звука из сабвуфера |
|
|
| Дистортед Соунд |
|
|
| Прегревање сабвуфера |
|
|
If these steps do not resolve the issue, please contact BOSS Audio Systems customer support.
7. Спецификације
| Феатуре | Спецификација |
|---|---|
| Бранд | БОСС Аудио системи |
| Модел | CX120DC |
| Спеакер Типе | Субвоофер |
| Пречник сабвуфера | 12 инча |
| Руковање вршном снагом | 2200 Ваттс |
| РМС управљање напајањем | 1100 Ваттс |
| Цоне Материал | Non Press Paper Cone |
| Гласовна завојница | Dual 4 Ohm, 2-1/2-inch |
| Efficiency (1 Watt/1 Meter) | 92дБ |
| Фреквенцијски одзив | 30Hz - 1.5kHz |
| Дубина монтаже | 5-11/16 инча |
| Тежина артикла | 10.95 фунти |
8. Гаранција и подршка
8.1 Информације о гаранцији
The Boss CX120DC Subwoofer comes with a ЈЕДНУ ГОДИНУ limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, neglect, unauthorized repair, or modification.
Сачувајте доказ о куповини за гаранцијске захтеве.
8.2 Корисничка подршка
For technical assistance, warranty service, or further information regarding your Boss CX120DC subwoofer, please contact BOSS Audio Systems customer support. Refer to the official BOSS Audio Systems webсајт за најновије контакт информације.
