Вивитек Д511 Портабле ДЛП пројектор упутство за употребу

1. Увод

This manual provides detailed instructions for the setup, operation, and maintenance of your Vivitek D511 Portable DLP Projector. The D511 is designed to deliver sharp, detailed images with 2600 lumens of brightness and a 3000:1 contrast ratio, utilizing DLP and BrilliantColor technologies. It is also 3D-ready, supporting future media content. Please read this manual thoroughly before using the projector to ensure proper and safe operation.

2. Безбедносне информације

• вентилација: Ensure adequate ventilation around the projector. Do not block any ventilation openings. Overheating can cause damage to the projector and pose a fire hazard.
• Извор напајања: Use only the specified power adapter and connect to a grounded power outlet.
• Lamp безбедност: Пројектор лamp operates at high temperatures and pressure. Не покушавајте да замените лamp одмах након употребе. Allow the projector to cool down for at least 20 minutes before handling the lamp. Refer to the "Maintenance" section for lamp упутства за замену.
• Заштита очију: Избегавајте да гледате директно у сочиво пројектора када је лamp је укључено, јер интензивно светло може изазвати оштећење ока.
• Пласман: Поставите пројектор на стабилну, равну површину. Избегавајте постављање на директно сунчево светло, близу извора топлоте или у окружења са високом влажношћу или прашином.
• Чишћење: Искључите кабл за напајање пре чишћења. Користите меку, суву крпу. Не користите течна или аеросолна средства за чишћење.

3. Производ је готовview

3.1 Фронт View

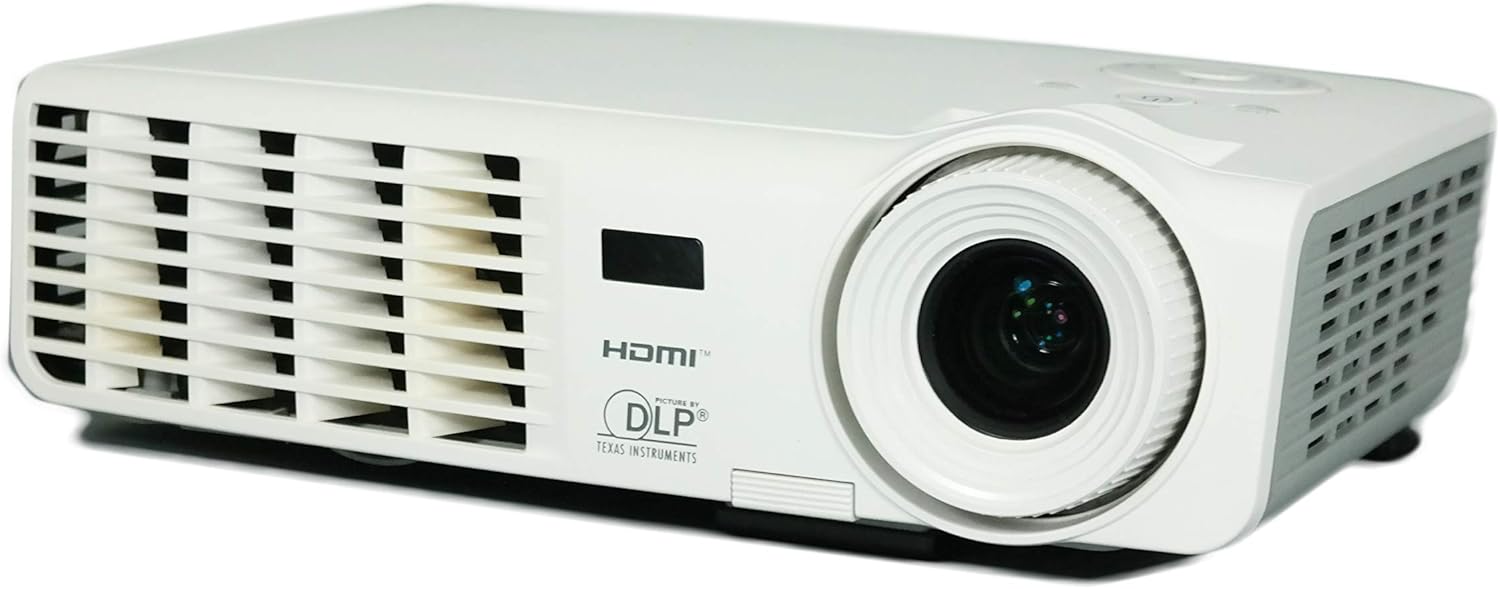

Слика 3.1: Фронт view of the Vivitek D511 projector, showing the projection lens and front ventilation grille.

The front of the projector features the main projection lens, which is used to focus the image onto your screen or surface. The front also includes ventilation openings to ensure proper airflow and cooling during operation.

3.2 Задња плоча (повезивање)

Слика 3.2: Rear panel of the Vivitek D511 projector, displaying various input and output ports.

The rear panel provides a range of connectivity options for various devices:

• ДВИ: High-Definition Multimedia Interface for digital audio and video input.
• VGA (Input 1 & 2): D-sub 15-pin connectors for analog video input from computers.
• Композитни видео: RCA yellow jack for standard definition video input.
• С-Видео: Mini-DIN 4-pin connector for enhanced standard definition video input.
• Audio In (L-Audio-R & Mini-Jack): RCA red/white jacks and a 3.5mm mini-jack for audio input.
• РС-232: Serial port for projector control via a computer or control system.
• Улазна снага: AC power connector.

3.3 Top Panel (Control Buttons)

Слика 3.3: Top panel of the Vivitek D511 projector, showing the control buttons and indicator lights.

The top panel houses the primary control buttons for operating the projector without the remote control. These include the Power button, Source selection, Menu access, Auto adjustment, and navigation buttons. Indicator lights for LAMP and TEMP provide status information.

3.4 Сиде Views (Ventilation)

Image 3.4a: Лева страна view са вентилацијом.

Image 3.4b: Десна страна view са вентилацијом.

Both sides of the projector feature ventilation grilles crucial for dissipating heat generated during operation. Ensure these areas are unobstructed to maintain optimal performance and prevent overheating.

3.5 Дно View (Label and Lamp приступ)

Слика 3.5: Дно view of the Vivitek D511 projector, showing the product label and lamp приступна плоча.

The bottom of the projector contains the product information label, including the model number (D511), serial number, and regulatory compliance marks. It also features an access panel for lamp замена. Always refer to the safety warnings regarding lamp replacement on this label.

4. Подешавање

4.1 Постављање пројектора

Place the projector on a stable, flat surface. The D511 is designed for tabletop mounting. Ensure the projector is positioned at an appropriate distance from the screen to achieve the desired image size. Avoid placing it where ventilation grilles could be blocked.

4.2 Повезивање уређаја

Connect your source devices (e.g., laptop, gaming console, DVD player) to the appropriate input ports on the projector's rear panel (refer to Image 3.2).

• ДВИ: For high-quality digital video and audio, connect an HDMI cable from your source device to the projector's HDMI port.
• ВГА: For analog video from a computer, connect a VGA cable to one of the VGA ports. If connecting a computer, you may also need to connect an audio cable to the Audio In mini-jack.
• Composite/S-Video: For older video sources, connect the appropriate cable to the Composite Video or S-Video port. Connect audio cables to the L-Audio-R RCA jacks.

4.3 Укључивање/искључивање

1. Укључено: Connect the power cord to the projector and a power outlet. Press the Повер button on the top panel or the remote control. The projector will initiate its startup sequence.
2. Искључивање: Притисните тастер Повер button again. A confirmation message may appear. Press the Power button a second time to confirm shutdown. The projector will enter a cooling cycle before completely shutting down. Do not unplug the projector during the cooling cycle.

5. Руковање пројектором

5.1 Основне контроле

The projector can be controlled using the buttons on the top panel (refer to Image 3.3) or the included remote control.

• ИЗВОР: Press to cycle through available input sources (HDMI, VGA, Composite, S-Video).
• МЕНИ: Press to open the On-Screen Display (OSD) menu for advanced settings. Use the arrow buttons to navigate and ЕНТЕР (often the central button) to select.
• АУТО: Automatically adjusts the image for optimal display, particularly useful for VGA sources.
• Дугмад са стрелицама (горе/доле/лево/десно): Крећите се кроз меније и прилагодите подешавања.

5.2 Подешавање слике

• Фокус: Окрећите прстен за фокусирање на објективу пројектора док слика не постане оштра и јасна.
• Кеистоне Цоррецтион: If the image appears trapezoidal (wider at the top or bottom), use the keystone correction function (usually found in the OSD menu) to adjust it. The D511 supports vertical keystone correction up to 30 inches.
• Зумирање: If available, use the zoom ring on the lens to adjust the image size without moving the projector.

5.3 3Д функционалност

The Vivitek D511 is 3D-ready. To experience 3D content, you will need compatible 3D source material, a 3D-capable player, and active shutter 3D glasses (sold separately). Refer to your 3D source device's manual for specific setup instructions. The projector will automatically detect and display 3D signals when properly configured.

6. Одржавање

6.1 Лamp Замена

Пројектор лamp has an operating life of approximately 4000 hours. When the lamp достиже крај свог живота, ЛAMP indicator light may illuminate, or the image brightness may significantly decrease. Refer to the caution label on the bottom of the projector (Image 3.5) before attempting replacement.

1. Цоол Довн: Ensure the projector has been powered off and allowed to cool for at least 20 minutes before proceeding. The lamp operates at high temperatures.
2. Искључите напајање: Искључите кабл за напајање из пројектора.
3. Приступна плоча: Пронађите лamp access panel on the bottom of the projector. Unscrew the retaining screw(s) and carefully remove the cover.
4. Уклоните стари Лamp: Unscrew the screws holding the lamp module in place. Carefully pull the lamp module out by its handle.
5. Инсталирај нови Лamp: Уметните нови лamp module, ensuring it is seated correctly. Secure it with the screws.
6. Затвори панел: Замените лamp access cover and secure it with its screw(s).
7. Ресетуј Лamp Тајмер: Након замене лamp, you must reset the lamp timer in the projector's OSD menu to accurately track the new lamp's life.

6.2 Чишћење

• Пројектор Цasing: Користите меку крпу која не оставља влакна да обришете спољашњост пројектора. За тврдокорне мрље, благо обришитеampНамочите крпу водом. Избегавајте јаке хемикалије.
• Пројекционо сочиво: Gently clean the lens with a lens cleaning cloth or a soft, dry, lint-free cloth specifically designed for optical surfaces. Do not use abrasive materials or excessive force.
• Вентилационе решетке: Periodically check the ventilation grilles for dust accumulation. Use a soft brush or compressed air to clear any blockages.

КСНУМКС. Решавање проблема

8. Спецификације

9. Гаранција и подршка

For warranty information, technical support, or service inquiries, please contact Vivitek customer support. Details regarding your product's specific warranty period and terms can typically be found on the Vivitek official website or included in your product packaging. Please have your model number (D511) and serial number ready when contacting support.
