Bayco SLR-2134 Professional Series 30 LED Dual Function Rechargeable Work Light User Manual

1. Производ је готовview

The Bayco SLR-2134 Professional Series Rechargeable Work Light is a versatile lighting tool designed for various professional and recreational applications. It features a dual-function design, offering both a powerful floodlight and a focused spotlight. The robust construction ensures resistance to chemicals, moisture, and impacts, making it suitable for demanding environments. This work light includes both AC and DC charging adapters for convenient recharging.

Кључне карактеристике:

• Dual-function lighting: 30-LED floodlight (60 lumens) and 4-LED in-handle spotlight (8 lumens).
• Integrated rechargeable NiMH battery.
• Chemical, moisture, and impact resistant housing.
• Dual-position magnetic hook for hands-free operation.
• Includes AC and DC charging adapters.

Image 1.1: The Bayco SLR-2134 Professional Series 30 LED Dual Function Rechargeable Work Light, showcasinг његов целокупни дизајн.

2. Важна безбедносна упутства

Молимо вас да прочитате и разумете сва безбедносна упутства пре употребе овог производа. Непоштовање ових упутстава може довести до струјног удара, пожара или озбиљних повреда.

• Do not expose the work light to rain or wet conditions.
• Do not immerse the work light in water or other liquids.
• Use only the provided AC and DC charging adapters. Using unauthorized chargers may damage the battery and void the warranty.
• Do not open or attempt to repair the work light or its battery pack. Refer all servicing to qualified service personnel.
• Keep the work light away from heat sources, direct sunlight, and flammable materials.
• Do not look directly into the LED light source, as it may cause temporary vision impairment.
• Батерије одложите на одговарајући начин у складу са локалним прописима.

3. Садржај пакета

Проверите да ли су све ставке присутне у вашем пакету:

• Bayco SLR-2134 Rechargeable Work Light
• АЦ напајање/пуњач
• DC Power Supply/Charger (cigarette lighter adapter)
• Магнетиц Хоок

4. Почетно подешавање и пуњење

Before first use, fully charge the work light's integrated NiMH battery.

1. Пронађите прикључак за пуњење на радном светлу.
2. Connect either the AC or DC charging adapter to the charging port.
3. Plug the AC adapter into a standard wall outlet or the DC adapter into a vehicle's 12V accessory socket.
4. Allow the unit to charge completely. A full charge may take approximately 8 hours. The charging indicator light (if present) will typically change color or turn off when charging is complete.
5. Once fully charged, disconnect the charger. The work light is now ready for use.

5. Упутство за употребу

The SLR-2134 features a dual-function lighting system and a magnetic hook for versatile use.

5.1 Power On/Off and Light Mode Selection

The work light is equipped with a switch to control its functions:

• Флоодлигхт: Slide the switch to the position that activates the 30-LED array for broad area illumination.
• Спотлигхт: Slide the switch to the position that activates the 4-LEDs located in the handle end for a focused beam.
• Искључено: Slide the switch to the center position to turn off the light.

Image 5.1: The 30-LED floodlight array providing wide illumination.

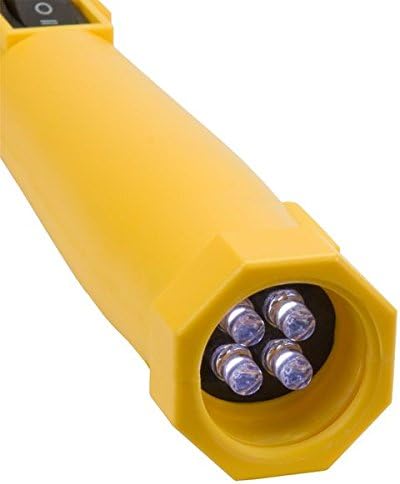

Image 5.2: The 4-LED spotlight located at the end of the handle for focused lighting.

5.2 Using the Magnetic Hook

The work light includes a dual-position magnetic hook for hands-free operation. Attach the hook to the desired magnetic surface for vertical or horizontal positioning. This allows you to direct light precisely where needed while keeping your hands free for tasks.

Image 5.3: The work light showing the power switch and the end where the magnetic hook can be attached.

6. Нега и одржавање

Proper care will ensure the longevity and optimal performance of your work light.

• Чишћење: Обришите спољашњост светла меком крпомamp тканина. Немојте користити абразивна средства за чишћење или раствараче.
• Складиштење: Store the work light in a cool, dry place away from direct sunlight when not in use. For extended storage, it is recommended to fully charge the battery every 3-6 months to maintain battery health.
• батерија: The integrated NiMH battery is designed for long life. If the battery performance significantly degrades, it may indicate the end of its lifespan. Do not attempt to replace the battery yourself.

КСНУМКС. Решавање проблема

If you encounter issues with your Bayco SLR-2134 work light, refer to the following common problems and solutions:

Ако проблем и даље постоји након покушаја ових решења, обратите се корисничкој подршци.

8. Техничке спецификације

9. Информације о гаранцији

This Bayco SLR-2134 Professional Series Rechargeable Work Light is covered by a 1-годишња ограничена гаранција from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, unauthorized repair, or modification.

Сачувајте доказ о куповини за гаранцијске захтеве.

10. Корисничка подршка

For technical assistance, warranty claims, or further information regarding your Bayco SLR-2134 work light, please contact Bayco customer support or visit the official Bayco webсајту.

Подршка на мрежи: Visit the BAYCO Store on Amazon

Please have your model number (SLR-2134) and proof of purchase ready when contacting support.
