AAXA MP-300-02 LED Showtime 3D Pico/Micro Projector User Manual

1. Увод

The AAXA MP-300-02 LED Showtime 3D Pico/Micro Projector is a compact, high-performance projector designed for various media applications. It features an advanced LED optical engine and a WXGA 1280x800 DLP imager, providing vivid and colorful images. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your projector.

Key features include a 450 lumen optical engine, WXGA 1280x800 native resolution with support for up to 1080p, a 2000:1 contrast ratio, and a 20,000-hour LED lifespan. Connectivity options include HDMI, VGA, Composite A/V, and USB for media playback. The projector is also 3D-ready and capable of projecting images up to 160 inches in low-light conditions.

2. Производ је готовview

2.1. Садржај пакета

• AAXA MP-300-02 Projector
• Повер Цорд
• Ремоте Цонтрол
• А/В кабл

2.2. Компоненте пројектора

Familiarize yourself with the projector's physical components and controls.

This image displays the overall design of the AAXA MP-300-02 projector, highlighting its compact size and the front-facing projection lens. Ventilation grilles are visible on the sides, essential for heat dissipation during operation.

Врх view illustrates the projector's control panel, which includes buttons for power, menu navigation, input selection, and volume adjustment. The focus wheel is also visible near the front of the device.

Ова слика пружа јасан view of the rear panel, where all connectivity ports are located. These include HDMI, VGA, Composite A/V, USB, and the power input, allowing for versatile connection to different devices.

3. Подешавање

3.1. Прикључак за напајање

1. Прикључите адаптер за напајање на DC IN порт на пројектору.
2. Укључите кабл за напајање у стандардну електричну утичницу.

Напомена: The power adapter may become very warm during extended use. This is normal, but ensure adequate ventilation around the adapter.

3.2. Placement and Image Sizing

Position the projector on a stable, flat surface. The projector's image size is determined by its distance from the projection surface. To adjust the image size, physically move the projector closer or further away from the screen or wall until the desired size is achieved. The projector can produce an image up to 160 inches diagonally in low-light conditions.

3.3. Подешавање фокуса

Locate the focus wheel near the projector lens. Rotate the wheel until the projected image appears sharp and clear. Due to the nature of projection optics, it may sometimes be challenging to achieve perfect focus across the entire image simultaneously; adjust for the best overall clarity.

4. Упутство за употребу

4.1. Укључивање/искључивање

• To power on, press the power button on the projector or remote control.
• To power off, press the power button again. The LED indicator will change to show the power status.

4.2. Selecting Input Sources

Use the 'Input' button on the projector or remote control to cycle through available input sources: HDMI, VGA, Composite A/V, and USB. Select the input corresponding to your connected device.

4.3. Репродукција медија преко УСБ-а

Insert a USB flash drive into the USB port. The projector's built-in media player will allow you to browse and play compatible video, audio, and image fileс директно са драјва.

This image shows the AAXA MP-300-02 projector connected to an iPhone, illustrating its compatibility with mobile devices for content projection. An appropriate adapter cable is required for such connections.

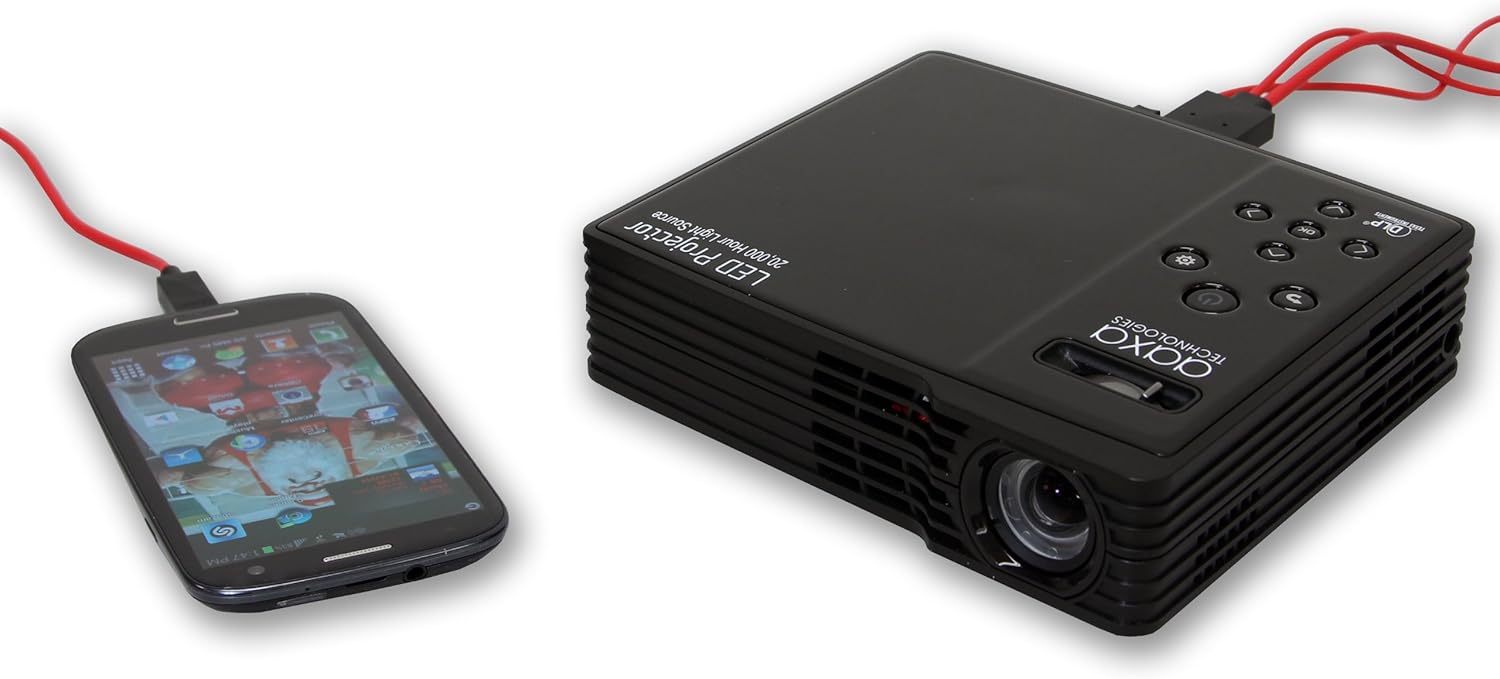

Here, the projector is connected to an Android smartphone, demonstrating its ability to display content from various mobile operating systems. A suitable MHL or HDMI adapter for Android devices would be necessary.

4.4. 3Д функционалност

The projector is 3D-ready. However, 3D functionality is primarily supported when connected to a computer with specific, compatible video cards. It does not support 3D content from HDMI 1.3 devices such as many gaming consoles.

4.5. Аудио излаз

The projector includes internal speakers for audio output. For an enhanced audio experience, especially when watching movies, it is recommended to connect external speakers to the projector's audio output port.

5. Одржавање

5.1. Чишћење сочива

Gently wipe the projector lens with a soft, lint-free cloth or a lens cleaning wipe. Avoid using abrasive materials or harsh chemicals that could scratch the lens.

5.2. Cleaning Ventilation Vents

Periodically check and clean the projector's ventilation vents to prevent dust buildup, which can impede airflow and lead to overheating. Use a soft brush or compressed air to remove dust.

5.3. LED Light Source Longevity

The projector utilizes an LED light source with an estimated lifespan of 20,000 hours, significantly longer than traditional lamp-based projectors. No routine replacement of the light source is typically required.

КСНУМКС. Решавање проблема

6.1. No Image Projected

• Ensure the projector is powered on and the power indicator light is active.
• Verify that the video cable (HDMI, VGA, A/V) is securely connected to both the projector and the source device.
• Confirm the correct input source is selected on the projector.
• Check the source device (e.g., laptop, media player) is powered on and outputting a signal.

6.2. Image is Blurry or Out of Focus

• Adjust the focus wheel on the projector until the image is clear.
• Уверите се да је површина за пројекцију равна и да је пројектор стабилан.
• If parts of the image remain slightly unfocused, try adjusting the projector's tilt or position slightly.

6.3. Нема звука или је јачина звука ниска

• Increase the volume on the projector and the source device.
• Ако користите спољне звучнике, уверите се да су правилно повезани и укључени.
• When playing media from USB, verify that the file's audio codec is supported by the projector.

6.4. Power Adapter Gets Hot

It is normal for the power adapter to become warm during operation. If it becomes excessively hot to the touch, ensure it is placed in a well-ventilated area and not covered. If concerns persist, discontinue use and contact support.

6.5. Loud Fan Noise

The projector's cooling fan operates to maintain optimal internal temperatures. Some fan noise is normal. Ensure the projector's vents are not obstructed, as this can increase fan speed and noise. Using external speakers can help mask fan noise during media playback.

7. Спецификације

8. Информације о гаранцији

The AAXA MP-300-02 LED Showtime 3D Pico/Micro Projector comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or visit the manufacturer's webсајту.

9. Подршка

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact AAXA Technologies customer support. Contact information can typically be found on the manufacturer's official webсајту или на паковању производа.
