Moen CA87006SRS Kitchen Faucet Instruction Manual

Увод

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Moen CA87006SRS Kitchen Faucet. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product. The Moen CA87006SRS is a single-handle kitchen faucet featuring a convenient pullout spray, designed for deck-mount installation.

Карактеристике производа

• Pullout Spray: Offers enhanced reach and flexibility for various kitchen tasks.
• Завршна обрада од нерђајућег челика отпорна на мрље: Resists fingerprints and water spots for a cleaner-looking kitchen.
• Single Handle Design: Омогућава лако подешавање температуре и протока воде.
• Deck Mount Installation: Designed for single-hole installation on your kitchen sink or countertop.
• Издржљива конструкција: Engineered for long-lasting performance and reliability.

Подешавање и инсталација

Professional installation is recommended for optimal performance and to ensure compliance with local plumbing codes. Before beginning, ensure you have all necessary tools and components. Turn off the main water supply to your kitchen area before starting any work.

Кораци пре инсталације:

1. Сакупите алате: Ensure you have a basin wrench, adjustable wrench, screwdriver, plumber's putty or silicone sealant, and safety glasses.
2. Очистите област: Remove any items from under the sink to provide clear access.
3. Искључите воду: Locate and turn off the hot and cold water supply valves under the sink or the main water supply to your home.
4. Уклоните стару славину (ако је потребно): Disconnect water supply lines and mounting nuts from the old faucet. Lift and remove the old faucet.

Инсталација славине:

1. Припремите монтажну површину: Clean the sink or countertop surface where the faucet will be installed. Apply plumber's putty or silicone sealant around the base of the new faucet if required by the manufacturer's specific instructions.
2. Position Faucet: Insert the faucet body through the mounting hole from above the sink.
3. Безбедна славина: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank. Hand-tighten, then use a basin wrench to firmly secure the faucet, ensuring it is properly aligned.
4. Повежите водоводне цеви: Attach the hot and cold water supply lines from the faucet to the corresponding shut-off valves. Use an adjustable wrench to tighten connections, but do not overtighten.
5. Connect Spray Hose: Connect the pullout spray hose to the designated port on the faucet body. Ensure all connections are secure.
6. Тежина инсталације: Attach the hose weight to the pullout spray hose at the indicated location to ensure proper retraction.
7. Тест за цурење: Slowly turn on the hot and cold water supply valves. Check all connections for leaks. Run the faucet for a few minutes to flush out any debris and check for proper operation of the spray head.

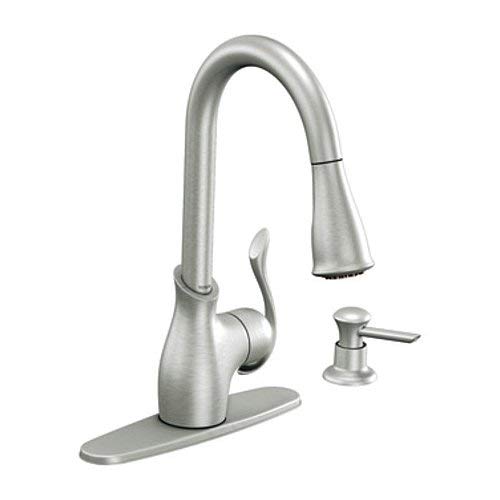

This image displays the Moen CA87006SRS kitchen faucet, featuring its single-handle design and integrated pullout spray head. The faucet is shown in a Spot Resist Stainless finish, highlighting its modern aesthetic and functional design.

Упутство за употребу

Контрола протока воде и температуре:

• Он/Офф: Lift the single handle to turn the water on and push it down to turn it off.
• Подешавање температуре: Померите ручицу улево за топлу воду, а удесно за хладну воду.
• Подешавање протока: Висина на коју се подиже ручка контролише проток воде.

Pullout Spray Function:

• Продужите главу за прскање: Пажљиво повуците главу прскалице из излива да бисте продужили црево.
• Toggle Spray Modes: Press the button(s) on the spray head to switch between aerated stream and powerful spray functions.
• Увуците главу прскалице: When finished, guide the spray head back into the spout. The hose weight will assist in smooth retraction.

Одржавање

Regular cleaning and maintenance will help preserve the finish and functionality of your Moen faucet.

Чишћење славине:

• Завршна обрада од нерђајућег челика отпорна на мрље: Очистите меком, дamp cloth and mild soap. Rinse thoroughly with warm water and dry with a soft cloth.
• Избегавајте абразиве: Do not use abrasive cleaners, harsh chemicals, polishes, or scouring pads, as these can damage the finish.
• Редовно чишћење: Wipe down the faucet regularly to prevent mineral buildup and water spots.

Одржавање аератора:

• If water flow decreases or becomes erratic, the aerator may be clogged with debris or mineral deposits.
• Unscrew the aerator from the tip of the spout.
• Rinse the aerator screen under running water to remove any particles. For stubborn mineral deposits, soak the aerator in a solution of equal parts white vinegar and water.
• Вратите аератор, водећи рачуна да је добро затегнут.

Решавање проблема

Погледајте следећу табелу за уобичајене проблеме и њихова решења.

Спецификације

Гаранција и подршка

Moen products are manufactured under the highest standards of quality and workmanship. Moen offers a comprehensive warranty on its products, covering defects in material and manufacturing. For specific warranty details, claims, or technical assistance, please refer to the official Moen webсајт или директно контактирајте корисничку службу компаније Moen.

Моен корисничка служба: За подршку, посетите www.moen.com/customer-support or refer to the contact information provided with your product packaging.
