HitLights Weatherproof LED Light Strip - 5000K SMD 3528 Instruction Manual

1. Производ је готовview

The HitLights Weatherproof LED Light Strip is a flexible lighting solution featuring SMD 3528 LEDs. Designed for both indoor and outdoor applications, this strip operates on 12V DC power and provides a 5000K Cool White light. It is suitable for various lighting tasks, including accent lighting in kitchens, vanities, home theaters, and outdoor areas like pools. The strip is designed for ease of installation and offers a long operational lifespan with minimal power consumption.

• ЛЕД тип: SMD 3528, 300 LEDs per 16.4-foot roll.
• Температура боје: 5000K Cool White.
• Снага: 12V DC operation, 1.3 Watts per foot.
• Трајност: Weatherproof IP-65 rating for outdoor use.
• Флексибилност: Can be cut every three LEDs (approximately 2 inches) and reconnected.
• Инсталација: Features 3M adhesive backing for secure application.
• Затамњење: Compatible with separately sold dimmer switches and 12V DC PWM dimmers.

Image 1.1: The LED light strip is rated IP65 weatherproof, making it suitable for outdoor environments.

2. Безбедносне информације

Молимо вас да прочитате и разумете сва безбедносна упутства пре инсталације и употребе. Непоштовање ових упутстава може довести до струјног удара, пожара или других опасности.

• Уверите се да је напајање искључено пре било какве инсталације или одржавања.
• Only use a compatible 12V DC power supply or dimmer with this LED strip. Using an incorrect voltage can damage the strip and pose a fire hazard.
• Do not submerge the weatherproof strip in water, as its IP65 rating protects against splashes and jets, not full submersion.
• Avoid bending the LED strip sharply or applying excessive force, which can damage the internal circuitry.
• Do not connect the LED strip directly to AC power.
• Чувати ван домашаја деце.

3. Садржај пакета

Ваш пакет треба да садржи следеће ставке:

• 1 x HitLights Weatherproof LED Light Strip (16.4 feet / 5 meters)

Note: A 12V DC power supply or dimmer is required for operation and is sold separately.

4. Подешавање и инсталација

Пратите ове кораке за правилну инсталацију ЛЕД траке:

1. Припремите површину: Ensure the surface where you intend to install the light strip is clean, dry, and smooth. Dust, grease, or uneven textures can compromise the adhesive's effectiveness.
2. Мерење и сечење (опционо): If a shorter length is required, the LED strip can be cut at designated marks, typically every three LEDs. Use sharp scissors to cut precisely on the copper pads indicated by a scissor icon.

Image 4.1: The LED strip can be cut every 3 LEDs (approximately 2 inches) at the marked points.

3. Нанесите траку: Carefully peel off the backing strip from the 3M adhesive tape on the back of the LED strip. Press and hold the light strip firmly against the prepared surface, ensuring good contact along its entire length.
4. Прикључите напајање: Plug the connector of your LED light strip into a compatible 12V DC power supply or dimmer. Ensure the connection is secure.
5. Укључено: Connect your 12V DC power supply to a wall outlet. The LED strip should illuminate.

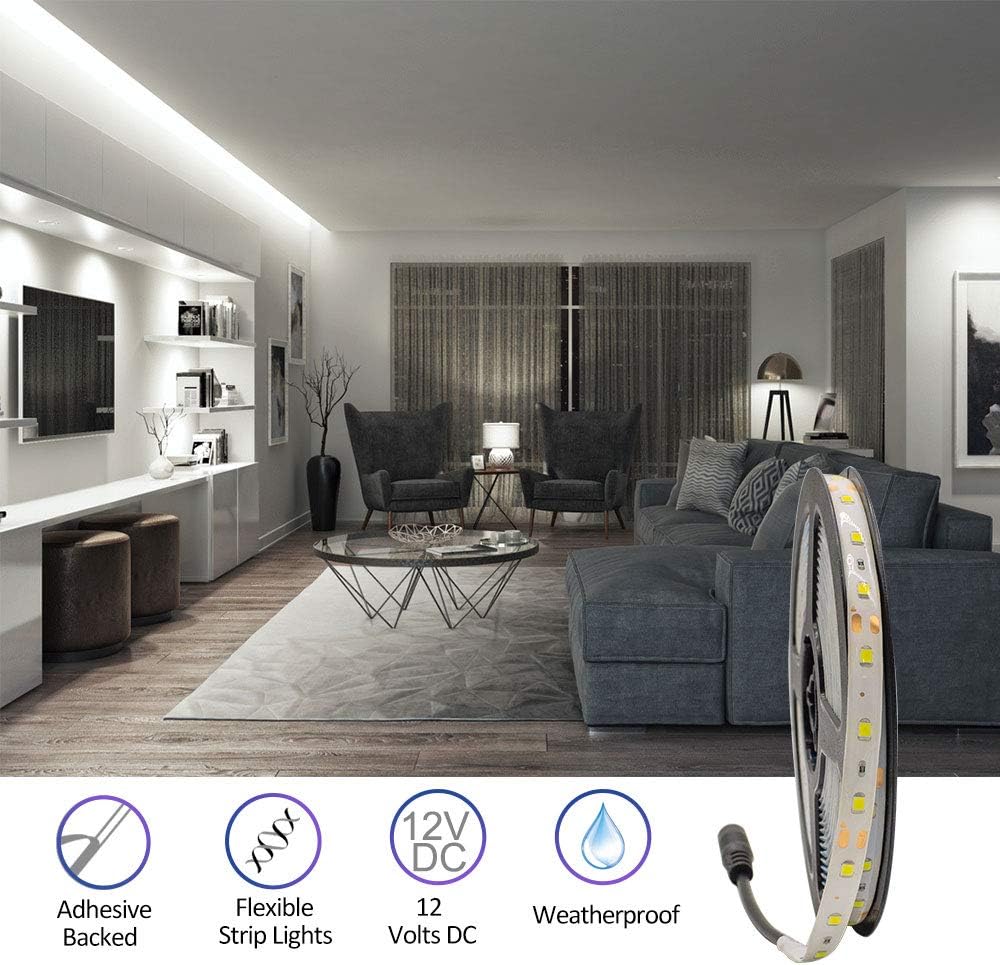

Image 4.2: The strip features adhesive backing for easy installation and is flexible for various applications.

5. Упутство за употребу

Once installed and connected to a power source, the LED light strip will turn on. If using a dimmer (sold separately), you can adjust the brightness of the light output.

• Укључивање/искључивање: Control the power using the switch on your 12V DC power supply or dimmer.
• Затамњење: If a compatible dimmer is installed, use its controls to increase or decrease the light intensity.
• Пријаве: The flexible design allows for installation in various locations such as under cabinets, along toe-kicks, behind crown molding, or in display cases.

Слика 5.1: Примерamples of the LED strip used in different settings like retail, gaming, and kitchens.

6. Одржавање

The HitLights LED Light Strip requires minimal maintenance to ensure optimal performance and longevity.

• Чишћење: Periodically wipe the surface of the LED strip with a soft, dry cloth to remove dust. For stubborn dirt, a slightly damp cloth can be used, ensuring no moisture enters the electrical connections. Always disconnect power before cleaning.
• инспекција: Regularly inspect the strip for any signs of damage, such as cuts, frayed wires, or loose connections. Address any issues promptly to prevent further damage or safety hazards.
• Услови животне средине: While weatherproof, avoid exposing the strip to extreme temperatures or harsh chemicals that could degrade the material.

КСНУМКС. Решавање проблема

If you encounter issues with your LED light strip, refer to the following common troubleshooting steps:

• Светла се не пале:
  • Check if the power supply is properly plugged into a working wall outlet.
  • Verify that the LED strip is securely connected to the 12V DC power supply.
  • Ensure the power supply is functioning correctly (test with another device if possible).
  • If using a dimmer, ensure it is turned on and set to an appropriate brightness level.
• Неуједначено осветљење или треперење:
  • Check for loose connections between the strip and the power supply or dimmer.
  • Ensure the power supply is adequate for the length of the LED strip. An underpowered supply can cause dimming or flickering.
  • Inspect the strip for any physical damage or kinks that might affect conductivity.
• Лепак се не лепи:
  • Ensure the surface was clean, dry, and smooth before application.
  • Apply firm, even pressure along the entire length of the strip during installation.
  • For rough or porous surfaces, additional mounting clips or stronger adhesive may be required (not included).

Ако ови кораци не реше проблем, обратите се корисничкој подршци.

8. Спецификације

Detailed technical specifications for the HitLights Weatherproof LED Light Strip:

Image 8.1: Official specification sheet for the Luma5 Standard LED strip, detailing electrical and physical properties.

9. Информације о гаранцији

This HitLights LED Light Strip comes with a једногодишња гаранција од датума куповине. Ова гаранција покрива производне недостатке и осигурава да производ испуњава наведене стандарде перформанси при нормалној употреби.

Please retain your proof of purchase for any warranty claims. The warranty does not cover damage resulting from improper installation, misuse, unauthorized modifications, or acts of nature.

Image 9.1: The product is weatherproof and includes a 1-year warranty.

10. Корисничка подршка

For any questions, troubleshooting assistance, or warranty claims, please contact the HitLights customer service team. Our US-based support team is available to provide assistance.

Please refer to the official HitLights webвеб-сајт или вашу документацију о куповини за најновије контакт информације.
