1. Увод
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Olympia Faucets P-3230 Three Handle Tub/Shower Set. Please read all instructions carefully before beginning installation or use to ensure proper function and safety. This product is part of the Olympia Elite Collection, designed for durability and aesthetic appeal.

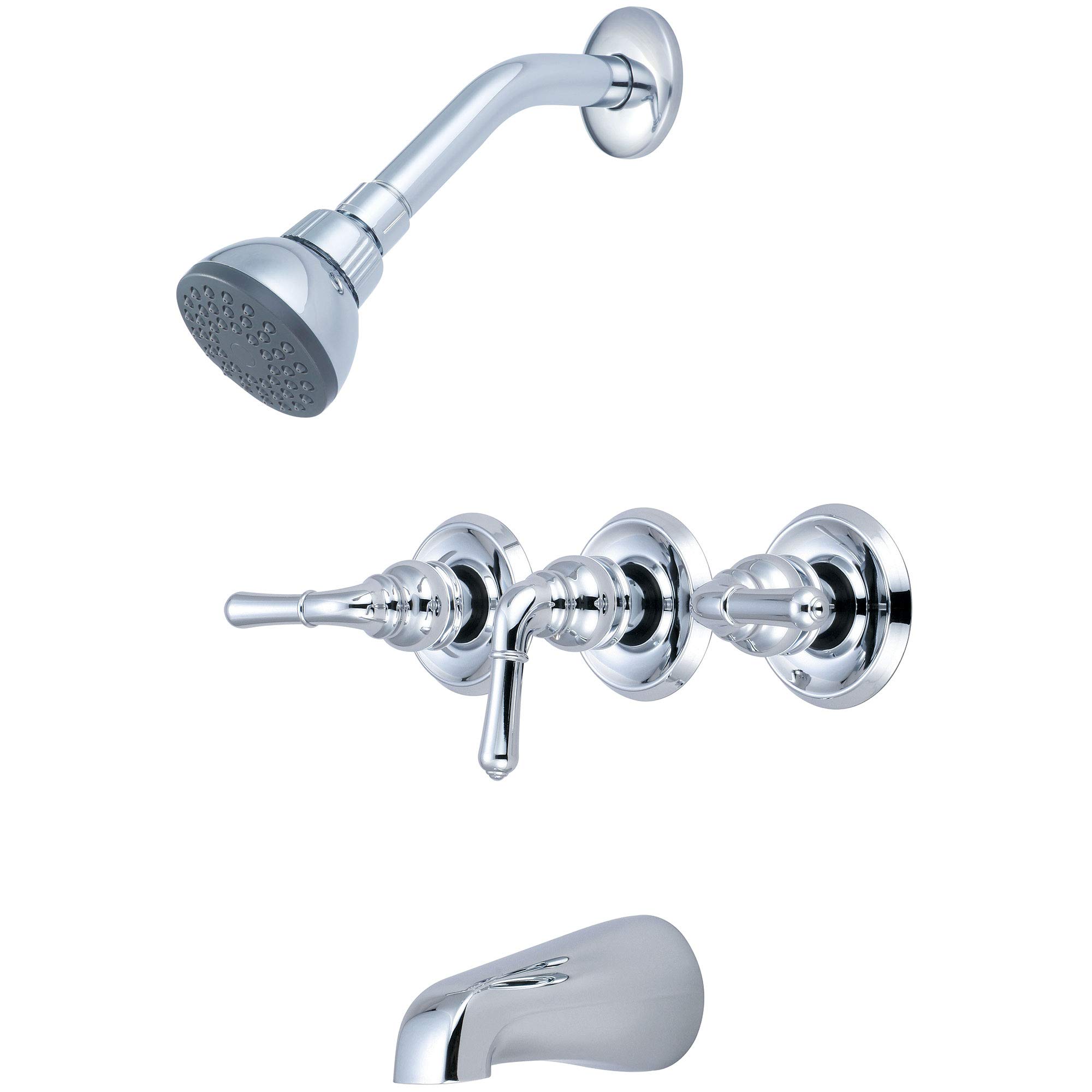

Image 1.1: The Olympia Faucets P-3230 Three Handle Tub/Shower Set in Polished Chrome.
2. Безбедносне информације
- Always turn off the main water supply before attempting any installation or repair.
- Носите одговарајућу личну заштитну опрему, као што су заштитне наочаре и рукавице, током инсталације.
- Уверите се да су сви спојеви безбедни и водонепропусни како бисте спречили цурење.
- Test water temperature carefully before use to avoid scalding.
- Ако нисте сигурни у вези са било којим делом процеса инсталације, консултујте квалификованог водоинсталатера.
3. Садржај пакета
Verify that all components are present before beginning installation. Refer to the exploded diagram below for part identification.
Слика 3.1: Расклопљено view diagram showing all components of the P-3230 Tub/Shower Set.
Типичне компоненте укључују:
- Глава туша
- Рука за туширање и прирубница
- Hot Water Handle
- Cold Water Handle
- Дивертер Хандле
- Туб Споут
- Valve Body (8" cast brass)
- Mounting Hardware and Gaskets
4. Подешавање и инсталација
Professional installation is recommended for optimal performance and to ensure compliance with local plumbing codes. The following steps provide a general overview процеса инсталације.
- Припремите простор за инсталацију: Turn off the main water supply. Clear the work area and ensure you have all necessary tools.
- Инсталирајте тело вентила: Mount the 8-inch cast brass valve body securely within the wall, ensuring it is level and at the correct depth for the finished wall surface. Connect the hot and cold water supply lines to the appropriate inlets on the valve body. Connect the shower outlet and tub spout outlet plumbing.
- Инсталирајте излив каде: Attach the tub spout to its designated pipe extending from the wall. Ensure a tight, leak-free connection.
- Install the Shower Arm and Showerhead: Thread the shower arm into the shower outlet in the wall. Apply plumber's tape to the threads for a watertight seal. Attach the showerhead to the shower arm.
- Инсталирајте ручке: Place the escutcheons (trim plates) over the valve stems. Install the hot, cold, and diverter handles onto their respective stems, securing them with the provided screws.
- Тест за цурење: Slowly turn on the main water supply and carefully check all connections for any signs of leakage. Address any leaks immediately.
- Коначна подешавања: Ensure all handles operate smoothly and the diverter functions correctly.
Image 4.1: The P-3230 Tub/Shower Set installed in a bathroom setting.
5. Упутство за употребу
Your Olympia Faucets P-3230 features three distinct handles for precise control over water flow and temperature.
- Hot Water Handle: Typically located on the left. Turn counter-clockwise to increase hot water flow.
- Cold Water Handle: Typically located on the right. Turn counter-clockwise to increase cold water flow.
- Diverter Handle: Located in the center. Turn this handle to switch water flow between the tub spout and the showerhead.
To achieve your desired water temperature, adjust the hot and cold handles simultaneously. To switch from tub spout to showerhead, ensure water is flowing, then turn the center diverter handle.
6. Одржавање
Proper care and maintenance will ensure the longevity and appearance of your tub/shower set.
- Чишћење: Clean the polished chrome finish regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Провере цурења: Periodically inspect all visible connections for any signs of leaks. Tighten connections as needed, but do not overtighten.
- Замена кертриџа: If you experience persistent dripping or difficulty controlling water temperature, the internal cartridges may need replacement. Consult a qualified plumber or Olympia Faucets customer support for guidance on obtaining and installing replacement cartridges.
КСНУМКС. Решавање проблема
Below are common issues and potential solutions for your tub/shower set.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Низак притисак воде | Partially closed shut-off valves; clogged showerhead or aerator. | Ensure shut-off valves are fully open. Clean or replace showerhead/aerator. |
| Water Leaks from Handles | Лабава заптивна навртка; истрошен кертриџ. | Tighten packing nut slightly. Replace the cartridge if tightening does not resolve the leak. |
| Water Leaks from Tub Spout/Showerhead | Loose connections; worn O-rings or seals. | Check and tighten connections. Replace O-rings or seals as necessary. |
| Difficulty Diverting Water | Worn diverter cartridge. | Replace the diverter cartridge. |
If these solutions do not resolve the issue, please contact Olympia Faucets customer support or a qualified plumber.
8. Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | Олимпиа |
| Број модела | П-3230 |
| Боја | Полирани хром |
| Материјал | Месинг |
| Финисх Типе | Цхроме |
| Број дршке | 3 |
| Тип монтаже | Валл Моунт |
| Showerhead Size | 57мм |
| Споут Реацх | 5.25 инча |
| УПЦ | 763439850614 |
| Произвођач | Olympia Faucets |
9. Гаранција и подршка
Your Olympia Faucets P-3230 Three Handle Tub/Shower Set is backed by a Ограничена доживотна гаранцијаОва гаранција покрива недостатке у материјалу и изради при нормалној употреби и сервисирању.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Olympia Faucets customer support. Keep your proof of purchase for warranty validation.
За више информација посетите Olympia Faucets Store.
