Dolle Eliot Adjustable Shelf Support Instruction Manual

1. Увод

This manual provides detailed instructions for the installation, operation, and maintenance of the Dolle Eliot Adjustable Shelf Support. This product is designed to securely hold shelves ranging from 3/16 inch to 1-1/2 inches in thickness. Please read this manual thoroughly before installation and retain it for future reference.

2. Безбедносне информације

Always follow basic safety precautions when installing or using this product to reduce the risk of injury or damage.

• Ensure the mounting surface is structurally sound and capable of supporting the weight of the shelf and its contents.
• Use appropriate fasteners for your wall type (e.g., wood studs, drywall anchors, masonry anchors). Fasteners are not included.
• Do not overload shelves. Refer to the shelf manufacturer's recommendations for weight limits.
• Држите мале делове даље од деце како бисте спречили опасност од гушења.
• Носите заштитне наочаре током инсталације да бисте заштитили очи.

3. Садржај пакета

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Dolle customer support.

• 1 x Dolle Eliot Adjustable Shelf Support (Model 15491)
• Note: Mounting hardware (screws, anchors) is not included and must be purchased separately based on your wall type.

4. Подешавање и инсталација

Потребни алати (нису укључени): Pencil, Level, Drill, Drill bits, Screwdriver, Measuring tape.

4.1 Preparing the Mounting Surface

1. Determine the desired height and location for your shelf.
2. Use a level and pencil to mark the precise mounting points for the shelf support. Ensure marks are level and spaced appropriately for your shelf length.
3. Identify the type of wall material (e.g., drywall, wood stud, concrete) to select appropriate mounting hardware.

4.2 Монтирање носача

1. Pre-drill pilot holes at the marked locations, if necessary, according to your chosen mounting hardware specifications.
2. Position the Dolle Eliot Adjustable Shelf Support against the wall, aligning its mounting holes with the pre-drilled holes.
3. Secure the support firmly to the wall using appropriate screws and anchors (not supplied). Ensure the support is level and stable.

4.3 Placing the Shelf

Once the support is securely mounted, you can place your shelf. The support is designed to accommodate shelves between 3/16 inch and 1-1/2 inches thick.

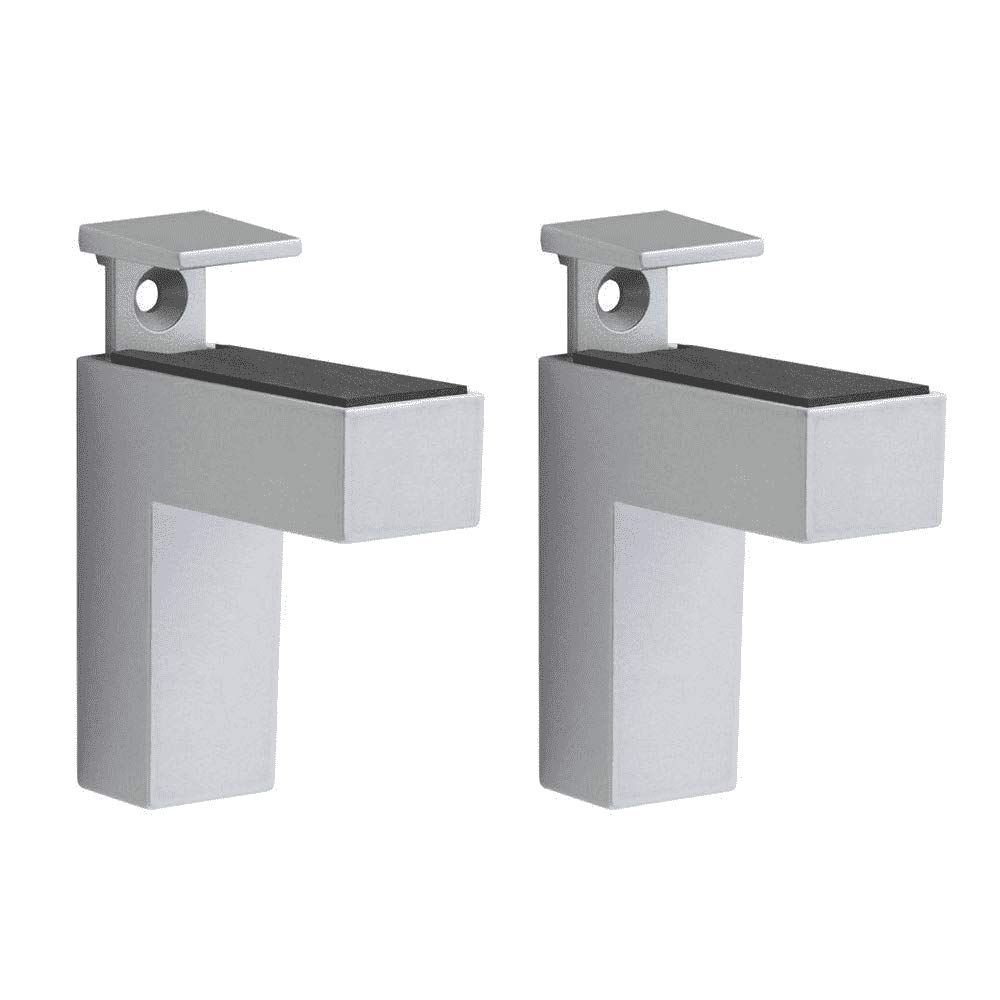

Figure 1: Dolle Eliot Adjustable Shelf Support. This image shows the silver metal support designed to hold a shelf, highlighting its adjustable mechanism.

5. Руковање и подешавање

The Dolle Eliot Shelf Support features an adjustable mechanism to securely grip shelves of varying thicknesses.

1. To adjust the grip, locate the adjustment screw or mechanism on the support.
2. Loosen the mechanism slightly to allow the shelf to be inserted.
3. Place your shelf onto the support.
4. Tighten the adjustment mechanism until the shelf is held firmly and securely without wobbling. Do not overtighten, as this may damage the shelf.
5. Periodically check the tightness of the adjustment mechanism to ensure the shelf remains secure.

6. Одржавање

To maintain the appearance and functionality of your Dolle Eliot Adjustable Shelf Support:

• Чишћење: Wipe with a dry cloth to remove dust and dirt. Avoid abrasive cleaners or harsh chemicals, which may damage the finish.
• инспекција: Periodically inspect the support and its mounting hardware for any signs of loosening or damage. Tighten screws as needed.

КСНУМКС. Решавање проблема

If you encounter issues with your Dolle Eliot Adjustable Shelf Support, refer to the following common problems and solutions:

• Полица није равна:
  • Ensure the support itself is mounted level. Re-adjust if necessary.
  • Check if the shelf is warped or uneven.
• Shelf feels loose or wobbly:
  • Tighten the adjustment mechanism on the support.
  • Verify that the support is securely fastened to the wall. Re-tighten mounting screws if loose.
  • Ensure the shelf thickness is within the specified range (3/16 in. - 1-1/2 in.).
• Support seems unstable:
  • Confirm that appropriate mounting hardware was used for your wall type and that it is installed correctly.
  • Ensure the wall itself is strong enough to bear the load.

8. Спецификације

Note: The "Mounting Type: Floor Mount" specification appears to be an error in the source data. This product is designed for wall-mounted shelves.

9. Гаранција и подршка

Dolle products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or to purchase replacement parts, please visit the official Dolle webсајт или контактирајте њихову службу за кориснике. Сачувајте рачун као доказ о куповини.

Dolle Official Webсајт: www.dolle.com (Напомена: Ово је резервисано место URL as no specific link was provided.)
