Увод
The Odyssey LSPAR20B is a versatile black aluminum PAR 20 light fixture designed for various lighting applications, including DJ setups, architectural lighting, and accentuating specific areas like tables, backdrops, and hallways. This manual provides essential information for the safe and effective use of your light fixture.
Key features include a durable black aluminum exterior, an E26/E27 medium screw bulb base (lamp not included), an octagonal gel frame with an easy-secure spring clip, and an Edison 3-prong A/C cord with a 3.5-inch hanging yoke.
Безбедносне информације
Please read and understand all safety instructions before installing or operating this fixture. Failure to do so may result in electric shock, fire, or personal injury.
- електрична безбедност: Уверите се да је напајање волtage matches the fixture's requirements. Always disconnect power before servicing or changing the lamp.
- Lamp Компатибилност: Use only PAR 20 lamps with an E26/E27 medium screw base that are rated for the fixture's wattagе. Немојте прекорачити максималну снагуtagе специфицирано за уређај.
- топлота: Lighting fixtures generate heat. Allow sufficient cooling time before handling. Do not operate near flammable materials.
- Монтажа: Securely mount the fixture using the provided hanging yoke. Ensure the mounting surface can support the weight of the fixture.
- вентилација: Do not obstruct ventilation openings. Ensure adequate airflow around the fixture to prevent overheating.
- Само за унутрашњу употребу: This fixture is designed for indoor use. Do not expose to moisture or outdoor elements.

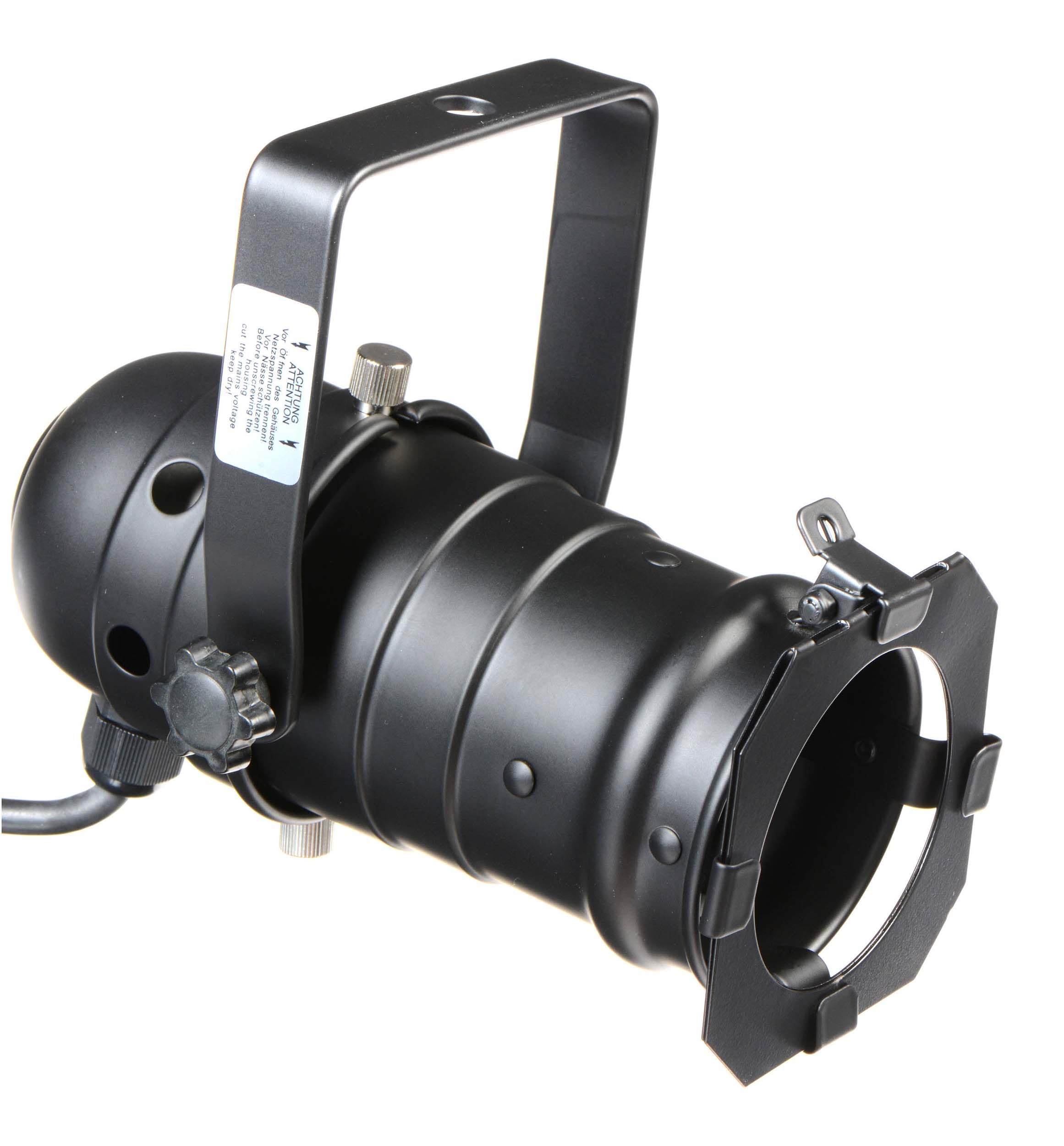

Слика 1: Сиде view of the Odyssey LSPAR20B PAR 20 Light Fixture, showing the "ATTENTION" warning label regarding electrical safety and lamp спецификације.
Садржај пакета
Проверите да ли су све ставке присутне у пакету:
- Odyssey PAR 20 Pro PAR Can Black (LSPAR20B)
- Octagonal Gel Frame
- Edison 3-Prong A/C Cord
- 3.5-inch Hanging Yoke
- Напомена: Лamp (bulb) is not included and must be purchased separately.
Сетуп
- Инсталирајте Лamp:
- Ensure the fixture is unplugged from any power source.
- Carefully screw an E26/E27 medium screw base PAR 20 lamp (not included) into the bulb socket. Do not overtighten.
- Проверите да ли је лamp ватtage does not exceed the fixture's maximum rating.
- Attach the Gel Frame:
- Оцtagonal gel frame can be inserted into the front of the fixture.
- Secure it using the easy-secure gel frame spring clip to hold color gels or diffusion filters (not included) in place.
- Монтажа уређаја:
- The 3.5-inch hanging yoke allows for versatile mounting.
- Користите одговарајући цлamps or hardware (not included) to securely attach the yoke to a truss, stand, or other stable structure.
- Adjust the angle of the fixture using the side knobs on the yoke, then tighten to secure the desired position.
Слика 2: Фронт view of the Odyssey LSPAR20B PAR 20 Light Fixture, illustrating the octagonal gel frame attachment point.

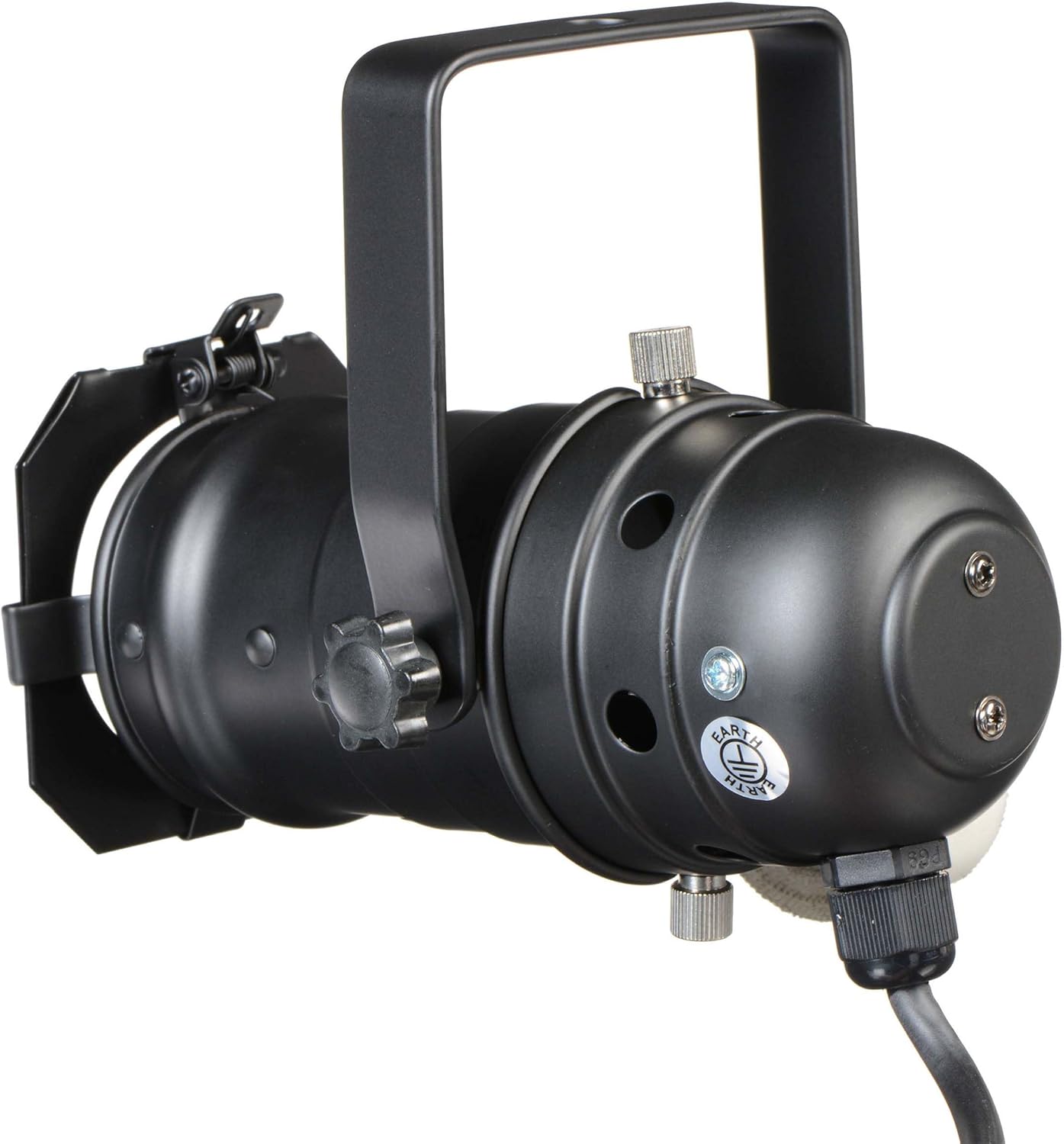

Слика 3: Позади view of the Odyssey LSPAR20B PAR 20 Light Fixture, showing the power cord connection and ventilation holes.
Упутство за употребу
- Прикључак за напајање:
- Једном када је лamp is installed and the fixture is securely mounted, plug the Edison 3-prong A/C cord into a compatible power outlet.
- Активација:
- The fixture will illuminate upon receiving power. There is no on/off switch directly on the unit.
- To control power, use an external switch, dimmer, or power strip.
- Подешавање смера светлости:
- Loosen the side knobs on the hanging yoke to adjust the tilt angle of the fixture.
- Once the desired angle is achieved, tighten the knobs firmly to secure the position.
Одржавање
- Чишћење:
- Искључите напајање пре чишћења.
- Wipe the exterior of the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ensure ventilation holes are free from dust and debris.
- Lamp Замена:
- Always disconnect power and allow the fixture to cool completely before attempting to replace the lamp.
- Одврните стари лamp and carefully screw in a new, compatible PAR 20 lamp with an E26/E27 base.
- инспекција: Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and replace the cord.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Уређај се не пали. | Нема струје у утичници. Lamp is burnt out or loose. Неисправан кабл за напајање. | Проверите утичницу са другим уређајем. Замените лamp or ensure it is screwed in tightly. Проверите кабл за напајање да ли је оштећен; замените га ако је потребно. |
| Светло трепери. | Лоосе лamp везу. Incompatible dimmer (if used). Lamp приближавајући се крају живота. | Затегните лamp у утичницу. Ensure dimmer is compatible with PAR 20 lamps. Замените лamp. |
| Уређај се прекомерно загрева. | Нетачно лamp ватtage. Лоша вентилација. | Осигурати лamp ватtage does not exceed fixture's maximum rating. Clear any obstructions around ventilation holes. |
Спецификације
| Назив модела | LSPAR20B |
| Бранд | Одисеја |
| Боја | Црно |
| Материјал | Aluminum (Exterior) |
| Булб Басе | E26/E27 Medium Screw (Standard Household Base) |
| Lamp Укључено | бр |
| Повер Цорд | Edison 3-Prong A/C Cord |
| Hanging Yoke | 3.5 инча |
| Approx. Dimensions (W x D x H) | 4.5 cm x 6.75 cm x 3.5 cm |
| Прибл. Тежина | 0.7 фунти (0.32 кг) |
| УПЦ | 807822080490 |
Информације о гаранцији
This Odyssey LSPAR20B light fixture is covered by a limited warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Odyssey customer support.
Подршка
For technical assistance, replacement parts, or further inquiries, please visit the official Odyssey website or contact their customer support department. You can find more information and products at the Odyssey Store on Amazon.
