Insignia NS-CA103 3.5mm Cassette Adapter User Manual

Увод

The Insignia NS-CA103 3.5mm Cassette Adapter allows you to connect modern audio devices, such as MP3 players, cell phones, or tablets, to older cassette players. This adapter facilitates the playback of digital audio through a cassette player's audio system, utilizing a standard 3.5mm headphone jack connection. It is designed to provide increased stereo separation for improved sound clarity.

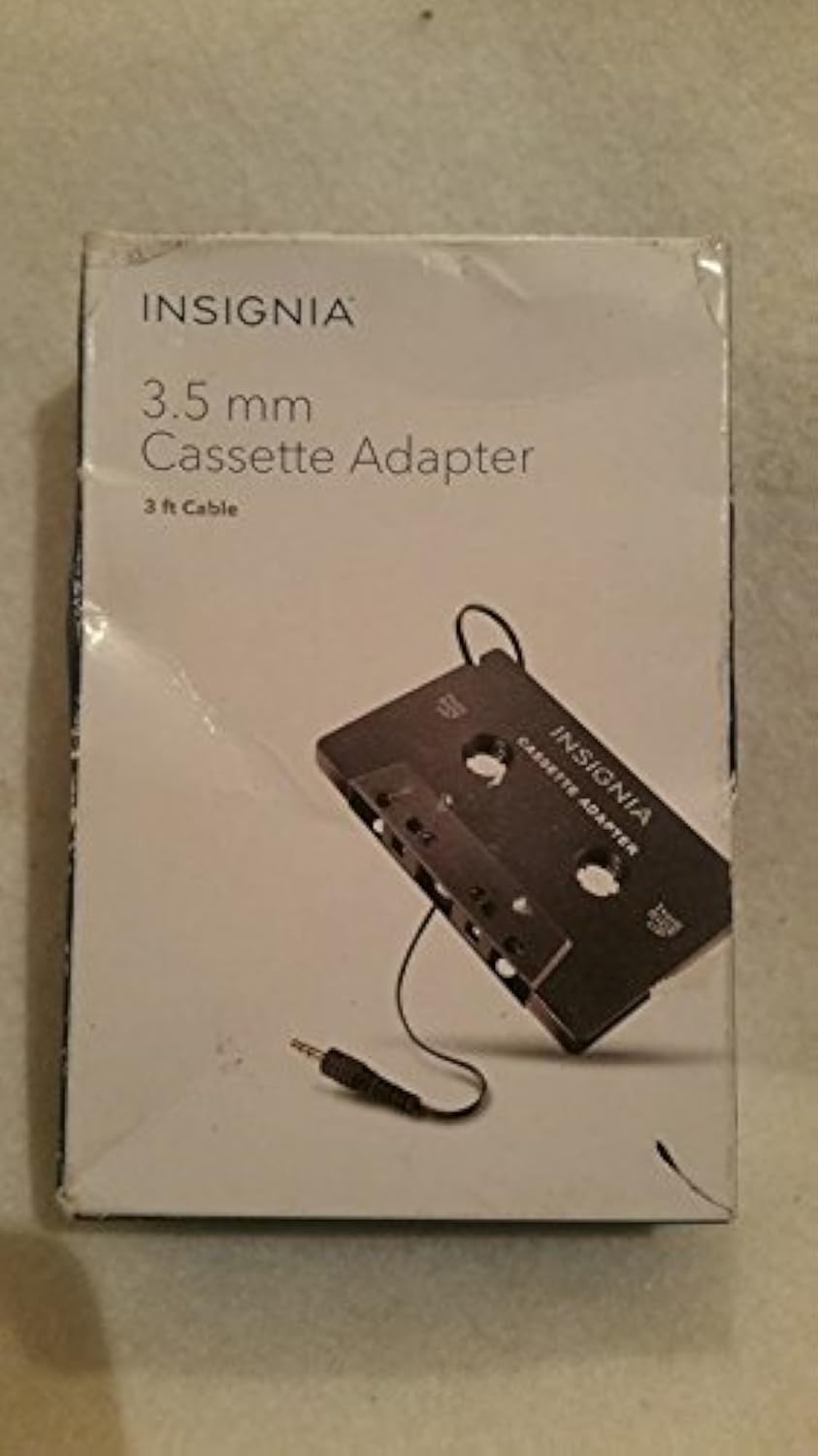

Insignia 3.5mm Cassette Adapter product packaging

Image: Insignia 3.5mm Cassette Adapter in its retail packaging.

Садржај пакета

Insignia NS-CA103 3.5mm Cassette Adapter with integrated 3 ft. cable

Сетуп

Follow these steps to connect and prepare your Insignia NS-CA103 Cassette Adapter for use:

Prepare Cassette Player: Set the volume of your cassette player to a minimum setting.
Повежите аудио уређај: Connect the 3.5mm plug from the cassette adapter into the headphone jack of your portable audio player (e.g., MP3 player, cell phone, tablet).
Уметни адаптер: Insert the cassette adapter into the cassette deck of your cassette player. Ensure the side labeled "THIS SIDE UP" is facing the correct direction for your cassette player.
Set Audio Device Volume: Set the volume of your portable audio player to a middle level.

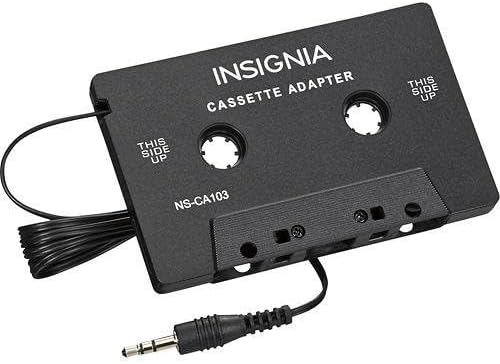

Insignia 3.5mm Cassette Adapter with 3.5mm jack

Image: The Insignia NS-CA103 Cassette Adapter showing the cassette body and the attached 3.5mm audio jack.

Упутство за употребу

Once the adapter is set up, you can begin playing audio:

Започни репродукцију: Begin playing audio on your connected portable audio device.
Adjust Cassette Player Volume: Gradually adjust the volume on your cassette player to the desired listening level.
Fine-tune Volume: If needed, make minor adjustments to the volume on your portable audio device to achieve optimal sound quality and balance.
Уклањање: When not in use, remove the cassette adapter from the cassette player to prevent unnecessary wear on the cassette player's mechanism.

Back of Insignia 3.5mm Cassette Adapter packaging with instructions

Image: Back of the Insignia 3.5mm Cassette Adapter packaging, displaying setup and operating instructions.

Одржавање

To ensure the longevity and optimal performance of your cassette adapter:

Складиштење: Store the adapter in a clean, dry place away from extreme temperatures and direct sunlight.
Чишћење: Wipe the adapter with a soft, dry cloth. Do not use liquid cleaners or solvents.
Нега каблова: Избегавајте оштре кривине или прегибе кабла како бисте спречили оштећење унутрашњих жица.
Руковање: Handle the adapter gently, especially when inserting and removing it from the cassette player.

Решавање проблема

Проблем	Решење
Нема звука или је јачина звука ниска:	Ensure the 3.5mm plug is fully inserted into your audio device's headphone jack. Check that the cassette adapter is correctly inserted into the cassette player. Increase the volume on both your portable audio device and the cassette player. Verify that your portable audio device is playing audio.
Poor sound quality (static, distortion):	Adjust the volume levels on both your portable audio device and the cassette player. Overdriving the signal can cause distortion. Ensure the cassette player's heads are clean. Try a different audio source or portable device to rule out issues with the source audio. Ensure the adapter is fully inserted and not loose.
Cassette player ejects adapter:	Ensure the adapter is inserted correctly and fully into the cassette deck. Some cassette players may have difficulty with adapters; try gently re-inserting.

Спецификације

Број модела	NS-CA103
Бранд	ИНСИГНИА
Тип конектора	Auxiliary (3.5mm)
Цабле Ленгтх	3 ft. (approximately 0.91 meters)
Компатибилни уређаји	Devices with a 3.5mm headphone jack (MP3 Players, Cell Phones, Tablets)
Димензије артикла (Д к Ш к В)	15.2 к 10.2 к 3 центиметара
Тежина артикла	0.02 фунти (приближно 9 грама)
УПЦ	600603165047

Информације о гаранцији

This Insignia NS-CA103 3.5mm Cassette Adapter is covered by a 1-годишња ограничена гаранција. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Insignia customer support.

Корисничка подршка

For technical assistance, warranty claims, or further information regarding your Insignia NS-CA103 3.5mm Cassette Adapter, please contact Insignia customer support. Contact details can typically be found on the product packaging or the official Insignia webсајту.
