1. Увод
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Pentair 06 Diffuser. Please read these instructions thoroughly before beginning installation or operation to ensure proper function and to prevent damage or injury. Keep this manual for future reference.
2. Безбедносне информације
УПОЗОРЕЊЕ: Непоштовање ових упутстава може довести до озбиљних повреда или смрти.
- Always disconnect power to the pump before attempting any installation, service, or maintenance.
- Installation and service must be performed by a qualified pool professional in accordance with all applicable local and national codes.
- Уверите се да су сви водоводни прикључци безбедни и водонепропусни како бисте спречили цурење.
- Do not operate the pump if the diffuser or any other component is damaged.
- Носите одговарајућу личну заштитну опрему (ЛЗО) као што су заштитне наочаре и рукавице током инсталације и одржавања.
3. Производ је готовview
The Pentair 06 Diffuser is a critical component designed for specific Pentair pool pump models (3F 50hz and 5F 60hz). It plays a vital role in directing water flow within the pump's wet end, optimizing hydraulic performance and efficiency. This part ensures proper water movement through the impeller for effective filtration and circulation.
- Pentair Pool Products Part Number: 355069
- Catalog Part Number: 5002-06ДА

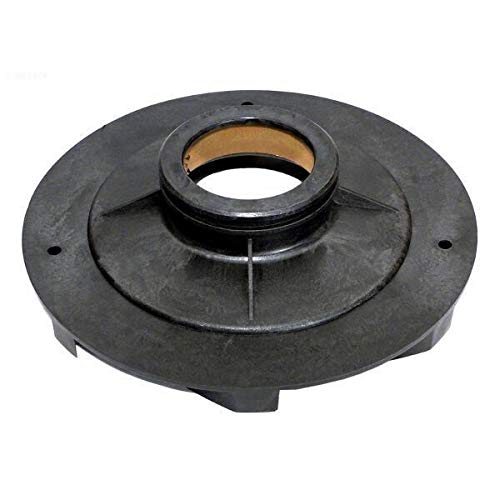

Image showing the Pentair 06 Diffuser, a component designed for pool pump systems. This part is essential for directing water flow within the pump.
4. Подешавање и инсталација
4.1 Потребан алат
- Сет одвијача (Прстоглави и равни)
- Вренцх сет
- Sealant or thread tape (if applicable for pump housing)
- Replacement gaskets/O-rings (if needed)
4.2 Кораци инсталације
- Искључите напајање: Ensure the pump's power supply is completely disconnected at the circuit breaker.
- Одводна пумпа: If the pump is full of water, open the drain plugs to empty it.
- Remove Pump Housing: Carefully unbolt and remove the wet end housing or volute from the motor assembly. Note the position of all components and fasteners.
- Remove Old Diffuser: Locate the existing diffuser. It is typically positioned between the pump housing and the impeller. Gently remove it, noting its orientation.
- Прегледајте и очистите: Inspect the pump housing and impeller for any debris, wear, or damage. Clean any accumulated dirt or scale. Replace any worn gaskets or O-rings.
- Install New Diffuser: Position the new Pentair 06 Diffuser (Model 355069) correctly within the pump housing. Ensure it seats properly and aligns with the impeller.
- Поново саставите пумпу: Carefully reattach the pump housing or volute to the motor assembly, ensuring all bolts are tightened evenly and securely. Do not overtighten.
- Проверите да ли има цурења: Once reassembled, reconnect the power and prime the pump according to the pump manufacturer's instructions. Monitor for any leaks around the housing.
5. Операција
The Pentair 06 Diffuser operates as an internal component of your pool pump. Once correctly installed, it works in conjunction with the impeller to efficiently move water. No direct user interaction is required for the diffuser itself during normal pump operation. Ensure your pump is properly primed and operating within its specified parameters for optimal performance and longevity of all components, including the diffuser.
6. Одржавање
Regular inspection and maintenance of your pool pump system will help ensure the longevity of the Pentair 06 Diffuser and overall pump efficiency.
- Годишња инспекција: During routine pump maintenance (e.g., seal replacement), inspect the diffuser for cracks, wear, or debris accumulation.
- Очистите крхотине: If the pump is disassembled, gently clean any debris or mineral deposits from the diffuser using a soft brush and mild cleaner. Avoid harsh chemicals that could damage the plastic.
- Проверите поравнање: Ensure the diffuser remains properly seated and aligned within the pump housing. Misalignment can lead to reduced performance or damage.
КСНУМКС. Решавање проблема
If you experience issues with your pool pump after installing or while using the Pentair 06 Diffuser, refer to the table below for common problems and solutions.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Смањени проток воде | Clogged diffuser or impeller; air leak in suction line; pump not primed. | Inspect and clean diffuser/impeller. Check for and seal air leaks. Re-prime the pump. |
| Пумпа ствара необичну буку | Debris in pump; worn bearings; cavitation due to restricted flow. | Shut off power, inspect for debris. Ensure proper water flow to the pump. Consult a professional if bearings are suspected. |
| Water Leaking from Pump Housing | Improperly seated housing; damaged gasket/O-ring; loose bolts. | Disconnect power, drain pump. Re-seat housing, replace gaskets/O-rings, tighten bolts evenly. |
8. Спецификације
| Атрибут | Валуе |
|---|---|
| Назив производа | 06 - Diffuser 3F 50hz. 5F 60hz |
| Бранд | Пентаир |
| Број модела ставке | 355069 |
| Каталошки број дела | 5002-06ДА |
| Димензије производа | 7 к 7 к 5 инча |
| Тежина артикла | 8 унци |
| Произвођач | Пентаир |
9. Гаранција и подршка
Pentair products are manufactured to high-quality standards. For specific warranty information regarding your Pentair 06 Diffuser (Model 355069), please refer to the documentation included with your original pump purchase or visit the official Pentair webсајт. Гарантни услови обично покривају производне недостатке при нормалној употреби.
For technical assistance, replacement parts, or further support, please contact Pentair Customer Service or an authorized Pentair dealer. Have your product model number (355069) and any relevant purchase information ready when contacting support.
Званичник Пентера Webсајт: ввв.пентаир.цом
