SONGMICS LJB93W

SONGMICS Adjustable Bar Stool with Armrests (Set of 2)

Model: LJB93W

1. Безбедносне информације

Молимо вас да прочитате и разумете сва безбедносна упозорења пре склапања и употребе.

  • Максимални капацитет тежине: Do not exceed the recommended weight of 120 kg (264 lbs).
  • Стабилност: Do not use the bar stools on stairs or uneven surfaces where they may tip over. Ensure the base is always on a flat, stable surface.
  • Скупштина: Ensure all screws and connections are securely tightened before use. Periodically check and re-tighten as necessary.
  • деца: Keep children away from the product during assembly. Do not allow children to play on or with the bar stools without adult supervision.
  • гас лифт: The gas lift cylinder contains pressurized gas. Do not attempt to disassemble or puncture it.

2. Садржај пакета

Проверите да ли су све компоненте присутне пре почетка монтаже.

  • 2 x Bar Stool Seats with Backrests and Armrests
  • 2 x Accessory Packs (containing screws, washers, and tools)
  • 2 x Gas Lift Cylinders
  • 2 x Footrests
  • 2 x Base Plates
  • 1 к Упутство за употребу

3. Упутство за монтажу

Assembly is required. Follow these steps for quick and easy setup.

  1. Припремите базу: Place the large chrome base plate on a flat, stable surface. Insert the gas lift cylinder into the central hole of the base plate. Ensure the anti-slip plastic ring is correctly positioned on the underside of the base to protect your floor.
  2. Причврстите ослонац за ноге: Slide the footrest ring over the top of the gas lift cylinder.
  3. Припремите седиште: Carefully remove any protective plastic caps from the top of the gas lift cylinder. This is crucial for the height adjustment mechanism to function correctly.
  4. Повежите седиште са гасом за подизање: Align the mounting plate under the seat with the top of the gas lift cylinder. Press down firmly to secure the seat onto the gas lift.
  5. Secure the Seat: Using the provided screws and tools from the accessory pack, attach the seat to the gas lift mechanism. Typically, there are 8 screws to secure the padded seat to the metal frame.
Hand removing a white plastic cap from a metal cylinder
Image: Removing Protective Cap
Ensure to remove the protective plastic cap from the gas lift cylinder before assembly to allow proper height adjustment.
Two white bar stools with chrome bases and footrests
Image: Assembled Bar Stools
A view of the two bar stools fully assembled, ready for use.

4. Упутство за употребу

Your SONGMICS bar stools are designed for ease of use and comfort.

4.1 Подешавање висине

Да бисте подесили висину седишта:

  • Да подигнете седиште: Lift the adjustment lever located under the seat while standing up. The seat will automatically rise.
  • Да спустите седиште: Lift the adjustment lever while seated. The seat will lower under your weight. Release the lever at the desired height.

4.2 Функција окретања од 360°

The seat can freely rotate 360 degrees, allowing for easy movement and interaction without needing to reposition the entire stool.

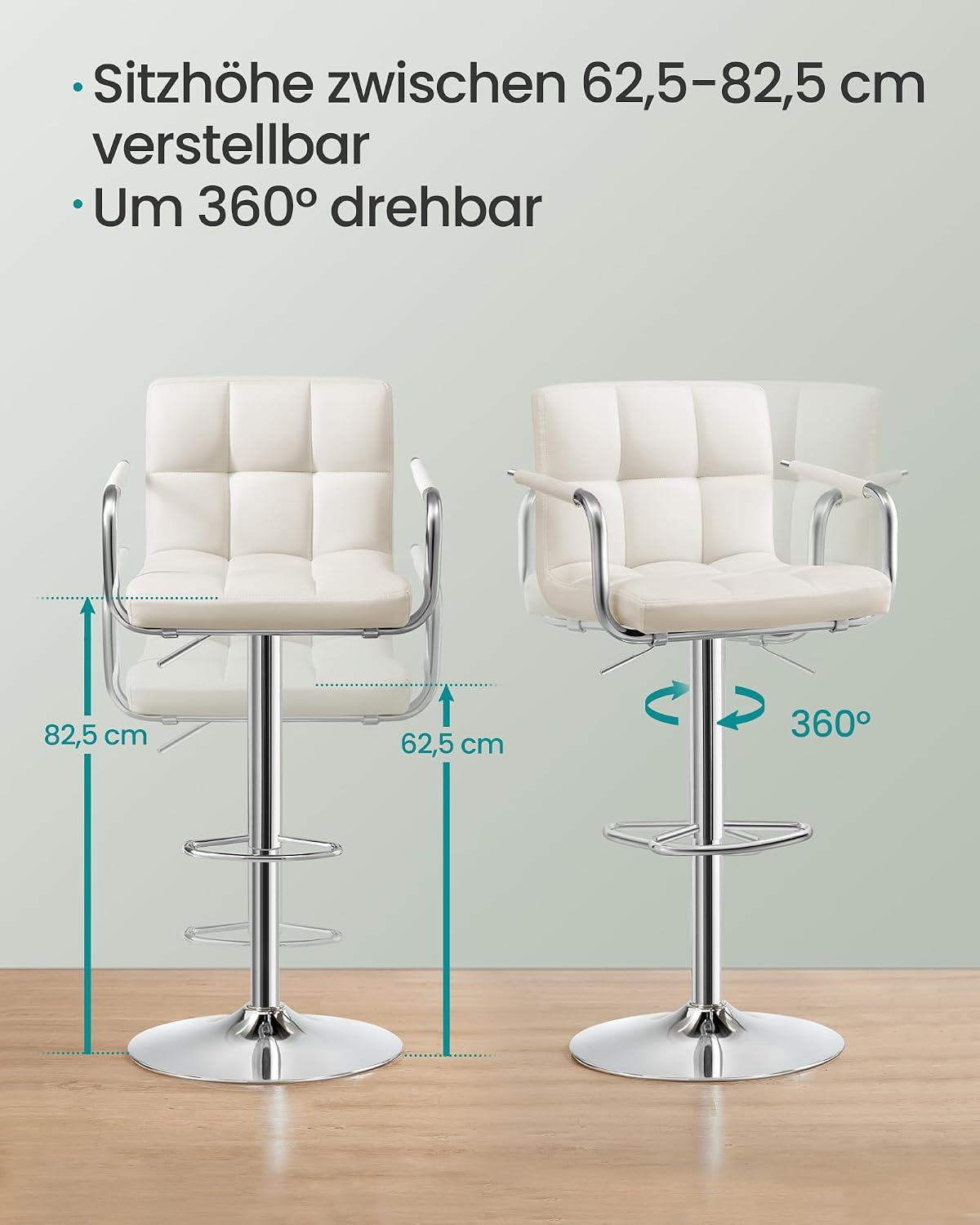

Diagram showing height adjustment range and 360 degree swivel function of a bar stool
Image: Height Adjustment and Swivel
Illustrates the adjustable height range (62.5 cm to 82.5 cm) and the 360-degree swivel capability.
Close-up of bar stool footrest, anti-slip ring, and height adjustment lever
Image: Footrest and Adjustment Lever
Details of the comfortable footrest, the anti-slip ring on the base, and the lever for height adjustment.

5. Одржавање

Правилна нега ће продужити век трајања и изглед ваших барских столица.

5.1 Чишћење

  • Тапацирунг од вештачке коже: Обришите меком крпом, дamp cloth. For stubborn stains, use a mild soap solution and then wipe dry immediately. Avoid abrasive cleaners or harsh chemicals.
  • Removable Armrest Covers: The armrest covers are removable for easy cleaning. Follow the care instructions on the label if available, or hand wash with mild soap and air dry.
  • Chrome-Plated Steel: Clean with a soft, dry cloth. For smudges or fingerprints, use a chrome cleaner or a damp cloth with a small amount of glass cleaner, then buff dry.
  • Основна плоча: After cleaning, ensure the base plate is thoroughly dried to prevent rust, especially if exposed to moisture.

5.2 Општа нега

  • Regularly check all screws and bolts to ensure they are tight. Re-tighten as needed to maintain stability.
  • Avoid prolonged exposure to direct sunlight or extreme temperatures, which can damage the faux leather.
  • Do not use sharp objects on the upholstery to prevent tears or punctures.
Hand cleaning a white faux leather seat with a grey cloth
Image: Cleaning the Seat
Demonstrates wiping the faux leather seat with a cloth for cleaning.
Close-up of white faux leather seat with features like easy care, breathable, durable, and removable armrest covers
Image: PU Surface Features
Highlights the easy-care, breathable, and durable nature of the faux leather surface, along with removable armrest covers.

КСНУМКС. Решавање проблема

Уобичајени проблеми и њихова решења.

  • Seat does not adjust height:
    Ensure that the protective plastic cap on the top of the gas lift cylinder has been completely removed during assembly. If it's still present, the gas lift cannot function.
  • Столица је климава:
    Check all assembly screws and bolts, especially those connecting the seat to the mechanism and the footrest to the gas lift. Tighten any loose connections. Ensure the base is on a flat, even surface.
  • Gas lift sinks or does not hold height:
    This indicates a potential issue with the gas lift cylinder. If the stool is still under warranty, contact customer support. Otherwise, a replacement gas lift may be required.
  • Scratches on the floor:
    Verify that the anti-slip plastic ring on the underside of the base plate is correctly installed and intact. If damaged, it may need replacement.

7. Спецификације

Број моделаLJB93W
Количина2 Bar Stools
БојаБела
МатеријалFaux Leather (Seat), Chrome-plated Steel (Frame, Base)
Димензије производа (Д x Ш x В)44.5 x 38 x 95-115 цм (17.5 x 15 x 37.4-45.3 инча)
Распон висине седишта62.5 - 82.5 цм (24.6 - 32.5 инча)
Басе Диаметер41 цм (16.1 инча)
Тежина артикла16.4 kg (36.2 lbs) per set
Препорука за максималну тежину120 кг (264 лбс)
Посебне карактеристикеHeight Adjustable, 360° Swivel, Armrests, Backrest, Footrest
Diagram showing detailed dimensions of the bar stool
Слика: Димензије производа
Detailed measurements of the bar stool, including height, width, depth, and base diameter.

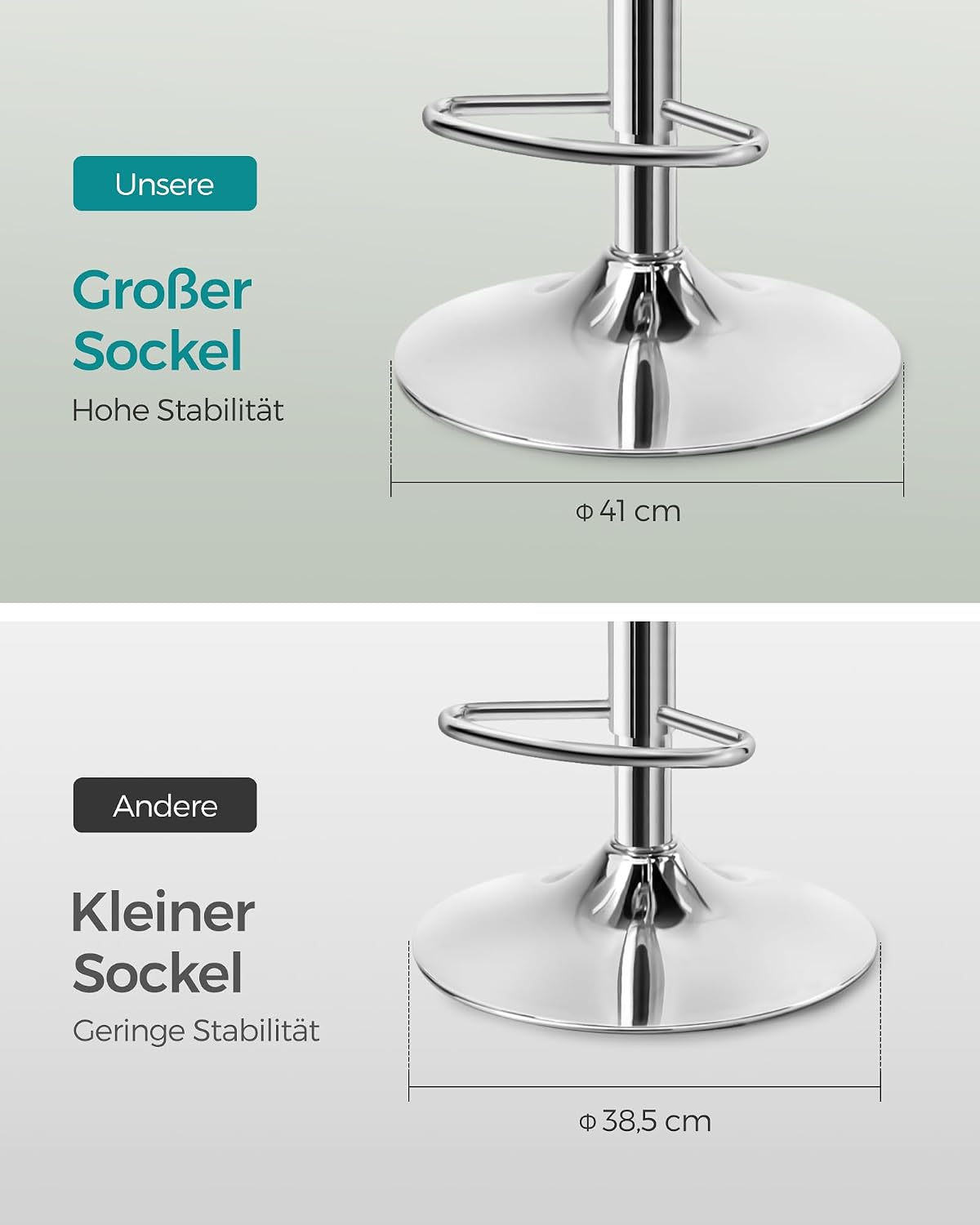

Comparison of a large 41cm diameter base versus a smaller 38.5cm diameter base
Image: Stable Base Comparison
Illustrates the large 41 cm diameter base for enhanced stability compared to smaller bases.

8. Гаранција и подршка

For warranty information or customer support, please refer to the documentation included with your purchase or contact SONGMICS directly through their official webсајт или продавницу где је производ купљен.

Молимо вас да сачувате доказ о куповини за евентуалне рекламације у вези са гаранцијом.
