ZOTAC ZBOX CI323 Nano Mini PC User Manual

Увод

Welcome to the ZOTAC ZBOX CI323 Nano Mini PC user manual. This guide provides essential information for setting up, operating, and maintaining your fanless mini PC. The ZBOX CI323 Nano is designed for quiet and efficient computing, featuring an Intel N3150 quad-core processor, Intel HD Graphics with 4K support, dual Gigabit LAN, 802.11ac Wi-Fi, and Bluetooth connectivity. Please read this manual thoroughly before using your device.

Садржај пакета

Verify that all the following items are included in your ZBOX CI323 Nano package:

• ZBOX-CI323NANO-U Unit
• АЦ адаптер
• Повер Цорд
• Ви-Фи антена
• ДВД са управљачким програмима
• User Manual & Warranty Card (This document serves as the user manual)
• Водич за брзи почетак
• VESA Monitor Mount (with 4 screws)
• Mini-Optical S/PDIF Adapter

Производ је завршенview и карактеристике

The ZOTAC ZBOX CI323 Nano is a compact, fanless mini PC engineered for silent operation and versatile performance. Its design allows for various placement options, making it suitable for diverse computing environments.

Карактеристике предњег панела

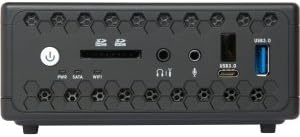

слика: Front panel of the ZBOX CI323 Nano, highlighting the power button, SD card reader, headphone and microphone jacks, a USB 3.0 port, and a USB Type-C port.

• Дугме за напајање: Press to power on or off the system.
• SD/SDHC/SDXC Card Reader: For convenient data transfer from memory cards.
• Излаз за слушалице: 3.5 мм прикључак за аудио излаз.
• Улаз за микрофон: 3.5mm jack for audio input.
• УСБ 3.0 порт (тип-А): Брзи пренос података за компатибилне уређаје.
• USB 3.0 Port (Type-C): Reversible connector for modern USB-C devices.

Карактеристике задњег панела

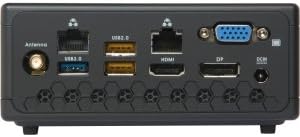

слика: Rear panel of the ZBOX CI323 Nano, featuring the Wi-Fi antenna connector, USB 3.0, USB 2.0, dual Gigabit Ethernet, HDMI, DisplayPort, VGA, and DC-in power input.

• Конектор за Wi-Fi антену: Attach the included Wi-Fi antenna for wireless connectivity.
• УСБ 3.0 порт (тип-А): Additional high-speed USB port.
• УСБ 2.0 портови (к2): За повезивање стандардних УСБ уређаја.
• Dual Gigabit Ethernet Ports: Provides robust wired network connectivity.
• ХДМИ 2.0 порт: Connect to a display for high-definition video and audio, supporting 4K resolution.
• ДисплаиПорт: Another digital video output, also supporting 4K resolution.
• ВГА порт: For connecting to older monitors or projectors.
• ДЦ-ин: Улаз за напајање за АЦ адаптер.

Остале карактеристике

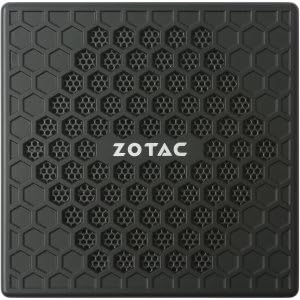

слика: Врх view of the ZBOX CI323 Nano, showcasing its fanless honeycomb design for passive cooling.

• Дизајн без вентилатора: Passive cooling ensures silent operation and reduces dust accumulation.
• Компактни фактор форме: Small footprint allows for flexible placement, including VESA mounting.
• Intel N3150 Quad-Core Processor: Efficient performance for daily computing tasks.
• Intel HD Graphics: Integrated graphics with native 4K support.
• 802.11ac Wi-Fi & Bluetooth 4.0: Fast wireless networking and peripheral connectivity.
• 2.5-inch SATA Drive Support: Accommodates SSD or HDD for storage (barebones system requires user installation).
• Dual Channel DDR3L-1600 SODIMM Slots: Supports up to 8GB of RAM (barebones system requires user installation).

Водич за подешавање

1. Installing Memory (RAM) and Storage (HDD/SSD)

The ZBOX CI323 Nano is a barebones system, meaning memory and storage are not pre-installed. Follow these steps to install them:

1. Power off the device and disconnect the AC adapter.
2. Carefully remove the bottom cover of the ZBOX. Refer to the Quick Start Guide for detailed instructions on opening the chassis.
3. Locate the two 204-pin DDR3L-1600 SODIMM slots. Insert the RAM modules firmly until they click into place.
4. Locate the 2.5-inch SATA drive bay. Connect your SSD or HDD to the SATA data and power connectors, then secure it in the bay.
5. Replace the bottom cover, ensuring it is securely fastened.

2. Повезивање периферних уређаја

Connect your essential peripherals to the ZBOX:

• Приказ: Connect your monitor(s) using the HDMI, DisplayPort, or VGA outputs. The system supports up to three displays simultaneously.
• тастатура и миш: Connect your USB keyboard and mouse to any available USB 2.0 or USB 3.0 ports.
• Мрежа: For wired internet, connect an Ethernet cable to one of the Gigabit LAN ports. For wireless, screw the included Wi-Fi antenna onto its connector on the rear panel.
• аудио: Connect headphones or speakers to the 3.5mm headphone jack on the front panel. If using the Mini-Optical S/PDIF Adapter, connect it to the headphone jack for digital audio output.

3. Укључивање

Once all peripherals are connected:

1. Connect the AC adapter to the DC-in port on the rear panel, then plug the power cord into an electrical outlet.
2. Притисните дугме за напајање на предњој плочи. Индикаторска лампица напајања ће се упалити.
3. The system will boot up. If no operating system is installed, you will need to proceed with OS installation.

4. Инсталација оперативног система

As a barebones system, an operating system is not included. You will need to install your preferred OS (e.g., Windows 10, Linux). Refer to the operating system's installation guide for specific steps. Ensure you have the necessary drivers, which can be found on the included Driver DVD or downloaded from the ZOTAC webсајту.

Упутство за употребу

• Тиха операција: Due to its fanless design, the ZBOX CI323 Nano operates silently. It is normal for the chassis to feel warm to the touch during operation, as this is how heat is dissipated.
• Репродукција 4K видеа: Utilize the HDMI 2.0 or DisplayPort outputs for native 4K resolution support. Ensure your display and cables are 4K compatible.
• ВЕСА монтажа: Use the included VESA mount to attach the ZBOX to the back of a compatible monitor or to a wall, saving desk space.
• Ажурирање BIOS-а: Updating the BIOS from the ZOTAC website may be beneficial for optimal performance and compatibility. Follow ZOTAC's official instructions carefully when performing BIOS updates.

Решавање проблема

Уобичајени проблеми и решења

• Нема излаза на екран:
  • Ensure the monitor is powered on and correctly connected to the ZBOX.
  • Verify the correct input source is selected on your monitor.
  • Try connecting to a different display port or using a different cable.
• Систем се не укључује:
  • Check that the AC adapter is securely connected to both the ZBOX and a working power outlet.
  • Уверите се да је дугме за напајање чврсто притиснуто.
• Operating System Installation Issues (e.g., USB drivers):
  • For Windows 7 installation, specific USB 3.0 drivers may be required during the setup process. ZOTAC provides tools or instructions for creating bootable media with integrated drivers. Refer to ZOTAC's support webсајт за детаљна упутства.
  • Ensure your installation media is not corrupted.
• No Wi-Fi or Bluetooth Connectivity:
  • Уверите се да је Wi-Fi антена безбедно причвршћена.
  • Check device manager in your operating system to confirm drivers are installed correctly.
  • Verify Wi-Fi and Bluetooth are enabled in your OS settings.
• Забринутост због прегревања:
  • While fanless, ensure the ZBOX is placed in a well-ventilated area, not enclosed, to allow for proper heat dissipation. Avoid blocking the ventilation grilles.

Техничке спецификације

Безбедносне информације

• Увек искључите адаптер за напајање пре чишћења или било каквог одржавања.
• Не излажите уређај влази, екстремним температурама или директној сунчевој светлости.
• Ensure proper ventilation around the device, even with its fanless design, to prevent heat buildup.
• Use only the provided AC adapter and power cord.
• Не покушавајте сами да отворите или поправите уређај, јер то може поништити гаранцију и представљати безбедносни ризик.

Гаранција и подршка

Your ZOTAC ZBOX CI323 Nano Mini PC comes with a limited warranty. Please refer to the included Warranty Card for specific terms and conditions. For technical support, driver downloads, and further assistance, visit the official ZOTAC webсајт на ввв.зотац.цом.
