Poulan Pro PPB40PS 40-Volt 8-inch Cordless Pole Saw Instruction Manual

Увод

Thank you for choosing the Poulan Pro PPB40PS 40-Volt 8-inch Cordless Pole Saw. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new pole saw. Please read all instructions carefully before use and retain this manual for future reference.

The Poulan Pro PPB40PS is a battery-powered pole saw designed for pruning branches and limbs in elevated positions, eliminating the need for cords or gasoline. It features an 8-inch bar and chain, an automatic oiler, and a front-adjust chain tensioning system for ease of use and maintenance.

Безбедносне информације

УПОЗОРЕЊЕ: Прочитајте и разумејте сва безбедносна упозорења, упутства, илустрације и спецификације које се испоручују са овим електричним алатом. Непоштовање свих доле наведених упутстава може довести до струјног удара, пожара и/или озбиљних повреда.

Општа безбедносна правила

• Безбедност на радном месту: Радно место одржавајте чистим и добро осветљеним. Неред или тамна места могу изазвати несреће. Немојте користити електричне алате у експлозивним атмосферама, као што је присуство запаљивих течности, гасова или прашине.
• електрична безбедност: Избегавајте контакт тела са уземљеним или уземљеним површинама као што су цеви, радијатори, пећи и фрижидери. Постоји повећан ризик од струјног удара ако је ваше тело уземљено.
• Лична безбедност: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear. Do not overreach. Maintain proper footing and balance at all times.
• Употреба и одржавање алата: Не форсирајте електрични алат. Користите одговарајући електрични алат за вашу примену. Искључите батерију из електричног алата пре него што извршите било каква подешавања, промените додатну опрему или складиштите електрични алат.

Pole Saw Specific Safety

• Надземне линије: Be aware of overhead power lines. Contact with power lines can cause severe injury or death. Maintain a safe distance from all electrical lines.
• Стабилно темеље: Always ensure stable footing when operating the pole saw. Do not operate from a ladder or unstable surface.
• повратни ударац: Будите свесни повратног удара. Повратни удар може настати када нос или врх водилице додирне неки предмет или када се дрво затвори и укљешти ланац тестере у резу.
• Правилан захват: Увек чврсто држите штапну тестеру обема рукама током рада.
• Пролазници: Keep bystanders, children, and animals at least 50 feet (15 meters) away from the work area.

Садржај пакета

Verify that all items are present and undamaged upon opening the package. If any parts are missing or damaged, do not operate the tool and contact customer service.

• Poulan Pro PPB40PS 40-Volt 8-inch Cordless Pole Saw Unit
• 40-волтна литијум-јонска батерија
• Пуњач батерија
• Упутство за употребу

Сетуп

1. Пуњење батерије

Before first use, fully charge the 40-Volt Lithium-Ion battery. Connect the charger to a standard power outlet and insert the battery. The indicator light on the charger will show the charging status. Refer to the charger's specific instructions for detailed charging procedures and times.

2. Склапање моторне тестере

The pole saw may come in multiple sections. Align the arrows on the pole sections and push them together until they click into place. Ensure the connection is secure.

Image: The Poulan Pro PPB40PS 40-Volt 8-inch Cordless Pole Saw fully assembled, showing the motor head, extended pole, and handle with battery slot.

3. Инсталирање батерије

With the pole saw turned off and the trigger lock engaged, slide the charged 40-Volt battery into the battery compartment on the handle until it clicks securely into place. Ensure it is fully seated to prevent accidental disconnection during operation.

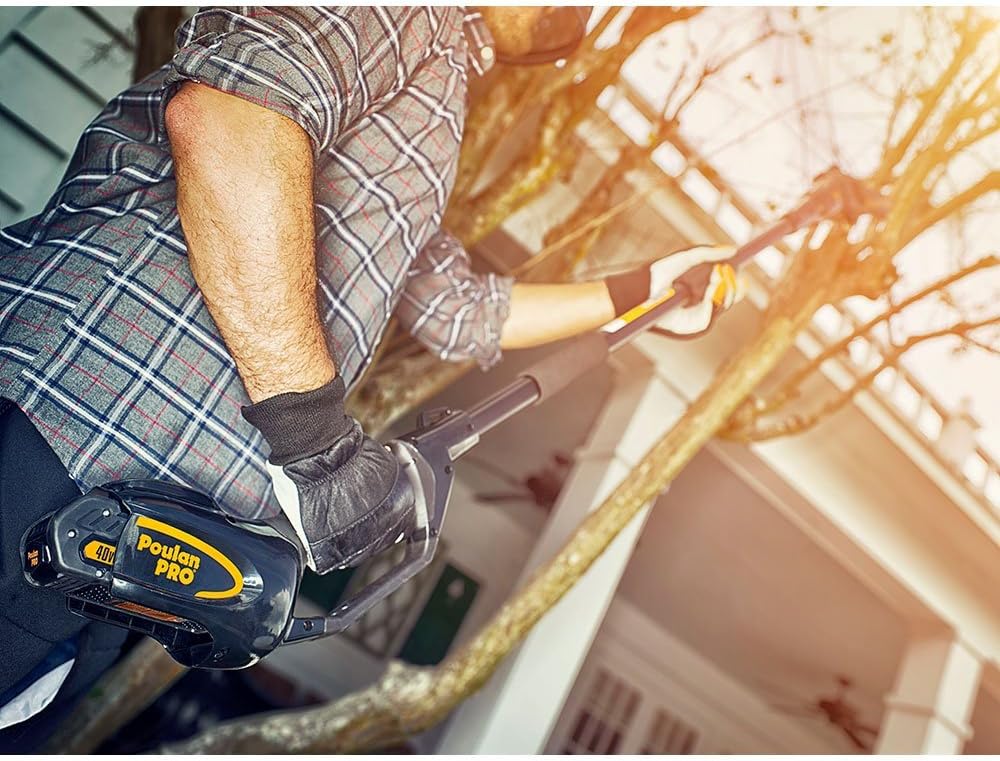

Image: A user demonstrating the proper way to hold the pole saw, with the battery pack clearly visible in the handle, indicating battery installation.

4. Checking Chain Tension and Oiler

The pole saw features a front-adjust chain tensioning system. Before each use, check the chain tension. The chain should be snug against the guide bar but still able to be pulled around by hand. Adjust as necessary using the tensioning screw. Also, ensure the automatic oiler reservoir is filled with appropriate bar and chain oil. The oil level indicator window allows for easy monitoring.

Упутство за употребу

1. Starting the Pole Saw

To start the pole saw, first ensure the battery is fully inserted. Then, press the safety lock-out button and squeeze the trigger. The instant start feature allows for immediate operation.

Слика: Крупни план view of the pole saw's handle, highlighting the yellow safety lock-out button and the main trigger for operation.

2. Proper Cutting Technique

• Assess the Branch: Before cutting, evaluate the branch size, direction of fall, and potential hazards. Plan your cuts to avoid pinching the bar or chain.
• Одржавање равнотеже: Always maintain a firm grip with both hands and ensure stable footing. Extend the pole only as far as necessary to reach the branch comfortably and safely.
• Cutting Position: Position the pole saw so that the branch is between the guide bar and the chain. Allow the saw to do the work; do not force it.
• Undercut and Overcut: For larger branches, make an undercut first (about 1/3 of the way through) to prevent bark stripping, then finish with an overcut from the top.
• Избегавајте повратни ударац: Be mindful of the guide bar tip. Avoid contact with other objects or the ground to prevent kickback.

Image: The cutting head of the Poulan Pro pole saw actively engaged in pruning a tree branch, demonstrating its use in an elevated position.

Image: A person operating the Poulan Pro pole saw from a distance, trimming high branches on a tree in a residential yard, showcasing the extended reach.

Одржавање

Regular maintenance ensures optimal performance and extends the life of your pole saw.

1. Подмазивање ланца

The pole saw features an automatic oiler. Regularly check the oil level indicator window and refill the reservoir with quality bar and chain oil as needed. Proper lubrication is crucial for chain and bar longevity and cutting efficiency.

2. Chain Tension

Check chain tension before each use and periodically during extended operation. A properly tensioned chain should be snug but still move freely around the guide bar. Adjust using the front-adjust tensioning system.

3. Оштрење и замена ланца

A dull chain will reduce cutting performance and increase strain on the motor. Sharpen the chain regularly or replace it when it becomes too dull or damaged. Refer to the chain manufacturer's guidelines for sharpening angles and file величине.

4. Чишћење и складиштење

After each use, disconnect the battery and clean the pole saw. Remove sawdust, debris, and sap from the guide bar, chain, and motor housing. Store the pole saw in a dry, secure location, out of reach of children, with the battery removed.

Решавање проблема

This section addresses common issues you might encounter with your Poulan Pro PPB40PS pole saw.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Poulan Pro customer support.

Спецификације

Гаранција и подршка

Информације о гаранцији

The Poulan Pro PPB40PS 40-Volt 8-inch Cordless Pole Saw is backed by a Poulan Pro 4-Year Warranty. Please refer to the warranty card included with your product for full terms, conditions, and registration details. Keep your proof of purchase for warranty claims.

Корисничка подршка

For technical assistance, replacement parts, or warranty service, please contact Poulan Pro customer support. Contact information can typically be found on the manufacturer's official webсајту или на паковању производа.
