EDECOA 1200W 12V to 220V Modified Sine Wave Power Inverter User Manual

Увод

This manual provides instructions for the safe and efficient operation of your EDECOA 1200W Modified Sine Wave Power Inverter. This device converts 12V DC power from your vehicle's battery into 220V-240V AC household power, suitable for various conventional electronic devices. Please read this manual thoroughly before use and retain it for future reference.

Подешавање и инсталација

Follow these steps for proper installation of your power inverter:

1. Пласман: Place the inverter in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Ensure there is adequate space around the unit for proper airflow.
2. Кабловска веза: Connect the included battery cables to the inverter's DC input terminals. Ensure correct polarity: the red cable connects to the positive (+) terminal, and the black cable connects to the negative (-) terminal.
3. Повезивање батерије: Connect the other end of the cables to a 12V battery. Double-check that the battery voltagе одговара улазној јачини напона инвертораtagе (12В). Упозорење: Connecting a 24V battery to a 12V inverter will cause severe damage to the unit.

Упутство за употребу

Once the inverter is properly installed, follow these steps to operate it:

1. Укључено: After connecting the inverter to the battery, switch the inverter ON using the power button.

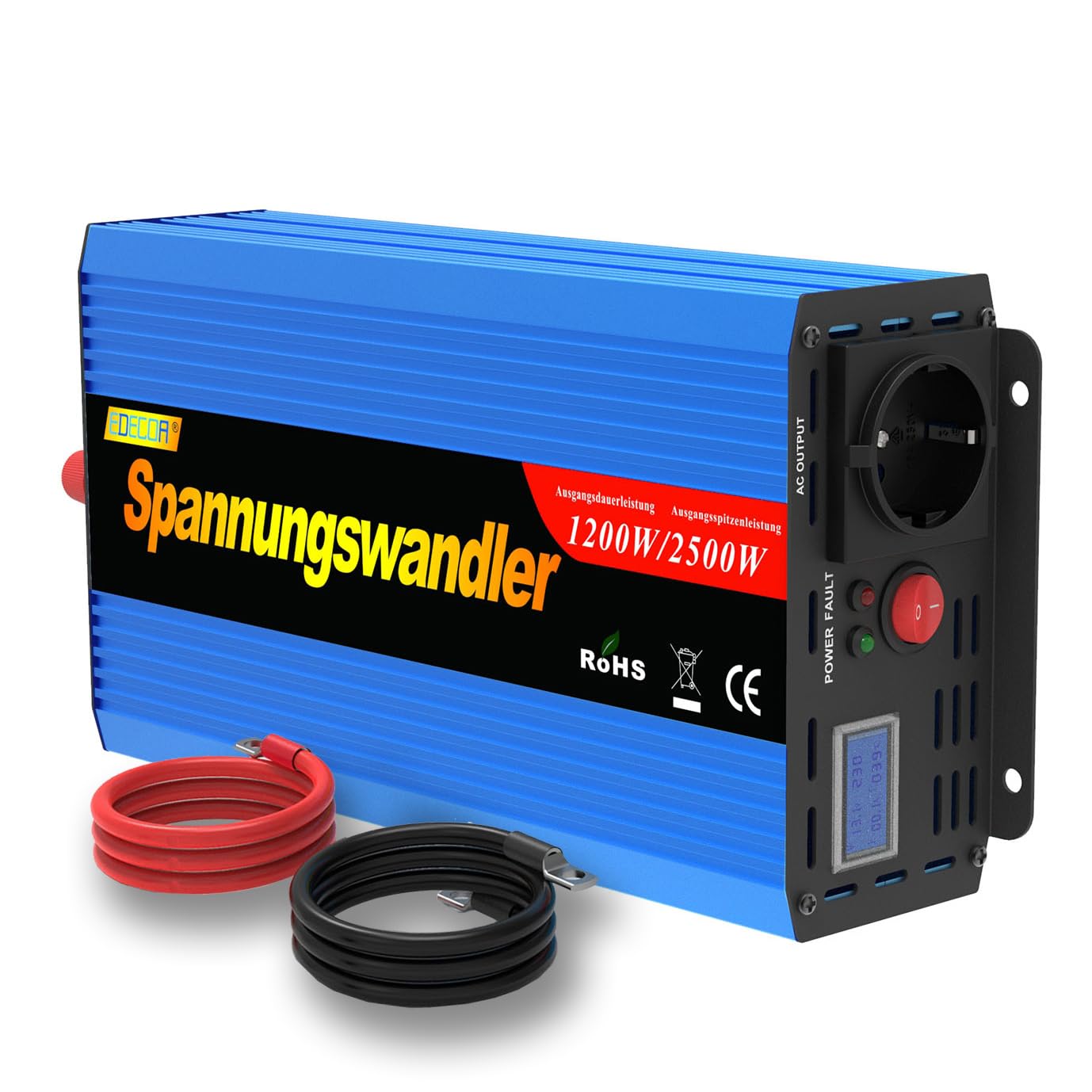

2. ЛЦД екран: The integrated LCD display will show real-time information including battery status, internal temperature, and connected ampераге.
3. Повежите уређаје: Plug your 220V-240V AC devices into the AC output socket. For charging smaller electronics, use the dual USB ports (5V/2A).

Important Note on Modified Sine Wave Output

This EDECOA inverter produces a модификовани синусни талас output. This type of waveform is suitable for most conventional electronic devices such as laptops, televisions, radios, and basic household appliances. However, it is није компатибилан with certain sensitive electronics or devices that require a pure sine wave for optimal performance. Examples of devices that may not function correctly or could be damaged by a modified sine wave include:

• Capsule coffee machines
• Паметни телевизори
• Appliances with sensitive motors (e.g., some refrigerators, microwaves)
• Медицинска опрема

Always check the power requirements of your device before connecting it to ensure compatibility with a modified sine wave inverter.

Одржавање

To ensure the longevity and optimal performance of your EDECOA inverter, consider the following maintenance tips:

• Систем за хлађење: The inverter features silent cooling fans that activate automatically when the internal temperature reaches 45°C (113°F). The aluminum casing is designed to aid in heat dissipation.
• чистоћа: Regularly inspect the inverter for dust and debris accumulation, especially around the fan vents. Keep the unit clean to ensure proper airflow and prevent overheating.
• Везе: Periodically check all cable connections to ensure they are secure and free from corrosion. Loose connections can lead to power loss or overheating.

Решавање проблема

Ако наиђете на проблеме са инвертором, погледајте следеће уобичајене проблеме и решења:

• Звукови аларма: If the inverter alarm sounds, it indicates that a protection mode has been activated. Check the LCD display for specific error codes or indicators to identify the problem.
• Лов Волtagе Аларм: Ако је ниска волtage alarm sounds but your battery appears fully charged, it may indicate insufficient battery capacity (AH) for the connected load, or that the battery cables are too long or thin, causing a significant voltage drop. Ensure you have an appropriate battery capacity and use adequately sized cables.

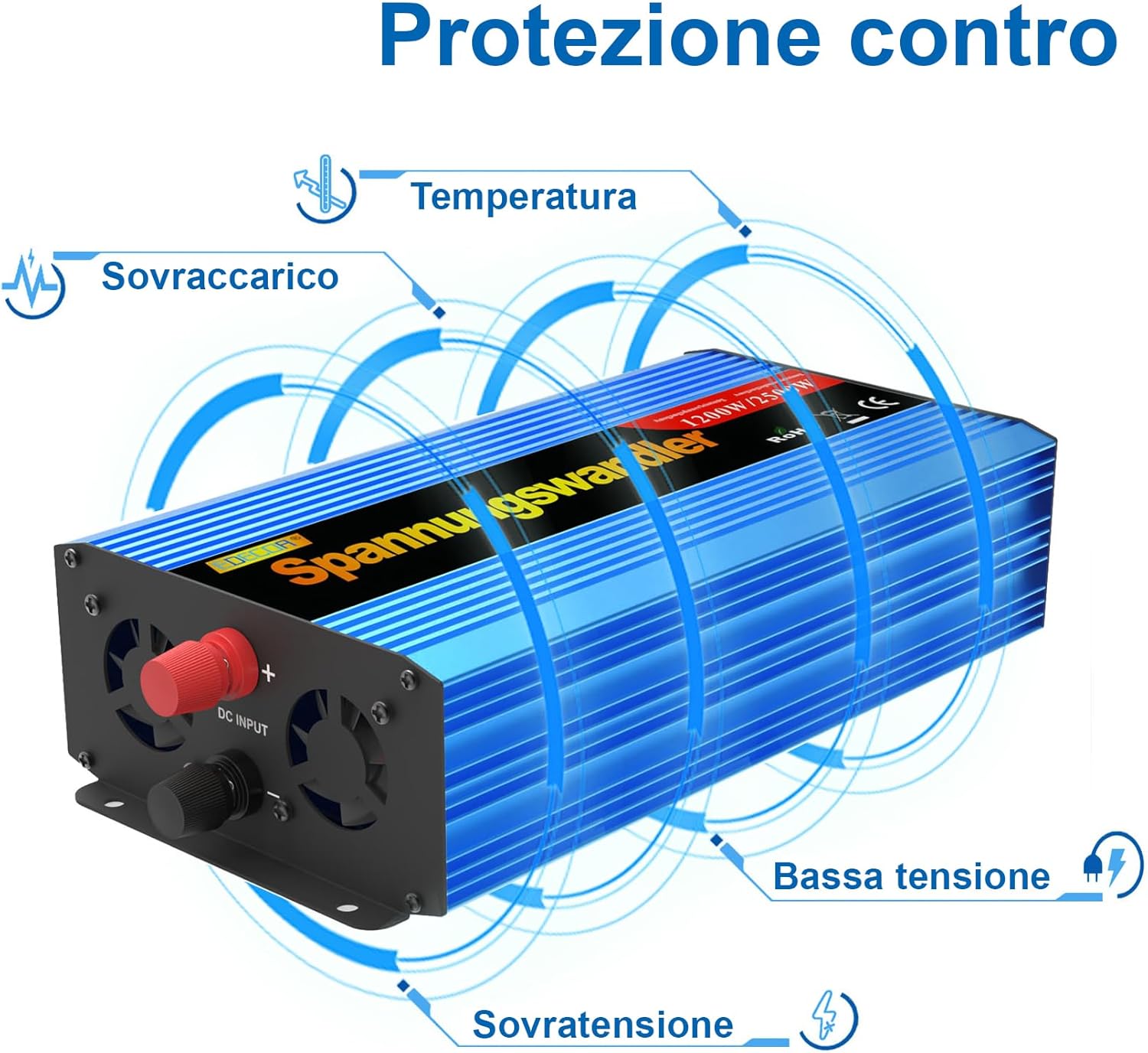

• Карактеристике вишеструке заштите: The inverter is equipped with multiple protection features, including protection against low voltagе, оверволtage, overtemperature, overload, short circuit, and reverse polarity. If any of these protections are triggered, the inverter will automatically shut down to prevent damage to itself or connected devices. Always ensure proper installation and correct the underlying problem before attempting to restart the inverter.

If issues persist after following these troubleshooting steps, please contact EDECOA technical support for further assistance.

Спецификације

Гаранција

Specific warranty details for this product are not provided in the available information. Please refer to your purchase documentation, the product packaging, or contact EDECOA customer service for comprehensive warranty information.

Подршка

For technical assistance, troubleshooting beyond the scope of this manual, or any other inquiries regarding your EDECOA 1200W Power Inverter, please contact EDECOA customer support. Refer to the contact information provided with your product or visit the official EDECOA webсајт за опције подршке.
