Goplus Folding Platform Cart Instruction Manual

1. Увод

Thank you for choosing the Goplus Folding Platform Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your new platform cart. Please read these instructions thoroughly before use and retain them for future reference.

This versatile platform cart is designed for transporting various items, including household goods, wood planks, luggage, and business cargo. Its robust construction and folding design offer both durability and convenient storage.

2. Безбедносне информације

• Не прекорачујте дозвољену тежину: The maximum load capacity for this cart is 330 lbs (150 kg). Exceeding this limit can cause damage to the cart and lead to injury.
• Безбедни терет: Always ensure items are properly balanced and secured on the platform to prevent shifting or falling during transport. Use bungee cords or straps if necessary.
• Употреба на равним површинама: Operate the cart on flat, stable surfaces. Avoid steep inclines, uneven terrain, or stairs, which can cause the cart to tip over.
• Држите руке чисте: Be mindful of pinch points when folding or unfolding the handle and platform. Keep hands and fingers away from moving parts.
• Прегледајте пре употребе: Before each use, check the wheels, bolts, and frame for any signs of damage, looseness, or wear. Do not use the cart if any components are compromised.
• Деца и кућни љубимци: Држите децу и кућне љубимце даље од колица током рада и складиштења. Ова колица нису играчка.

3. Садржај пакета

Молимо вас да проверите да ли су све компоненте присутне и неоштећене приликом отварања паковања:

• 1 x Goplus Folding Platform Cart
• 1 к Упутство за употребу

4. Подешавање и монтажа

The Goplus Folding Platform Cart requires minimal assembly, primarily attaching the wheels.

1. Unpack the Cart: Пажљиво уклоните све компоненте из паковања.
2. Prepare for Wheel Attachment: Turn the cart upside down to access the underside of the platform. You will see pre-drilled holes and possibly pre-inserted bolts for the wheels.
3. Причврстите точкове: For each of the four wheels, align the wheel's mounting plate with the corresponding holes on the cart's underside. Secure each wheel using the provided bolts and nuts. It is recommended to use a 1/2 inch wrench or socket for proper tightening. Ensure all bolts are securely fastened to prevent wheels from detaching during use.

Once all wheels are securely attached, turn the cart upright.

5. Упутство за употребу

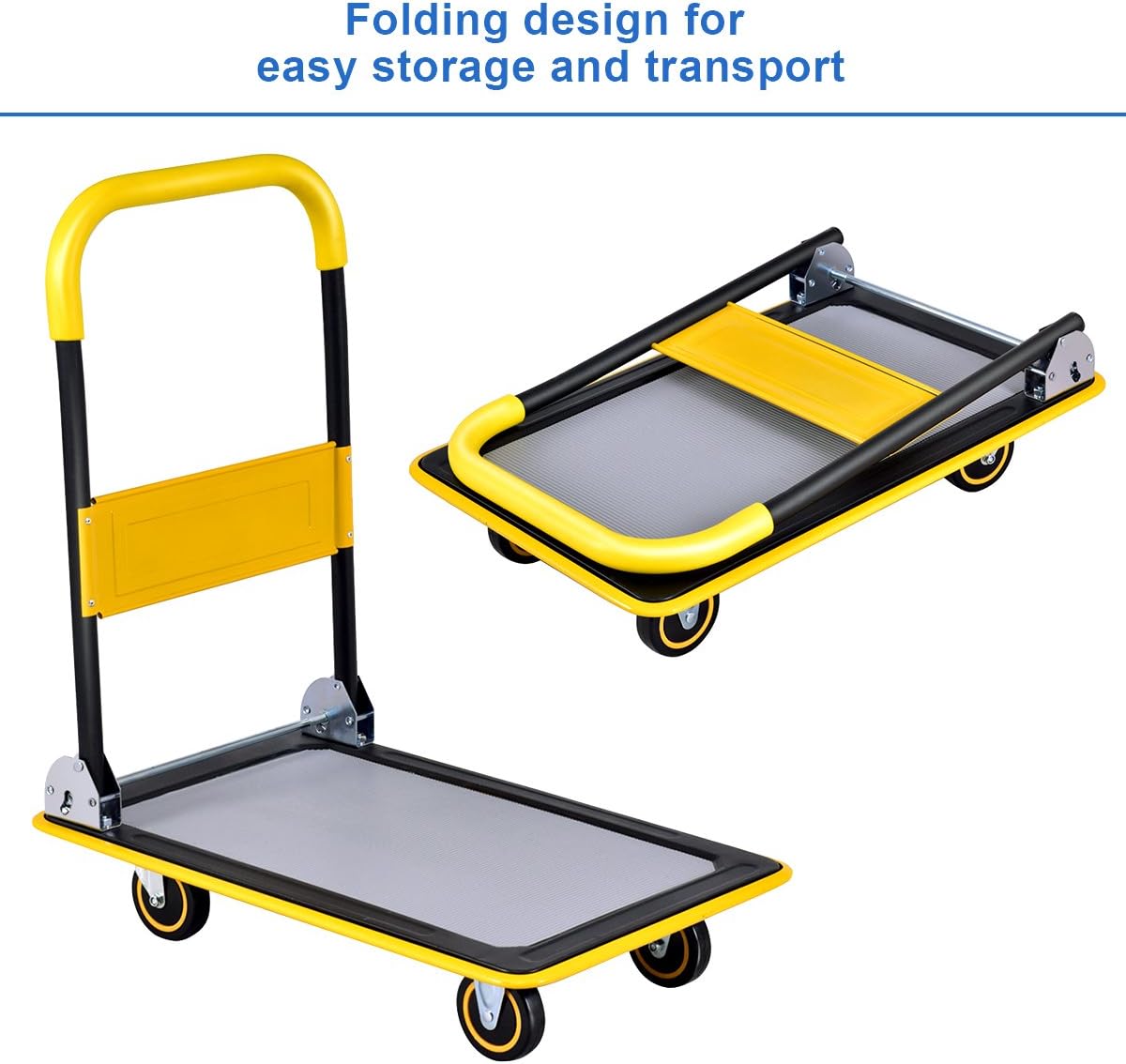

5.1 Unfolding the Cart

1. Поставите склопљена колица на равну површину.
2. Grasp the handle bar.
3. Pull the handle upwards and outwards until the platform fully extends and locks into place. Ensure the handle is securely upright.

5.2 Loading and Transporting

• Дистрибуција оптерећења: Place heavier items at the bottom and center of the platform for optimal stability.
• Безбедни предмети: If transporting multiple or unstable items, use bungee cords or straps to secure them to the handle or platform.
• маневрисање: The cart features two universal front wheels for easy steering and two directional rear wheels for stability. Push or pull the cart using the handle, guiding it in the desired direction.
• Капацитет тежине: Do not exceed the 330 lbs (150 kg) weight limit.

5.3 Склапање ради складиштења

1. Уверите се да су колица празна и на равној површини.
2. Locate the folding mechanism at the base of the handle (often a bar or lever).
3. Engage the mechanism (e.g., push a bar or pull a lever) to release the handle lock.
4. Gently push the handle downwards and inwards until it lies flat against the platform. Ensure all parts are fully collapsed for compact storage.

6. Одржавање

• Чишћење: Обриши корпу са огласомamp cloth to remove dirt and debris. Avoid harsh chemicals that may damage the finish or materials.
• Преглед точкова: Regularly check the wheels for any accumulated debris (hair, string, etc.) that might hinder smooth operation. Clean as needed.
• Провера причвршћивача: Periodically inspect all bolts and screws, especially those securing the wheels and handle mechanism, to ensure they remain tight. Re-tighten if necessary to prevent loosening during use.
• Складиштење: Store the folded cart in a dry place, away from extreme temperatures and direct sunlight, to prolong its lifespan.

КСНУМКС. Решавање проблема

• Cart is difficult to steer or rolls unevenly:
  • Check wheels for debris or damage. Clean or replace if necessary.
  • Ensure all wheel bolts are securely tightened.
  • Verify that the load is evenly distributed and not exceeding the weight capacity.
• Handle does not lock into upright position:
  • Ensure the handle is fully extended and the locking mechanism is engaged.
  • Check for any obstructions in the folding mechanism.
• Колица делују нестабилно:
  • Reduce the load if it exceeds the weight capacity.
  • Re-distribute the load to ensure it is centered and balanced.
  • Ensure the cart is being used on a flat, stable surface.

8. Спецификације

9. Гаранција и подршка

For warranty information or technical support regarding your Goplus Folding Platform Cart, please refer to the purchase documentation or contact the retailer/manufacturer directly. Keep your proof of purchase for any warranty claims.
