1. Увод
This manual provides essential information for the safe installation, operation, and maintenance of your Hot Spring 73791 No Fault PDR Titanium 4kW Heater. This heater is designed for use with specific Hot Spring, Tiger River, and Limelight hot tub models manufactured from 2003 to the current year that utilize 4kW heaters. Please read this manual thoroughly before installation or use to ensure proper function and longevity of your heater.
2. Безбедносне информације
WARNING: Risk of Electric Shock. Installation and servicing must be performed by a qualified electrician or authorized service technician.
- Always disconnect power to the hot tub before attempting any service or installation.
- Ensure all electrical connections are made according to local and national electrical codes.
- Do not operate the hot tub if the heater or any electrical component is damaged.
- Keep children away from the hot tub and electrical components during installation and maintenance.
- This heater is designed for specific hot tub models. Using it with incompatible systems may result in damage or injury.
3. Подешавање и инсталација
Proper installation is crucial for the safe and efficient operation of your heater. It is strongly recommended that installation be performed by a certified hot tub technician or a qualified electrician.
3.1 Провере пре инсталације
- Verify that the new heater matches the specifications of the original heater being replaced.
- Ensure the hot tub is completely drained and disconnected from all power sources.
- Inspect the heater for any visible damage from shipping. Do not install if damaged.
3.2 Кораци инсталације (опште)
- Locate the existing heater assembly within the hot tub equipment compartment.
- Carefully disconnect the electrical wiring and plumbing connections from the old heater. Note the orientation and connection points.
- Remove the old heater.
- Install the new Hot Spring 73791 heater in the same position, ensuring all gaskets and seals are correctly seated to prevent leaks.
- Reconnect the plumbing and electrical wiring. Ensure all connections are tight and secure.
- Refill the hot tub with water and check for leaks before restoring power.
- Once filled, restore power and test the heater's functionality.

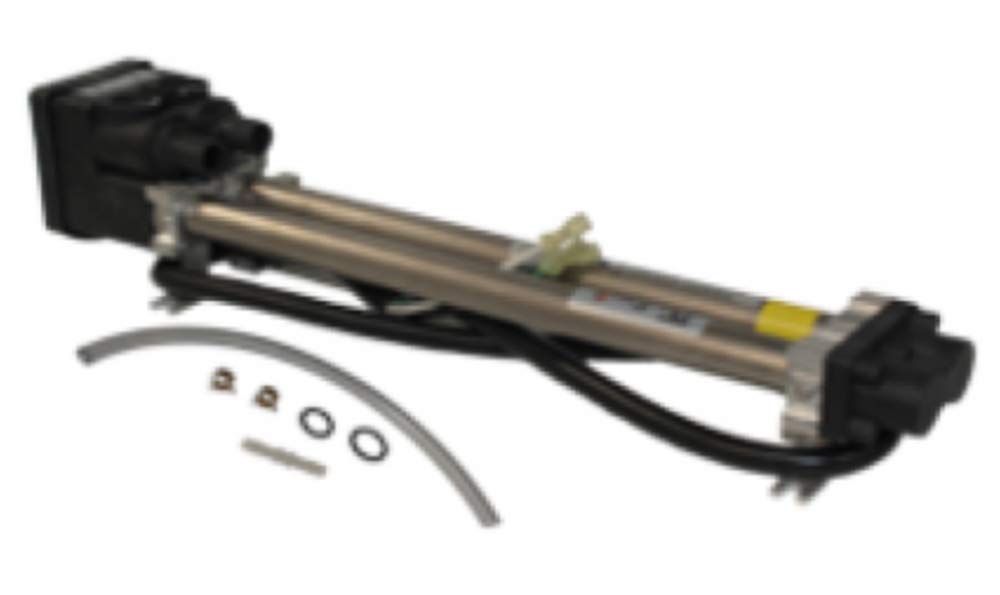

An image showing the Hot Spring 73791 No Fault PDR Titanium 4kW heater, designed for Hot Spring, Tiger River, and Limelight hot tubs. This heater features a compact design with electrical terminals and plumbing connections visible.
4. Упутство за употребу
The Hot Spring 73791 heater operates in conjunction with your hot tub's control system. Refer to your hot tub's primary owner's manual for detailed instructions on setting water temperature and operating cycles.
4.1 Почетно укључивање
- After installation and refilling the hot tub, ensure all air is purged from the plumbing system by running the jets on high for several minutes.
- Restore power to the hot tub. The control panel should illuminate.
- Set your desired water temperature using the hot tub's control panel. The heater will automatically activate to reach and maintain this temperature.
4.2 Нормалан рад
The heater will cycle on and off as needed to maintain the set temperature. Indicators on your hot tub's control panel will typically show when the heater is active.
5. Одржавање
Regular maintenance helps ensure the longevity and efficiency of your heater and hot tub system.
5.1 Периодичне провере
- Проток воде: Ensure adequate water flow through the heater. Low flow can cause the heater to trip or fail prematurely. Regularly clean your hot tub filters.
- Електричне везе: Periodically inspect electrical connections for corrosion or looseness (with power disconnected).
- цурења: Check for any signs of water leaks around the heater assembly. Address any leaks immediately.
5.2 Зимовање
If you plan to winterize your hot tub, ensure the heater is completely drained of water to prevent freezing and damage. Follow your hot tub manufacturer's winterization guidelines.
КСНУМКС. Решавање проблема
Пре него што контактирате сервис, поновоview these common issues. Always disconnect power before inspecting components.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Грејач не греје | No power to hot tub Низак проток воде Thermostat setting too low Квар грејног елемента High-limit switch tripped | Проверите прекидач Clean filters, check pump Подесите подешавање температуре Обратите се сервисеру Reset power, check water level/flow |
| Грејач искључује прекидач | Short circuit in heater Неправилно ожичење Уземљења | Обратите се сервисеру Проверите везе ожичења Обратите се сервисеру |
| Error code on control panel | Специфична системска грешка | Refer to your hot tub's owner's manual for specific error code meanings and solutions. |
If troubleshooting steps do not resolve the issue, or if you suspect a major component failure, contact a qualified hot tub service technician.
7. Спецификације
- Модел: 73791 No Fault PDR Titanium Heater
- Снага: 4кВ
- Компатибилност: Hot Spring, Tiger River, Limelight models (2003-Current)
- Димензије производа: 15 к 6 к 6 инча
- Тежина артикла: 5 фунти
- Произвођач: Ваткинс
8. Гаранција и подршка
This Hot Spring 73791 No Fault Heater is covered by a manufacturer's warranty. Please refer to the warranty documentation provided with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
8.1 Корисничка подршка
For technical assistance, warranty claims, or to locate an authorized service center, please contact your original dealer or the Hot Spring customer support line. Contact information can typically be found on the manufacturer's official website or in your hot tub's owner's manual.
Напомена: Неовлашћене поправке или модификације могу поништити вашу гаранцију.
