Air Innovations 1.6 Gallon Mist Humidifier User Manual

Увод

This manual provides comprehensive instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Air Innovations 1.6 Gallon Mist Humidifier, Model MH-901DA. This ultrasonic cool mist humidifier is designed to add moisture to the air in your home or office, improving air quality and comfort. Please read this manual thoroughly before first use and retain it for future reference.

Image: The Air Innovations 1.6 Gallon Mist Humidifier in black, showcasing its sleek design and tall mist nozzle.

Важна безбедносна упутства

Да бисте смањили ризик од пожара, струјног удара или повреде, увек се придржавајте ових основних мера безбедности:

Не користите овлаживач ваздуха ако је кабл или утикач оштећен.
Keep the humidifier away from heat sources and direct sunlight.
Увек постављајте овлаживач на чврсту, равну, равну површину.
Не блокирајте вентилационе отворе.
Искључите овлаживач ваздуха из струје пре него што га пуните, чистите или померате.
Не потапајте базу у воду или друге течности.
Use only clean, cool tap water. Distilled water is recommended to prevent mineral buildup.
Чувати ван домашаја деце и кућних љубимаца.

Садржај пакета

Проверите да ли су сви предмети присутни у паковању:

Ultrasonic Humidifier Base with Water Tank
Продужна млазница
Двосмерна млазница за маглу
Permanent Ceramic Filter (pre-installed)

Идентификација делова

Упознајте се са компонентама вашег овлаживача ваздуха:

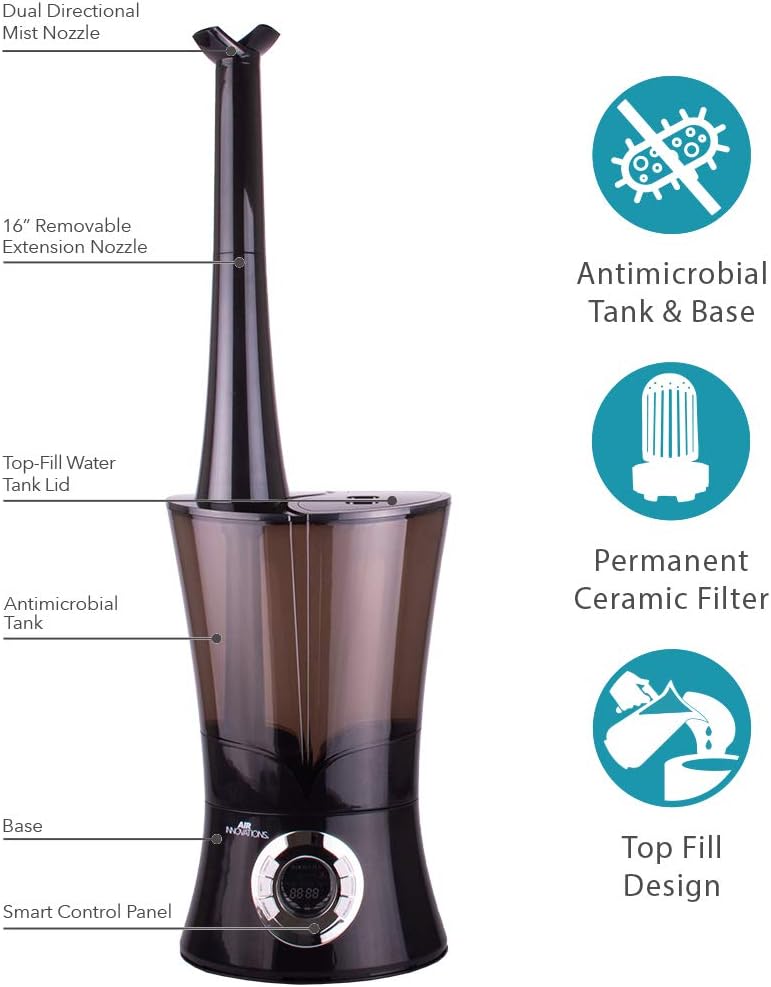

Image: Labeled diagram of the humidifier components, including the Dual Directional Mist Nozzle, 16" Removable Extension Nozzle, Top-Fill Water Tank Lid, Antimicrobial Tank, Base, and Smart Control Panel. Also highlights Antimicrobial Tank & Base, Permanent Ceramic Filter, and Top Fill Design features.

A. Dual Directional Mist Nozzle: Directs mist in two directions.
B. 16" Removable Extension Nozzle: Extends the mist output height.
C. Top-Fill Water Tank Lid: Cover for the water tank opening.
D. Antimicrobial Tank: Water reservoir with antimicrobial properties.
E. Base: Contains the ultrasonic transducer and control panel.
F. Smart Control Panel: Digital display and touch controls.
G. Permanent Ceramic Filter: Filters water to reduce mineral dust.
H. Aromatherapy Tray: (Located on the side/back of the base) For essential oil pads.

Humidifier Dimensions and Features Diagram

Image: A detailed diagram showing the humidifier's dimensions (Length - 12.30 in., Width - 10.60 in., Height - 18.40 in., Weight - 5.65 lbs.) and key features like the Directional Mist Nozzle, Patented Pending 16" Removable Extension Nozzle, Anti-microbial Tank & Base, Permanent Ceramic Filter, Top Fill Design, Antimicrobial Water Tank, Antimicrobial Base, and SMART Control Panel.

Сетуп

Raspakujte: Пажљиво уклоните сав садржај из паковања.
Пласман: Place the humidifier on a flat, waterproof surface at least 6 inches away from walls and furniture. Ensure the mist output is not directed at walls or electronics.
Assemble Nozzle: Attach the 16" Extension Nozzle to the top of the water tank, then place the Dual Directional Mist Nozzle on top of the Extension Nozzle. You can also use the Dual Directional Mist Nozzle directly on the tank without the extension.
Напуните резервоар за воду:
The humidifier features a convenient top-fill design. Open the Top-Fill Water Tank Lid. Pour clean, cool tap water directly into the tank. Fill up to the "MAX" line indicated on the tank. Distilled water is recommended to minimize mineral dust and extend filter life.
Image: A hand pouring water from a pitcher into the top-fill opening of the humidifier's water tank.
Затвори поклопац: Securely close the Top-Fill Water Tank Lid.
Прикључак: Укључите кабл за напајање у стандардну електричну утичницу. Екран ће се упалити.

Упутство за употребу

Your Air Innovations humidifier features a Smart Control Panel for easy operation.

Image: Close-up of the humidifier's digital control panel with labeled buttons for On/Off, Mist Level, Humidity Level, Auto On, Auto Off, Display Dim, and Beep On/Off.

1. Укључивање/искључивање: Притисните тастер ОН/ОФФ button to turn the humidifier on or off. The display will show the current humidity level when on.
2. Mist Level Adjustment: Притисните тастер МИСТ button repeatedly to cycle through the mist output levels (Low, Medium, High, Turbo).
3. Humidity Level (Humidistat): Притисните тастер ХУМИДИСТАТ button to set your desired humidity level. The setting ranges from 30% to 90% relative humidity (RH) in 5% increments. The humidifier will automatically turn on and off to maintain the set humidity. If no humidity level is set, it will run continuously.
4. Auto On/Off Timer:
- Auto On (Delay Start): Притисните тастер АУТО ОН button to set a delay start timer. The humidifier will turn on after the set number of hours (up to 24 hours).
- Аутоматско искључивање: Притисните тастер АУТО ОФФ button to set a shut-off timer. The humidifier will turn off after the set number of hours (up to 24 hours).
5. Display Dim: Притисните тастер BEEP/DIM button once to dim the display. Press again to turn the display off. Press a third time to restore full brightness.
6. Beep On/Off: Притисните и држите BEEP/DIM button for 3 seconds to turn the button beep sound on or off.
7. Aromatherapy Feature:
Locate the small aromatherapy tray on the side or back of the humidifier base. Pull out the tray and place a few drops of essential oil onto an aromatherapy pad (sold separately). Slide the tray back into place. The mist will diffuse the aroma into the air.
Image: Close-up of the aromatherapy tray pulled out from the humidifier base, showing a white pad inside where essential oils can be added.

Одржавање

Regular cleaning is essential for optimal performance and hygiene. Always unplug the unit before cleaning.

Дневно одржавање:

Испразните преосталу воду из резервоара и базе.
Исперите резервоар за воду и базу свежом водом.
Обришите све површине чистом, сувом крпом.

Weekly Maintenance (Mineral Removal):

Mineral deposits from tap water can build up on the transducer and in the water tank. This can affect performance.

Unplug the unit and remove the mist nozzle and extension.
Carefully remove the water tank from the base.
Pour 1 cup of white vinegar into the water tank and into the base reservoir (avoid pouring directly onto the transducer).
Пустите да се намаче 20 минута.
Use a soft brush (like the included cleaning brush) to gently clean the transducer and the inside of the tank.
Темељно исперите резервоар и базу чистом водом док мирис сирћета не нестане.
Wipe all surfaces dry before reassembling.

Слика: Одозго надоле view of the humidifier's base, showing the internal components including the transducer and water channels, indicating areas that require cleaning.

Image: The humidifier's water tank separated from the base, illustrating how it can be removed for thorough cleaning.

Permanent Ceramic Filter:

The permanent ceramic filter does not require replacement. It should be cleaned periodically by rinsing under running water. If heavy mineral buildup occurs, soak it in white vinegar for 10 minutes, then rinse thoroughly.

Складиштење:

When storing the humidifier, ensure all parts are clean and dry. Store in a cool, dry place away from direct sunlight.

Решавање проблема

Проблем	Могући узрок	Решење
Нема магле или је излаз магле слаб.	Нема воде у резервоару. Накупљање минерала на претварачу. Mist nozzle or extension blocked. Јединица није укључена.	Напуните резервоар за воду. Clean transducer with vinegar solution and soft brush. Check and clear any blockages in the mist output path. Уверите се да је кабл за напајање безбедно прикључен.
Бела прашина око овлаживача ваздуха.	Користи се тврда вода. Ceramic filter needs cleaning.	Користите дестиловану или деминерализовану воду. Clean the permanent ceramic filter as per maintenance instructions.
Необичан мирис.	Stagнакупљање воде или минерала. Мирис новог уређаја.	Пажљиво очистите резервоар за воду и базу. Укључите уређај у добро проветреном простору неколико сати.
Цурење овлаживача.	Препун резервоар за воду. Уређај није на равној површини. Оштећење резервоара или базе.	Немојте пунити преко МАКС линије. Ensure the unit is on a stable, level surface. Inspect for cracks or damage; contact support if found.

Спецификације

Модел: МХ-901ДА
Бренд: Ваздушне иновације
Режим рада: Ултразвучна хладна магла
Капацитет резервоара за воду: 1.6 галона (приближно 6 литара)
Време извођења: Up to 100 hours (on lowest setting)
Област покривености: До 700 квадратних стопа
Тип филтера: Трајни керамички филтер
Димензије производа: 7.8"Д к 10.4"Ш к 34.1"В
Тежина артикла: 4.4 фунти
Метод контроле: Додирните Контролна табла
Укључене компоненте: Humidifier, Extension Nozzle, Dual Directional Mist Nozzle
УПЦ: 180104004101
Произвођач: Греат Инноватионс, ЛЛЦ

Гаранција и подршка

For detailed warranty information, please refer to the official documentation provided with your purchase. For further assistance or to download the official PDF user guide, please visit the Air Innovations website or contact their customer support. A digital version of the user manual is available at: Air Innovations Humidifier User Manual (PDF).
