ADA Cosmo 120 Video Laser Distance Meter User Manual

1. Увод

The ADA Cosmo 120 Video is a professional digital laser distance meter designed for precise measurements up to 120 meters (394 feet). It features a unique combination of a digital viewfinder and a 360° tilt sensor, enabling measurements that are challenging for ordinary laser distance meters. This device is ideal for both indoor and outdoor applications, providing accurate results with an error margin of ±1.5 mm.

Кључне карактеристике укључују:

• Дигитал Viewfinder with 3X Zoom: Allows for precise targeting and measurement in unfavorable light conditions or over long distances, even when the laser dot is not visible.
• Integrated 360° Tilt Sensor: Enables horizontal distance measurement even with obstacles, and functions as a digital level for surface inclination.
• Блуетоотх повезивање: Facilitates data transmission to other devices.
• Painter Function: Automatically calculates the total area of walls in a room.

Image 1.1: The ADA Cosmo 120 Video displaying multiple distance measurements on its digital screen.

2. Садржај пакета

Молимо вас да проверите пакет за следеће ставке:

• ADA Cosmo 120 Video Laser Distance Meter
• Футрола
• 2 к АА батерије
• Рефлецтиве Плате
• Упутство за употребу

3. Подешавање

3.1 Инсталација батерије

The device requires two AA batteries. To install:

1. Пронађите поклопац одељка за батерију на задњој страни уређаја.
2. Отворите поклопац.
3. Уметните две АА батерије, водећи рачуна о исправном поларитету (+/-).
4. Добро затворите поклопац одељка за батерије.

3.2 Укључивање/искључивање

• Да бисте укључили: Притисните дугме МЕАС дугме.
• Да бисте искључили напајање: Притисните и држите РАШЧИСТИТИ дугме на неколико секунди.

3.3 Промена мерних јединица

The device can display measurements in meters (m) or feet (ft). To change the unit:

1. Уверите се да је јединица искључена.
2. Притисните и држите МЕАС дугме отприлике 8-10 секунде.
3. The unit will beep, and the measurement unit displayed on the screen will change.

4. Упутство за употребу

4.1 Основно мерење удаљености

Да бисте извршили мерење једне удаљености:

1. Point the laser distance meter at the target object.
2. Притисните тастер МЕАС button. The laser will activate.
3. Притисните тастер МЕАС поново притисните дугме да бисте извршили мерење. Резултат ће бити приказан на екрану.

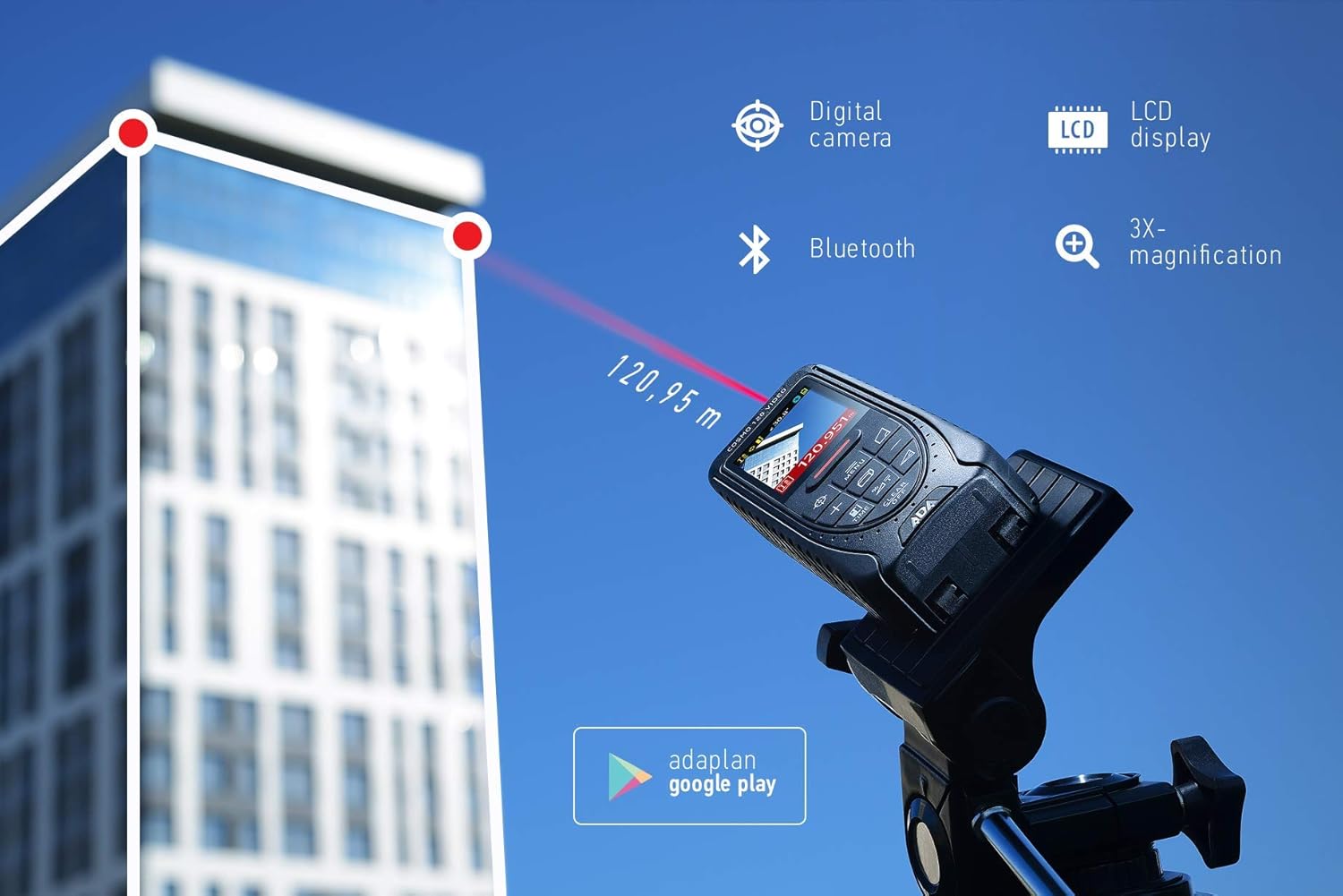

Image 4.1: The ADA Cosmo 120 Video in use, measuring a distance of 120.95 meters to a building.

4.2 Using the Digital Viewналазач

Интегрисани дигитални viewfinder with 3X zoom allows for accurate targeting, especially in bright outdoor conditions or when measuring long distances where the red laser dot might be invisible. The viewfinder displays a reticle on the screen, helping you precisely aim the device at your target.

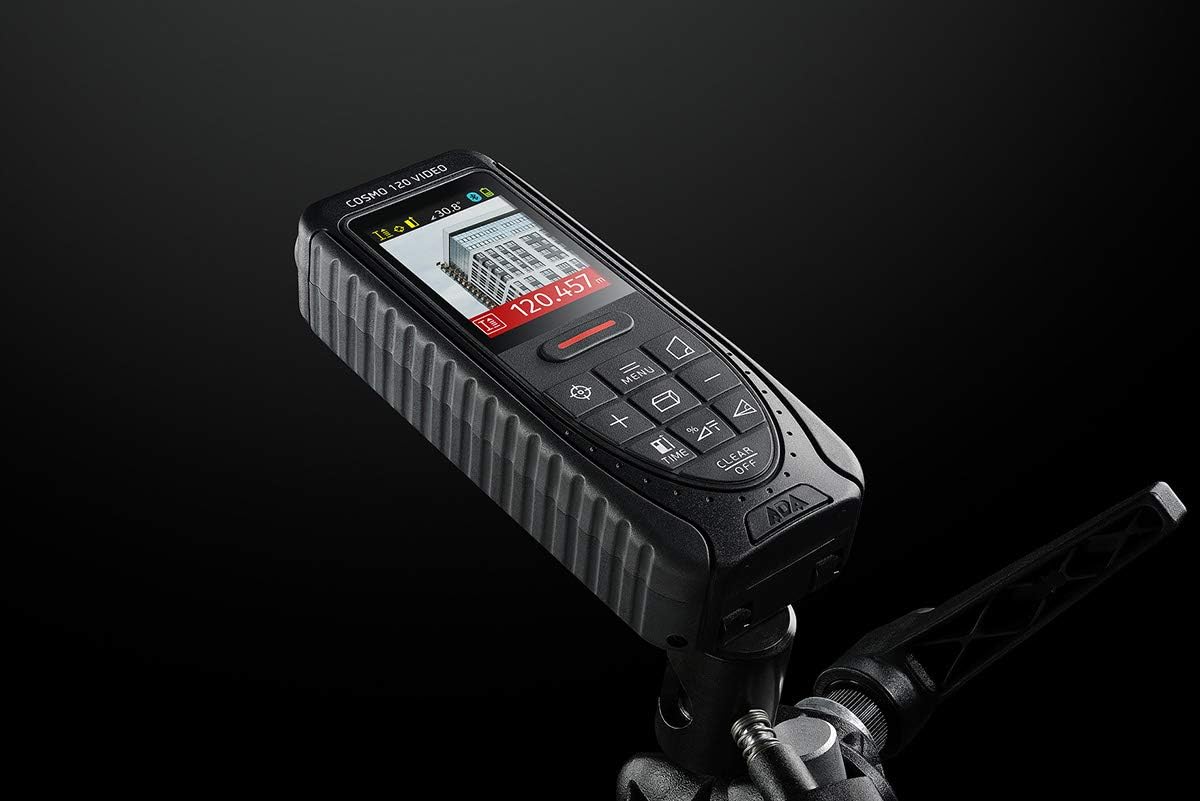

Image 4.2: The ADA Cosmo 120 Video mounted on a tripod, with its screen displaying a digital view of a building and measurement data.

4.3 360° Tilt Sensor

The integrated 360° tilt sensor allows for:

• Horizontal Distance Measurement: Combine distance and inclination measurements to determine horizontal distances, even when direct line-of-sight is obstructed.
• Digital Level Function: Use the device to measure the inclination of any surface.

4.4 Painter Function

This function simplifies the calculation of the total wall area in a room. To use:

1. Measure the height of the wall once.
2. Measure the length of all walls.
3. The device will automatically calculate the total area.

4.5 Bluetooth повезивање

The ADA Cosmo 120 Video supports Bluetooth for transmitting measurement data to compatible applications or devices. Refer to the specific application's instructions for pairing and data transfer procedures.

4.6 Using the Reflective Plate

For measurements over very long distances, in bright sunlight, or on surfaces with poor reflection properties, use the included reflective plate. Place the plate at the target point to improve laser detection and measurement accuracy.

Image 4.3: The reflective plate included with the ADA Cosmo 120 Video, used to enhance laser detection.

5. Одржавање

To ensure the longevity and accuracy of your ADA Cosmo 120 Video, follow these maintenance guidelines:

• Чишћење: Користите меку, дamp cloth to clean the device. Do not use harsh chemicals or abrasive cleaners. Pay special attention to the lens and display, keeping them free of dust and smudges.
• Складиштење: Store the device in its holster in a dry, cool place, away from direct sunlight and extreme temperatures.
• батерије: Извадите батерије ако уређај неће бити коришћен дуже време како бисте спречили цурење.
• Избегавајте утицај: Protect the device from drops and impacts, as this can affect its calibration and functionality.

КСНУМКС. Решавање проблема

If you encounter issues with your ADA Cosmo 120 Video, try the following solutions:

• Уређај се не укључује: Проверите да ли су батерије правилно уметнуте и да ли су довољно напуњене. Замените батерије ако је потребно.
• Нетачна очитавања: Ensure the target surface is suitable for laser measurement. Use the reflective plate for difficult surfaces or long distances. Check for obstructions in the laser path.
• Laser dot not visible: This is normal in bright conditions or over long distances. Use the digital viewfinder for targeting.
• Проблеми са Bluetooth везом: Ensure Bluetooth is enabled on both the device and your receiving unit. Check the pairing process according to your application's instructions.

If problems persist, contact ADA Instruments customer support for assistance.

7. Спецификације

8. Гаранција и подршка

For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official ADA Instruments webсајт. Сачувајте доказ о куповини за потребе гаранције.
