Speedaire 13X537 Auto Drain Valve Instruction Manual

Производ је завршенview

The Speedaire 13X537 is a timed electric auto drain valve designed for efficient removal of condensate from compressed air systems. This valve features a 1/4 inch NPT pipe size, a drain rate of 0.75 gallons per minute, and operates on 230V. It includes adjustable drain cycle and purge time settings, making it suitable for various industrial applications. The robust brass body ensures durability and reliable performance.

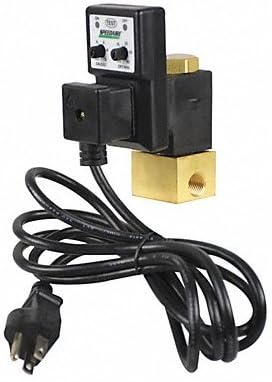

An image showing the Speedaire 13X537 automatic drain valve, featuring its brass body, black control unit with adjustment dials, and attached power cord.

Подешавање и инсталација

Proper installation is crucial for the safe and effective operation of the auto drain valve. Ensure all connections are secure and comply with local regulations.

1. Безбедност на првом месту: Before installation, ensure the compressed air system is depressurized and isolated from power sources.
2. Монтажа: Mount the drain valve in a vertical position at the lowest point of the system where condensate collects, such as a receiver tank or filter housing. Ensure sufficient space for maintenance.
3. Прикључак цеви: Connect the 1/4 inch NPT inlet of the valve to the condensate drain port. Use appropriate thread sealant to ensure a leak-free connection.
4. Одводна линија: Connect a suitable drain line to the 1/4 inch outlet of the valve. Ensure the drain line is routed to an appropriate waste disposal system and is free from kinks or obstructions.
5. Електрични прикључак: Connect the 230V power cord to a compatible electrical outlet. Ensure the power supply matches the valve's voltage requirements (230V, 50/60 Hz). The valve draws 0.25 Ampс АЦ.
6. Иницијална провера: After installation, slowly re-pressurize the air system and check for any leaks around the valve connections. Restore power and verify initial operation.

Операција

The Speedaire 13X537 auto drain valve is designed for automatic condensate removal. The control unit allows for adjustment of the drain cycle and purge time.

• Adjustable Drain Cycle: The interval between drain activations can be set from 0.5 seconds to 45 minutes. Adjust this setting based on the amount of condensate generated by your system. A higher condensate volume requires a shorter cycle time.
• Purge Time: The duration the valve remains open to discharge condensate can be set from 0.5 seconds to 10 seconds. Set this time to ensure all accumulated condensate is expelled without excessive air loss.
• Дугме за тестирање: A test button is typically provided on the control unit to manually activate the drain cycle for testing purposes. Pressing this button will open the valve for the set purge time.
• Индикатор напајања: The control unit usually includes an indicator light to show when the unit is powered and operating.

Monitor the system's condensate output and adjust the drain cycle and purge time as needed to optimize performance and minimize compressed air loss.

Одржавање

Regular maintenance ensures the longevity and efficient operation of your auto drain valve.

• Дневна провера: Visually inspect the valve for any leaks or unusual operation. Ensure condensate is being discharged regularly.
• Недељна провера: Manually activate the drain valve using the test button to ensure it opens and closes properly. Listen for any abnormal sounds.
• Месечно чишћење: Depressurize the system and disconnect power. Inspect the valve's internal components for debris or sludge buildup. Clean as necessary using appropriate solvents or compressed air. Ensure the drain orifice is clear.
• Годишња инспекција: Perform a thorough inspection of all connections, wiring, and the valve body for signs of wear, corrosion, or damage. Replace any worn or damaged parts.
• Одржавање филтера: If the drain valve is connected to a filter, ensure the filter element is regularly cleaned or replaced according to the filter manufacturer's recommendations.

Always ensure the system is depressurized and power is disconnected before performing any maintenance.

Решавање проблема

Погледајте следећу табелу за уобичајене проблеме и њихова могућа решења.

If the issue persists after attempting these solutions, contact customer support for further assistance.

Спецификације

Информације о гаранцији

Specific warranty terms and conditions for the Speedaire 13X537 Auto Drain Valve are provided by the manufacturer. Please refer to the documentation included with your purchase or contact Speedaire directly for detailed warranty information.

Корисничка подршка

For technical assistance, parts, or service related to your Speedaire 13X537 Auto Drain Valve, please contact the manufacturer, Speedaire, or your authorized dealer. Have your model number (13X537) and purchase details ready when contacting support.
