Toorx Chrono Pro Line BRX-R3000 Recumbent Exercise Bike User Manual

Увод

This manual provides essential information for the safe and effective use of your Toorx Chrono Pro Line BRX-R3000 Recumbent Exercise Bike. Please read all instructions carefully before assembly and operation to ensure proper function and user safety. Keep this manual for future reference.

Фронт view of the Toorx Chrono Pro Line BRX-R3000 Recumbent Exercise Bike, showcasing its ergonomic design and console.

Безбедносне информације

Before starting any exercise program, consult with your physician. It is crucial to follow these safety guidelines to prevent injury and ensure the longevity of your equipment.

• Ensure the exercise bike is placed on a flat, stable surface.
• Држите децу и кућне љубимце подаље од опреме током употребе.
• The maximum user weight for this device is 160 кг (352 лбс)Не прекорачујте ово ограничење.
• Носите одговарајућу одећу и обућу за вежбање.
• Check all bolts and nuts are securely tightened before each use.
• Одмах престаните са вежбањем ако осетите слабост, вртоглавицу или бол.
• Само једна особа треба да користи опрему у исто време.

Сетуп

Careful assembly is required. Follow the steps below to set up your recumbent exercise bike.

1. Распакивање и постављање

Remove all components from the packaging. Place the main frame on a clear, level surface. Ensure adequate space around the bike for safe operation.

2. Stabilizer Assembly

Attach the front and rear stabilizers to the main frame using the provided hardware. Ensure they are firmly secured to provide a stable base for the bike.

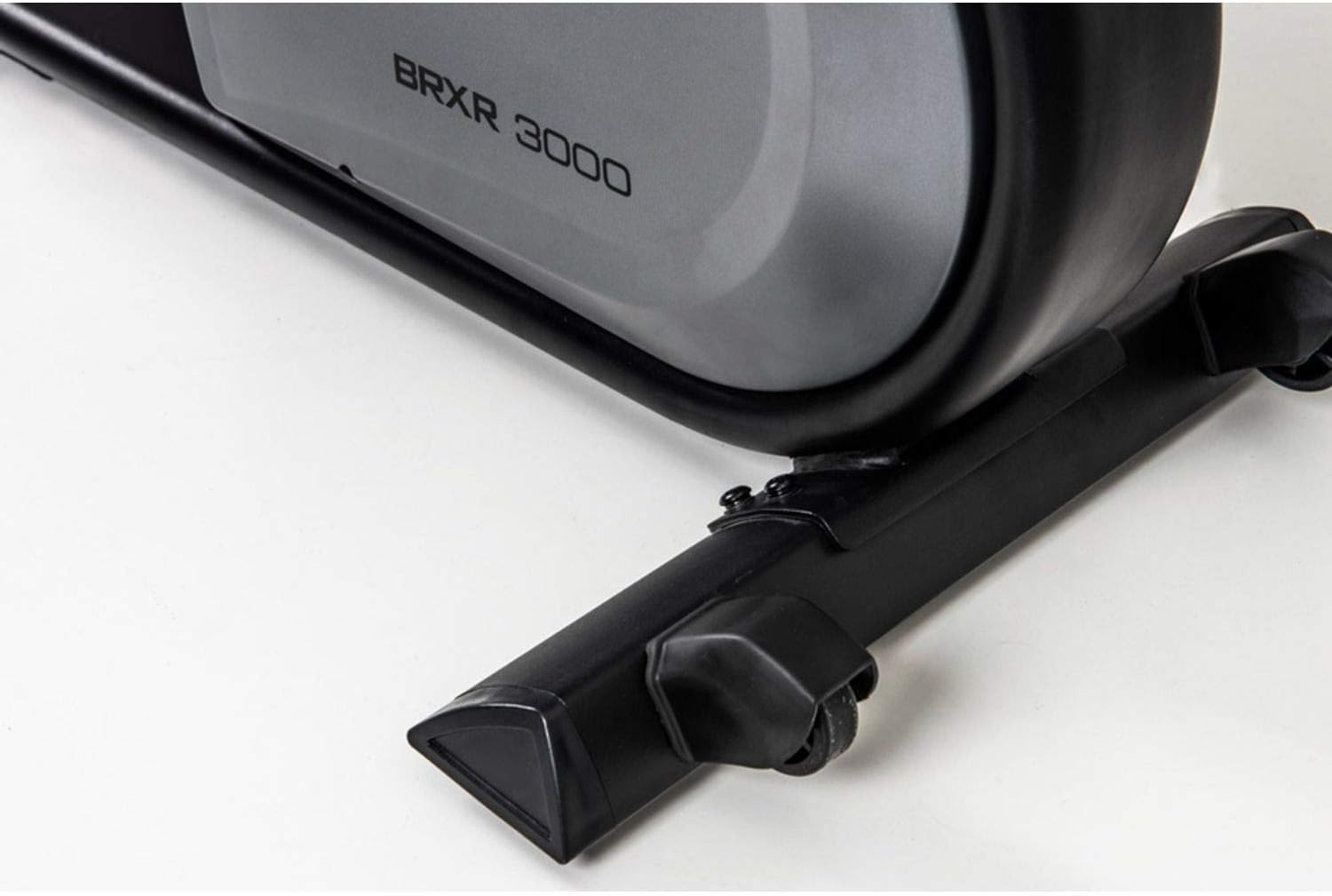

Close-up of the rear stabilizer bar, showing the leveling feet and transport wheels for easy relocation.

3. Уградња педала

Attach the pedals to the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Ensure they are fully tightened to prevent loosening during use.

Detail of an extra-large pedal with an adjustable strap, designed for secure foot placement during exercise.

4. Seat and Backrest Adjustment

Install the seat and backrest. The seat offers horizontal adjustment, and the backrest has an adjustable incline. Adjust these to a comfortable position that allows for proper leg extension and back support.

A visual sequence demonstrating the adjustable incline feature of the backrest, allowing users to find their optimal comfort position.

5. Console and Handlebar Installation

Attach the console and handlebars to the main upright post. Connect all necessary cables from the main frame to the console. Ensure all connections are secure.

6. Прикључак за напајање

Connect the power adapter to the bike and then to a suitable electrical outlet. The console should power on.

Упутство за употребу

Your Toorx BRX-R3000 is equipped with an advanced console and various features to enhance your workout experience.

Цонсоле Оверview

The LCD console with white backlight displays key workout data and allows program selection. Its micrometric adjustable inclination ensures optimal viewинг.

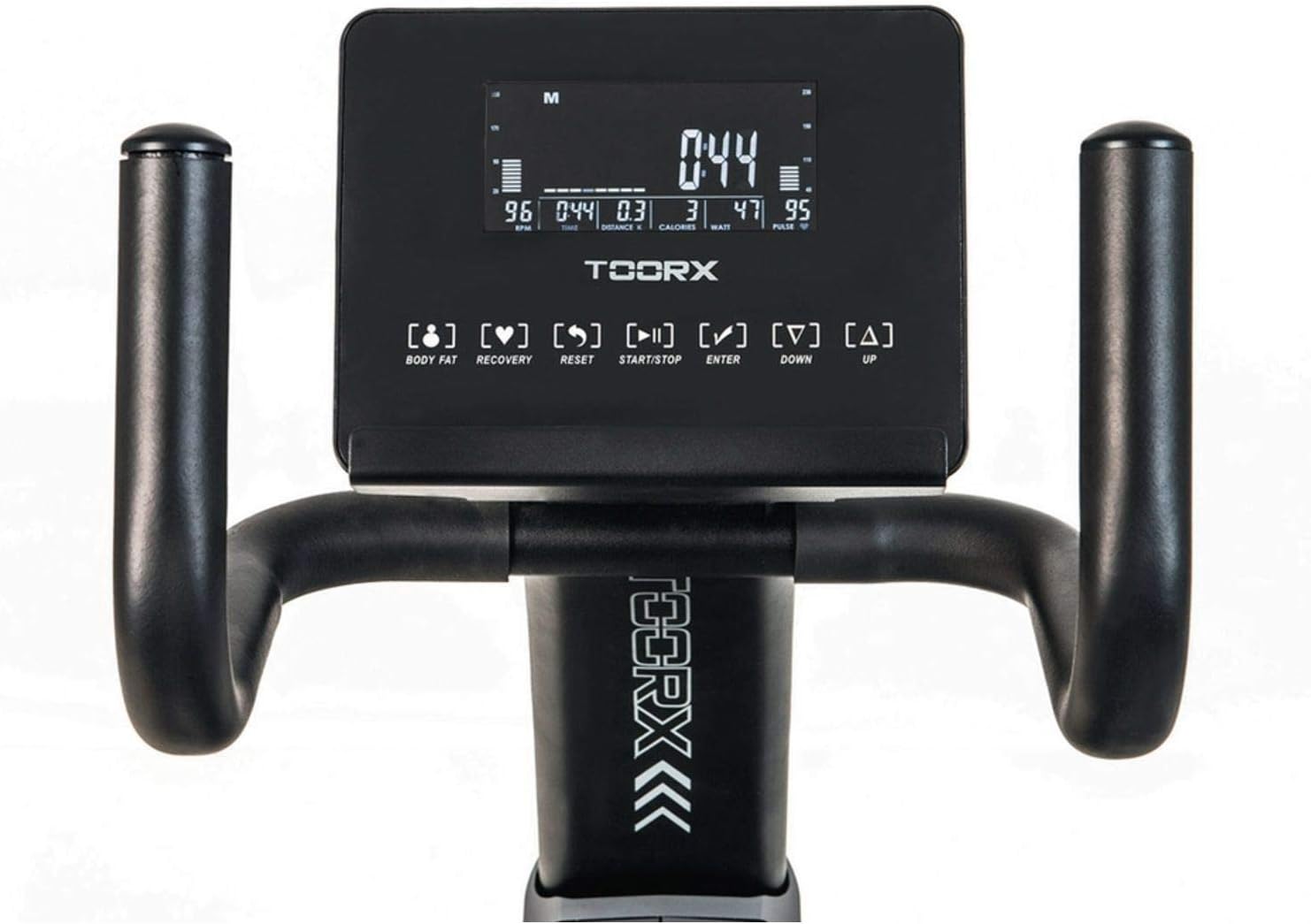

The LCD console displaying workout metrics such as time, distance, calories, speed, RPM, and heart rate, with control buttons below.

Displayed Information:

• брзина: Тренутна брзина вожње бицикла.
• Калорије: Процењене сагореле калорије.
• време: Трајање вашег тренинга.
• Удаљеност: Укупна пређена удаљеност.
• Откуцаји срца: Your pulse, measured via hand sensors or chest strap.
• РПМ: Обртаји у минути (каденца педала).

Programs and Resistance

The bike features an induction magnetic braking system with 32 electronically adjustable resistance levels, providing a wide range of intensity for your workouts. Choose from 24 diverse programs:

• Упутство: Control resistance manually.
• 12 Унапред програмираних: Various intensity profiles.
• Опоравак: Measures your heart rate recovery.
• трка: Simulate a race scenario.
• 4 User Programs: Customize and save your own workout profiles.
• 4 HRC (Heart Rate Control): Programs that adjust resistance to maintain a target heart rate.
• ват: Target a specific power output.

Праћење откуцаја срца

Your bike includes hand pulse sensors integrated into the handlebars. For more accurate and continuous monitoring, an integrated wireless receiver for a chest strap is available (chest strap not included).

App Connectivity (App Ready)

The integrated smart Bluetooth system allows connection to various fitness applications. It includes iConsole+ App, offering maps, routes, fitness plans, and training data. The bike is also compatible with the Kinomap fitness application (subscription not included).

The integrated smartphone and tablet holder, positioned above the console for easy access to fitness apps or entertainment during workouts.

Одржавање

Редовно одржавање осигурава дуготрајност и безбедан рад вашег бицикла за вежбање.

• Чишћење: Обришите бицикл огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Избегавајте абразивна средства за чишћење.
• инспекција: Периодично проверавајте све вијке, навртке и покретне делове да ли су затегнути и истрошени. Затегните све лабаве причвршћиваче.
• подмазивање: Moving parts may require occasional lubrication. Refer to the specific instructions for your model if detailed lubrication points are provided.
• Складиштење: Чувајте бицикл на сувом и хладном месту, даље од директне сунчеве светлости и екстремних температура.

Решавање проблема

If you encounter issues with your Toorx BRX-R3000, refer to the following common problems and solutions:

• Конзола се не укључује:
  • Check if the power adapter is securely plugged into both the bike and the wall outlet.
  • Уверите се да је зидна утичница функционална.
  • Verify all console cables are properly connected.
• No Resistance or Incorrect Resistance:
  • Ensure the power adapter is connected, as electronic resistance requires power.
  • Check if the resistance control cables are properly connected to the console and the magnetic braking system.
• Inaccurate Heart Rate Reading:
  • Ensure your hands are firmly and completely gripping the hand pulse sensors.
  • Moisten your hands slightly for better conductivity.
  • If using a chest strap, ensure it is correctly positioned and has a fresh battery.
• Неуобичајени звукови током рада:
  • Check all assembly bolts and nuts for tightness.
  • Ensure the bike is on a level surface.
  • Inspect for any loose components or foreign objects.

Ако проблеми и даље постоје, контактирајте корисничку подршку.

Спецификације

Гаранција и подршка

Информације о гаранцији

The Toorx Chrono Pro Line BRX-R3000 Recumbent Exercise Bike comes with a 2 година гаранције. This warranty covers manufacturing defects and ensures the product meets quality standards under normal use. Please retain your proof of purchase for warranty claims.

Корисничка подршка

For any questions, technical assistance, or warranty claims, please contact your retailer or the official Toorx customer support. Have your model number (BRX-R3000) and proof of purchase ready when contacting support.
