WEN Handyman Q-W0003 Washer Suspension Rods Instruction Manual

1. Производ је готовview

The WEN Handyman Q-W0003 Washer Suspension, 4 Pack, provides replacement suspension rods for various washing machine models. These rods are designed to support the washer tub and dampen vibrations during operation, particularly during the spin cycle. This set is compatible with multiple brands, including Whirlpool, and replaces OEM part numbers W10189077 and W10820048.

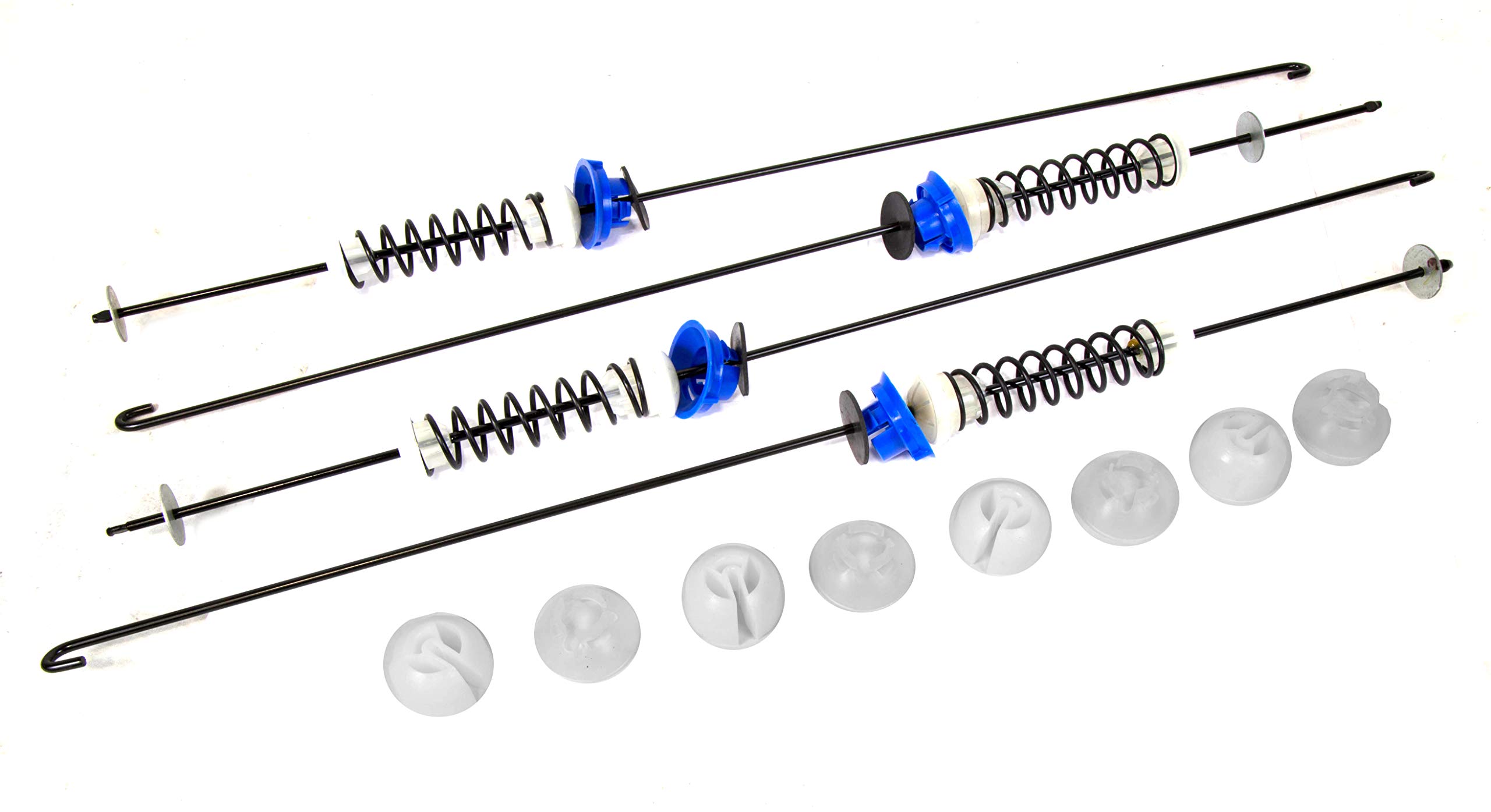

Image 1.1: WEN Handyman Q-W0003 Washer Suspension Rods (4 Pack). These rods are crucial for maintaining the balance and stability of your washing machine's tub.

Кључне карактеристике овог заменског дела укључују:

• Designed to fit multiple washing machine models, including MTW6300TQ0, MTW6400TQ0, MTW6600TB0, WTW6200SW2, WTW6200SW3, and WTW6200SW0.
• Compatible with Whirlpool appliances.
• Helps resolve issues related to unbalanced loads and excessive vibration.
• Includes four suspension rods for a complete replacement.

2. Спецификације

3. Безбедносне информације

Before attempting any repair or installation on your washing machine, always prioritize safety. Failure to follow these precautions can result in serious injury or damage to the appliance.

• Искључите напајање: Always unplug the washing machine from the electrical outlet before beginning any work.
• Искључите довод воде: Затворите вентиле за довод топле и хладне воде до машине за прање веша.
• Носите заштитну опрему: Користите радне рукавице да бисте заштитили руке од оштрих ивица и заштитне наочаре да бисте заштитили очи.
• Consult Washer Manual: Refer to your specific washing machine's service manual for detailed disassembly and reassembly instructions. This manual provides general guidance.
• Потражите стручну помоћ: If you are unsure about any step or uncomfortable performing the repair, contact a qualified appliance technician.

4. Упутства за инсталацију

Replacing washer suspension rods typically involves accessing the washer's internal components. The following steps provide a general overview. Always consult your washing machine's specific service manual for precise instructions and diagrams.

1. Припремите машину за прање веша: Ensure the washer is unplugged and both hot and cold water supply lines are turned off. Disconnect the drain hose.
2. Access the Tub: Depending on your washer model (top-load or front-load), you may need to remove the top panel, front panel, or rear panel to gain access to the washer tub and its suspension system. This often involves removing screws and clips.
3. Locate Suspension Rods: Identify the existing suspension rods. There are typically four rods, one at each corner of the tub, connecting it to the washer frame.
4. Remove Old Rods: Carefully lift the washer tub slightly to relieve tension on the rods. Disengage the old suspension rods from both the tub and the washer frame. Note how they are installed for correct reassembly.
5. Install New Rods: Insert the new WEN Handyman Q-W0003 suspension rods into their respective positions. Ensure the plastic bushings and springs are correctly oriented and seated. The spring end typically connects to the washer frame, and the plastic bushing end connects to the tub.
6. Проверите инсталацију: Gently push down on the tub and release to ensure it moves freely and is properly suspended by all four new rods. The tub should be centered and level.
7. Поново саставите машину за прање веша: Reattach any panels or components that were removed. Ensure all screws and clips are securely fastened.
8. Reconnect Utilities: Reconnect the water supply lines and turn on the water. Plug the washer back into the electrical outlet.
9. Пробни рад: Run a small, empty load or a diagnostic cycle to check for proper operation and ensure the tub is balanced during agitation and spin cycles.

5. Операција

The WEN Handyman Q-W0003 Washer Suspension Rods are passive components that facilitate the proper operation of your washing machine. They do not have direct user-controlled operational functions. Their primary role is to:

• Support the Tub: Hold the washer tub in its correct position within the outer cabinet.
• Dampen Vibrations: Absorb and reduce the vibrations generated by the spinning tub, especially during high-speed spin cycles. This prevents the washer from shaking excessively or moving across the floor.
• Одржавање равнотеже: Work in conjunction with the washer's balance system to ensure the load is evenly distributed and the tub spins smoothly.

Properly functioning suspension rods are essential for quiet operation and to prevent damage to the washer's internal components and surrounding environment.

6. Одржавање

While suspension rods themselves require minimal maintenance, regular checks and good washing practices can extend their lifespan and the overall performance of your washing machine.

• Балансирање оптерећења: Always distribute laundry evenly inside the washer tub. Overloading or unevenly loading the machine can put undue stress on the suspension system.
• Избегавајте преоптерећење: Do not exceed the washer's recommended load capacity. Heavy loads can prematurely wear out suspension components.
• Редовна инспекција: Periodically inspect the area around the washer for signs of excessive movement or noise during spin cycles, which could indicate worn suspension rods.
• Keep Washer Level: Ensure your washing machine remains level on the floor. An unlevel washer can cause uneven wear on the suspension rods. Adjust the leveling feet as needed.

КСНУМКС. Решавање проблема

If your washing machine exhibits any of the following symptoms, worn or faulty suspension rods may be the cause. Always perform safety checks (disconnect power, turn off water) before inspecting internal components.

Уобичајени проблеми и решења:

• Excessive Vibration or Shaking:
  Симптом: The washer shakes violently, especially during the spin cycle, or moves across the floor.
  Могући узрок: Worn or broken suspension rods are unable to properly dampen tub movement.
  решење: Inspect all four suspension rods for signs of wear, bending, or breakage. Replace the entire set if any rod shows significant wear. Also, ensure the washer is level.
• "UL" (Unbalanced Load) Error Code:
  Симптом: The washer displays a "UL" error and stops or struggles to complete the spin cycle.
  Могући узрок: While often due to an actual unbalanced load, consistently getting this error even with balanced loads can indicate weak or failing suspension rods that cannot support the tub correctly.
  решење: First, redistribute the laundry. If the error persists, inspect the suspension rods. Replace if they appear weak or damaged.
• Loud Banging or Thumping Noises:
  Симптом: During agitation or spin, the washer makes loud banging or thumping sounds.
  Могући узрок: The tub is hitting the washer cabinet due to inadequate suspension.
  решење: Check the suspension rods for proper installation and condition. Ensure they are securely attached and not bent or broken.
• Tub Sits Too Low or Unevenly:
  Симптом: The washer tub appears to sag or is noticeably lower on one side.
  Могући узрок: One or more suspension rods have failed or are severely worn.
  решење: Replace the entire set of suspension rods to restore proper tub height and balance.

Ако кораци за решавање проблема не реше проблем, препоручује се да се консултујете са стручним сервисером за поправку кућних апарата.

8. Гаранција и подршка

For information regarding the warranty of your WEN Handyman Q-W0003 Washer Suspension Rods, please refer to the documentation included with your purchase or visit the official WEN website. WEN provides support for its products and can assist with inquiries regarding part compatibility, installation, and troubleshooting.

To contact WEN customer support, please visit венпродуцтс.цом или погледајте контакт информације које се налазе на паковању вашег производа.
