Hunter Minimus 59453 44-inch Indoor Ceiling Fan with Light and Remote Control User Manual

1. Увод

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hunter Minimus 59453 44-inch Indoor Ceiling Fan. Designed for indoor comfort, this low-profile fan features an ultra-quiet WhisperWind motor, an energy-efficient LED light kit, and convenient remote control operation. Please read all instructions carefully before beginning installation or use.

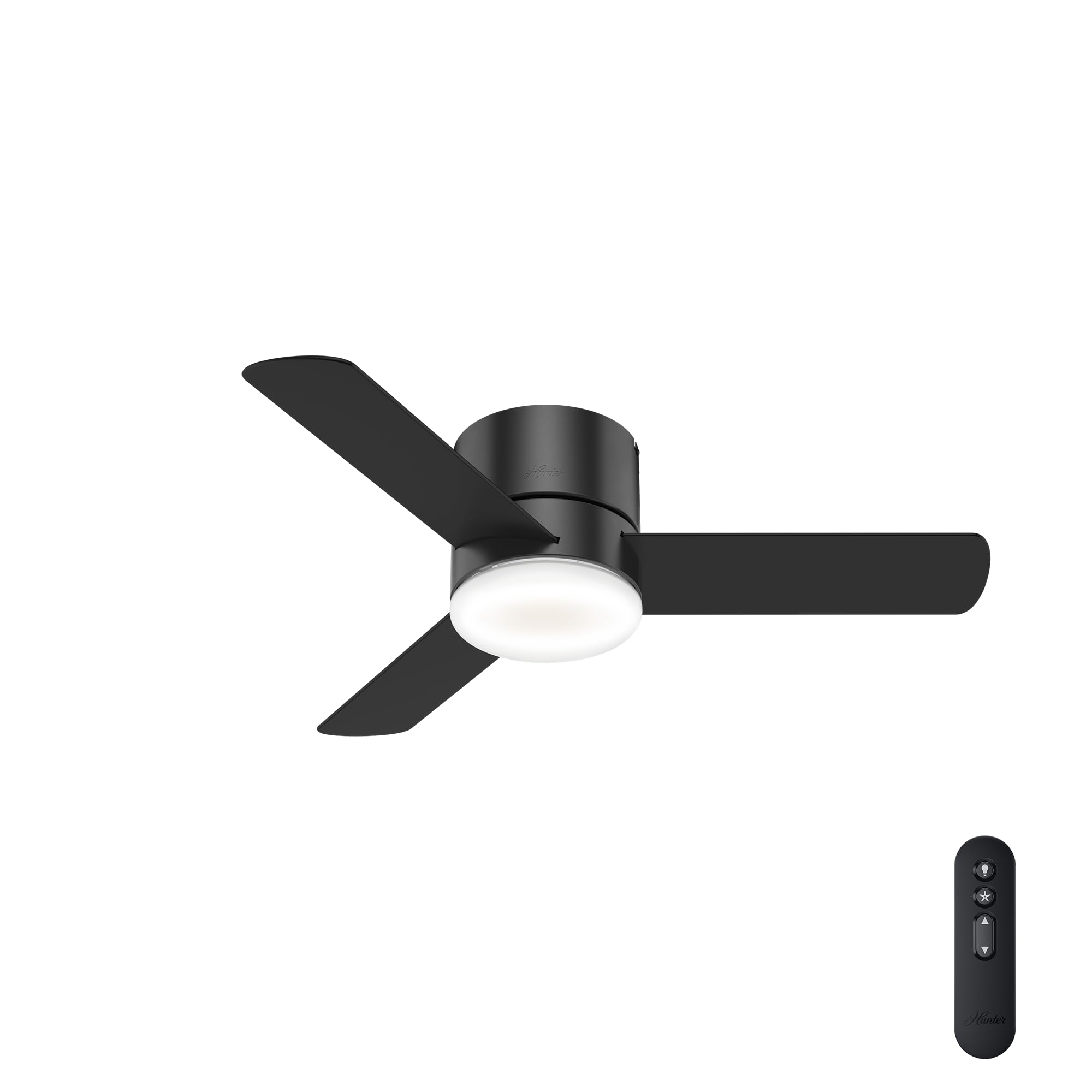

Image 1: Hunter Minimus 44-inch Matte Black Ceiling Fan with LED Light.

2. Безбедносне информације

Always prioritize safety during installation and operation. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Turn off electrical breaker before installing. Ensure power is completely disconnected at the main circuit breaker or fuse box to prevent electrical shock.
• Све ожичење мора бити у складу са националним и локалним електричним прописима. Ако нисте упознати са ожичењем, консултујте квалификованог електричара.
• Mount the fan only to an outlet box marked 'Acceptable for Fan Support of 35 lbs (15.9 kg) or less' and use the mounting screws provided with the outlet box.
• Не савијајте држаче сечива током инсталације, балансирања или чишћења.
• Не користите вентилатор са оштећеним лопатицама.

3. Садржај пакета

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Hunter customer service.

Image 2: Included components of Hunter Minimus 44-inch Ceiling Fan: LED Bulb, 3 Reversible Blades, Handheld Remote.

• ЛЕД сијалица
• 3 реверзибилних сечива
• Ручни даљински управљач
• Кућиште мотора
• Монтажни хардвер

4. Подешавање и инсталација

The Hunter Minimus 59453 is designed for straightforward installation, featuring a low-profile flush mount suitable for ceilings under 9 feet. For detailed visual guidance, refer to the 'Hunter Brand Video - Since 1886' and 'The Minimus Ceiling Fan by Hunter - Overview' videos.

4.1. Кораци пре инсталације

1. Искључивање струје: Before starting, ensure the power is turned off at the circuit breaker.
2. Распакујте компоненте: Carefully remove all parts from the packaging and lay them out to ensure nothing is missing.
3. Review Димензије вентилатора: Confirm the fan's dimensions are suitable for your space.

Image 3: Fan Dimensions for low profile installation. A: 7.89 inches, B: 10.29 inches.

4.2. Монтажа вентилатора

Follow the detailed instructions provided in your fan's installation guide for mounting the bracket, wiring, and attaching the fan body and blades. The pre-installed control receiver simplifies the wiring process.

Image 4: Hunter Minimus 44-inch Ceiling Fan installed in a modern home office setting.

5. Упутство за употребу

Your Hunter Minimus 59453 fan is operated using the included handheld remote control. This remote allows you to control the fan speed, light on/off, dimming, and fan direction.

Image 5: Hunter Minimus Remote Control with buttons for light, fan on/off, speed adjustment, and direction change.

5.1. Контрола светла

• Укључено/искључено светло: Quick press the light bulb button to turn the light on or off.
• Затамњење: Press and hold the light bulb button to dim or brighten the light.
• Dimming Mode ON/OFF: Press and hold both the up and down fan speed arrows simultaneously to toggle dimming mode on or off.

5.2. Контрола вентилатора

• Укључивање/искључивање вентилатора: Quick press the fan button (star icon) to turn the fan on or off.
• Raise Fan Speed: Quick press the up arrow button to increase fan speed.
• Lower Fan Speed: Quick press the down arrow button to decrease fan speed.
• Fan Reverse (Seasonal Modes): Press and hold the fan button (star icon) to reverse the fan direction. This feature is typically used to switch between Summer and Winter modes. (Excludes fans with a physical reverse switch on the housing).

6. Seasonal Modes

Adjust your fan's direction to optimize comfort and energy efficiency throughout the year.

Image 6: Reversible Multi-Speed Motor showing Summer Mode (downdraft) and Winter Mode (updraft).

• Summer Mode (Counter-Clockwise): Set blades to spin counter-clockwise to create a downdraft, providing a cooling breeze.
• Зимски режим (у смеру казаљке на сату): Set blades to spin clockwise on low speed to create an updraft, circulating warm air near the ceiling without creating a direct draft.

Image 7: Using a ceiling fan can save energy and money by allowing you to adjust thermostat settings.

7. Одржавање

Редовно одржавање осигурава оптималне перформансе и дуготрајност вашег плафонског вентилатора.

• Чишћење: Периодично чистите прашину са лопатица вентилатора и кућишта мотора меком крпомamp cloth. Avoid using abrasive cleaners that could damage the finish.
• Затегните причвршћиваче: Check all screws and fasteners on the fan and mounting assembly at least twice a year to ensure they are secure.
• Инспекција сечива: Inspect blades for any cracks or damage. Replace damaged blades immediately.

КСНУМКС. Решавање проблема

If you experience issues with your fan, consult the following common troubleshooting tips:

• Вентилатор се не покреће: Check that the circuit breaker is on and the wall switch (if applicable) is in the ON position. Ensure all wiring connections are secure. Verify the remote control battery is functional.
• Светло не ради: Check the light bulb connection. Ensure the light is not in dimming mode if you expect full brightness.
• Колебање вентилатора: Ensure all blade screws are tightened. Check that the mounting bracket is securely fastened to the ceiling outlet box.
• Бучна операција: Verify all screws are tight. Check for proper blade alignment. Ensure the fan is not rubbing against any part of the ceiling or mounting.

9. Спецификације

10. Гаранција и подршка

Your Hunter Minimus 59453 Ceiling Fan comes with a Ограничена доживотна гаранција на мотор. For specific details regarding warranty coverage, claims, or technical support, please refer to the warranty documentation included with your product or visit the official Hunter Fan Company website. You can also contact Hunter customer service directly for assistance.
