McCulloch GBV 322 VX Thermal Leaf Blower, Vacuum, and Shredder User Manual

Увод

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your McCulloch GBV 322 VX Thermal Leaf Blower, Vacuum, and Shredder. Please read this manual thoroughly before using the product and keep it for future reference.

The McCulloch GBV 322 VX is a versatile 3-in-1 thermal leaf blower, vacuum, and shredder designed for efficient outdoor cleanup. It features an 800 W engine, delivering a powerful blowing speed of up to 370 km/h, optimized with a Performance nozzle for maximum airflow. The integrated shredder function reduces the volume of collected leaves and grass clippings, maximizing the capacity of the 45-liter collection bag. With adjustable blowing speed and cruise control, it offers comfortable operation even during extended use. Anti-vibration features and a lightweight design ensure user comfort.

Безбедносна упутства

Увек дајте приоритет безбедности при раду са електричним алатима. Непоштовање ових упутстава може довести до озбиљних повреда или материјалне штете.

• Прочитајте цео приручник: Understand all controls, safety decals, and operating procedures before use.
• Носите одговарајућу личну заштитну опрему (ЛЗО): This includes eye protection, hearing protection, gloves, long pants, and sturdy footwear.
• Inspect the unit before each use: Check for loose parts, damaged components, or fuel leaks. Do not operate a damaged unit.
• Fuel handling: Увек допуњавајте гориво у добро проветреном простору са искљученим и хладним мотором. Избегавајте просипање горива.
• Држите пролазнике подаље: Maintain a safe distance from other people, children, and pets during operation.
• Радите у добро проветреним просторијама: Exhaust fumes contain carbon monoxide, which is dangerous.
• Avoid contact with moving parts: Keep hands, feet, and clothing away from the fan and other moving components.
• Secure the collection bag: Ensure the vacuum collection bag is properly attached and secured before vacuuming.
• Do not modify the product: Unauthorized modifications can impair safety and performance.

Подешавање и монтажа

Before operating your McCulloch GBV 322 VX, some assembly is required. Follow these steps carefully.

1. Причвршћивање цеви вентилатора

Align the blower tube with the outlet on the main unit. Push firmly until it clicks into place. Ensure it is securely fastened.

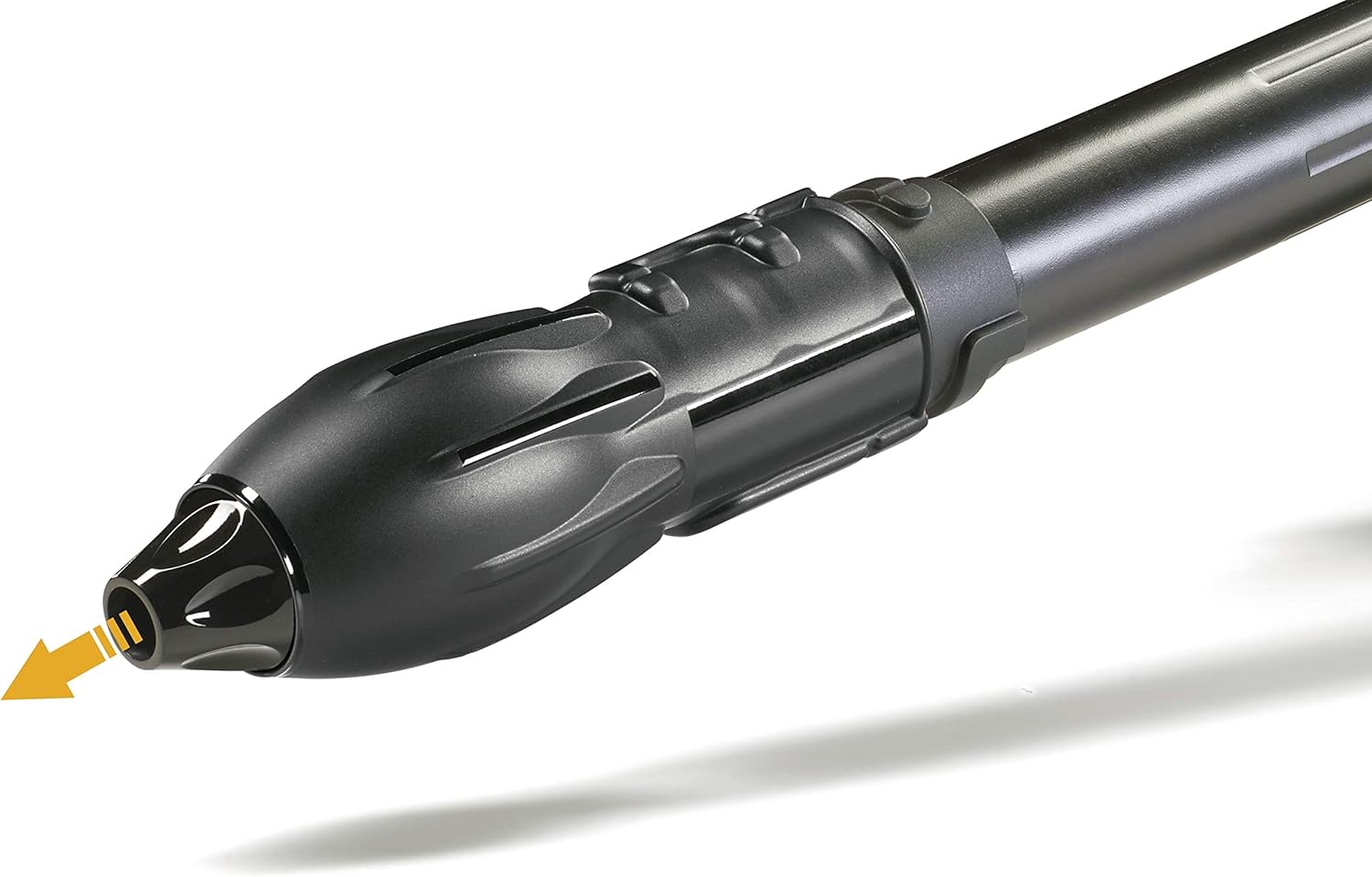

Image: Close-up of the leaf blower nozzle, illustrating the attachment point for the tube.

2. Assembling for Vacuum Mode

To convert to vacuum mode, first remove the blower tube. Attach the vacuum intake tube to the main unit's intake port and secure it. Then, attach the collection bag to the exhaust port. Ensure all connections are tight to prevent debris leakage.

Image: The McCulloch GBV 322 VX leaf blower configured for vacuuming, showing the attached collection bag.

3. Fueling the Unit

This is a thermal (petrol) blower. Use a mixture of unleaded gasoline and 2-stroke engine oil at the ratio specified in the engine manual (typically 50:1 or 40:1). Always mix fuel in a separate, approved container. Fill the fuel tank carefully, avoiding overfilling. Wipe up any spills immediately.

Упутство за употребу

Покретање мотора

1. Поставите јединицу на равну, стабилну површину.
2. Уверите се да је прекидач УКЉУЧЕНО/ИСКЉУЧЕНО у положају „УКЉУЧЕНО“.
3. Укључите сауг (ако је у питању хладан старт).
4. Притисните пумпу за гориво неколико пута док се гориво не види.
5. Чврсто и глатко повуците стартни кабл док се мотор не покрене.
6. Када се једном покрене, постепено искључите сауг.

Бловинг Оператион

Hold the blower firmly with both hands. Direct the nozzle towards the debris you wish to move. Use a sweeping motion to gather leaves and debris into piles. The adjustable speed control allows you to vary the airflow for different tasks. The cruise control function can maintain a set speed for prolonged operation, reducing user fatigue.

Image: A person using the McCulloch GBV 322 VX leaf blower to clear leaves from a paved surface, demonstrating typical operation.

Vacuuming and Shredding Operation

With the unit configured for vacuuming, lower the intake tube towards the debris. Move the unit slowly over the leaves and light debris. The powerful suction will draw material into the shredder mechanism, reducing its volume before it enters the collection bag. Monitor the collection bag and empty it when full to maintain optimal performance.

Image: An illustration depicting the mulching function, where leaves are shredded into smaller pieces before collection.

Одржавање

Regular maintenance ensures the longevity and optimal performance of your McCulloch GBV 322 VX.

• Ваздушни филтер: Редовно чистите ваздушни филтер, посебно у прашњавим условима. Замените ако је оштећен.
• свећица: Периодично проверавајте и чистите свећицу. Замените је ако је истрошена или запрљана.
• Филтер за гориво: Check and replace the fuel filter as needed to prevent fuel system issues.
• Хладна пераја: Keep the engine's cooling fins free of debris to prevent overheating.
• Збирна торба: Empty and clean the collection bag after each use to prevent mold and maintain airflow.
• Генерално чишћење: Очистите спољашњост јединице са огласомamp тканина. Немојте користити јаке хемикалије.
• Складиштење: For long-term storage, drain the fuel tank or use a fuel stabilizer. Store in a dry, secure location.

Решавање проблема

Овај одељак се бави уобичајеним проблемима на које можете наићи са дувачем лишћа.

Спецификације

Напомена: Спецификације се могу променити без најаве.

Гаранција и подршка

For warranty information, technical support, or to locate an authorized service center, please refer to the warranty card included with your product or visit the official McCulloch webсајт. Сачувајте рачун као доказ о куповини за потребе гаранције.

Контакт информације:

• Webсајт: ввв.мццуллоцх.цом (или релевантна регионална локација)
• Служба за кориснике: Refer to your regional McCulloch contact details.
