1. Производ је готовview
This manual provides essential instructions for the safe installation, operation, and maintenance of the Aramox Manual Hydraulic Line Lock Brake Kit. This device is engineered to hold hydraulic pressure within a vehicle's brake system, effectively locking the brakes. It is designed for universal application in cars and trucks equipped with either disc or drum brakes.

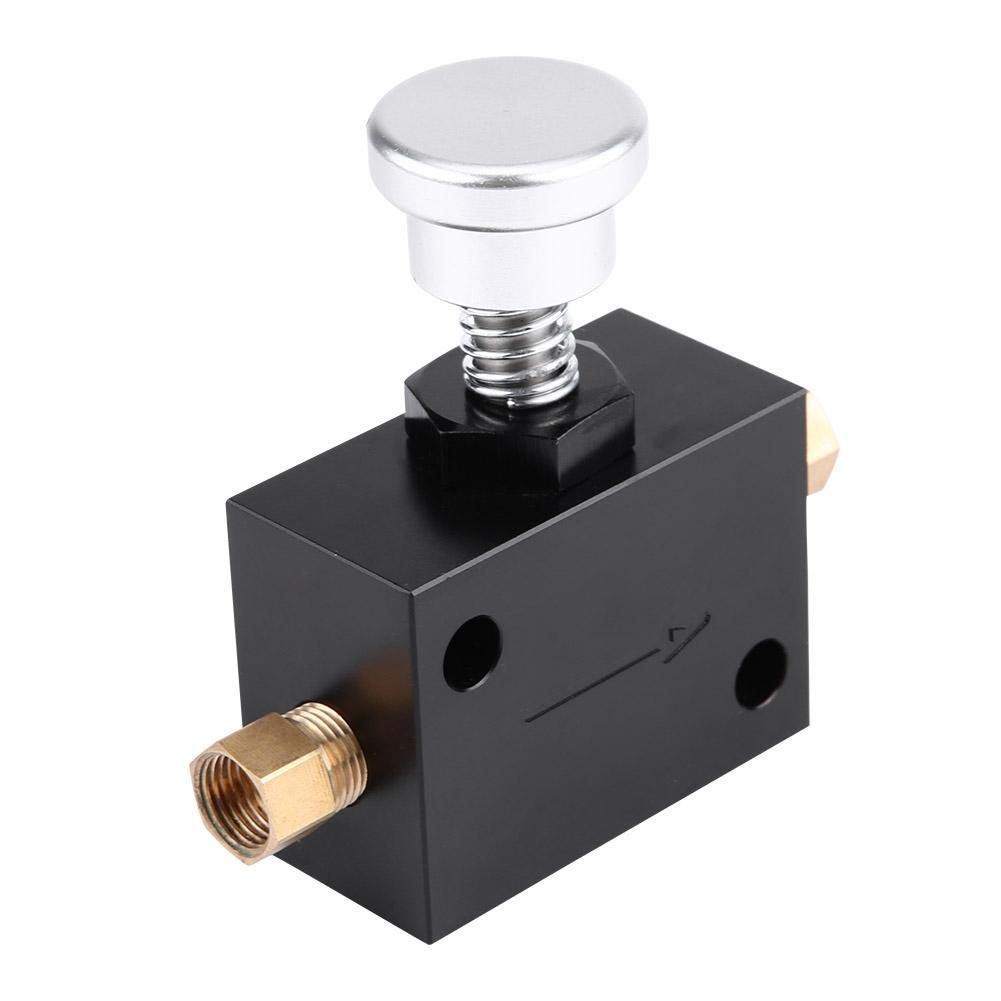

Image 1.1: The Aramox Manual Hydraulic Line Lock Brake Kit, a black rectangular unit with a silver push-button knob and brass fittings.
Кључне карактеристике:
- Универзална опрема: Compatible with a wide range of cars and trucks, suitable for both disc and drum brake systems.
- Hydraulic Pressure Holding: Utilizes hydraulic line pressure to maintain brake engagement.
- Издржљива конструкција: Manufactured from iron material for reliability and longevity.
- Једноставност инсталације: Designed for straightforward installation, includes an extra seal for replacement.
2. Безбедносне информације
УПОЗОРЕЊЕ: Improper installation or use of this product can lead to brake system failure, resulting in serious injury or death. Always exercise extreme caution when working with vehicle brake systems.
- Препоручена професионална инсталација: Installation of brake system components should ideally be performed by a qualified automotive technician.
- Кочиона течност: Brake fluid is corrosive. Avoid contact with skin, eyes, and painted surfaces. If contact occurs, wash immediately with water.
- Системско крварење: After installation, the entire brake system must be properly bled to remove all air. Air in the brake lines will cause a spongy pedal and reduced braking performance.
- тестирање: Thoroughly test the brake system and the line lock functionality in a safe, controlled environment before operating the vehicle on public roads.
- Редовна инспекција: Periodically inspect the line lock and all brake lines for leaks, damage, or wear.
3. Компоненте производа
The Aramox Manual Hydraulic Line Lock Brake Kit includes the following items:
- 1 x Aramox Manual Hydraulic Line Lock Unit
- 1 x Extra Seal (for maintenance or replacement)
4. Упутства за инсталацију
This section outlines the general steps for installing the Aramox Manual Hydraulic Line Lock. Due to variations in vehicle models and brake systems, these instructions are general. Consult a professional mechanic if you are unsure about any step.
- Припрема: Ensure the vehicle is safely supported on jack stands. Disconnect the vehicle's battery. Gather necessary tools, including line wrenches, brake fluid, and a bleeding kit.
- Идентификујте локацију инсталације: Determine the appropriate location to install the line lock. This is typically in the brake line leading to the wheels you wish to lock (e.g., rear brakes for drag racing stagинг).
- Монтирајте јединицу: Securely mount the line lock unit to a stable part of the vehicle chassis using appropriate hardware (not included). Ensure the unit is positioned to allow for easy access to the knob and connections, and that brake lines can be routed without kinks or excessive tension. The unit has mounting holes for this purpose.
- Connect Brake Lines: Cut the existing brake line at the chosen installation point. Flare the ends of the brake line if necessary to ensure a proper seal with the line lock fittings. Connect the brake line coming from the master cylinder to the inlet port of the line lock, and the brake line going to the wheels to the outlet port. Ensure all connections are tight but do not overtighten. Refer to the directional arrow on the unit for correct flow.
Image 4.1: Diagram illustrating the connection points of the line lock unit, showing the inlet from the brake master cylinder and the outlet to the rear brake, along with mounting holes.
- Одзрачите кочиони систем: After installation, it is crucial to bleed the entire brake system to remove any air introduced during the process. Follow your vehicle manufacturer's recommended brake bleeding procedure.
- Проверите да ли има цурења: With the engine off, pump the brake pedal several times to build pressure. Hold the pedal down firmly and inspect all connections around the line lock for any signs of brake fluid leaks. If leaks are detected, tighten connections or replace seals as necessary.
Слика 4.2: Примерamples of the line lock unit installed in different vehicle configurations, demonstrating typical mounting and line routing.
5. Упутство за употребу
The Aramox Manual Hydraulic Line Lock is designed for simple operation.
Engaging the Line Lock:
- Firmly depress the vehicle's brake pedal to build hydraulic pressure in the brake system.
- While holding the brake pedal down, pull the knob on the line lock unit outwards until it locks into place.
- Release the brake pedal. The line lock will now maintain pressure to the designated brakes, keeping them engaged.
Disengaging the Line Lock:
- Firmly depress the vehicle's brake pedal again. This equalizes pressure across the line lock valve.
- Push the knob on the line lock unit inwards to release the lock.
- Release the brake pedal. The brakes will now operate normally.
Слика 5.1: Крупни план view of the silver push-button knob and spring mechanism on the line lock unit, which is used to engage and disengage the brake lock.
6. Одржавање
Proper maintenance ensures the longevity and safe operation of your line lock brake kit.
- Редовна инспекција: Periodically check the line lock unit and all brake line connections for any signs of corrosion, damage, or fluid leaks.
- Компатибилност са течностима: Ensure that the brake fluid used in your vehicle is compatible with the materials of the line lock. Refer to your vehicle's owner's manual for recommended brake fluid type.
- Замена заптивке: If leaks occur around the knob or fittings, the internal seals may need replacement. An extra seal is provided for this purpose. Disassemble the unit carefully, replace the seal, and reassemble, ensuring proper torque on all fasteners. Re-bleed the brake system after any seal replacement.
КСНУМКС. Решавање проблема
If you encounter issues with your Aramox Manual Hydraulic Line Lock, refer to the following troubleshooting guide:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Brake fluid leaks from the unit or connections. | Loose fittings, damaged seals, improper installation. | Tighten all brake line fittings. Inspect and replace internal seals if necessary (use the provided extra seal). Ensure proper torque during reassembly. Re-bleed the brake system. |
| Brakes do not hold pressure when line lock is engaged. | Air in the brake system, faulty seal, insufficient brake pedal pressure during engagement. | Thoroughly bleed the entire brake system. Ensure the knob is fully pulled out and locked. Check seals for damage. |
| Brakes do not release when line lock is disengaged. | Knob not fully pushed in, mechanical binding, residual pressure. | Ensure the knob is fully pushed inwards. Depress the brake pedal firmly to equalize pressure before pushing the knob. Check for any obstructions preventing the knob from fully retracting. |
| Spongy brake pedal after installation. | Air in the brake system. | Re-bleed the entire brake system thoroughly. |
8. Спецификације
| Спецификација | Детаљ |
|---|---|
| Бранд | Aramox |
| Број модела | 783335535637 |
| Материјал | Гвожђе |
| Тип закључавања | Пин Тумблер |
| Димензије артикла (Д к Ш к В) | 3.94 к 3.94 к 3.94 инча |
| Укључене компоненте | 1 * Brake Lock |
9. Гаранција и подршка
The Aramox Manual Hydraulic Line Lock Brake Kit comes with a 12-месечна гаранција од дана куповине.
If you encounter any issues or have questions regarding the installation, operation, or maintenance of your product, please contact Aramox customer service. Our support team is available to provide timely assistance and solutions.
For customer service, please refer to the contact information provided at the point of purchase or on the official Aramox webсајту.
