BELEY BT-460 12V/24V Auto Battery Load Tester

1. Увод

The BELEY BT-460 is a professional automotive battery load tester designed to analyze the health status of 12V and 24V lead-acid batteries. It performs various tests including battery test, cranking test, charging test, and maximum load test. This device supports multiple battery types and testing standards, providing accurate and clear results on its 4-inch colorful TFT display.

2. Безбедносне информације

• Увек носите заштиту за очи и заштитну одећу када радите са батеријама.
• Ensure good ventilation in the work area to prevent accumulation of explosive gases.
• Држите тестер даље од топлоте, варница и отвореног пламена.
• Avoid touching battery acid. If contact occurs, flush immediately with water and seek medical attention.
• Повежите црвени цлamp на позитивни (+) терминал и црни цлamp на негативни (-) терминал.
• Do not disconnect the clamps while the test is in progress or the engine is running.

3. Производ је готовview и компоненте

The BELEY BT-460 features a compact design with an LCD screen, navigation buttons, and durable battery clamps. The device is connected to the battery via a COM connecting line.

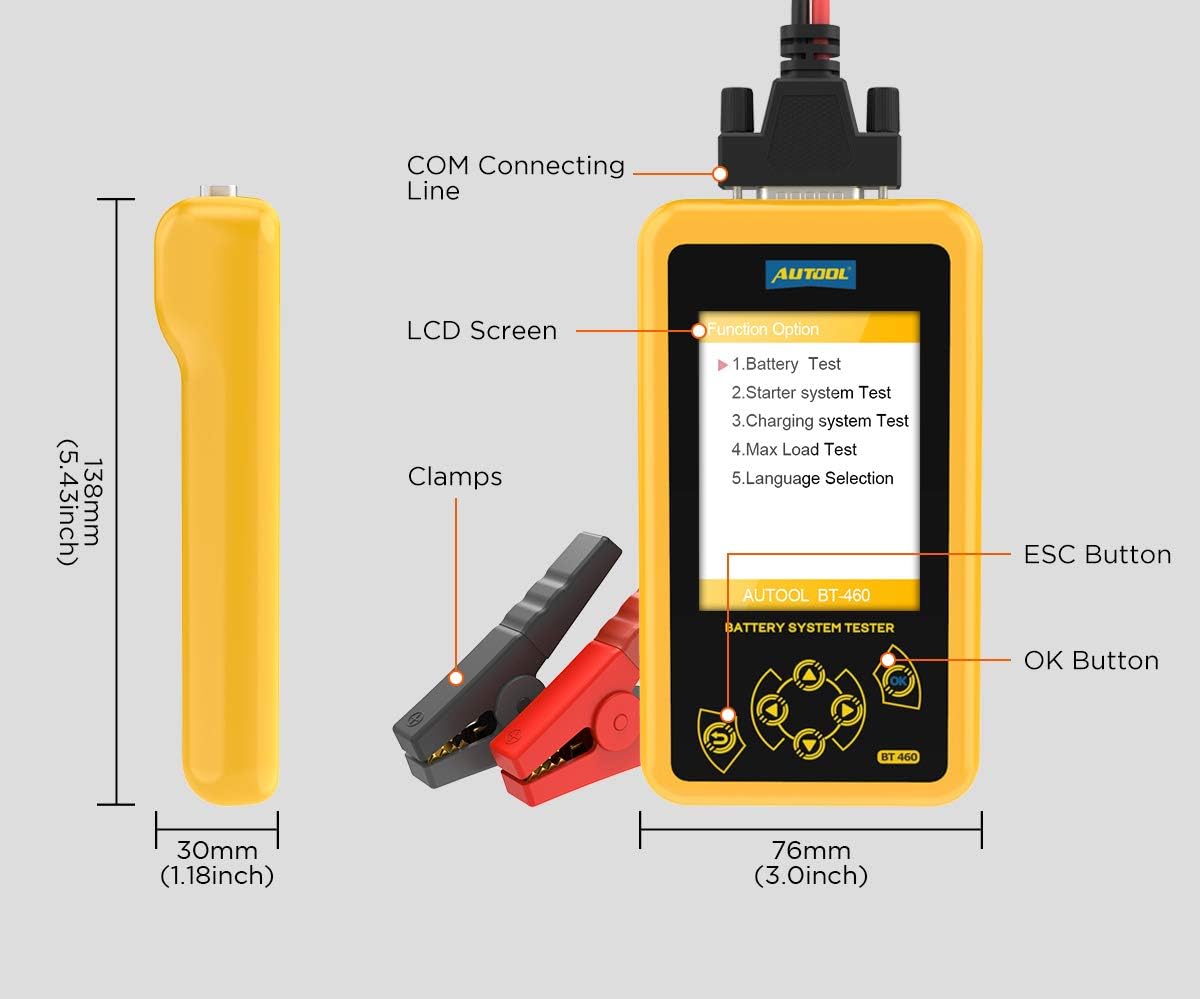

Figure 3.1: BELEY BT-460 Battery System Tester with clamps and connecting line, showing dimensions and button layout.

The package typically includes the BT-460 main unit, a pair of battery clamps, and a user manual.

Figure 3.2: BELEY BT-460 Packaging Accessories.

4. Спецификације

Figure 4.1: Supported Battery Testing Standards and Ranges.

5. Подешавање

5.1 Почетно повезивање

1. Уверите се да је паљење возила искључено и да је сва додатна опрема искључена.
2. Повежите црвени позитивни (+) клamp тестера на позитивни (+) пол батерије.
3. Спојите црни негатив (-) цлamp тестера на негативни (-) терминал батерије.
4. Тестер ће се аутоматски укључити након правилног повезивања.

5.2 Избор језика

The BT-460 supports multiple languages. To select your preferred language:

1. From the main menu, navigate to 'Language Selection' using the arrow buttons.
2. Press the 'ENTER' button to confirm.
3. Scroll through the available languages (English, Russian, Spanish, French, German, Japanese, Turkish, etc.) and press 'ENTER' to select.

Figure 5.1: Multi-Language Options on the BT-460.

6. Упутство за употребу

The BELEY BT-460 offers four main testing functions to assess your battery and charging system.

Figure 6.1: Main Functional Tests of the BT-460.

6.1 Тест батерије

This test analyzes the battery's overall health, including voltage, current (CCA), resistance, and estimated life percentage.

1. From the main menu, select 'Battery Test' and press 'ENTER'.
2. Input the battery's CCA rating (usually found on the battery label) using the arrow buttons and press 'ENTER'.
3. The tester will display the results, indicating the battery's condition (e.g., Good, Weak, Damaged).

6.2 Тест покретања

The cranking test evaluates the battery's ability to start the engine.

1. From the main menu, select 'Cranking Test' and press 'ENTER'.
2. Пратите упутства на екрану да бисте покренули мотор возила.
3. The tester will analyze the cranking voltage and time, providing a result on the starter system's performance.

6.3 Тест пуњења

This test assesses the vehicle's charging system, including the alternator and voltagе регулатор.

1. From the main menu, select 'Charging Test' and press 'ENTER'.
2. Follow the on-screen prompts to start the engine and increase RPMs as instructed.
3. The tester will display the charging voltage and ripple, indicating if the charging system is functioning correctly.

6.4 Max Load Test

The maximum load test checks the battery's performance under high electrical demand.

1. From the main menu, select 'Max Load Test' and press 'ENTER'.
2. Follow the on-screen prompts to turn on high-load electrical components (e.g., headlights, AC, defroster).
3. The tester will measure the battery's voltage drop under load, providing an assessment of its capacity.

7. Polarity Reverse Protection

The BELEY BT-460 is equipped with polarity reverse protection. This feature prevents damage to both the battery and the tester if the clamps are accidentally connected to the wrong terminals. The device will not operate until the correct polarity is established, ensuring safe usage.

Figure 7.1: Polarity Reverse Protection Feature.

КСНУМКС. Решавање проблема

• Тестер се не укључује: Уверите се да је батерија цлamps are securely connected to the correct battery terminals. Check if the battery has sufficient voltage (minimum 8V) to power the tester.
• Нетачна очитавања: Ensure battery terminals are clean and free of corrosion. Verify that the correct CCA value is entered for the battery test.
• "Battery Low Voltage" message: Ово указује на запремину батеријеtage is too low for an accurate test. Attempt to charge the battery before retesting.
• Difficulty locating battery: Some vehicles, like certain Dodge Journey models, have the battery located in less accessible areas, such as the wheel well. Consult your vehicle's owner's manual for specific battery location and access procedures.

9. Одржавање

• Clean the tester's housing with a soft, damp тканина. Немојте користити абразивна средства за чишћење или раствараче.
• Држите батерију чистомamps clean and free of corrosion to ensure good electrical contact.
• Тестер чувајте на сувом и хладном месту, даље од директне сунчеве светлости и екстремних температура.
• Avoid dropping the tester or subjecting it to strong impacts.

10. Гаранција и подршка

The BELEY BT-460 comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or contact BELEY customer support. For technical assistance, troubleshooting, or service inquiries, please reach out to BELEY customer support through their official website or contact information provided in the product packaging.
