Увод
Thank you for choosing the Fossil FS5542 Chase Timer watch. This timepiece combines classic design with modern functionality, featuring a precise quartz movement and chronograph capabilities. This manual will guide you through the proper setup, operation, and care to ensure optimal performance and longevity of your watch.

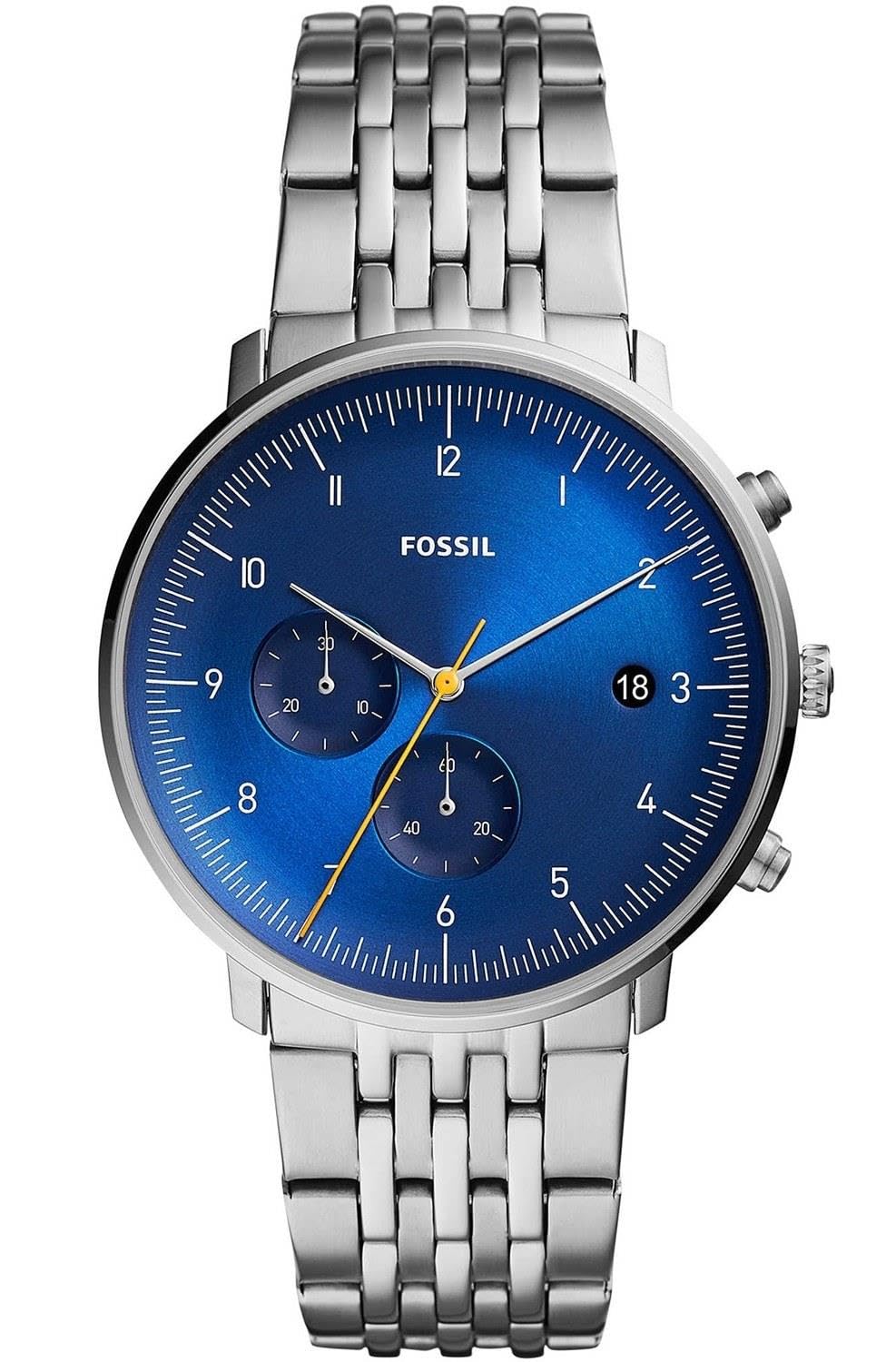

Image: Fossil FS5542 Chase Timer watch, showcasing its blue dial, Arabic numeral indices, and stainless steel bracelet.
Кључне карактеристике
- Кварцни покрет: Обезбеђује тачно мерење времена.
- Функција хронографа: За прецизно мерење времена.
- Приказ датума: Convenient date window.
- Кућиште и наруквица од нерђајућег челика: Издржљива и стилска конструкција.
- Минерално стакло: Provides scratch resistance.
- Отпорност на воду: Rated for 30 meters (3 ATM).
Подешавање и почетно подешавање
Подешавање времена
- Pull the crown out to position 2 (farthest position).
- Окрените круницу у смеру казаљке на сату или супротно од смера казаљке на сату да бисте подесили казаљке за сате и минуте на жељено време.
- Push the crown back into position 0 (normal position) to start the watch.
Подешавање датума
- Извуците круницу у положај 1 (средњи положај).
- Turn the crown clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this may damage the movement.
- Once the correct date is displayed, push the crown back into position 0.
Управљање хронографом
The chronograph function allows you to measure elapsed time. Your watch features two pushers, typically located at 2 o'clock (Pusher A) and 4 o'clock (Pusher B).
Basic Chronograph Operation
- Почетак: Press Pusher A to start the chronograph. The chronograph second hand will begin to move.
- Зауставити: Press Pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
- Ресетовати: Press Pusher B to reset the chronograph hands to their zero position.
Split Time Function (if applicable)
Some chronographs allow for split time measurement, enabling you to measure intermediate times without stopping the main timing.
- Почетак: Press Pusher A to start the chronograph.
- Сплит: Press Pusher B to record a split time. The chronograph hands will stop, but the internal timing continues.
- резиме: Press Pusher B again to catch up the chronograph hands to the ongoing elapsed time.
- Зауставити: Press Pusher A to stop the chronograph.
- Ресетовати: Press Pusher B to reset all hands to zero.
Одржавање и њега
Општа нега
- Clean your watch regularly with a soft, dry cloth to remove dust and dirt.
- Avoid exposing your watch to extreme temperatures, direct sunlight for prolonged periods, or strong magnetic fields.
- Do not expose your watch to harsh chemicals, solvents, or detergents, as these can damage the case, bracelet, or seals.
Отпорност на воду
Your Fossil FS5542 watch is water resistant to 30 meters (3 ATM). This rating means the watch is suitable for everyday use and can withstand splashes or brief immersion in water, such as rain or hand washing. It is not suitable for swimming, showering, diving, or any water sports. Увек се уверите да је круница потпуно угурана пре било каквог контакта са водом.
Замена батерије
The watch is powered by a lithium-metal battery. When the watch stops or the second hand begins to jump erratically (indicating a low battery), it is time for a battery replacement. It is recommended to have the battery replaced by an authorized Fossil service center or a qualified watchmaker to ensure proper sealing and maintain water resistance.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Сат се зауставља или ради повремено | Ниска батерија | Замените батерију. |
| Датум се не мења у поноћ | Time is set for AM/PM incorrectly | Померите време за 12 сати унапред. |
| Казаљке хронографа се не ресетују на нулу | Захтева калибрацију | За подешавање се обратите овлашћеном сервисном центру. |
| Condensation inside the crystal | Water ingress due to damaged seal or open crown | Одмах однесите сат у овлашћени сервисни центар. Не покушавајте сами да га осушите. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Fossil customer support or an authorized service center.
Спецификације
| Феатуре | Детаљ |
|---|---|
| Број модела | ФС5542 |
| Бранд | Фосил |
| Мовемент Типе | кварц |
| Дисплаи Типе | Аналог |
| Материјал кућишта | нерђајући челик |
| Пречник кућишта | 42 мм |
| Цасе Тхицкнесс | 10 мм |
| Материјал траке | нерђајући челик |
| Ширина каишева | 22 мм |
| Страп Цолор | Плава |
| Боја бирања | Плава |
| Цристал Материал | Минерално стакло |
| Тип копче | Фолдинг Цласп |
| Отпорност на воду | 30 Meters (3 ATM) - Splash Resistant |
| Извор напајања | Battery (1 Lithium-metal, included) |
| Тежина производа | 122 грама |
| УПЦ | 796483441446 |
Гаранција и подршка
Гаранција произвођача
Your Fossil FS5542 watch is covered by a manufacturer's warranty. The specific terms and duration of the warranty may vary by region. Please refer to the warranty card included with your purchase or visit the official Fossil website for detailed information regarding coverage, limitations, and how to make a claim.
Корисничка подршка
For further assistance, service, or inquiries, please contact Fossil customer support. You can typically find contact information, including phone numbers and email addresses, on the official Fossil website or through your local authorized dealer.
Онлине ресурси: For additional information and FAQs, visit the official Fossil webсајт: ввв.фоссил.цом
