Увод
Thank you for choosing the AMIR Solar LED Strip Lights. This product is designed to provide efficient and decorative lighting for outdoor spaces, utilizing solar energy for power. It features 180 warm white LEDs across a 3-meter strip, offering 8 distinct lighting modes and an IP65 waterproof rating for durability in various weather conditions. Please read this manual carefully before installation and use to ensure optimal performance and longevity of your product.
Image: AMIR Solar LED Strip Lights, highlighting 3 meters, easy installation, cuttable, and solar charging.
Безбедносне информације
- Прочитајте сва упутства пре употребе.
- Ensure the solar panel is placed in an area that receives direct sunlight for at least 6-8 hours daily.
- Не покушавајте да растављате или модификујете производ. То може поништити гаранцију и проузроковати оштећење.
- Држите производ даље од отвореног пламена или екстремних извора топлоте.
- While the product is IP65 waterproof, avoid submerging the solar panel or LED strip in water for extended periods.
- Dispose of the product and its components responsibly according to local regulations.
Садржај пакета
- 1 x 3-meter LED Strip
- 1 x Solar Panel with integrated battery
- 2 к приземни кочићи
- 1 x Insulated Bag (for accessories)
- 1 к Упутство за употребу
Карактеристике производа
- 8 режима осветљења: The 3-meter LED strip with 180 LEDs offers 8 distinct flashing modes to suit various decorative needs.
- Функција меморије: The lighting mode selected will be remembered and activated automatically upon the next power-on.
- Соларни погон: Equipped with a built-in rechargeable battery, the lights charge during the day via solar energy and automatically illuminate at night. A full charge (6-8 hours) provides 8-12 hours of illumination.
- ИПКСНУМКС водоотпорни дизајн: The IP65 waterproof material ensures suitability for outdoor lighting, allowing the strip and solar panel to function reliably in rain and snow.
- Easy Installation & Adjustable Length: The flexible, self-adhesive LED strip can be installed in various locations. The solar panel can be easily staked into the ground. The strip can be cut along designated marks if a shorter length is desired.
- Топло бело осветљење: Provides warm and soft light, ideal for creating a pleasant visual effect for dining areas, bedrooms, patios, gardens, weddings, and other events.
Упутства за подешавање
- Assemble the Solar Panel: Attach the ground stake to the solar panel unit.
- Поставите соларну плочу: Insert the assembled solar panel into the ground in a location that receives maximum direct sunlight throughout the day. Ensure the panel is facing the sun.
- Одмотајте ЛЕД траку: Carefully unroll the LED strip from its spool.
- Prepare for Adhesion: Clean the surface where you intend to attach the LED strip. Ensure it is dry and free of dust or debris.

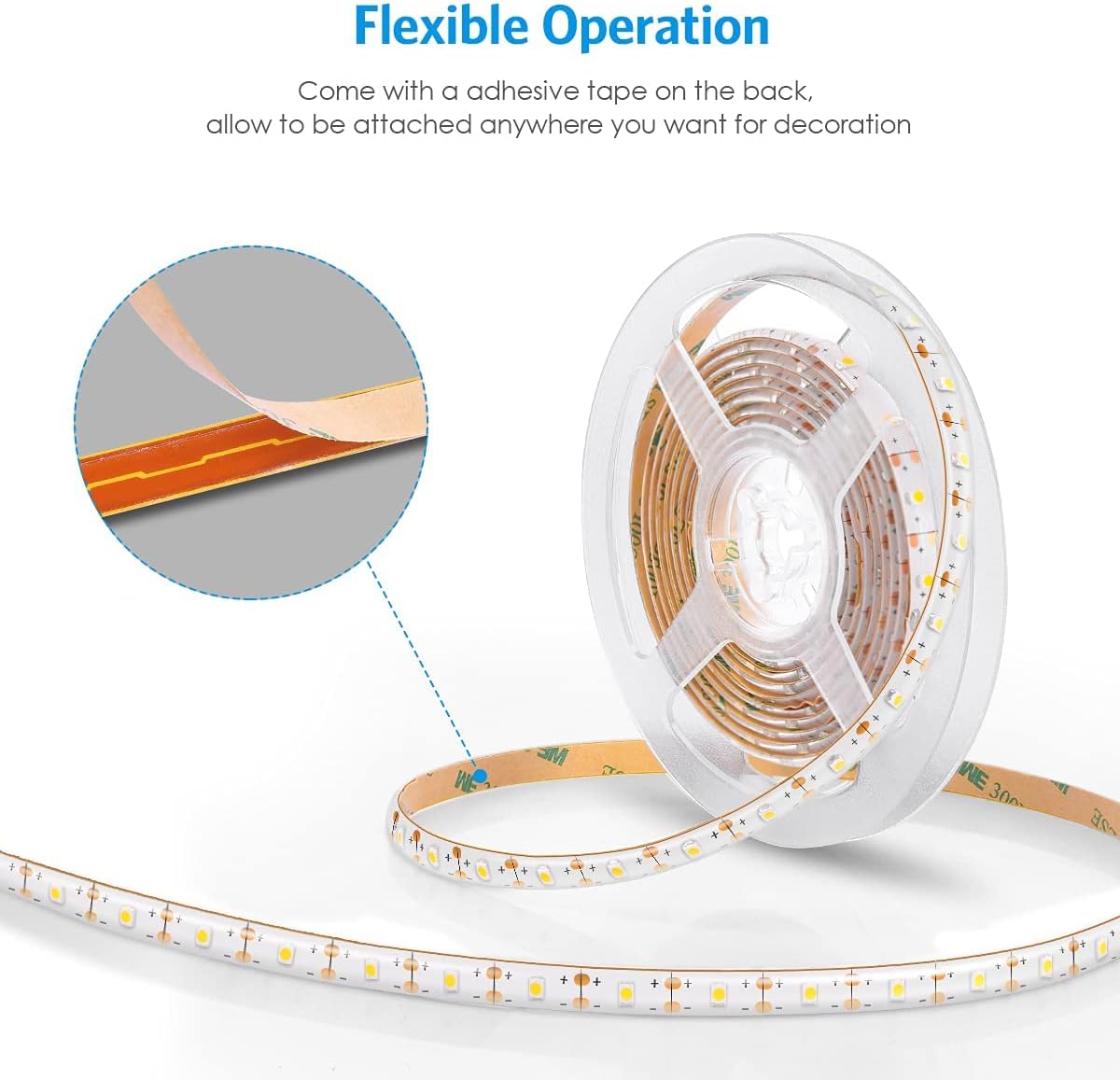

- Attach the LED Strip: Peel off the protective backing from the adhesive tape on the back of the LED strip and firmly press the strip onto the desired surface.
- Повежите се са соларним панелом: Ensure the LED strip is securely connected to the solar panel unit.
Image: Visual guide for installing the solar panel and attaching the LED strip.
Image: Illustration of the solar panel storing energy during the day and the LED strip illuminating at night.
Подешавање дужине
If the LED strip is too long for your application, it can be cut. Locate the designated cutting marks along the strip (usually indicated by a scissor icon or copper pads). Cut only at these marks to avoid damaging the circuit.

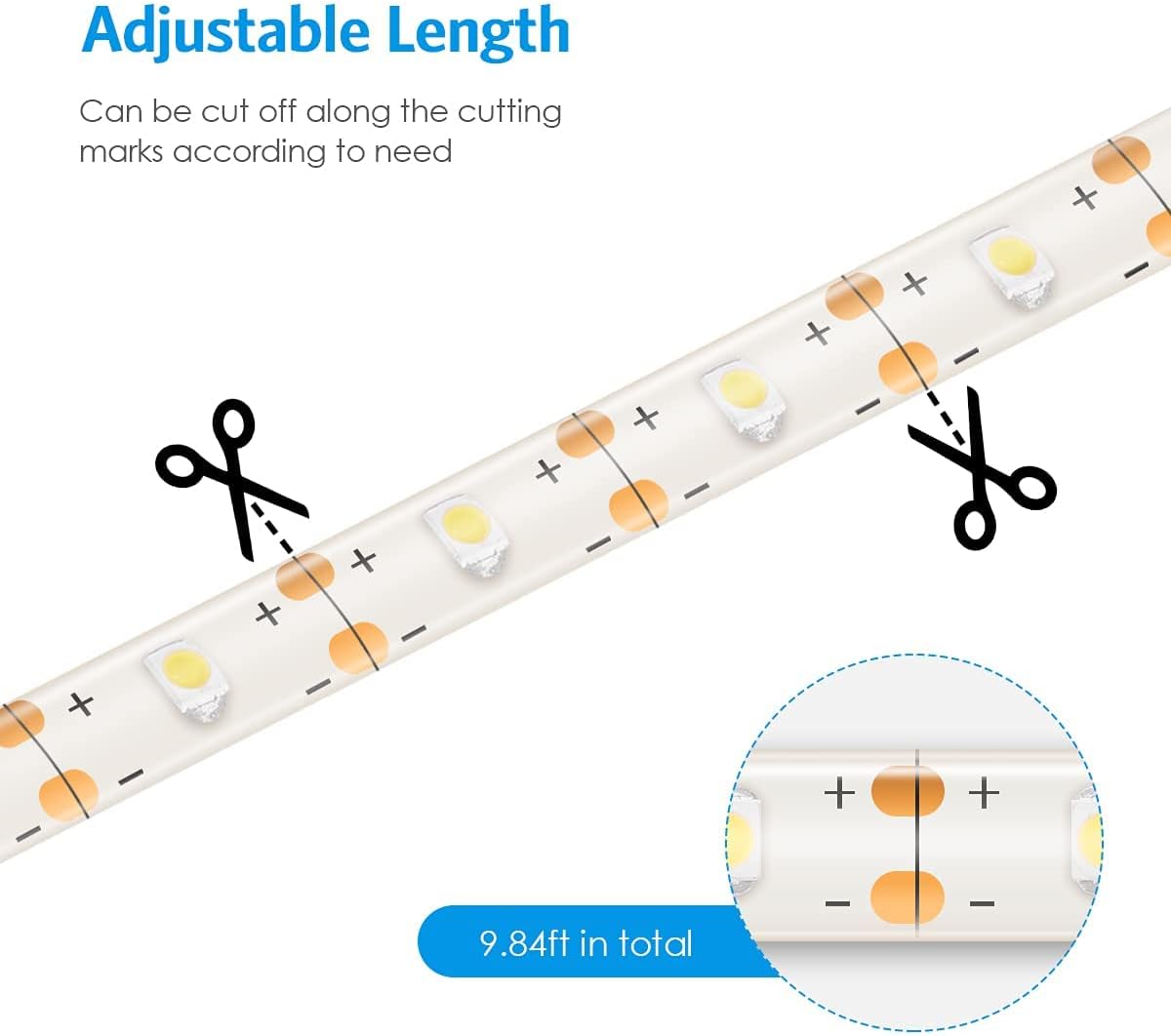

Image: Close-up of the LED strip showing cutting marks for length adjustment.
Упутство за употребу
Укључивање/искључивање
Locate the 'POWER' button on the back of the solar panel unit. Press this button to turn the lights on or off. For automatic night illumination, ensure the power is switched to 'ON'.
Промена режима осветљења
The solar panel unit features a 'MODE' button. Press this button repeatedly to cycle through the 8 available lighting modes. The product will remember the last selected mode for future use.
Аутоматски рад
Once the solar panel is charged and the power is set to 'ON', the lights will automatically turn on at dusk and turn off at dawn. This function relies on the solar panel's light sensor.

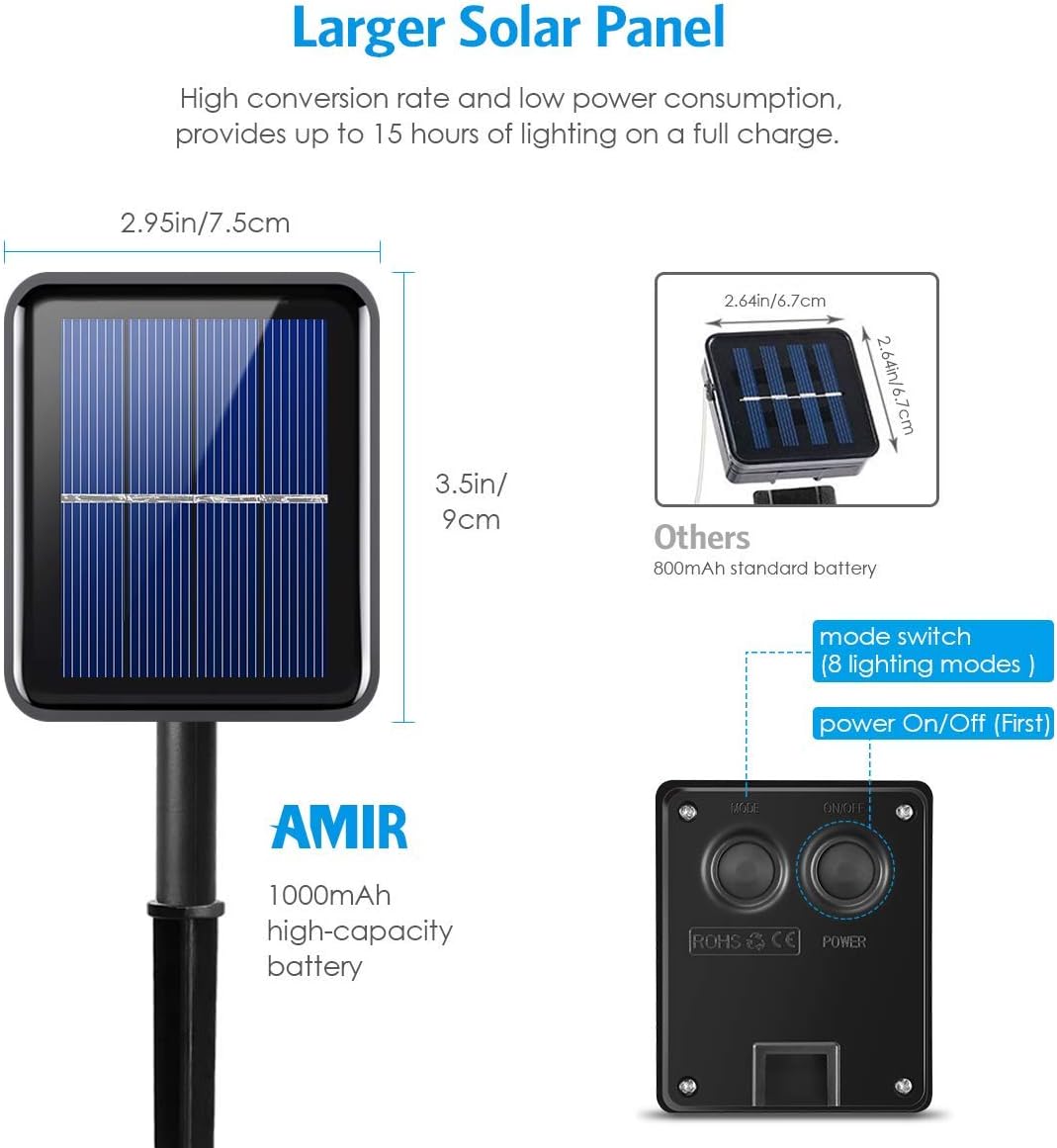

Image: Detail of the solar panel's control buttons: 'MODE' for changing lighting patterns and 'POWER' for on/off.
Одржавање
- Чишћење соларних панела: Редовно бришите соларни панел меком крпомamp cloth to remove dust, dirt, or debris. A clean panel ensures efficient charging.
- LED Strip Cleaning: If the LED strip becomes dirty, gently wipe it with a damp тканина. Избегавајте употребу јаких хемикалија или абразивних материјала.
- Провера везе: Periodically inspect the connection between the LED strip and the solar panel to ensure it is secure and free from corrosion.
- Зимско складиштење: During prolonged periods of non-use, especially in winter with limited sunlight, it is recommended to store the product indoors in a dry place to preserve battery life.
Image: Visual representation of the product's IP65 waterproof rating, along with its resistance to heat, wind, and cold.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Светла се не пале ноћу. | Insufficient solar charge; Power switch is OFF; Solar panel is dirty or obstructed. | Ensure solar panel receives 6-8 hours of direct sunlight daily. Turn the power switch to 'ON'. Clean the solar panel surface. Relocate the solar panel if necessary. |
| Светла су пригушена или остају упаљена само кратко време. | Insufficient solar charge; Battery capacity reduced due to age or cold weather. | Ensure optimal solar panel placement for maximum sunlight. Consider replacing the battery if it's old. Performance may be reduced in colder temperatures. |
| Lighting modes do not change. | Mode button malfunction; Low battery. | Ensure the battery is sufficiently charged. Press the 'MODE' button firmly. If the issue persists, contact customer support. |
| LED strip adhesive is not holding. | Surface was not clean or dry; Surface material incompatible; Extreme temperatures. | Clean and dry the surface thoroughly before application. For rough or porous surfaces, use additional mounting clips or stronger adhesive tape. Avoid applying in very cold or hot conditions. |
Спецификације
- Број модела: REF-59119-919
- Бренд: АМИР
- ЛЕД количина: 180 ЛЕД диоде
- Дужина траке: 3 метара
- Светла боја: Топло бела (2700 Келвина)
- Извор напајања: Солар Поверед
- Водоотпорна оцена: ИП65
- Волtage: 2 Волтс
- Метод контроле: Gesture Control (via buttons on solar panel)
- Материјал: Plastic (Polyvinyl Chloride)
- Димензије пакета: 15.1 к 13.9 к 4.7 цм
- Тежина артикла: 230 грама
- УПЦ/ГТИН: 650728980506
Гаранција и подршка
For any questions, issues, or support needs regarding your AMIR Solar LED Strip Lights, please contact our customer service. Refer to your purchase documentation for specific warranty details and contact information.
