Happybuy Picket #4 Wrought Iron Handrail Instruction Manual

1. Увод

This manual provides instructions for the safe and proper installation, operation, and maintenance of your Happybuy Picket #4 Wrought Iron Handrail. This handrail is designed for outdoor steps, specifically fitting 4 or 5 stair risers, and is constructed from durable wrought iron with a matte black powder coating.

Молимо вас да пажљиво прочитате ово упутство пре инсталације и сачувате га за будуће потребе.

2. Безбедносне информације

• Always wear appropriate personal protective equipment (PPE) during installation, including safety glasses, gloves, and sturdy footwear.
• Ensure the mounting surface (concrete, wood, etc.) is structurally sound and capable of supporting the handrail and anticipated loads.
• Use the correct tools for drilling and fastening to prevent damage to the handrail or the mounting surface.
• Verify all fasteners are securely tightened after installation to ensure stability.
• Do not modify the handrail structure, as this may compromise its integrity and safety.
• Држите децу и кућне љубимце даље од места инсталације.

3. Садржај пакета

Before beginning installation, ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support.

Слика 3.1: Complete Accessories for Installation

This image displays all the components included in the package, such as expansion screws, ST screws, hex head bolts, hexagon nuts, and two 10-14 wrenches, ensuring you have everything needed for installation.

• 1 x Wrought Iron Handrail (Picket #4)
• 1 x Installation Kit (includes expansion screws, ST screws, hex head bolts, hexagon nuts, and 2 wrenches)

4. Подешавање и инсталација

The Happybuy Picket #4 Handrail is designed for straightforward installation on 4 or 5 step outdoor stair risers. The kit provides all necessary hardware for concrete steps. For wooden stairs, appropriate wood fasteners (not included) may be required.

4.1 Потребни алати (нису укључени)

• Оловка или маркер
• Drill (hammer drill recommended for concrete)
• Drill bits (appropriate size for anchors, e.g., 3/8" masonry bit for concrete)
• Хаммер
• Ниво
• Мерна трака
• Adjustable wrench or socket set (for hex bolts)

4.2 Кораци инсталације

Пратите ове кораке за безбедну инсталацију:

Слика 4.1: Simple 4-Step Installation Overview

This diagram illustrates the four main steps for installing the handrail: marking hole positions, drilling holes, installing bolts, and securing with metal anchors.

1. Корак 1: Означите позиције рупа

   Position the handrail on your steps to determine the desired location. Use a pencil or marker to mark the drilling points through the base plates of the handrail posts onto the step surface. Ensure the handrail is level and correctly aligned with the stairs.

2. Корак 2: Избушите рупе

   Using an appropriate drill bit (e.g., 3/8" masonry bit for concrete), drill holes at the marked positions. The depth of the holes should match the length of the expansion screws or anchors provided.
3. Step 3: Install Bolts/Anchors

   Insert the expansion screws or anchors into the drilled holes. For expansion anchors, ensure the expander insert is started into the sleeve before placing it in the hole to allow proper tightening. Gently tap them into place with a hammer if necessary.

4. Step 4: Secure with Metal Anchors

   Align the handrail base plates over the installed anchors. Insert the bolts through the base plate holes and into the anchors. Tighten all bolts securely using the provided wrenches or your own tools. Ensure the handrail is firm and stable before use.

4.3 Важна разматрања

• The handrail is designed to span 4 stair risers and measures approximately 4 feet post to post. This length is unadjustable.
• The angle of the handrail can be adjusted to fit different step heights.
• For optimal stability, ensure the handrail is level and all fasteners are fully tightened.
• If installing on wooden steps, use appropriate wood lag screws or bolts (not included) that are suitable for outdoor use and the thickness of your wood.

5. Употреба

The Happybuy Picket #4 Handrail provides stable support for ascending and descending outdoor steps. Its robust wrought iron construction and secure mounting ensure reliability.

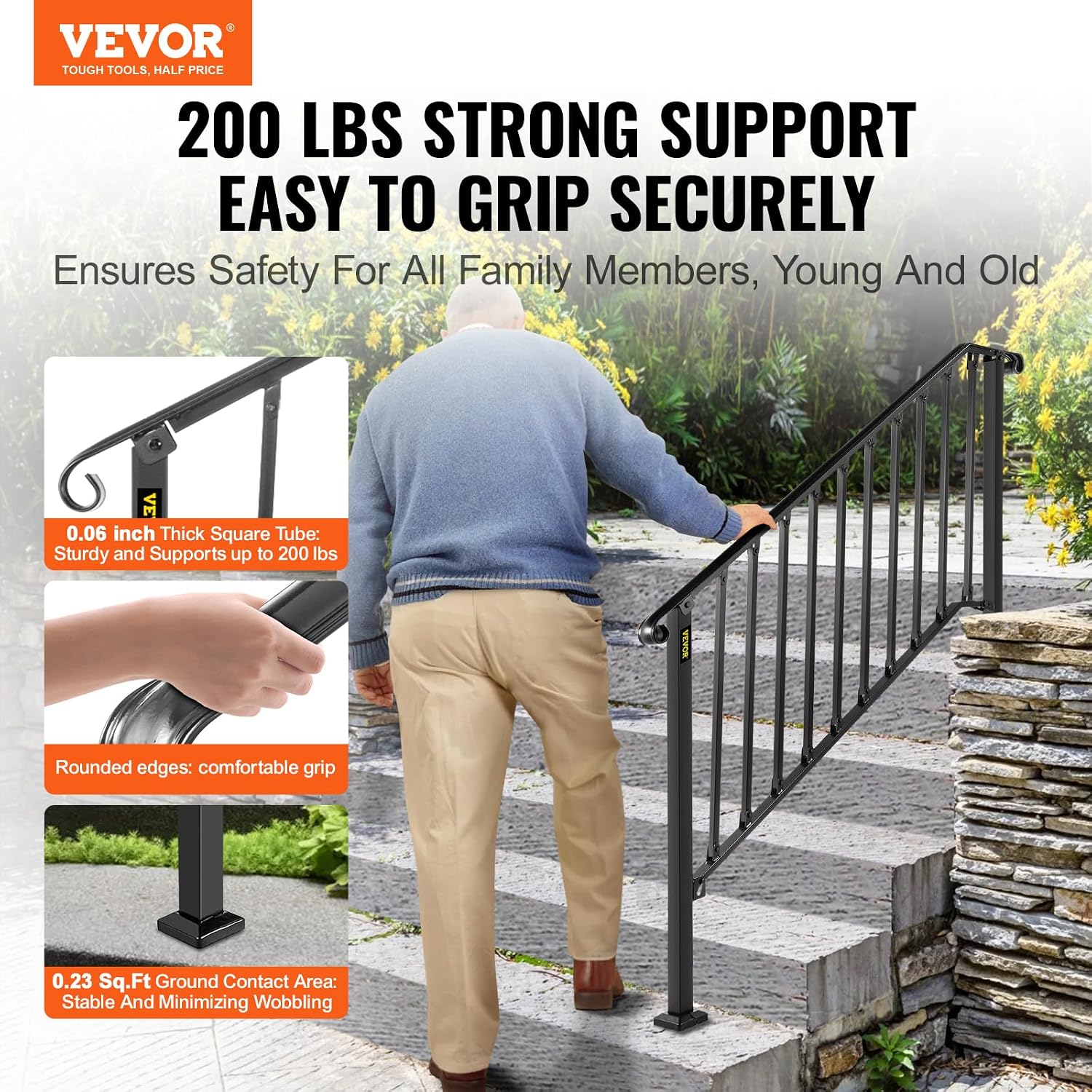

Слика 5.1: Handrail in Use

This image shows an individual safely using the handrail on outdoor steps, demonstrating its intended purpose of providing secure support. The handrail features a 0.06 inch thick square tube for sturdy support and rounded edges for a comfortable grip.

• Always maintain a firm grip on the handrail when using stairs.
• Do not lean or place excessive weight on the handrail beyond its intended use as a support.
• The handrail is suitable for various outdoor environments, including gardens, residential buildings, commercial offices, hotels, and porches.

Слика 5.2: Разноврсни сценарији примене

This image illustrates the handrail's versatility, showing it installed in different environments such as a garden with concrete steps, a home with ceramic tile, a hotel with marble steps, and a porch with wooden stairs.

6. Одржавање

Regular maintenance will ensure the longevity and continued safe operation of your Happybuy handrail.

• Чишћење: The powder-coated surface is easy to clean. Use a soft cloth with mild soap and water to wipe down the handrail. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• инспекција: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten any loose fasteners.
• Спречавање рђе: Although constructed from wrought iron with a powder coating for durability and rust resistance, inspect for any chips or scratches in the finish. Touch up any damaged areas with rust-inhibiting paint to prevent corrosion, especially in harsh weather conditions.
• дренажа: Ensure that water does not accumulate in any open sections of the posts, as this can lead to internal rusting. If necessary, consider drilling small drainage holes at the lowest point of the posts, though this is not a manufacturer-specified modification.

КСНУМКС. Решавање проблема

8. Спецификације

Слика 8.1: Димензије и спецификације производа

This image provides a detailed diagram with measurements for the handrail, including armrest length, maximum height, and other key dimensions, along with a summary of product specifications.

9. Гаранција и подршка

For warranty information or technical support, please refer to the Happybuy official website or contact their customer service department. Keep your purchase receipt and model number (Handrail Picket #4 Fits 4 or 5 Steps) readily available when contacting support.

Можете посетити Happybuy Store on Amazon за више информација.
