Увод
Хвала вам на куповиниasing the DOSHISHA Circulight Ceiling Fan. This product combines an LED ceiling light with a circulator fan, designed to provide both illumination and air circulation for enhanced comfort in your living space. This manual provides detailed instructions for safe installation, operation, and maintenance of your new ceiling fan.
The DCC-SW12CM model features 16-level fan speed adjustment, forward/reverse rotation, an off timer, and a 2-level swing function. It is suitable for rooms up to 12 tatami mat size, offering dimmable and color-adjustable lighting with a light diffusing lens for optimal light distribution.
Безбедносне информације
- Увек искључите напајање пре инсталације, чишћења или одржавања.
- Инсталацију треба да изврши квалификовани електричар или у складу са локалним електричним прописима.
- Ensure the ceiling structure can support the weight of the unit (approx. 6.5 kg).
- Do not insert fingers or objects into the fan blades while the unit is operating.
- Држите даљински управљач даље од воде и екстремних температура.
- Use only the specified battery type for the remote control.
Садржај пакета
Проверите да ли су све ставке укључене у пакет:
- Main Unit (Circulight Ceiling Fan)
- Даљински управљач к1
- AAA Batteries for Remote Control (for trial) x2
- Remote Control Mounting Screw x1
- Вибрација Дamping Pads x8
- Wiring Fixture Fixing Screws x2
- Mounting Bracket Fixing Wood Screws (long) x4
Подешавање и инсталација
Follow these steps for proper installation. It is recommended to have two people for installation due to the unit's weight and ceiling work.
- Причврстите адаптер: Securely attach the adapter to your ceiling wiring fixture.
- Инсталирајте Вибратион Дamping Pads: Attach the two-layer vibration damping pads to the ceiling cover. If the ceiling protrusion is 11mm, cut the pads to fit.
- Mount the Ceiling Cover: Secure the ceiling cover to the adapter on the ceiling.
- Connect the Connector: Connect the main unit's electrical connector to the ceiling wiring.
- Прикључите главну јединицу: Carefully lift and attach the main unit to the ceiling cover, ensuring it is securely fastened.
- Упарите даљински управљач: Long-press the color temperature change button on the remote control to pair it with the unit.
- Потврдите упаривање: Pairing is complete when the LED light on the unit blinks.
Video: Installation instructions for the Coizabera Ceiling Fan Light. This video demonstrates the step-by-step process of mounting the adapter, attaching the ceiling cover, connecting wires, and securing the main unit to the ceiling, followed by remote control pairing.
Упутство за употребу
Your Circulight Ceiling Fan offers various functions for lighting and air circulation, controlled via the included remote.
Функције осветљења
- Он/Офф: Use the dedicated light power button on the remote.
- Brightness Adjustment (Dimmable): Adjust light intensity from 5% to 100% using the brightness control buttons.
- Подешавање температуре боје: Change the light color from warm white (3000K) to cool white (6000K) using the color temperature buttons.
- Режим ноћног светла: Activate the night light function for a softer, low-level illumination.
Image: The remote control for the Circulight ceiling fan, showing buttons for light operation (on/off, brightness, color temperature, night light) and fan operation (on/off, speed, rotation direction, swing, timer).
Функције вентилатора
- Брзина вентилатора: Select from 16 fan speed levels for optimal airflow. One-touch buttons provide 4 common speed settings.
- Ротација напред/назад: Switch between forward rotation (downward airflow for cooling in summer) and reverse rotation (upward airflow for circulating warm air in winter).

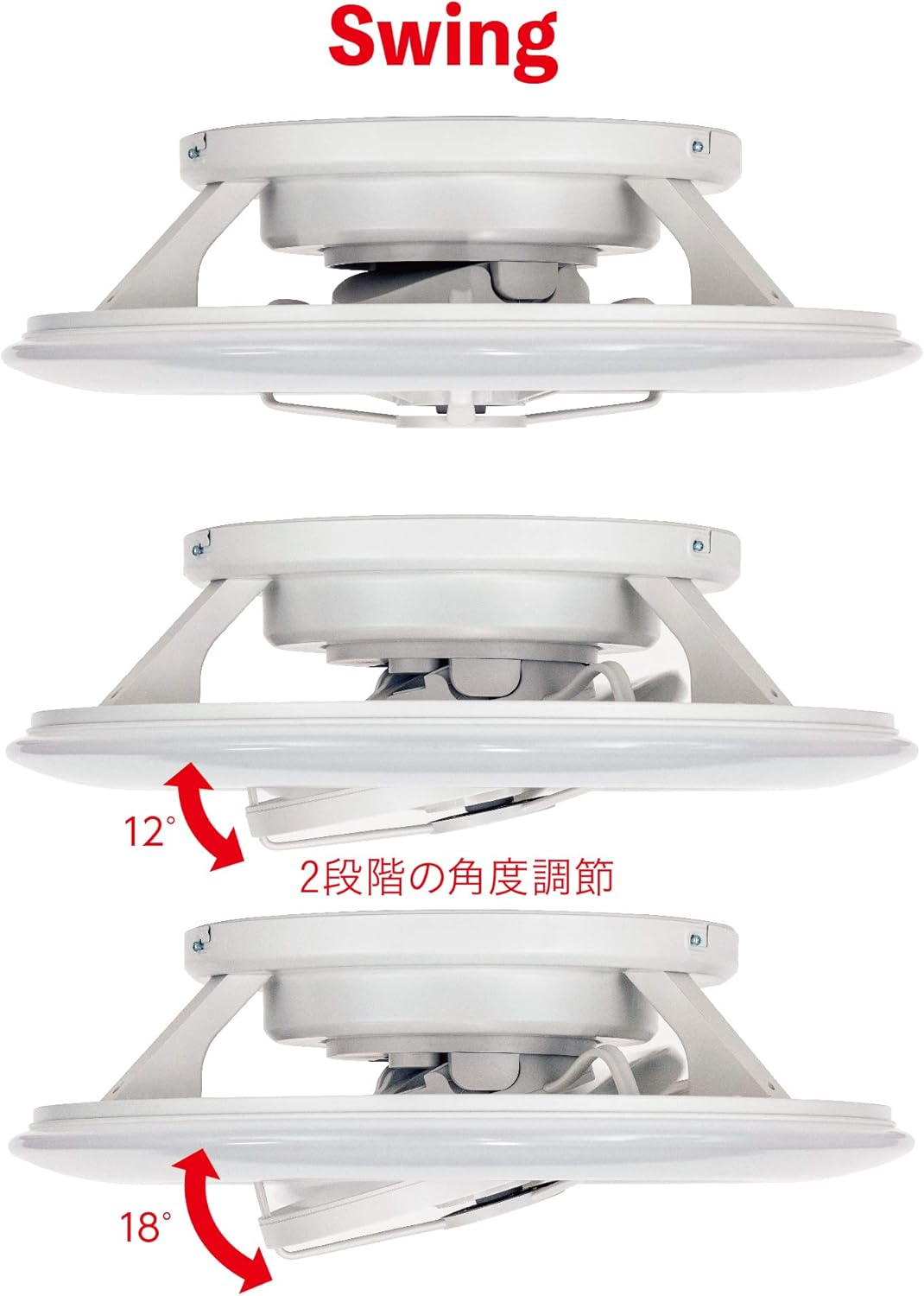

- Automatic Swing: Activate the 2-level swing function to distribute air more widely.
- Тајмер за искључивање: Подесите вентилатор да се аутоматски искључи након 1, 2, 4 или 8 сати.
Image: A diagram illustrating the airflow patterns for summer (downward flow for cooling) and winter (upward flow to circulate warm air from the ceiling).
Video: This video demonstrates the various operational features of a ceiling fan light, including 6-stage fan speed adjustment, forward/reverse rotation, stepless brightness adjustment (5%-100%), and 3-stage color temperature adjustment (3000K-6000K). It also shows the application in rooms up to 10 tatami mats.
Video: This video illustrates the airflow direction for summer (downward flow to efficiently lower room temperature) and winter (upward flow to circulate warm air from the ceiling). It also highlights the dimming and color adjustment features, along with indirect lighting.
Одржавање
Regular maintenance ensures optimal performance and longevity of your Circulight Ceiling Fan.
- Чишћење: Before cleaning, ensure the power is off. Wipe the exterior of the unit with a soft, dry cloth. For stubborn dirt, use a slightly damp крпом, а затим добро осушите. Не користите абразивна средства за чишћење или раствараче.
- Лопатице вентилатора: Periodically clean dust from the fan blades to maintain efficient airflow.
- Light Diffuser: Gently wipe the light diffuser to remove dust and ensure consistent light output.
- даљински управљач: Keep the remote control clean and dry. Replace batteries when the indicator light dims or the remote becomes unresponsive.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Light or fan does not turn on. | No power, remote control batteries are dead, or unit is not paired. | Check power supply. Replace remote control batteries. Re-pair the remote control (refer to Setup section). |
| Fan makes unusual noise or wobbles. | Loose mounting screws, unbalanced blades, or obstruction. | Ensure all mounting screws are tightened. Check for any obstructions around the blades. If wobbling persists, consult a professional. |
| Даљински управљач не реагује. | Batteries are low or depleted, or remote is out of range. | Replace batteries. Ensure you are within the effective range of the remote control. |
Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | ДОСХИСХА |
| Број модела | DCC-SW12CM |
| Величина | 12 Tatami Mat (approx. φ630mm × 200mm thickness) |
| Боја | Бела |
| Извор напајања | AC100V 50/60Hz (Power Cord Type) |
| Rated Power Consumption (LED) | Approx. 60W (100% illumination), Approx. 1W (night light) |
| Rated Power Consumption (Circulator) | Approx. 12W (maximum airflow) |
| Луминоус Флук | Approx. 5000lm (100% illumination) |
| Булб Типе | ЛЕД |
| Подешавање брзине вентилатора | 16 levels (4-level one-touch) |
| Смер ротације | Напред/назад |
| Функција замаха | 2 нивоа |
| Офф Тимер | 1, 2, 4, 8 сати |
| Тежина производа | 6.5 кг |
| Препоручени тип собе | Study room, Living room, Bedroom |
| Тип монтаже | Плафонски носач |
Гаранција и подршка
Овај производ долази са а 1 година гаранције from the date of purchase for the main unit. Please retain your proof of purchase for warranty claims.
For technical support, troubleshooting assistance, or warranty inquiries, please contact DOSHISHA customer service. Contact information can typically be found on the product packaging or the official DOSHISHA webсајту.
