EWA A101C Mini Bluetooth Speaker User Manual

Увод

The EWA A101C Mini Bluetooth Speaker is a compact and versatile audio device designed for portable use. It features Bluetooth connectivity for wireless audio streaming from smartphones, tablets, and computers. Additionally, it includes an FM radio function and a microSD card slot for MP3 playback, offering standalone audio capabilities. Its robust metallic casing, protected by silicone, provides enhanced resistance to impacts and drops. The speaker is also capable of stereo pairing with a second A101C unit for an expanded sound experience.

Слика 1: EWA A101C Mini Bluetooth Speaker on a smartphone, demonstrating its compact size.

Садржај пакета

Молимо вас да означите поље за следеће ставке:

• EWA A101C Mini Bluetooth Speaker
• Мицро-УСБ кабл за пуњење
• Водич за брзи почетак

Сетуп

3.1 Пуњење звучника

Before first use, fully charge the speaker. Connect the supplied Micro-USB cable to the charging port on the speaker and the other end to a USB power adapter (not included) or a computer's USB port.

Слика 2: Micro-USB charging port.

The charging indicator light will illuminate during charging and turn off or change color when fully charged (refer to the Quick Start Guide for specific indicator behavior).

3.2 Укључивање/искључивање

• За укључивање: Press and hold the power button (usually located on the bottom or side) until you hear an audible prompt or see an indicator light.
• За искључивање: Press and hold the power button again until you hear an audible prompt or the indicator light turns off.

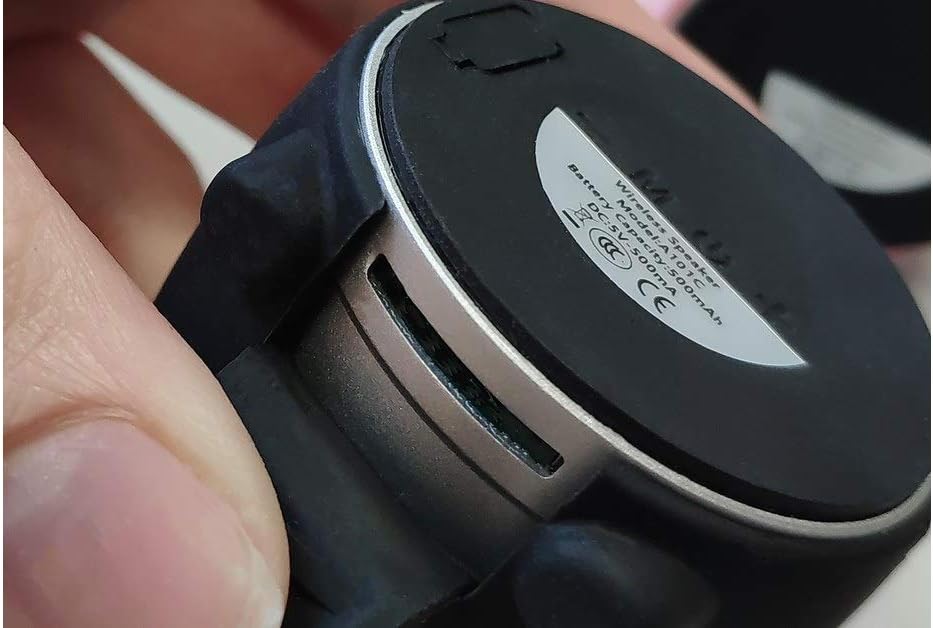

Слика 3: Speaker bottom with power button and product information label.

3.3 Блуетоотх упаривање

1. Ensure the speaker is powered on and in Bluetooth pairing mode (indicated by a flashing LED, refer to Quick Start Guide).
2. На паметном телефону, таблету или рачунару омогућите Блутут и потражите доступне уређаје.
3. Select "EWA Audio A101C" from the list of devices.
4. Once connected, you will hear a confirmation sound, and the LED indicator will typically stop flashing.

3.4 Стерео упаривање (TWS функција)

To create a stereo sound experience, you can connect two EWA A101C speakers together. One speaker will act as the left channel, and the other as the right channel.

1. Power on both EWA A101C speakers.
2. Double-press the power button on било of the two speakers. You will hear a validation sound.
3. A second confirmation sound will be heard from both speakers, indicating successful stereo pairing.
4. Now, connect your Bluetooth device to "EWA Audio A101C". The audio will play in stereo through both speakers.

Слика 4: Multiple EWA A101C speakers, illustrating the potential for stereo pairing.

3.5 Репродукција са MicroSD картице

The speaker supports MP3 playback directly from a microSD card. Insert a microSD card (sold separately) with MP3 files into the designated slot. The speaker should automatically switch to microSD playback mode. Use the speaker's controls to navigate tracks.

3.6 Функција ФМ радија

To use the FM radio, power on the speaker. Press the mode button (if available, refer to Quick Start Guide) to switch to FM radio mode. The speaker will automatically scan and save available stations. Use the volume/track buttons to change stations.

Упутство за употребу

The EWA A101C speaker features intuitive controls, typically located on the bottom or side of the unit. Specific button functions may vary slightly; refer to the Quick Start Guide for detailed diagrams.

• Дугме за напајање: Press and hold to power on/off. Short press for play/pause or to answer/end calls. Double-press for stereo pairing (TWS).
• Појачавање/следећа нумера: Short press for volume up. Long press to skip to the next track/station.
• Смањивање јачине звука/претходна нумера: Short press for volume down. Long press to go to the previous track/station.
• Mode Button (if present): Short press to switch between Bluetooth, FM Radio, and MicroSD modes.

The integrated microphone allows for hands-free calling when connected via Bluetooth to a smartphone.

Одржавање

5.1 Чишћење

Обришите звучник меком, сувом или благо длакомamp cloth. Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the surface or internal components.

5.2 Складиштење

Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, charge the battery periodically to maintain its lifespan.

5.3 Отпорност на воду (IPX4)

The EWA A101C speaker is rated IPX4, meaning it is resistant to splashing water from any direction. It is not designed to be submerged in water. Ensure the charging port cover is securely closed to maintain water resistance.

Решавање проблема

Спецификације

• Модел: А101Ц
• Димензије (Д к Ш к В): 7 к 7.5 к 7.5 цм
• Тежина: 200 грама
• Повезивање: Блуетоотх
• Max Speaker Output Power: 25 Ваттс
• Посебне карактеристике: Shockproof, High-resolution audio, Integrated microphone, FM Radio, MicroSD MP3 Player
• Отпорност на воду: IPX4 (отпоран на прскање)
• Извор напајања: Electric cable (Micro-USB charging)
• Препоручена употреба: Рачунар, паметни телефон, таблет
• Боја: Black (as per product details, other colors may exist)

Информације о гаранцији

Specific warranty details for the EWA A101C speaker are not provided in the product information. Please refer to the documentation included in your product packaging or contact the retailer/manufacturer for warranty terms and conditions.

Подршка

For technical assistance, troubleshooting beyond this manual, or customer service inquiries, please refer to the contact information provided in your product's Quick Start Guide or visit the official EWA webсајт (ако је доступан).
