Skandika Veien Recumbent Bike User Manual

Увод

Welcome to your new Skandika Veien Recumbent Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your fitness equipment. Please read this manual thoroughly before using the bike to ensure proper function and safety.

The Skandika Veien Recumbent Bike is designed to offer a comfortable and effective cardiovascular workout. Key features include 32 computer-controlled resistance levels, an 11 kg flywheel, integrated pulse sensors, and compatibility with iConsole and Kinomap apps for enhanced training tracking.

Безбедносне информације

Before starting any exercise program, consult your physician. It is crucial to follow these safety guidelines to prevent injury and ensure the longevity of your equipment:

• Always place the recumbent bike on a stable, level surface.
• Обезбедите довољно простора око бицикла за безбедну вожњу.
• Држите децу и кућне љубимце подаље од опреме током употребе.
• Regularly inspect the bike for any loose parts, wear, or damage before each use. Do not use if damaged.
• The maximum user weight for this bike is 150 кг.
• The maximum user height is 200 цм.
• Носите одговарајућу спортску обућу и одећу током вежбања.
• Одмах престаните са вежбањем ако осетите слабост, вртоглавицу или бол.

Подешавање и монтажа

The Skandika Veien Recumbent Bike is designed for straightforward assembly. Follow these general steps:

1. Распакујте компоненте: Carefully remove all parts from the packaging and verify against the parts list (not provided in this manual, refer to included documentation).
2. Склоп базе: Причврстите предњи и задњи стабилизатор на главни оквир.
3. Инсталација седишта: Mount the seat and backrest onto the seat rail. The ergonomic padded seat and backrest provide comfort during workouts.
4. Console and Handlebars: Attach the console post and handlebars. Connect any necessary cables for the computer display and pulse sensors.
5. педале: Securely attach the pedals. Ensure they are tightened correctly. The bike features anti-slip pedals for safety.
6. Прикључак за напајање: Connect the power adapter to the bike and a suitable electrical outlet.
7. Подешавање седишта: Adjust the seat position for optimal comfort and proper leg extension. The bike features easy ground-level access for easier mounting and dismounting.

Image: The adjustable seat and ground-level access design of the Skandika Veien Recumbent Bike, facilitating easy mounting and dismounting.

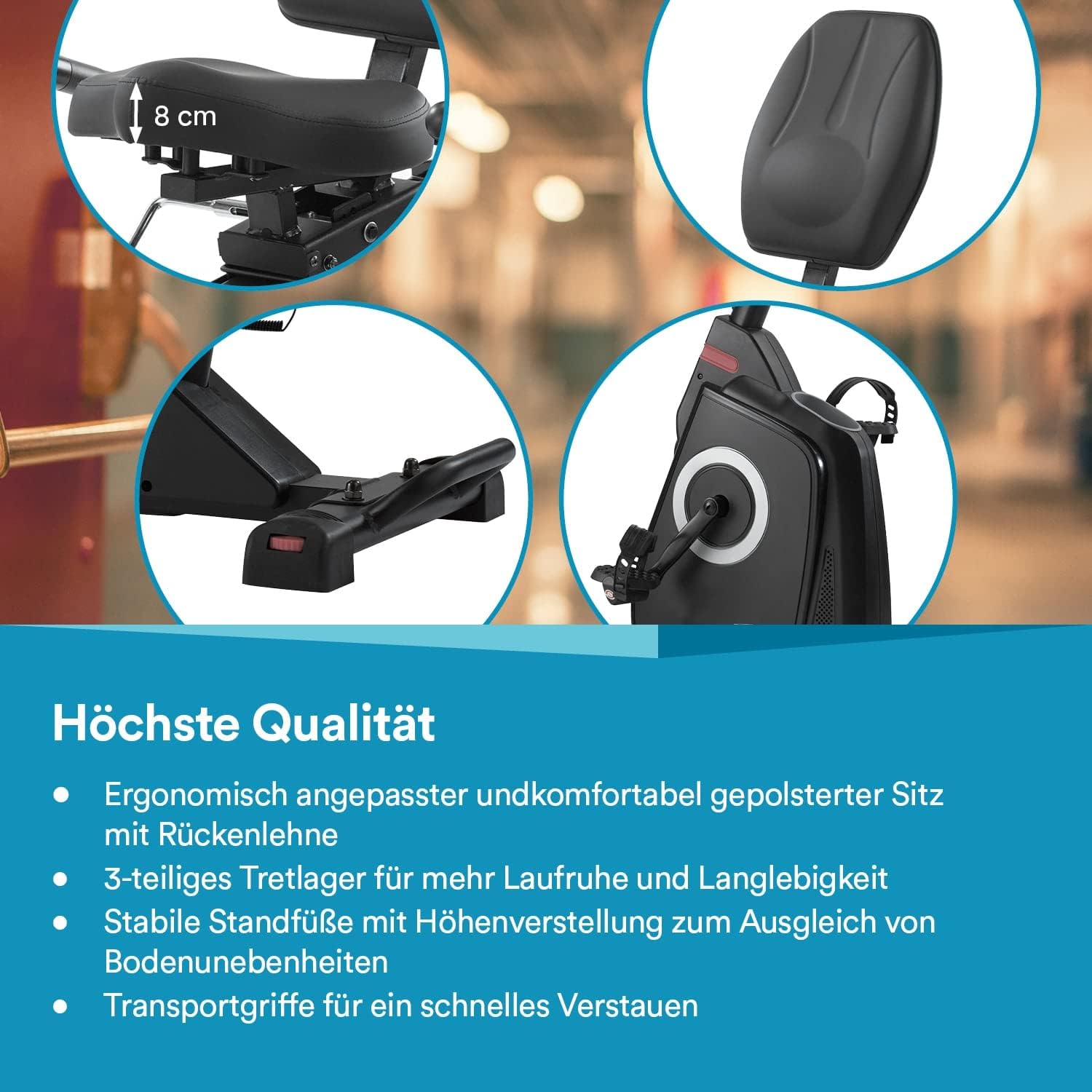

Слика: Детаљна view of the ergonomically padded seat with backrest, 3-piece bottom bracket, and stable feet with height adjustment for uneven floors.

Упутство за употребу

Цонсоле Оверview

The LCD console provides real-time feedback on your workout. It displays various metrics to help you track your progress.

Image: The central console of the Skandika Veien Recumbent Bike, displaying metrics such as pulse, RPM, watts, calories, speed, distance, and time. It also highlights the hand pulse sensors and tablet holder.

• Метрике приказа: Distance, Heart Rate (Pulse), Time, Watts, RPM, Calories, Speed, Body Fat.
• Програми: Choose from 14 pre-set training programs or select the 1 manual mode for a customized workout.
• Подешавање отпора: Use the console controls to adjust between 32 computer-controlled resistance levels.
• Сензори за пулс на рукама: Grip the integrated hand pulse sensors on the handlebars to monitor your heart rate during your workout.

App Connectivity (Bluetooth 4.0)

Enhance your training experience by connecting your Skandika Veien bike to compatible fitness apps via Bluetooth 4.0.

Image: The Skandika Veien Recumbent Bike console with a tablet displaying the Kinomap app, illustrating the streaming function and Bluetooth connectivity for interactive training.

• Компатибилне апликације: The bike supports iConsole and Kinomap applications.
• Праћење података: Use these apps to store training data, track your progress, and follow various training profiles.
• Држач таблета: Place your tablet or smartphone securely in the integrated holder for easy viewing during your workout.

Одржавање

Regular maintenance ensures the longevity and safe operation of your Skandika Veien Recumbent Bike.

• Чишћење: Обришите бицикл огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Избегавајте абразивна средства за чишћење.
• инспекција: Периодично проверавајте затегнутост свих вијка, навртки и покретних делова. Затегните све лабаве причвршћиваче.
• Кочиони систем: The magnetic brake system is low-maintenance and generally does not require adjustment.
• Појас погон: The belt drive system is designed to be silent and durable, requiring minimal maintenance.
• Складиштење: Use the integrated transport wheels and handles to move and store the bike easily when not in use.

Решавање проблема

If you encounter issues with your Skandika Veien Recumbent Bike, refer to the following common troubleshooting tips:

• No Power to Console:
  • Ensure the power adapter is securely plugged into both the bike and a working electrical outlet.
  • Проверите да ли је утичница функционална тако што ћете укључити други уређај.
• Inaccurate Heart Rate Reading:
  • Ensure your hands are firmly and completely gripping the hand pulse sensors.
  • Moisture or dry skin can affect readings; ensure hands are slightly moist.
• Отпор се не мења:
  • Verify that the console is powered on and functioning correctly.
  • Ако проблем и даље постоји, контактирајте корисничку подршку.
• Необични звуци:
  • Check for any loose bolts or connections and tighten them.
  • Ensure the bike is on a level surface.

For issues not covered here, please contact Skandika customer support.

Спецификације

Слика: Прекоview of the Skandika Veien Recumbent Bike's dimensions (140 x 63 x 123 cm) and maximum user weight capacity (150 kg). It also highlights transport wheels and anti-slip pedals.

Гаранција и подршка

For detailed warranty information, please refer to the documentation included with your purchase or visit the official Skandika website. Skandika is committed to providing excellent customer service.

• Служба за кориснике: Skandika offers customer service in 5 languages (German, French, English, Spanish, Italian).
• резервни делови: A dedicated spare parts service is available to ensure the continued functionality of your product.
• Контакт: For support, spare parts, or warranty claims, please visit the official Skandika webсајт или директно контактирајте њихову службу за кориснике.
