MICTUNING Nema 14-50P Male Plug Connector Instruction Manual

1. Производ је готовview

The MICTUNING Nema 14-50P Male Plug Connector is a robust 4-prong, 50 Amp, 125/250 Volt straight blade plug designed for heavy-duty applications. It serves as a replacement or new installation plug for various electrical equipment, including RVs, generators, and electric dryers. Constructed from flame-retardant ABS material and featuring solid brass blades, this connector ensures durability and optimal electrical conductivity.

Image 1.1: The MICTUNING Nema 14-50P Male Plug Connector, highlighting its ABS material, heavy-duty construction, pressure-proof design, and 125/250V rating.

2. Безбедносне информације

УПОЗОРЕЊЕ: Electrical work can be hazardous. Improper installation or use can result in serious injury, death, or property damage. Always follow these safety guidelines:

• Искључите напајање: Before attempting any installation or wiring, ensure that the power source is completely disconnected and locked out to prevent accidental energization.
• Квалификовано особље: Installation should be performed by a qualified electrician or a knowledgeable individual with experience in electrical wiring.
• Proper Wire Gauge: Use appropriate wire gauges for 50 Amp applications as specified by local electrical codes. Using undersized wire can lead to overheating and fire hazards.
• Локални кодови: Придржавајте се свих националних и локалних електричних прописа и прописа.
• Прегледајте компоненте: Before installation, inspect the plug for any signs of damage. Do not use if damaged.
• Сигурне везе: Ensure all wire connections are tight and secure to prevent arcing and overheating.

3. Садржај пакета

• 1 x MICTUNING Nema 14-50P Male Plug Connector

4. Упутства за инсталацију

Follow these steps to correctly wire the Nema 14-50P Male Plug Connector:

1. Припремите кабл: Strip the outer jacket of your 4-conductor electrical cable (typically 6 AWG for 50A applications) to expose the individual insulated wires (Black, Red, White, Green/Bare). Strip approximately 3/4 inch of insulation from the end of each individual wire.
2. Раставите утикач: Unscrew the housing of the Nema 14-50P plug to separate the front and back sections, exposing the internal terminals.
3. Идентификујте терминале: Refer to the internal wiring diagram (Image 4.1) to identify the correct terminal for each wire. The terminals are typically marked or color-coded.
• зелена жица: Connect to the ground terminal (typically marked 'G' or green screw).
• Бела жица: Connect to the neutral terminal (typically marked 'W' or silver screw).
• Црна жица: Connect to one hot terminal (typically marked 'X' or brass screw).
• Црвена жица: Connect to the other hot terminal (typically marked 'Y' or brass screw).
4. Повежите жице: Insert each stripped wire end into its corresponding terminal and tighten the screw securely. Ensure no stray wire strands are present and that the insulation is close to the terminal without being pinched under the screw.
5. Осигурајте кабл: Route the cable through the strain relief mechanism at the back of the plug. Tighten the strain relief to secure the cable and prevent tension on the wire connections.
6. Поново саставите утикач: Carefully align the front and back sections of the plug housing and secure them with the screws. Ensure no wires are pinched during reassembly.

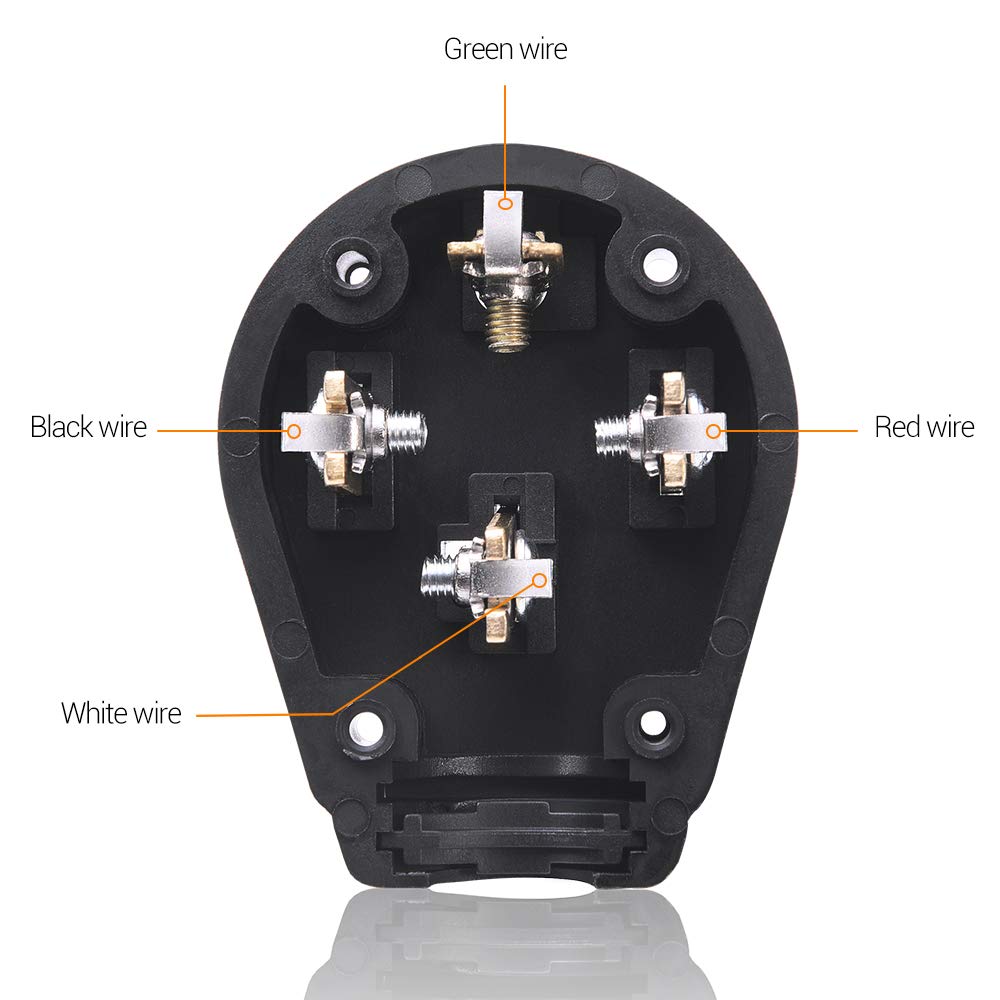

Слика 4.1: Унутрашњи view of the Nema 14-50P plug, indicating the connection points for the Green (Ground), Black (Hot), Red (Hot), and White (Neutral) wires.

Image 4.2: Detail of the solid brass blades, designed for maximum conductivity and minimal electrical loss.

5. Операција

Once the Nema 14-50P plug is correctly wired and assembled, it is ready for use.

• Повезивање: Align the prongs of the plug with the corresponding slots in a Nema 14-50R receptacle. Insert the plug firmly until it is fully seated.
• Прекидање везе: Grasp the body of the plug and pull it straight out from the receptacle. Avoid pulling on the cable itself, as this can damage the wiring or the plug.

6. Одржавање

Regular inspection and basic maintenance can extend the life of your plug connector:

• Визуелни преглед: Periodically check the plug for any signs of physical damage, such as cracks in the housing, bent prongs, or discoloration from overheating.
• Жичне везе: If you suspect an issue, carefully open the plug (after disconnecting power) and check that all wire connections remain tight. Loose connections can cause resistance and heat buildup.
• Чишћење: Keep the plug clean and free from dirt, dust, and moisture. Use a dry cloth for cleaning. Do not use liquid cleaners on electrical components.
• Складиштење: When not in use, store the plug in a clean, dry environment away from extreme temperatures.

КСНУМКС. Решавање проблема

If you encounter issues with your Nema 14-50P plug, consider the following:

• Нема напајања:
  • Проверите да ли је извор напајања активан.
  • Проверите прекидаче или осигураче.
  • Inspect internal wiring for loose connections (refer to Section 4).
• прегревање:
  • Ensure the wire gauge is appropriate for 50 Amps.
  • Check for loose or corroded wire connections within the plug.
  • Confirm the connected appliance is not drawing more than 50 Amps.
• Difficulty Fitting Wires: Some heavy-gauge wires can be stiff. Ensure wires are properly stripped and twisted before inserting into terminals. If necessary, trim a small amount of insulation to allow for full insertion into the terminal without excess bare wire.
• Bent Prongs: If a prong becomes bent, carefully attempt to straighten it. If the prong shows signs of fatigue or cracking, replace the plug immediately to prevent poor connection and potential hazards.

8. Спецификације

Image 8.1: Dimensional drawing of the Nema 14-50P plug, indicating key measurements for fitment.

Слика 8.2: Доња страна view of the plug, displaying its NEMA rating and voltage/amperage specifications, emphasizing its solid construction.

9. Гаранција и подршка

For warranty information, technical support, or any inquiries regarding your MICTUNING Nema 14-50P Male Plug Connector, please refer to the official MICTUNING webсајт или директно контактирајте њихову корисничку службу. Сачувајте рачун за куповину за потребе гаранције.
