Greenworks GD40CS18 40V Cordless Chainsaw User Manual

1. Важна безбедносна упутства

Always read and understand all safety warnings and instructions before operating this chainsaw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Лична заштитна опрема (ЛЗО): Always wear safety glasses, hearing protection, head protection, heavy-duty gloves, and safety footwear. Consider leg protection (chainsaw chaps) for added safety.
• Безбедност на радном месту: Keep the work area clean and well-lit. Do not operate chainsaws in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away.
• електрична безбедност: Избегавајте контакт тела са уземљеним површинама. Не излажите електричне алате киши или влажним условима.
• Безбедност специфична за моторне тестере:
  • повратни ударац: Be aware of kickback, which can occur when the moving chain at the tip of the guide bar contacts an object, or when the wood closes in and pinches the saw chain in the cut. Avoid cutting with the tip of the guide bar.
  • Правилан захват: Always hold the chainsaw firmly with both hands, with thumbs and fingers encircling the chainsaw handles.
  • Очистите радну област: Ensure there are no obstacles in your cutting path and that you have a stable footing.
  • Одржавање: Keep chains sharp and properly tensioned. Ensure the automatic oiler is functioning and the oil tank is filled.

2. Производ је готовview

The Greenworks GD40CS18 is a 40V cordless chainsaw designed for efficient wood cutting. It features a brushless motor for extended runtime and durability, a 40 cm (16 inch) guide bar, and an automatic chain oiling system.

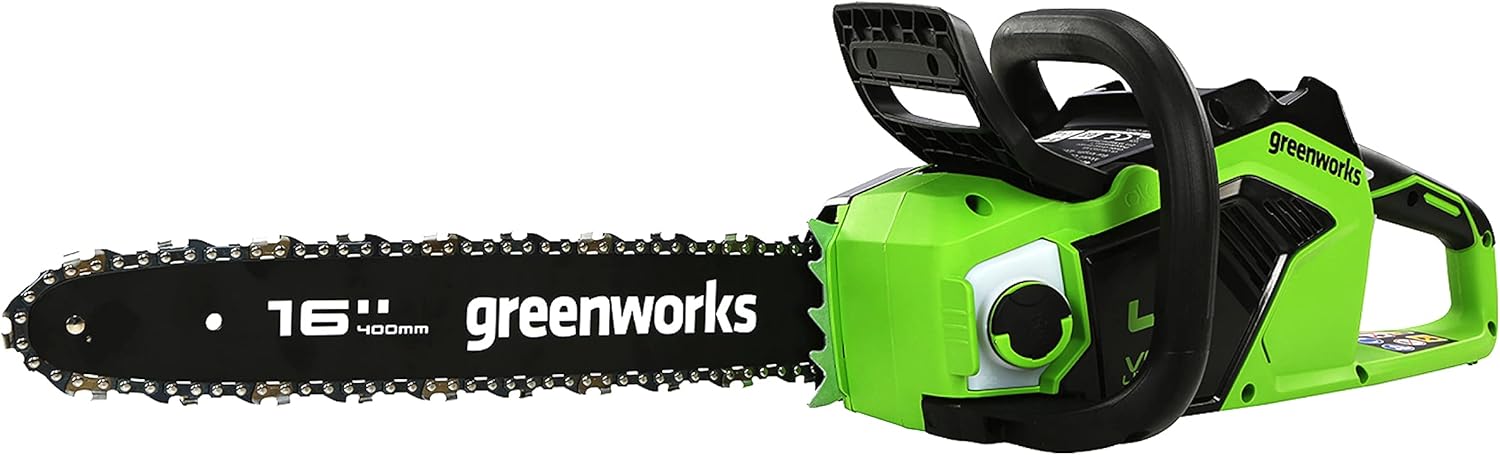

Слика 2.1: Greenworks GD40CS18 40V Cordless Chainsaw. This image shows the overall design of the chainsaw, highlighting its green and black color scheme and the 16-inch guide bar.

Слика 2.2: Chainsaw in action. The image depicts the chainsaw cutting through a log, demonstrating its operational use.

Компоненте:

• Chainsaw Body (Motor Housing)
• Guide Bar (40 cm / 16 inch)
• Сав Цхаин
• Предња ручка
• Реар Хандле
• Hand Guard / Chain Brake
• Safety Lock-Off Button
• Прекидач окидача
• Поклопац резервоара за уље
• Transparent Oil Level Indicator
• Tool-less Chain Tensioning Knob
• Одељак за батерије

3. Скупштина

The chainsaw may require some assembly before first use. Follow these steps carefully.

3.1 Инсталирање водилице и ланца

1. Уверите се да је батерија извађена из моторне тестере.
2. Loosen the two nuts on the side cover and remove the cover.
3. Place the chain around the sprocket and then fit it into the groove of the guide bar.
4. Position the guide bar onto the chainsaw studs, ensuring the chain is correctly seated around the drive sprocket.
5. Replace the side cover and hand-tighten the nuts. Do not fully tighten yet.
6. Adjust the chain tension using the tool-less tensioning knob. Turn the knob clockwise to increase tension and counter-clockwise to decrease. The chain should be snug but still able to be pulled freely by hand.
7. Once tension is set, fully tighten the two nuts on the side cover.

Слика 3.1: Tool-less chain tensioning. This image illustrates the mechanism for adjusting chain tension without additional tools.

3.2 Пуњење уља за ланац

The chainsaw features an automatic lubrication system. It is crucial to keep the oil tank filled with appropriate chain and bar oil.

1. Уверите се да је моторна тестера на равној површини и да је батерија извађена.
2. Одврните поклопац резервоара за уље.
3. Carefully pour chain and bar oil into the tank until it reaches the maximum fill line.
4. Чврсто вратите поклопац резервоара за уље.
5. Regularly check the transparent oil level indicator during operation and refill as needed.

Слика 3.2: Automatic lubrication. This image shows the process of filling the chain oil reservoir.

Слика 3.3: Transparent oil level indicator. This image highlights the clear window for checking the chain oil level.

3.3 Уметање батерије

This chainsaw operates with Greenworks 40V Lithium-Ion batteries (sold separately).

1. Уверите се да је батерија потпуно напуњена.
2. Поравнајте батерију са одељком за батерију на моторној тестери.
3. Уметните батерију у одељак док не кликне чврсто на своје место.
4. Да бисте уклонили, притисните дугме за отпуштање батерије и извуците батерију.

Слика 3.4: Greenworks 40V battery. This image displays the 40V battery, compatible with this chainsaw and other Greenworks 40V tools.

4. Операција

Before starting, ensure all safety checks are complete and you are wearing appropriate PPE.

4.1 Покретање моторне тестере

1. Чврсто држите моторну тестеру са обе руке.
2. Press and hold the safety lock-off button (usually located on the side of the rear handle).
3. While holding the safety button, squeeze the trigger switch to start the motor.
4. Release the safety lock-off button once the motor starts. The chainsaw will continue to run as long as the trigger is pressed.
5. Да бисте зауставили моторну тестеру, отпустите прекидач окидача.

Слика 4.1: Two-button safety operation. This image demonstrates the two-button safety mechanism designed to prevent accidental starting.

4.2 Технике сечења

• Сеча малих стабала: Plan your escape path. Make a notch cut (undercut) on the side of the tree in the direction of the fall, then make a felling cut from the opposite side, slightly above the notch.
• Удове: Remove limbs from a fallen tree. Work from the butt end towards the top, keeping the tree between you and the chainsaw. Be aware of spring-loaded branches.
• Буцкинг: Cutting a fallen log into shorter lengths. Support the log to prevent pinching. If cutting from above, cut about one-third of the way through, then roll the log and finish the cut. If cutting from below, cut one-third from below, then finish from above.
• Избегавајте повратни ударац: Never cut with the tip of the guide bar. Maintain a firm grip and stable stance.

Слика 4.2: Cutting capacity. This image shows the chainsaw effectively cutting through a log, indicating its capability for branches and trees up to 30cm in diameter.

Слика 4.3: Ease of use. This image demonstrates the chainsaw being used to cut wood, emphasizing its user-friendly design.

5. Одржавање

Редовно одржавање обезбеђује оптималне перформансе и продужава век трајања ваше моторне тестере.

5.1 Подмазивање ланца

The automatic oiler system requires regular monitoring. Always ensure the oil tank is filled with quality chain and bar oil before and during operation.

• Check the oil level frequently using the transparent indicator.
• Refill the oil tank when the level is low.
• Ensure the oil port on the guide bar is clear of debris.

Слика 5.1: Automatic oiler. This image highlights the automatic oiling feature, crucial for chain longevity.

5.2 Оштрење и замена ланца

• A dull chain will not cut efficiently and can increase the risk of kickback. Sharpen the chain regularly with a suitable round file (није укључено).
• If the chain is damaged or excessively worn, replace it with a new chain of the correct type and size (40 cm / 16 inch).

5.3 Чишћење и складиштење

• Увек уклоните батерију пре чишћења.
• Clean the chainsaw body, guide bar, and chain after each use. Remove sawdust, chips, and debris.
• Store the chainsaw in a dry, secure location, out of reach of children. Ensure the guide bar cover is in place.

КСНУМКС. Решавање проблема

Погледајте овај одељак за уобичајене проблеме и њихова решења.

7. Спецификације

8. Гаранција и подршка

This Greenworks product comes with a 3 година гаранције од дана куповине. Ова гаранција покрива недостатке у материјалу и изради при нормалној употреби.

For warranty claims, technical support, or replacement parts, please contact Greenworks customer service. Keep your proof of purchase for warranty validation.

For more information, visit the official Greenworks webсајт или погледајте контакт податке наведене на паковању вашег производа.
