1. Увод и крајview
The TROTEC PWLS 06-10 Cordless LED Work Light is designed to provide bright, portable illumination for various indoor and outdoor applications. It features a powerful LED light source and an integrated USB power bank function, allowing you to charge compatible devices.
Кључне карактеристике укључују:
- Powerful 3.7 V lithium-ion battery (4.4 Ah) for extended operation.
- Bright LED work light with shock-resistant edges for durability.
- High-power COB-LEDs delivering uniform, extra-bright light (800 lumens).
- Flexible handle and stand, adjustable up to 180 degrees in 6 positions.
- Three lighting modes: bright, reduced, and strobe.
- Strong magnetic holder for secure attachment to metal surfaces.
- Integrated USB power bank function (5 V / 1 A) for charging external devices.
- IP44 protection rating, safeguarding against splashing water from all directions.
- 4-сtage battery capacity indicator.
- Up to 8 hours of constant illumination.
- Daylight white color temperature (6,000 K).
- Компактан и склопив дизајн за лако складиштење.
Image 1.1: The TROTEC PWLS 06-10 Cordless LED Work Light, showcasing its compact design and key features like USB charging and battery power.
2. Безбедносна упутства
Пажљиво прочитајте ова безбедносна упутства пре употребе уређаја. Непоштовање ових упутстава може довести до струјног удара, пожара или озбиљних повреда.
- Општа безбедност: Keep the device away from children. Do not disassemble, modify, or attempt to repair the device yourself. Refer all servicing to qualified personnel.
- Безбедност батерије: The device contains a lithium-ion battery. Do not expose the battery to extreme temperatures, direct sunlight, or fire. Do not short-circuit the battery. Dispose of batteries according to local regulations.
- Окружење употребе: The device has an IP44 protection rating, making it resistant to splashing water. However, do not immerse it in water. Avoid using the device in highly flammable or explosive environments.
- Безбедност ока: Do not look directly into the LED light when it is on, as it can cause eye strain or temporary vision impairment.
- Пуњење: Use only the provided USB cable or a certified equivalent for charging. Ensure the charging port is dry before connecting the cable.
3. Садржај пакета
Проверите да ли су сви предмети присутни и у добром стању приликом распакивања:
- 1 x TROTEC PWLS 06-10 Cordless LED Work Light
- 1 x USB Charging Cable (USB-A to Micro-USB, 80 cm)
- 1 к Упутство за употребу
4. Производ је готовview и компоненте
Familiarize yourself with the different parts of your TROTEC PWLS 06-10 work light:
Слика 4.1: Готовоview of the TROTEC PWLS 06-10 highlighting its key features and specifications.
- ЛЕД светлосни панел: The main light source, featuring COB-LED technology.
- Adjustable Handle/Stand: Allows for flexible positioning and serves as a carrying handle.
- Дугме за напајање: Used to turn the device on/off and cycle through lighting modes.
- USB Output Port (Type A): За пуњење екстерних уређаја (функција преносног пуњача).
- Micro-USB Input Port (Type B): For charging the work light's internal battery.
- Индикатор батерије: Displays the current charge level of the internal battery.
- Магнетна база: Integrated magnets in the stand for attaching to metal surfaces.
5. Подешавање
5.1 Почетно пуњење
Before first use, fully charge the work light's internal battery.
- Connect the small end of the provided USB charging cable to the Micro-USB input port on the work light.
- Connect the larger end of the USB cable to a suitable USB power adapter (not included) or a computer's USB port.
- The battery indicator lights will illuminate, showing the charging progress. All four lights will be solid when fully charged.
5.2 Подешавање постоља
The flexible handle/stand can be adjusted up to 180 degrees to direct the light as needed.
Image 5.1: The adjustable stand allows for 180-degree rotation to position the light.
Gently pivot the stand to one of the six available positions until it clicks into place.
5.3 Using the Magnetic Holder
The integrated magnetic base allows for hands-free operation by attaching the work light to metal surfaces.

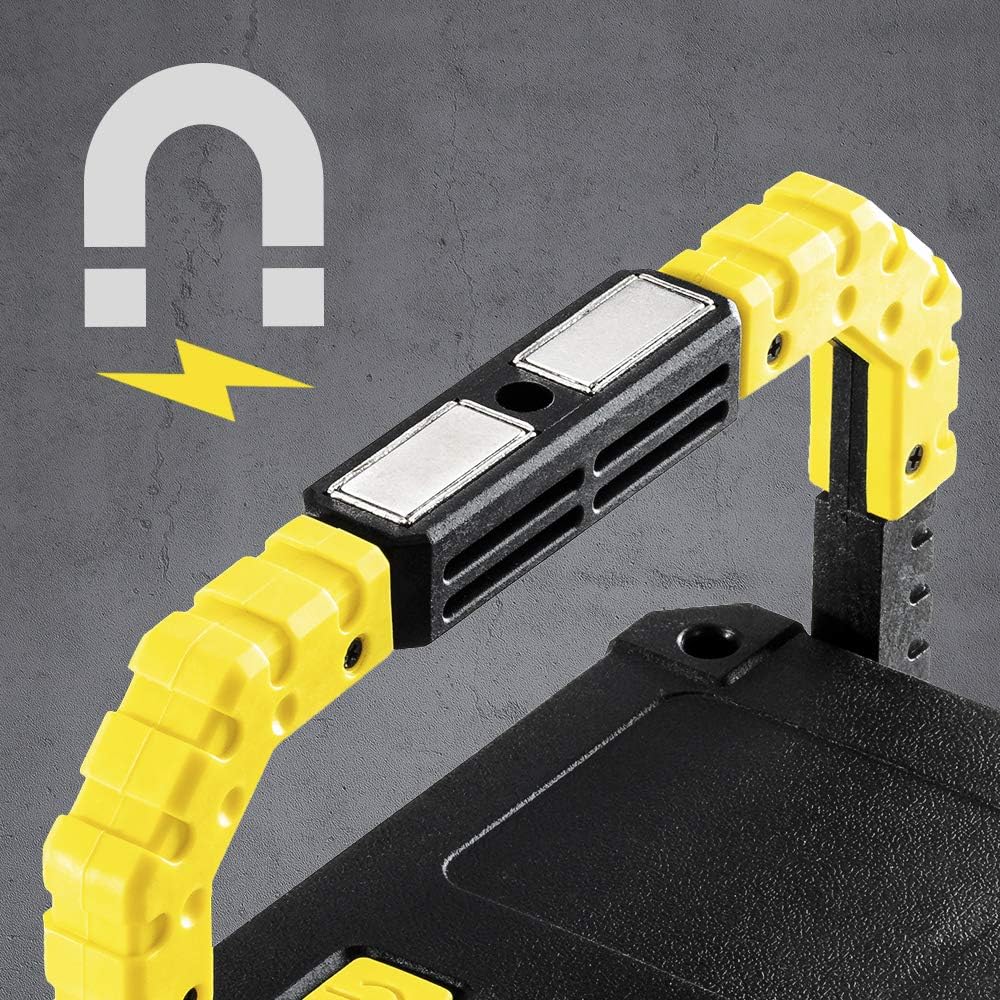

Image 5.2: The powerful magnetic base provides secure attachment to metallic objects.
Ensure the metal surface is clean and strong enough to support the weight of the work light.
6. Упутство за употребу
6.1 Powering On/Off and Changing Lighting Modes
The power button controls the light's functions:
- Да бисте укључили: Press the power button once. The light will turn on in bright mode.
- Да бисте променили режиме: Press the power button repeatedly to cycle through the modes: Bright → Reduced → Strobe → Off.
- Да искључите: Continue pressing the power button until the light turns off, or press and hold the button for 2 seconds in any mode.
6.2 Using the Power Bank Function
The work light can charge other USB-powered devices:
Image 6.1: The back panel features the USB output port (covered by a flap), Micro-USB input, power button, and battery indicator.
- Open the protective flap covering the USB output port.
- Connect your device's charging cable to the USB Type-A output port (5 V / 1 A) on the work light.
- The work light will begin charging your device. The battery indicator will show the remaining power.
- Disconnect your device once charged and close the protective flap to maintain IP44 rating.
6.3 Индикатор нивоа батерије
Тхе 4-сtage LED indicator shows the approximate battery charge level:
- 4 LEDs: 75-100% charge
- 3 LEDs: 50-75% charge
- 2 LEDs: 25-50% charge
- 1 LED: Below 25% charge (recharge soon)
7. Одржавање
7.1 Чишћење
To clean the work light, wipe it with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or internal components. Ensure the charging ports are dry before cleaning.
7.2 Складиштење
When not in use for extended periods, store the work light in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the battery at least once every three months to maintain its lifespan.
КСНУМКС. Решавање проблема
If you encounter issues with your TROTEC PWLS 06-10, refer to the following table:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Радно светло се не пали. | Батерија је празна. | Charge the work light fully. |
| Светло је слабо или трепери. | Низак ниво напуњености батерије. | Напуните батерију. |
| Функција преносног пуњача не ради. | Device not compatible or cable faulty. Battery too low. | Ensure your device is compatible (5V/1A). Try a different USB cable. Check work light battery level. |
| Work light not charging. | Charging cable or adapter faulty. Port is dirty. | Try a different USB cable and power adapter. Ensure Micro-USB port is clean and dry. |
Ако проблем и даље постоји након покушаја ових решења, обратите се корисничкој подршци.
9. Спецификације
| Феатуре | Спецификација |
|---|---|
| Модел | ПВЛС 06-10 |
| Произвођач | ТРОТЕЦ |
| Димензије производа | 4 к 16 к 12.5 цм |
| Тежина | 500 г |
| Извор светлости | ЦОБ-ЛЕД |
| Луминоус Флук | 800 лумена |
| Потрошња енергије | 10 Ватт |
| Температура боје | 6,000 К (дневно бело) |
| Тип батерије | 3.7 V Lithium-ion (4.4 Ah) |
| Оперативно време | Up to 8 hours (constant strength) |
| УСБ излаз | 5 В / 1 А |
| Оцена заштите | ИП44 (отпоран на прскање) |
| Материјал | Метал, ПВЦ |
10. Гаранција и подршка
TROTEC products are manufactured with high-quality standards. This product includes a warranty as per local regulations. Information regarding the availability of spare parts in the EU is typically for a period of 2 years.
For technical support, warranty claims, or service inquiries, please contact your retailer or the official TROTEC customer service. Please have your model number (PWLS 06-10) and proof of purchase ready when contacting support.
