Eono Eonobuds 1 (CCX-W1S-pink)

Упутство за употребу бежичних слушалица Eono Eonobuds 1

Model: CCX-W1S-pink

Увод

Thank you for choosing the Eono Eonobuds 1 Wireless Earbuds. These Bluetooth earphones are designed to provide clear sound, IPX7 waterproof protection, and convenient USB-C charging, making them ideal for work, home, or office use. This manual provides detailed instructions on how to set up, operate, and maintain your earbuds to ensure optimal performance and longevity.

Шта је у кутији

Upon opening your Eonobuds 1 package, please verify that all the following components are included:

  • 2 x бежичне слушалице (леве и десне)
  • 1 к кућиште за пуњење
  • КСНУМКС к УСБ-Ц кабл за пуњење
  • 3 x Pairs of Eartips (Sizes: Small, Medium, Large)
  • 1 к Упутство за употребу
  • КСНУМКС к Куицк Гуиде
Contents of the Eono Eonobuds 1 package including earbuds, charging case, USB-C cable, eartips, and manuals.
Figure 1: Package Contents of Eono Eonobuds 1 Wireless Earbuds.

Производ је завршенview

The Eonobuds 1 feature a compact and ergonomic design for comfortable wear. The charging case not only protects your earbuds but also provides additional battery life on the go.

Eono Eonobuds 1 wireless earbuds in their open charging case, showing the earbuds and the charging contacts.
Figure 2: Eonobuds 1 Earbuds and Charging Case.

The charging case is equipped with an LED display to indicate the battery level, ensuring you always know when it's time to recharge.

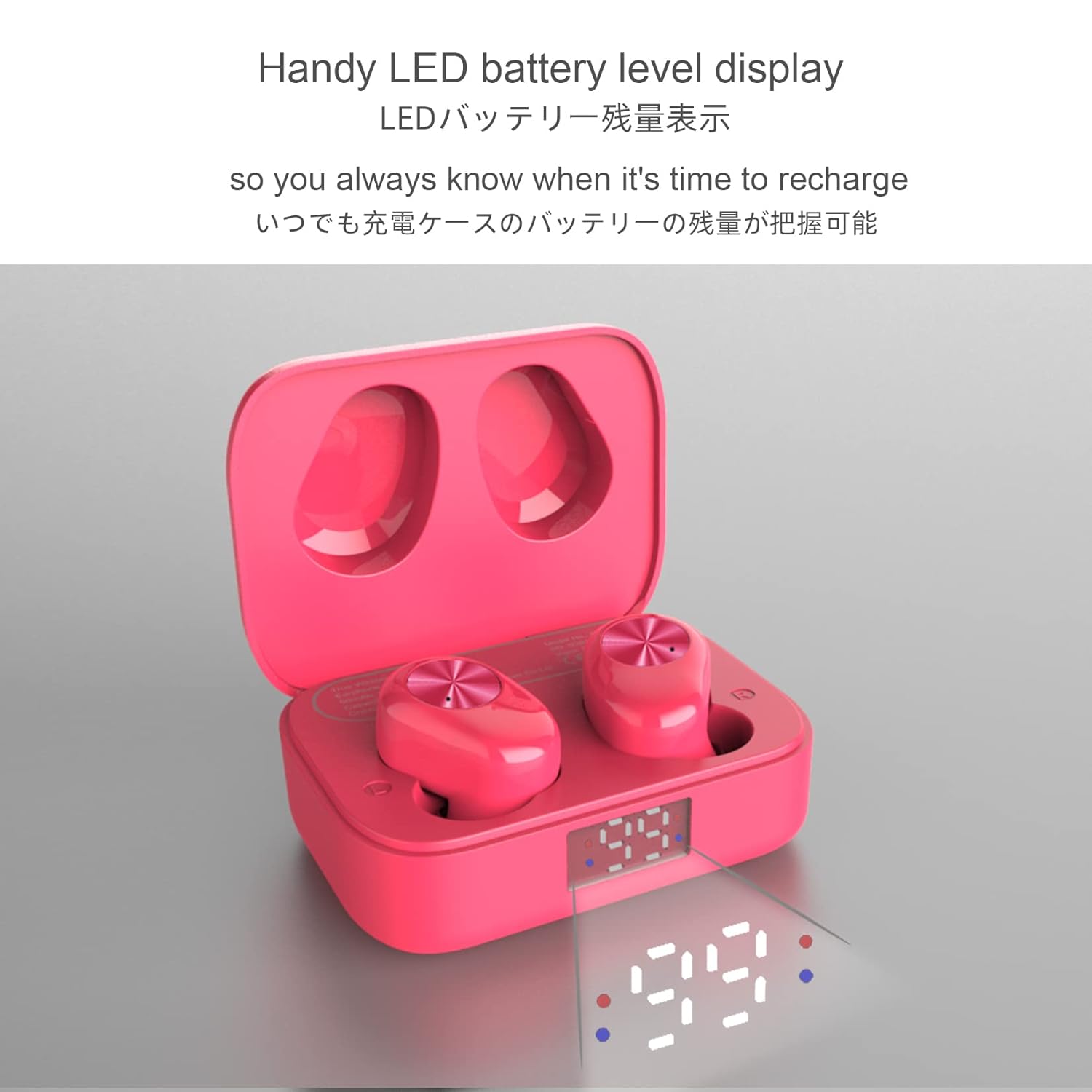

Close-up of the Eono Eonobuds 1 charging case with an illuminated LED battery level display showing '99'.
Figure 3: Handy LED Battery Level Display on Charging Case.

Сетуп

1. Почетно пуњење

Before first use, fully charge both the earbuds and the charging case. Connect the provided USB-C cable to the charging port on the case and a power source. The LED display on the case will indicate the charging progress.

Сиде view of the Eono Eonobuds 1 charging case showing the USB-C charging port.
Figure 4: USB-C Charging Port on the Charging Case.

2. Упаривање са вашим уређајем

  1. Уверите се да је кућиште за пуњење напуњено и да су слушалице унутра.
  2. Отворите кућиште за пуњење. Слушалице ће аутоматски ући у режим упаривања.
  3. На свом уређају (паметном телефону, таблету итд.) идите на подешавања Bluetooth-а и укључите Bluetooth.
  4. Тражи "Eonobuds 1" in the list of available devices and select it to connect.
  5. Када се повежете, чућете звук потврде и слушалице ће бити спремне за употребу.

The earbuds feature instant connection. As long as the wireless earphones are taken out of the charging case, they will automatically connect to the last paired device.

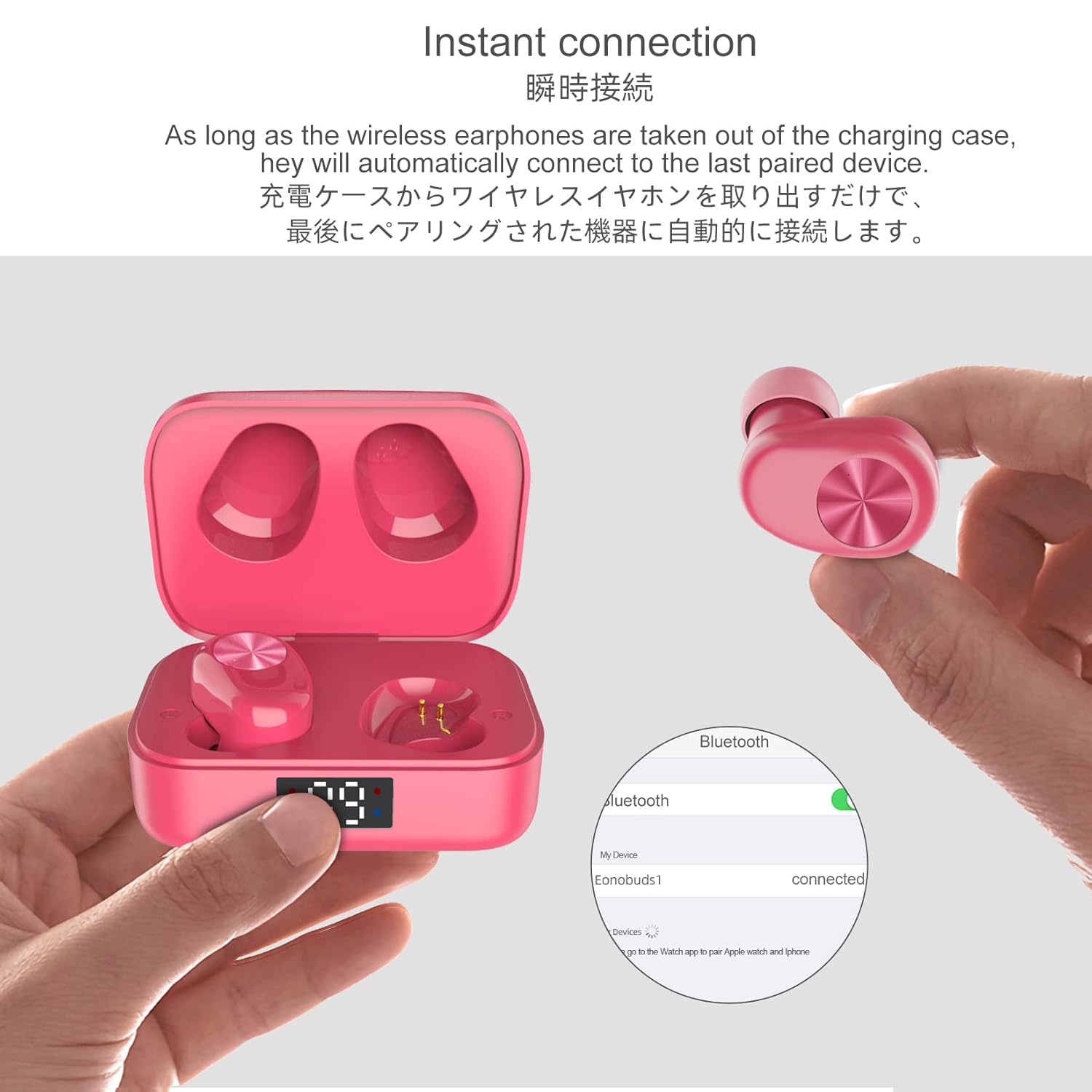

Image demonstrating instant connection of Eono Eonobuds 1 earbuds to a smartphone, showing the Bluetooth settings screen with 'Eonobuds 1' connected.
Figure 5: Instant Connection Feature.

3. Постављање слушалица

Select the eartip size (S/M/L) that provides the most comfortable and secure fit for your ears. A proper fit is crucial for optimal sound quality and noise isolation.

Упутство за употребу

Додирните контроле

The Eonobuds 1 feature touch controls for easy management of music and calls. Specific touch functions may vary slightly, but common actions include:

  • Пусти/паузирај: Један додир на обе слушалице.
  • Следећа нумера: Двапут додирните десну слушалицу.
  • Претходни запис: Двапут додирните леву слушалицу.
  • Одговори/заврши позив: Једном додирните било коју слушалицу током долазног позива.
  • Одбиј позив: Притисните и држите било коју слушалицу током долазног позива.
  • Активирање гласовног помоћника: Трипут додирните било коју слушалицу (нпр. Siri, Google Assistant).

Трајање батерије и пуњење

The earbuds provide up to 4.5 hours of listening time on a single charge. The charging case extends the total playtime up to 24 hours. The USB-C fast charge feature allows for 1.5 hours of listening time with only 15 minutes of charging.

Image illustrating battery life: Up to 4 hours on one charge, more than 24 hours with charging case, and 15 minutes of charging provides up to 1.5 hours of listening time.
Слика 6: Трајање батерије прекоview.

Call Quality and Noise Reduction

Built-in high-quality microphones and CVC noise cancellation technology ensure clearer calls and a smoother sound quality, allowing you to enjoy clear conversations.

Image showing Eono Eonobuds 1 earbuds next to a smartphone displaying an incoming call, highlighting CVC Noise Reduction for clearer calls.
Figure 7: CVC Noise Reduction for Clearer Calls.

Одржавање

Чишћење

Regularly clean your earbuds and charging case with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials. For eartips, you may gently wipe them with a damp крпом и благим сапуном, а затим добро осушите пре поновног причвршћивања.

Отпорност на воду (ИПКС7)

The Eonobuds 1 earbuds are IPX7 waterproof, meaning they can resist sweat and rain with ease. This makes them suitable for workouts and outdoor activities. However, please note the following:

  • Do not put the charging case into water. The IPX7 rating applies only to the earbuds.
  • Избегавајте продужено урањање у воду.
  • Уверите се да су слушалице суве пре него што их вратите у кућиште за пуњење како бисте спречили оштећења.

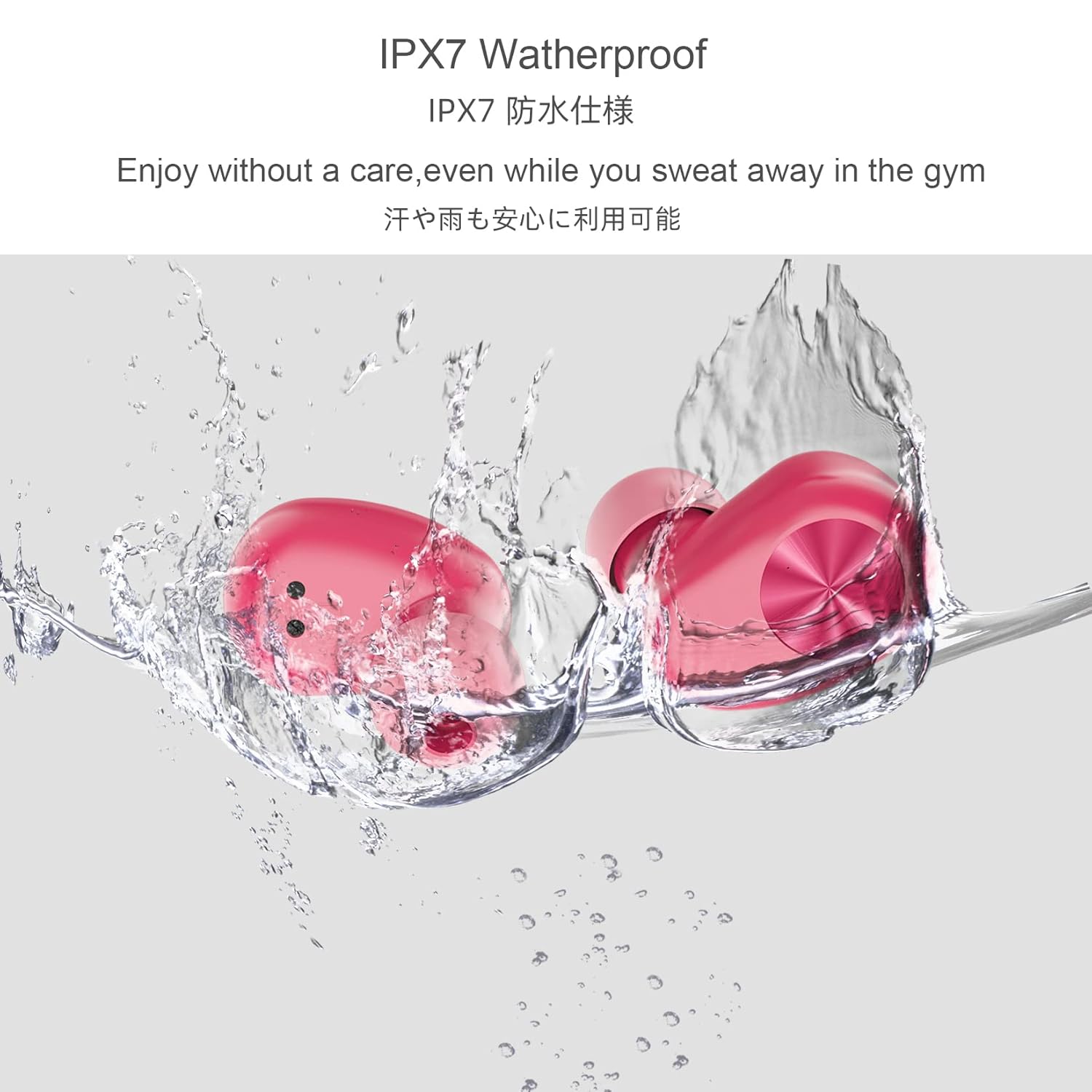

Eono Eonobuds 1 earbuds being splashed with water, illustrating their IPX7 waterproof rating.
Figure 8: IPX7 Waterproof Earbuds.

Складиштење

Када се не користе, чувајте слушалице у њиховој футроли за пуњење како бисте их заштитили и одржали напуњеним. Чувајте их на хладном и сувом месту, даље од екстремних температура.

Решавање проблема

ПроблемМогући узрокРешење
Слушалице се не упарују.Earbuds not in pairing mode; Bluetooth off on device; previously paired with another device.Ensure earbuds are in the case, open the lid to activate pairing. Turn Bluetooth on your device. Forget "Eonobuds 1" on other devices and try pairing again.
Нема звука из једне слушалице.Low battery; earbud not properly connected; earbud dirty.Place both earbuds back in the charging case and ensure they are charging. Re-pair the earbuds. Clean the charging contacts on the earbud and in the case.
Кућиште за пуњење се не пуни.Faulty cable or power adapter; charging port dirty.Пробајте други USB-C кабл и адаптер за напајање. Уверите се да је порт за пуњење чист и без прљавштине.
Лош квалитет звука.Неправилно приањање; слаба батерија; сметње.Adjust eartips for a snug fit. Charge earbuds fully. Move closer to your device to reduce interference.

Спецификације

ФеатуреДетаљ
Назив моделаЕонобудс 1
Број моделаCCX-W1S-pink
Технологија повезивањаБлуетоотх 5.0
Капацитет батерије за слушалице45 мАх (по слушалици)
Капацитет батерије кућишта за пуњење500мАх
Димензије слушалица23 к 15.6 к 21 мм
Димензије кућишта за пуњење60 к 37.3 к 28 мм
Ниво отпорности на водуИПКС7 (само слушалице)
Тип контролеДодир, гласовна контрола
Максимална радна удаљеност10 метара
Тежина артикла120 г
УПЦ793811281675

Гаранција и подршка

Eono provides a 12-month worry-free warranty for the Eonobuds 1 Wireless Earbuds. For any questions, concerns, or support needs, please contact our dedicated customer service team. We offer 24-hour dedicated email support and are committed to 100% customer satisfaction.

Please refer to the contact information provided in your product packaging or visit the official Eono webсајт за детаље подршке.

© 2024 Eono. All rights reserved.
