LATNEX PM-120W Digital VHF UHF Power SWR Meter and Frequency Counter User Manual

1. Увод и крајview

The LATNEX PM-120W is a versatile digital power and SWR meter with an integrated frequency counter, designed for VHF and UHF frequencies ranging from 125 MHz to 525 MHz. It provides direct digital readouts of VSWR, forward power, and reflected power without requiring calibration. Its low insertion loss design allows for permanent connection within your radio setup. The device also features a built-in frequency counter and displays all essential functions including frequency, power, SWR, forward power (FW), reflected power (RW), and battery level.

Note: This device is not compatible with DMR digital radios.

2. Безбедносне информације

• Пажљиво прочитајте сва упутства пре употребе уређаја.
• Не излажите уређај екстремним температурама, влажности или директној сунчевој светлости.
• Ensure proper connections to avoid damage to the meter or connected equipment.
• Use only the provided charger and cable for recharging the internal battery.
• Keep the device away from water and other liquids. The device has an IP67 waterproof rating, but prolonged submersion should be avoided.
• Не покушавајте сами да отворите или поправите уређај. Обратите се квалификованом сервисеру.

3. Садржај пакета

Your LATNEX PM-120W package should include the following items:

• LATNEX PM-120W Digital Power SWR Meter and Frequency Counter
• УСБ кабл за пуњење
• Power Adapter (5V micro USB)
• Антена
• Various Adapters (for different connector types)
• Built-in 3.7V 900MAH Li-ion Rechargeable Battery

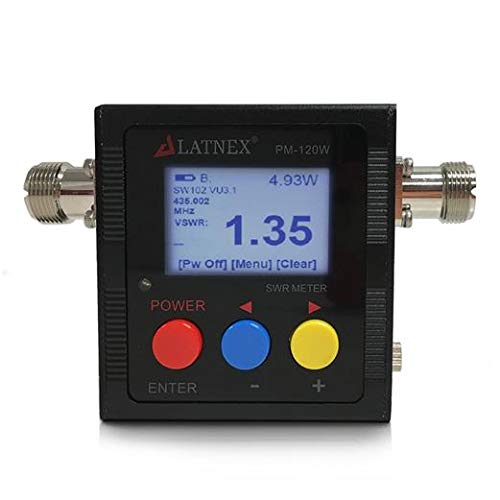

Figure 1: LATNEX PM-120W Digital Power SWR Meter, including the meter unit, USB charging cable, and power adapter.

4. Карактеристике производа

• VSWR Measurement: Direct digital readout of Voltage Standing Wave Ratio.
• Мерење снаге: Measures forward (FW) and reflected (RW) power up to 120W.
• Бројач фреквенције: Built-in frequency counter for accurate readings (minimum 0.5W TX input required).
• Широки опсег фреквенција: Operates across 125 - 525 MHz (VHF/UHF).
• Low Insertion Loss: Less than 0.15dB (VHF) and 0.25dB (UHF), allowing for permanent inline connection.
• Ради на батерије: Integrated 3.7V 900mAh Li-ion rechargeable battery with battery voltagе дисплеј.
• Аутоматско искључивање: Adjustable auto-off feature (1-9 minutes) to conserve battery.
• Позадинско осветљење: Automatic backlight with adjustable auto-off (1-9 minutes).
• Издржљив дизајн: Water-resistant with IP67 international protection rating.
• SO239 Connectors: Standard SO239 interface for input and output.

5. Подешавање и везе

Before using your PM-120W meter, ensure it is adequately charged. Connect the micro USB cable to the charging port on the top of the meter and plug the other end into the provided 5V power adapter. A red LED indicates charging, and a green LED indicates a full charge.

1. Идентификујте портове: The meter has two SO239 ports. One is labeled 'TX' for connecting to your radio/transceiver, and the other is labeled 'ANT' for connecting to your antenna or a dummy load.

Figure 2: TX (left) and ANT (right) ports on the LATNEX PM-120W meter.
2. Повежите се са радиом: Connect your radio's antenna output to the 'TX' port of the PM-120W meter. Use appropriate adapters if necessary.
3. Connect to Antenna/Load: Connect your antenna or a dummy load to the 'ANT' port of the PM-120W meter.
4. Укључено: Press and hold the power button (usually labeled 'POWER' or 'ON/OFF') for a few seconds to turn on the meter. The display will illuminate.

6. Упутство за употребу

The PM-120W meter displays various values depending on the selected mode. An indicator light on the left side of the screen shows the currently displayed value type.

1. Избор режима: Press the 'ENTER' or mode button (often a colored button like red, blue, or yellow) to cycle through the display modes: Forward Power (FW), Standing Wave Ratio (SWR), and Reflected Power (RW). The indicator light will move to show the active mode.

Figure 3: PM-120W Normal Work Display showing various parameters and error conditions.
2. Measuring Power (FW/RW):
   • Select the 'FW' mode for Forward Power or 'RW' mode for Reflected Power.
   • Transmit from your radio. The meter will display the corresponding power value in Watts.
   • Ensure your radio's output power is within the meter's measurable range (1-120W).
3. Measuring SWR:
   • Select the 'SWR' mode.
   • Transmit from your radio. The meter will display the SWR value. An SWR value closer to 1.0 indicates a better match between your radio and antenna.
4. Бројач фреквенције: The frequency counter function is built-in and will display the transmission frequency when the radio is transmitting with at least 0.5W input.
5. Ниво батерије: The display also shows the current battery level.

6.1. Operational Demonstration Videos

The following videos demonstrate the operation of similar digital SWR and power meters. While the exact model may differ, the principles of connection and measurement are generally applicable to the LATNEX PM-120W.

КСНУМКС. Решавање проблема

• Без дисплеја/напајања: Ensure the battery is charged. Connect the meter to the charger and check if the red LED illuminates.
• Нетачна очитавања:
  • Verify all connections are secure and correct (TX to radio, ANT to antenna/load).
  • Ensure the radio's transmission power is within the meter's measurable range (1-120W).
  • Check if the operating frequency is within the meter's specified range (125-525 MHz).
  • Confirm that the TX input for frequency counter is at least 0.5W.
• "Error Working" Display (e.g., 229.9W): This typically indicates that the frequency is outside the 100-525MHz range, the input level is below 1 Watt, or the input exceeds 120 Watt. Refer to Figure 3 for visual examples of error messages.
• Not Compatible with Digital Radios: The LATNEX PM-120W is designed for analog two-way radios and external antennas. It is not compatible with DMR digital radio systems.

8. Спецификације

9. Одржавање

• Очистите уређај меком, сувом крпом. Не користите абразивна средства за чишћење или раствараче.
• Store the meter in a cool, dry place when not in use.
• Regularly check connections for wear and tear.
• Charge the battery periodically if the device is stored for extended periods to maintain battery health.

10. Гаранција и подршка

The LATNEX PM-120W Digital VHF UHF Power SWR Meter and Frequency Counter comes with a 1 година гаранције од дана куповине.

For technical support, warranty claims, or any inquiries, please contact LATNEX customer service:

• Произвођач: ЛАТНЕКС
• Контакт информације: LATNEX, 10 Westcreek Dr, Unit 17 Woodbridge, ON L4L 9R5, Canada

Молимо вас да сачувате доказ о куповини за потребе гарантног сервиса.
