VENTION 4-Port USB 3.0 Hub (Model CHL-1) Instruction Manual

1. Увод

Thank you for choosing the VENTION 4-Port USB 3.0 Hub. This ultra-slim data USB splitter is designed to expand your device's connectivity, offering high-speed data transfer and charging support. Please read this manual carefully to ensure proper use and optimal performance.

2. Карактеристике производа

• 4 USB 3.0 Ports: Expands one USB port into four, supporting various USB peripherals.
• Пренос података велике брзине: Up to 5Gbps, 10 times faster than USB 2.0.
• Charging Supported: Пружа напајање повезаним уређајима.
• Плуг анд Плаи: За већину оперативних система нису потребни драјвери.
• Компактан и преносив дизајн: Easy to carry for travel or daily use.
• Широка компатибилност: Supports Windows, Mac OS, Linux, and ChromeOS.

3. Садржај пакета

Уверите се да су све ставке присутне у пакету:

• VENTION 4-Port USB 3.0 Hub (Model CHL-1)
• Упутство за употребу (овај документ)

Image: The VENTION 4-Port USB 3.0 Hub, showcasing its compact design and four blue USB 3.0 ports. The integrated USB-A cable is visible.

4. Упутства за подешавање

1. Повежите чвориште са својим уређајем:

   Plug the USB-A connector of the VENTION Hub into an available USB 3.0 port on your computer (laptop, desktop, etc.).



   Image: The VENTION USB Hub connected to a laptop, illustrating the plug-and-play setup. A blue LED indicator light confirms power and connection.

2. Индикатор напајања:

   A blue LED indicator light on the hub will illuminate, confirming that the hub is powered and ready for use.



   Слика: Крупни план view of the VENTION USB Hub, highlighting the blue LED indicator light when the device is active.
3. Optional External Power (for high-power devices):

   For power-hungry devices (e.g., external 8TB hard drives, printers), connect an external 5V/2A power adapter (not included) to the Micro USB port on the side of the hub. Do not connect power adapters exceeding 5V/2A.



   Image: The VENTION USB Hub facilitating connections to a laptop and an external hard drive, with an additional Micro USB cable providing supplementary power to the hub for high-power devices.

5. Упутство за употребу

1. Повезивање УСБ уређаја:

   Insert your USB devices (flash drives, mouse, keyboard, printer, etc.) into the available USB 3.0 ports on the hub. The hub supports simultaneous connection of multiple devices.

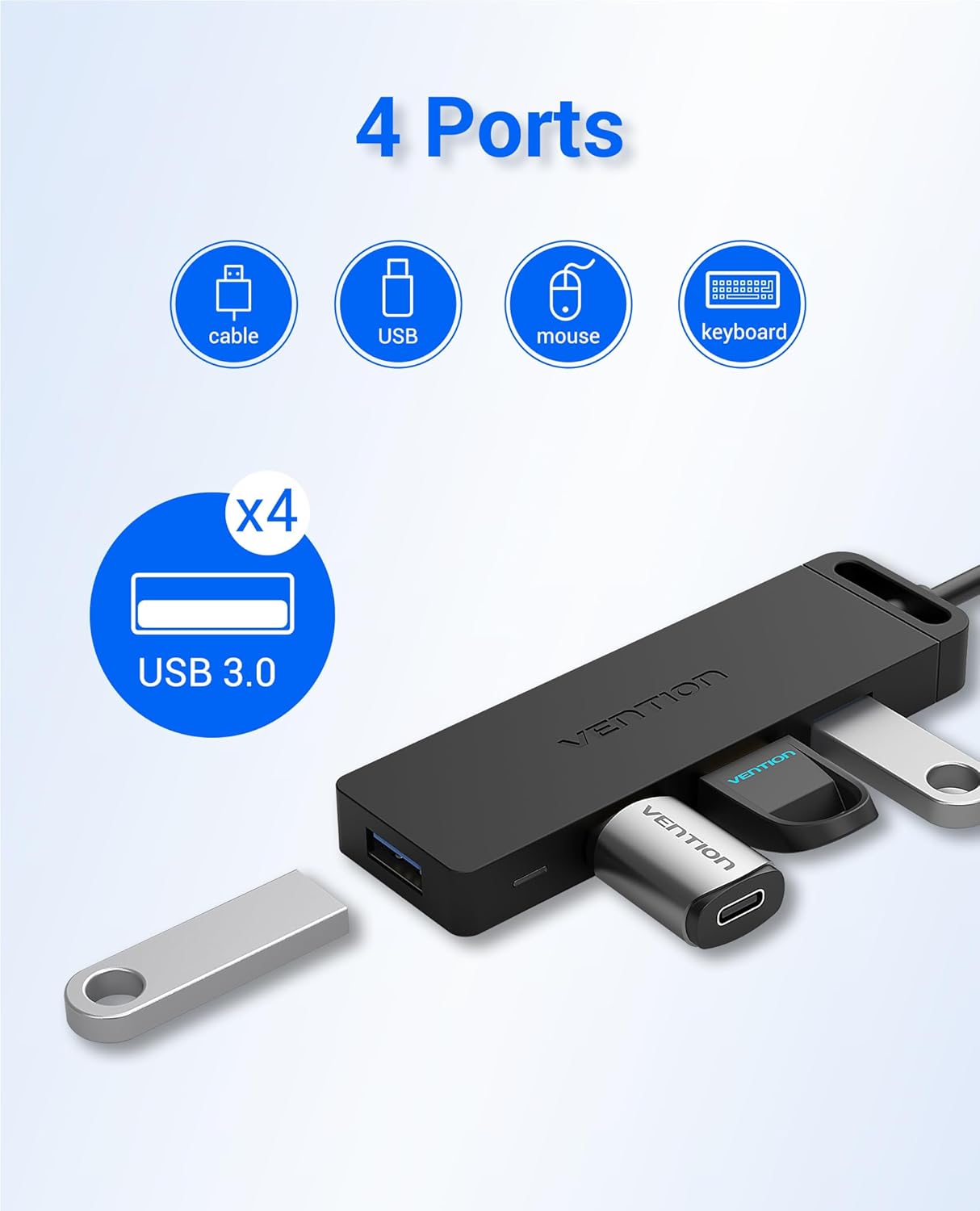

   Image: The VENTION USB Hub with various USB devices plugged in, demonstrating its ability to expand connectivity for multiple peripherals.

2. Пренос података:

   The hub supports data transfer speeds of up to 5Gbps. When transferring large files, ensure both the source and destination devices support USB 3.0 for optimal performance.



   Image: A visual representation of the 5Gbps data transfer capability of the USB 3.0 hub, highlighting its speed advantage over USB 2.0.

3. Функционалност пуњења:

   The USB 3.0 ports on the hub can provide power to charge compatible devices. For faster charging or multiple devices, consider using the optional external power supply.

   Video: This video demonstrates the VENTION 4-Port USB 3.0 Hub's ability to expand USB ports and support data transfer and charging. It shows the hub connected to a laptop, with a blue indicator light, and a flash drive being used for data transfer. It also illustrates the hub providing stable power for charging multiple devices like smartphones.

6. Компатибилност

The VENTION 4-Port USB 3.0 Hub is widely compatible with:

• Operating Systems: Windows 10, 8, 7, Vista, XP, Mac OS x 10.6-10.12 or later, Linux 2.6.14 or later, ChromeOS.
• Devices: MacBook, Laptops, Surface Pro, PS4, PC, Flash Drives, Mobile HDDs, Keyboards, Mice, Printers, and other USB peripherals.

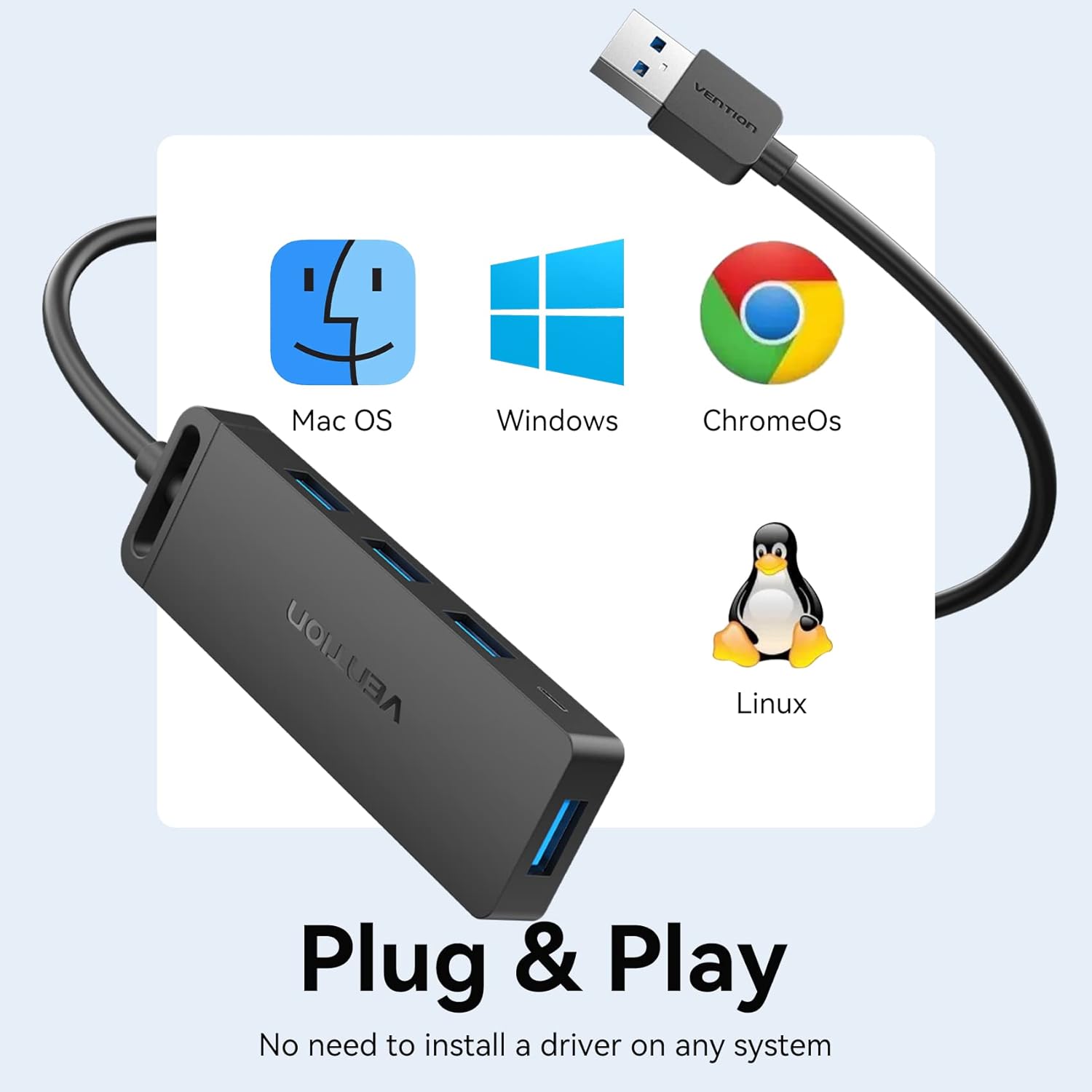

Image: The VENTION USB Hub displayed alongside logos for Mac OS, Windows, ChromeOS, and Linux, emphasizing its broad operating system compatibility.

7. Одржавање и њега

• Keep the hub away from water, fire, and corrosive substances.
• Избегавајте испуштање или излагање главчине јаким ударцима.
• Очистите уређај меком, сувом крпом. Не користите течна средства за чишћење.
• Чувати на хладном и сувом месту када се не користи.

КСНУМКС. Решавање проблема

9. Спецификације

10. Гаранција и подршка

VENTION products typically come with a 1-year warranty. For any questions about our product, please feel free to contact our reliable customer service. We aim to reply within 24 hours.

Contact Information: Refer to the product packaging or the official VENTION website for the most up-to-date customer support details.
