Увод
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Wayne Dalton Challenger Infrared Safety Beam Sensors Kit, Model 9000. This kit is designed to enhance the safety and functionality of residential garage door openers by providing an essential safety mechanism. It serves as a direct replacement for Wayne Dalton part number P1552.
Please read this manual thoroughly before beginning installation or operation to ensure proper setup and safe use of your new safety sensors.
Важне информације о безбедности
УПОЗОРЕЊЕ: Непоштовање ових безбедносних упутстава може довести до озбиљних повреда или материјалне штете.
- Always disconnect electrical power to the garage door opener before attempting any installation, repair, or maintenance.
- Ensure that the garage door area is clear of all persons and objects before operating the door.
- Do not allow children to play with or near the garage door opener controls or the garage door itself.
- Test the safety reversal system monthly. If the door does not reverse on contact with a 1.5-inch object placed on the floor, adjust or repair the opener.
- Keep hands and clothing clear of the garage door and its moving parts.
Садржај пакета
Please verify that all the following components are included in your Wayne Dalton Challenger Infrared Safety Beam Sensors Kit:
- Infrared Safety Beam Sensors (2 units: one transmitter, one receiver)
- Sensor Wires (pre-attached)
- Монтажни носачи (2 јединице)
- Nuts, Bolts, and Screws (for mounting)

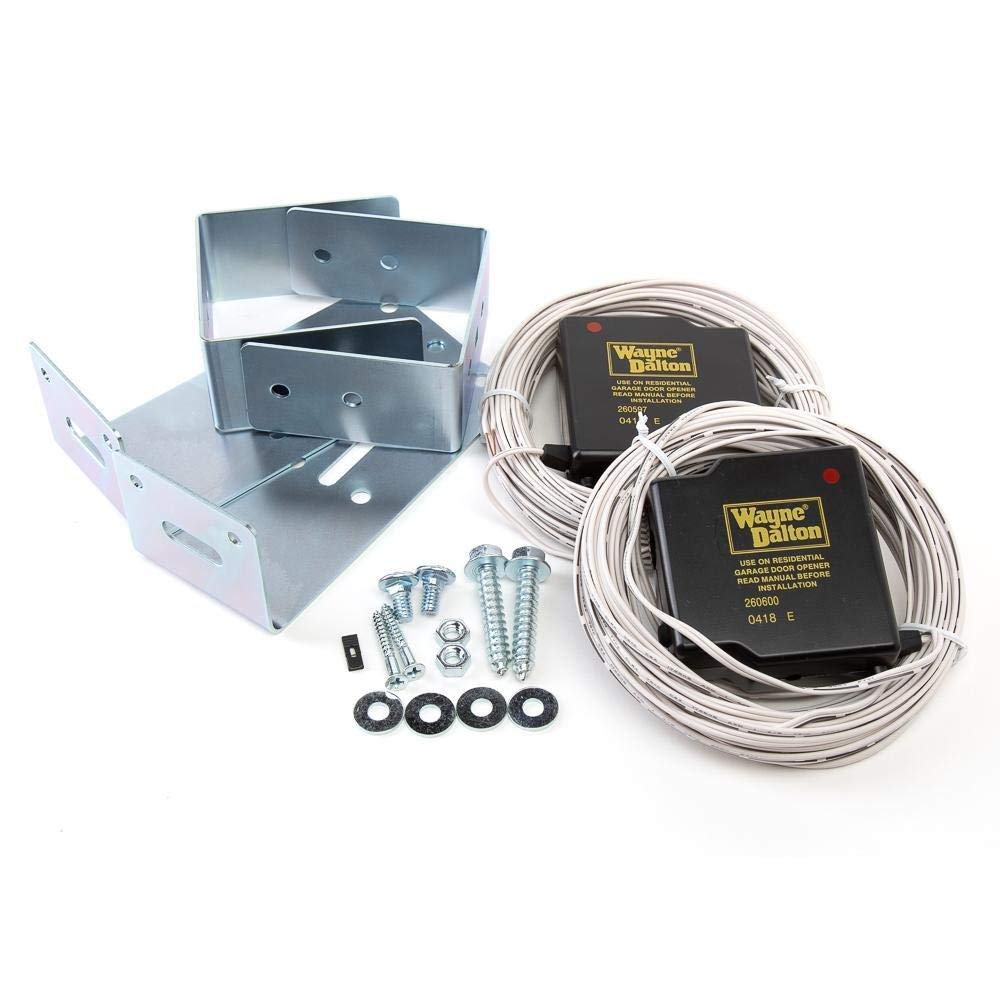

This image displays the two infrared safety beam sensors, each with its associated wiring, as included in the kit. The sensors are black with gold 'Wayne Dalton' branding and an instruction to read the manual before installation. One sensor is labeled 260597 and the other 260600.
Подешавање и инсталација
Потребни алати:
- Одвијач (Пхиллипс и/или равна глава)
- Скидачи жице
- Бушилица (ако су потребне нове рупе за монтажу)
- Меасуринг Тапе
- Оловка или маркер
Инсталација корак по корак:
- Искључите напајање: Before starting, ensure the garage door opener is unplugged from the electrical outlet or the circuit breaker is turned off.
- Remove Old Sensors (if applicable): Carefully disconnect and remove any existing safety sensors and their wiring. Note the previous wiring connections for reference.
- Mount New Brackets: Attach the new mounting brackets to the garage door track or wall, ensuring they are securely fastened. The sensors should be mounted no higher than 6 inches (15 cm) above the garage floor. Use the provided nuts, bolts, and screws.
- Инсталирајте сензоре: Snap the new infrared safety beam sensors into their respective mounting brackets. Ensure the lenses face each other across the garage door opening. One sensor is the transmitter (sends the beam), and the other is the receiver (detects the beam).
- Wire the Sensors: Connect the sensor wires to the garage door opener's terminal block. Refer to your garage door opener's manual for specific wiring diagrams. Typically, one wire connects to the common terminal and the other to the safety sensor terminal. Ensure connections are secure and polarity is correct.
- Align the Sensors: Reconnect power to the garage door opener. The indicator lights on both sensors should illuminate steadily when properly aligned. If a light is blinking or off, adjust the sensor's position until both lights are solid. The sensing distance is up to 8 feet.
- Тестирајте систем: With the sensors aligned, activate the garage door opener to close the door. While the door is closing, interrupt the infrared beam with an object (e.g., a cardboard box). The door should immediately reverse to its open position. If it does not, recheck alignment and wiring.
Упутство за употребу
Once properly installed and aligned, the Wayne Dalton Challenger Infrared Safety Beam Sensors operate automatically to ensure the safe closing of your residential garage door.
- Automatic Reversal: If the infrared beam between the two sensors is interrupted while the garage door is in the process of closing, the garage door opener will automatically stop the downward movement and reverse the door to its fully open position. This prevents the door from closing on an obstruction.
- Континуирано праћење: The sensors continuously monitor the garage door opening whenever the opener is powered, providing an ongoing safety barrier.
- Индикаторска светла: The solid indicator lights on both sensors confirm proper alignment and functionality. A blinking or off light indicates a misalignment or obstruction.
Одржавање
Regular maintenance helps ensure the longevity and reliable operation of your safety beam sensors.
- Clean Sensor Lenses: Periodically inspect the lenses on both the transmitter and receiver sensors for dirt, dust, spiderwebs, or other obstructions. Clean them gently with a soft, dry cloth. Do not use abrasive cleaners.
- Проверите ожичење: Annually inspect all wiring connections for secure fit and any signs of wear, fraying, or damage. Repair or replace damaged wiring immediately.
- Проверите поравнање: Confirm that the sensors remain properly aligned. If the indicator lights are not solid, realign the sensors as described in the 'Setup and Installation' section.
- Test Safety Reversal: Perform the safety reversal test monthly as described in the 'Important Safety Information' section.
Решавање проблема
If you encounter issues with your safety beam sensors, refer to the following table for common problems and solutions.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Garage door will not close, or reverses immediately. | Sensors are misaligned or obstructed. | Check sensor alignment; ensure indicator lights are solid. Clear any obstructions from the beam path. Clean sensor lenses. |
| Sensor indicator light is off or blinking. | No power to sensors, faulty wiring, or severe misalignment. | Verify power to the opener. Check wiring connections for security and damage. Realign sensors until lights are solid. |
| Door reverses unexpectedly during closing, with no visible obstruction. | Intermittent beam interruption (e.g., sunlight interference, vibration, dirty lens). | Clean sensor lenses thoroughly. Ensure sensors are firmly mounted and not vibrating. Consider adding a shield to block direct sunlight if applicable. |
| Sensors are physically damaged. | Impact or environmental damage. | Replace damaged sensors with a new Wayne Dalton Challenger Infrared Safety Beam Sensors Kit. |
Спецификације производа
- Бренд: WAYNE DALTON
- Модел: 9000
- Replacement for Part Number: П1552
- Dimensions (each sensor): 2.5 cm x 2.75 cm
- Боја: Црно
- Материјал: Метал
- Тип монтаже: Фланге Моунт
- Тип излаза: Дигитал
- Сензирна удаљеност: До 8 стопа
- Горња температура: 120 степени Фаренхајта
Гаранција и подршка
For detailed warranty information regarding your Wayne Dalton Challenger Infrared Safety Beam Sensors Kit, please refer to the documentation provided with your original garage door opener or visit the official Wayne Dalton webсајт. Сачувајте рачун као доказ о куповини за евентуалне рекламације по гаранцији.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Wayne Dalton customer support directly. Contact information can typically be found on the manufacturer's website or in your garage door opener's manual.
