Gecko in.k1000 Electronic Keypad Touchscreen User Manual

Увод

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Gecko in.k1000 Electronic Keypad Touchscreen. The in.k1000+ is designed to offer an intuitive and engaging interface for controlling spa and hot tub functions. It features a color capacitive touch screen display, replacing traditional physical buttons and overlays for a streamlined user experience.

The in.k1000+ keypad is compatible with Gecko In.XE, In.XM, in.yt, in.ye, and in.yj control systems, providing a central point of control for your spa's features and accessories.

Важне информације о безбедности

Please read all safety instructions before installing or operating the in.k1000+ keypad. Failure to follow these instructions could result in injury or damage to the product or spa system.

• Ensure power to the spa system is disconnected before installation or maintenance.
• Инсталацију треба да обави квалификовани техничар.
• Do not expose the keypad to extreme temperatures or direct sunlight for prolonged periods.
• Avoid using abrasive cleaners or solvents on the touchscreen surface.
• Keep water and other liquids away from electrical connections.

Подешавање и инсталација

The Gecko in.k1000+ keypad is designed for straightforward installation. It connects to your spa's control system via an In.Link plug.

Садржај пакета

• Gecko in.k1000+ Electronic Keypad Touchscreen

Кораци инсталације

1. Искључите напајање: Ensure the main power supply to your spa is completely turned off at the circuit breaker before beginning installation.
2. Монтирајте тастатуру: Position the in.k1000+ keypad in the desired location on your spa's edge. The keypad measures approximately 7.5 inches by 5.25 inches. Secure it according to your spa manufacturer's instructions or using appropriate mounting hardware (not included).
3. Connect the In.Link Cable: Locate the In.Link port on your compatible Gecko spa control system (In.XE, In.XM, in.yt, in.ye, or in.yj). Connect the 10-foot In.Link cord from the in.k1000+ keypad to this port. Ensure the connection is secure.
4. Врати снагу: Once the keypad is securely mounted and connected, restore power to your spa system. The keypad should power on and display the initial setup screen.

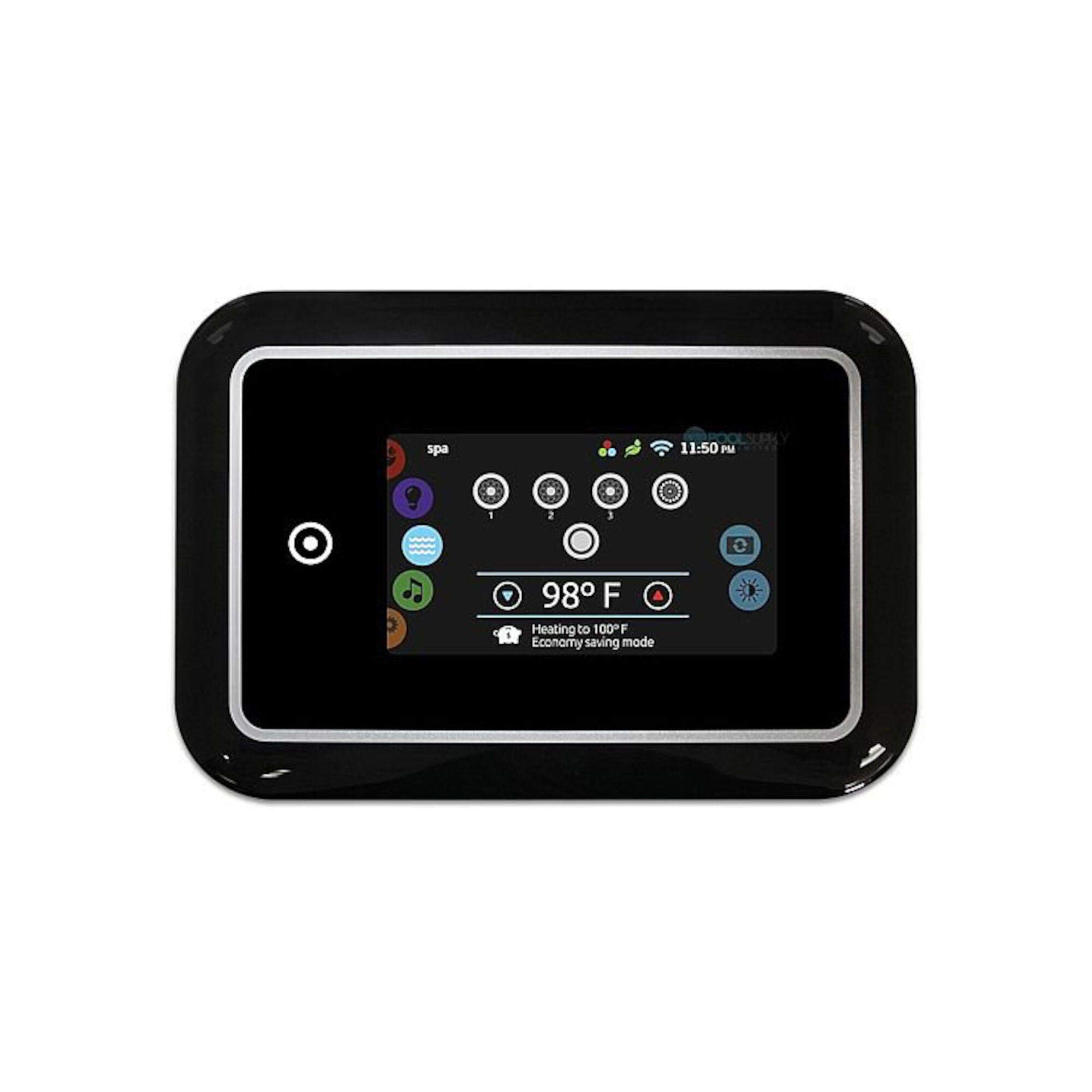

Слика 1: The Gecko in.k1000+ Electronic Keypad Touchscreen. This image shows the front view of the keypad, highlighting its sleek design and capacitive touch screen.

Упутство за употребу

The in.k1000+ features an intuitive, one-level menu interface designed for ease of use.

Navigating the Touchscreen

• Капацитивни додир: The 4.3-inch 256K color LCD display responds to light touches, similar to a smartphone screen.
• Интерфејс менија: All functions are accessible through a single-level menu, reducing complexity. Swipe or tap to navigate through options.
• Mode and Function Selection Wheels: Use the on-screen wheels to adjust settings such as temperature, jet intensity, or lighting modes.
• All-On/All-Off Key: A dedicated on-screen key allows for one-touch activation or deactivation of all primary spa functions.
• Interactive Icons: The display uses clear, interactive icons and on-screen reminders to provide direct feedback on your spa's status and settings.

Controlling Spa Accessories

The in.k1000+ provides seamless interaction with Gecko's value-added accessories:

• in.clear: Manage your spa's water treatment system.
• in.mix: Control multi-zone lighting systems.
• in.stream 2: Operate your spa's audio system.

Слика 2: Example of the in.k1000+ touchscreen interface. This image represents the intuitive graphical user interface with selection wheels and interactive icons for spa function control.

Одржавање

Proper care will ensure the longevity and optimal performance of your in.k1000+ keypad.

Чишћење екрана осетљивог на додир

• Користите меку крпу која не оставља длачицеampводом или благим, неабразивним средством за чишћење екрана.
• Gently wipe the screen to remove smudges and dirt.
• немој use harsh chemicals, abrasive cleaners, or solvents, as these can damage the screen's surface.
• Ensure the screen is dry before use.

Општа нега

• Protect the keypad from direct impact or sharp objects.
• Avoid prolonged exposure to direct sunlight, which can cause discoloration or affect screen performance.

Решавање проблема

If you encounter issues with your in.k1000+ keypad, refer to the following common problems and solutions.

Спецификације

Гаранција и подршка

For warranty information and technical support, please refer to the documentation provided with your spa system or contact Gecko customer service directly. Keep your purchase receipt as proof of purchase.

Напомена: Warranty terms may vary. Please consult the official Gecko warranty statement for complete details.
