Parkside PFBS 12 B4 Cordless Rotary Tool Instruction Manual

1. Увод

Thank you for choosing the Parkside PFBS 12 B4 Cordless Rotary Tool. This versatile tool is designed for a wide range of precision tasks including drilling, milling, grinding, polishing, cleaning, cutting, and engraving. It features an adjustable rotational speed and a compact design with anti-slip soft grip elements for comfortable and precise operation. Please read this manual carefully before first use to ensure safe and effective operation and to maximize the lifespan of your tool.

2. Безбедносна упутства

Општа безбедносна упозорења за електрични алат:

• Увек носите одговарајућу личну заштитну опрему (ЛЗО) као што су заштитне наочаре, рукавице и маска за прашину.
• Одржавајте радни простор чистим и добро осветљеним. Затрпана или мрачна подручја изазивају несреће.
• Не користите електричне алате у експлозивној атмосфери, као што је присуство запаљивих течности, гасова или прашине. Електрични алати стварају варнице које могу запалити прашину или испарења.
• Држите подаље децу и особе у близини док користите електрични алат. Ометања могу узроковати да изгубите контролу.
• Избегавајте случајно покретање. Уверите се да је прекидач у положају „искључено“ пре него што повежете батерију, подигнете или носите алат.
• Одвојите батерију од електричног алата пре него што извршите било каква подешавања, промените прибор или одложите електрични алат.
• Користите одговарајући алат за вашу примену. Немојте форсирати алат.
• Одржавајте електричне алате. Проверите да ли су покретни делови неусклађени или везани, поломљени делови и било које друго стање које може утицати на рад електричног алата.
• Чувајте електричне алате у стању мировања ван домашаја деце и не дозволите особама које нису упознате са електричним алатом или овим упутствима да рукују електричним алатом.
• Service of the power tool should be performed only by qualified repair personnel using identical replacement parts.

3. Садржај пакета

Carefully unpack your Parkside PFBS 12 B4 rotary tool and check for completeness. The package should contain the following items:

• Parkside PFBS 12 B4 Cordless Rotary Tool
• 12 V Li-ion Battery (1.3 Ah)
• Пуњач батерија
• 44 Assorted Accessories (e.g., bits for drilling, milling, grinding, polishing, cleaning, cutting, engraving)
• 5 Collets (1 pre-assembled)
• Accessory Replacement Tool (wrench)

Image 1: The Parkside PFBS 12 B4 rotary tool shown with its complete set of 44 accessories, 5 collets, and the battery charger, all neatly organized within a transparent storage case.

4. Производ је готовview

The Parkside PFBS 12 B4 is a compact and ergonomically designed cordless rotary tool. It features a robust housing with anti-slip soft grip elements for secure handling and reduced fatigue during extended use. The tool is equipped with an integrated 12V Li-ion battery and controls for power and speed adjustment.

Слика 2: Детаљан бочни приказ view of the Parkside PFBS 12 B4 cordless rotary tool, showcasing its green and black compact body, ergonomic soft grip sections, and the 'PFBS 12 B4' model designation.

Кључне компоненте:

• Collet Chuck: Holds the various accessories securely.
• Дугме за закључавање вретена: Користи се за закључавање вретена ради лакше измене прибора.
• Прекидач за укључивање/искључивање: Powers the tool on and off.
• Точкић за подешавање брзине: Allows for variable speed control.
• Батерија: Integrated 12V Li-ion battery.
• Порт за пуњење: For connecting the battery charger.

5. Подешавање

5.1 Пуњење батерије

The Parkside PFBS 12 B4 is powered by an integrated 12V Li-ion battery. Before first use, ensure the battery is fully charged.

1. Укључите пуњач у одговарајућу утичницу.
2. Plug the charger cable into the charging port on the rotary tool.
3. Allow the battery to charge until the charging indicator (if present) signals a full charge. Refer to the charger's specific instructions for indicator details.
4. Once charged, disconnect the charger from the tool and the power outlet.

5.2 Причвршћивање додатне опреме

Always ensure the tool is switched off and the battery is disconnected before changing accessories.

1. Притисните и држите дугме за закључавање вретена да бисте спречили окретање вретена.
2. Use the provided accessory replacement tool (wrench) to loosen the collet nut.
3. Insert the desired accessory into the collet. Ensure the accessory shank is fully seated. If the accessory shank diameter does not match the pre-assembled collet, replace the collet with one of the other 4 provided collets that matches the accessory.
4. Tighten the collet nut firmly with the wrench while still holding the spindle lock button. Do not overtighten.
5. Отпустите дугме за закључавање вретена.

6. Упутство за употребу

The Parkside PFBS 12 B4 offers variable speed control for optimal performance across different materials and tasks.

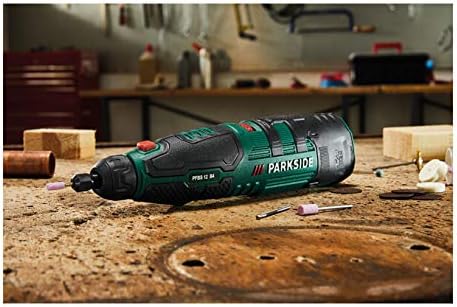

Image 3: The Parkside PFBS 12 B4 rotary tool resting on a wooden workbench, with various small accessories scattered around, indicating its readiness for precision tasks.

6.1 Укључивање/искључивање

• To turn on the tool, slide the On/Off switch to the 'On' position.
• To turn off the tool, slide the On/Off switch to the 'Off' position.

6.2 Adjusting Rotational Speed

The tool features an adjustable rotational speed ranging from 5,000 to 25,000 revolutions per minute (rpm).

• Окрените точкић за подешавање брзине да бисте повећали или смањили брзину.
• Ниже брзине are suitable for polishing, cleaning, and delicate engraving.
• Веће брзине are ideal for drilling, milling, grinding, and cutting.
• Always test the speed on a scrap piece of material before working on your final project.

6.3 Performing Tasks

Select the appropriate accessory for your task. Apply light, consistent pressure. Let the tool do the work. Avoid excessive force, which can damage the accessory, the workpiece, or the tool itself.

• бушење: Use appropriate drill bits for the material. Start at a lower speed and increase as needed.
• Milling/Grinding: Use milling cutters or grinding stones. Maintain a steady hand and even pressure.
• Полирање/чишћење: Attach polishing wheels or brushes. Use lower speeds for best results.
• Сечење: Use cutting discs. Ensure the workpiece is securely clampед.
• Гравирање: Use engraving bits. Practice on scrap material to achieve desired depth and detail.

7. Одржавање

Редовно одржавање осигурава дуготрајност и оптималне перформансе вашег ротационог алата.

• Чишћење: After each use, wipe down the tool with a clean, dry cloth. Use a soft brush to remove dust and debris from vents and the collet area. Do not use harsh chemicals or abrasive cleaners.
• Одржавање батерије: Store the battery in a cool, dry place away from direct sunlight. Do not allow the battery to fully discharge for extended periods. Charge the battery periodically if not in use.
• Инспекција додатне опреме: Regularly inspect accessories for wear or damage. Replace worn or damaged accessories immediately to prevent injury or damage to the tool.
• Складиштење: Store the tool and its accessories in the provided case in a dry, secure location out of reach of children.

КСНУМКС. Решавање проблема

If you encounter issues with your Parkside PFBS 12 B4, refer to the following common problems and solutions:

• Алат се не укључује:
  • Проверите да ли је батерија напуњена.
  • Ensure the On/Off switch is fully in the 'On' position.
• Reduced performance or unusual noise:
  • Check if the accessory is securely fastened and not worn out.
  • Уверите се да је изабрано исправно подешавање брзине за задатак.
  • Clean any debris from the tool's vents.
• Accessory wobbles or vibrates excessively:
  • Ensure the accessory is fully inserted into the collet and the collet nut is tightened.
  • Verify that the correct collet size is used for the accessory shank.
  • Inspect the accessory for damage or bending. Replace if necessary.

Ако проблем и даље постоји након покушаја ових решења, обратите се корисничкој подршци.

9. Спецификације

10. Гаранција и подршка

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact the retailer or the manufacturer's customer service department.
