Greenworks 2x24V Cordless Grass Trimmer & Brush Cutter GD24X2TX

1. Увод

The Greenworks GD24X2TX 2x24V cordless grass trimmer and brush cutter is designed for precise and efficient lawn edging and clearing. This versatile tool operates on two 24V Li-Ion batteries (not included) and features a 40 cm cutting width, 5600 RPM, and uses either a 2 mm nylon line or a 25 cm blade. It includes an adjustable auxiliary handle and a 2-part telescopic shaft for user comfort and adaptability to various tasks and user heights.

The 24V batteries are part of Greenworks' universal battery system, compatible with numerous Greenworks garden and DIY tools, offering cordless operation and freedom of movement without the hassle of power cords. Integrated LEDs on the batteries provide a convenient indication of the remaining charge level. This package includes the GD24X2TX trimmer/brush cutter only; batteries and charger are sold separately.

2. Безбедносне информације

УПОЗОРЕЊЕ: When operating the brush cutter or grass trimmer, flying objects can cause injury. Always wear appropriate personal protective equipment (PPE) including safety glasses, sturdy footwear, and protective clothing. Ensure that other individuals and animals are kept at a safe distance from the operating area to prevent accidents.

• Увек прочитајте и разумејте цело упутство за употребу пре руковања алатом.
• Keep hands and feet away from the cutting head while the tool is running.
• Не користите алат по влажним условима или киши.
• Inspect the work area for debris, rocks, or other objects that could be thrown by the cutting head.
• Ensure the auxiliary handle is securely fastened and adjusted for comfortable and controlled operation.
• Извадите батеријски пакет када га не користите, пре чишћења или приликом одржавања.

3. Компоненте производа

Familiarize yourself with the main components of your Greenworks GD24X2TX trimmer/brush cutter:

• Глава мотора: Contains the motor and variable speed trigger.
• осовина: A 2-part telescopic shaft for adjustable length and easy storage.
• Подесива помоћна ручка: Provides additional control and comfort during operation.
• чувар: Protects the user from flying debris.
• Глава за сечење: Equipped with a 2.4mm dual line bump feed head for grass trimming, and compatible with a 25cm blade for brush cutting.
• Одељак за батерије: Designed to hold two 24V Greenworks batteries (sold separately).

Слика 3.1: Готовоview of the Greenworks GD24X2TX trimmer showing the variable speed trigger, adjustable auxiliary handle, 35.6/40.6cm cutting path, and 2.4mm dual line bump feed head. Note that batteries are not included.

4. Подешавање

4.1. Assembly of the Shaft

1. Align the two sections of the shaft.
2. Push them together until they click securely into place. Ensure the connection is firm and there is no wobble.

4.2. Attaching the Guard

1. Position the guard over the cutting head assembly.
2. Secure it using the provided screws or fasteners. Ensure it is tightly fastened to prevent movement during operation.

4.3. Инсталирање помоћне ручке

1. Slide the auxiliary handle onto the shaft.
2. Adjust its position for comfortable grip and balance.
3. Tighten the handle securely using the locking mechanism.

Image 4.1: A user operating the Greenworks trimmer, demonstrating the adjustable handle for enhanced control and comfort.

4.4. Инсталација батерије

1. Уверите се да је алат искључен.
2. Insert two fully charged Greenworks 24V batteries into the battery compartments until they click into place.
3. Check the battery charge level using the integrated LED indicators on the batteries.

5. Упутство за употребу

5.1. Покретање и заустављање алата

1. To start, press the safety lock-off button and then squeeze the variable speed trigger.
2. Да бисте зауставили, отпустите окидач са променљивом брзином.

5.2. Прилагођавање за удобност

Adjust the telescopic shaft length and the auxiliary handle position to achieve a comfortable and balanced operating posture. This reduces fatigue and improves control.

5.3. Using the Bump Feed Head

The trimmer features a dual line bump feed head. To advance the cutting line, gently tap the cutting head on the ground while the tool is running. The line will automatically extend to the correct length.

Слика 5.1: Крупни план view of the bump feed mechanism, illustrating how to advance the cutting line by tapping the head on the ground.

5.4. Trimming and Edging Techniques

• For general trimming, hold the cutting head parallel to the ground and swing it from side to side.
• For edging, tilt the cutting head to a vertical position and guide it along the edge of the lawn or pathway.
• Avoid cutting into hard surfaces or obstacles to prevent damage to the line or blade.

Image 5.2: A user demonstrating the Greenworks trimmer in action, effectively cutting grass and maintaining lawn edges.

6. Одржавање

6.1. Чишћење

• After each use, remove the battery pack.
• Clean the cutting head, guard, and motor housing with a damp cloth. Remove any grass clippings or debris.
• Не користите јаке хемикалије или абразивна средства за чишћење.

6.2. Line/Blade Replacement

• Regularly inspect the cutting line for wear and replace it when necessary. Refer to the specific instructions for reloading the bump feed head.
• If using a blade, inspect it for damage or dullness. Replace with a genuine Greenworks replacement blade if needed.

6.3. Нега и складиштење батерије

• Чувајте батерије на хладном и сувом месту даље од директне сунчеве светлости и екстремних температура.
• Не складиштите батерије у испражњеном стању дуже време. Повремено их пуните ако се не користе.
• Always use Greenworks original chargers for charging.

КСНУМКС. Решавање проблема

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Greenworks customer support.

8. Спецификације

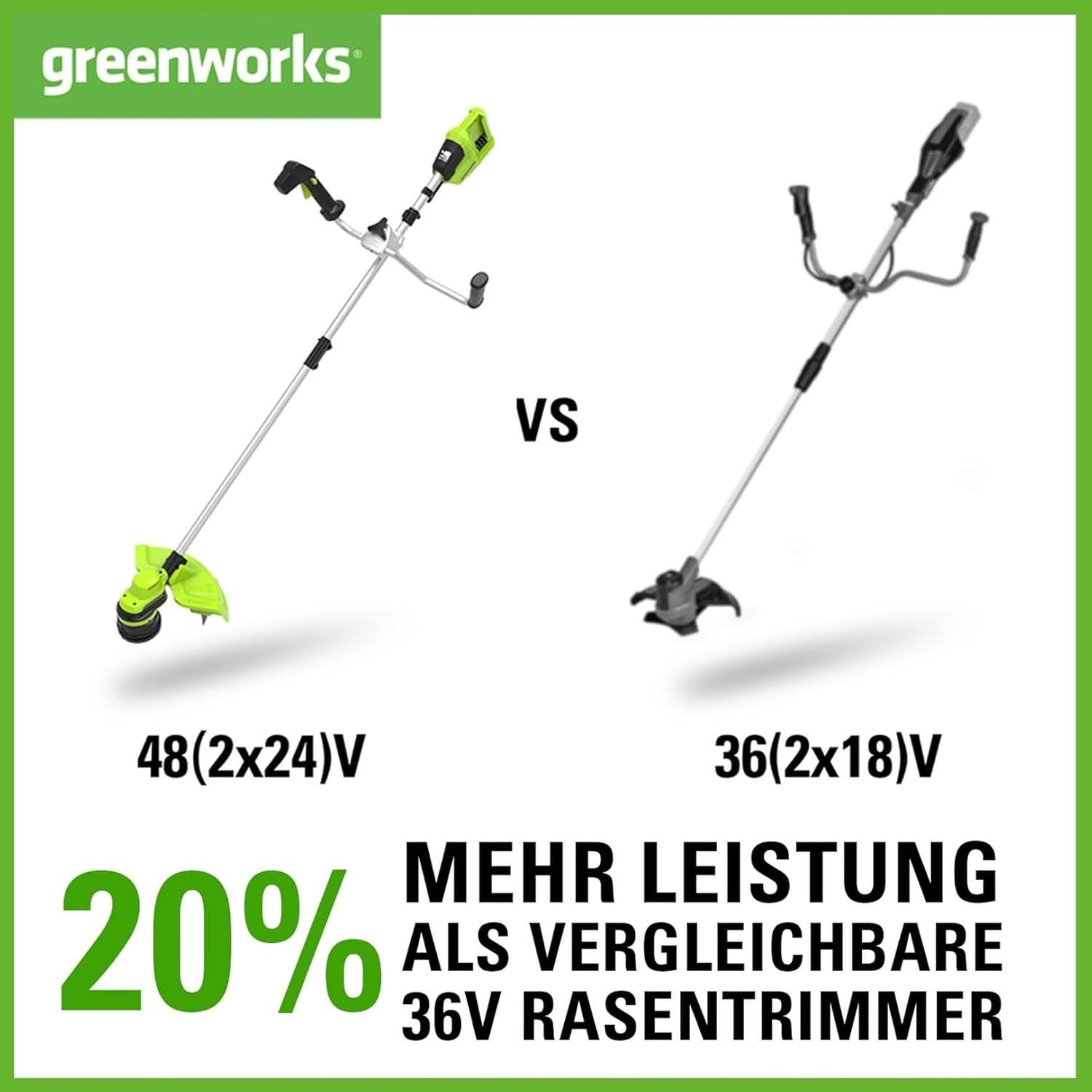

Image 8.1: Comparison highlighting the 48V (2x24V) power of the Greenworks trimmer, offering 20% more power than comparable 36V trimmers.

9. Гаранција и подршка

9.1. Информације о гаранцији

The Greenworks GD24X2TX Cordless Grass Trimmer & Brush Cutter comes with a 3 година гаранцијеОва гаранција покрива недостатке у материјалу и изради при нормалној употреби. Молимо вас да сачувате доказ о куповини за потребе подношења захтева за гаранцију.

Image 9.1: Greenworks offers a 3-year product warranty, reflecting their commitment to quality and performance.

9.2. Корисничка подршка

За техничку помоћ, рекламације у вези са гаранцијом или куповину резервних делова, посетите званичну веб страницу Greenworks-а. website or contact their customer service department. Contact information can typically be found on the Greenworks webсајту или на паковању производа.
