Total THT31143 3-in-1 Staple Gun Instruction Manual

1. Увод

Thank you for choosing the Total THT31143 3-in-1 Staple Gun. This versatile hand tool is designed for various fastening tasks, offering unparalleled performance, a sleek design, and compact construction. This manual provides essential information for safe and effective use, including setup, operation, maintenance, and troubleshooting.

2. Безбедносна упутства

• Always wear appropriate personal protective equipment, including safety glasses, when operating the staple gun.
• Keep hands and body parts clear of the staple exit area.
• Никада не усмеравајте хефталицу ка себи или другима.
• Ensure the staple gun is unloaded before performing any maintenance or clearing jams.
• Use only staples of the correct size and type specified for this model.
• Алат чувајте на сувом, сигурном месту, ван домашаја деце.
• Не модификујте алат ни на који начин.

3. Садржај пакета

Проверите да ли су све ставке присутне у вашем пакету:

• Total THT31143 3-in-1 Staple Gun
• Assorted staples (U-type, T-type, Door-type)
• Упутство за употребу

4. Производ је готовview

The Total THT31143 is a versatile 3-in-1 staple gun designed for various fastening applications. Its robust metal construction ensures durability and reliable performance.

Figure 1: Total THT31143 3-in-1 Staple Gun. This image shows the staple gun in its packaging, highlighting its sleek design and compact construction.

Figure 2: Total THT31143 Staple Gun with different staple types. This image illustrates the versatility of the staple gun, compatible with various staple forms.

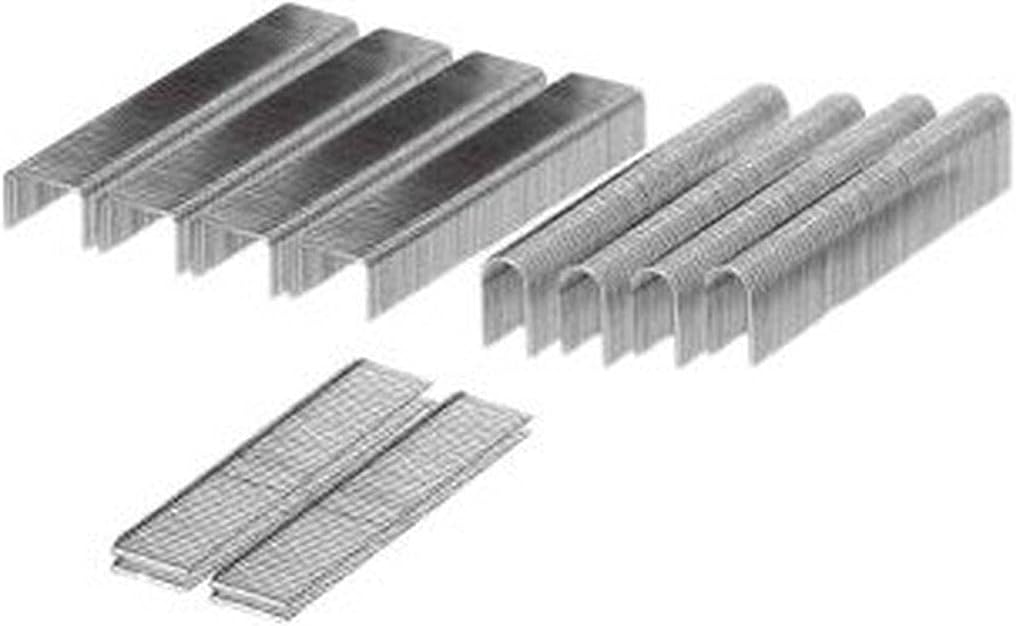

Figure 3: Various staple types compatible with Total THT31143. This image displays the different staple shapes (U-type, T-type, Door-type) that can be used with the tool.

5. Подешавање

5.1 Убацивање спајалица

1. Ensure the staple gun is disengaged and the handle is not compressed.
2. Locate the staple loading mechanism at the bottom rear of the tool.
3. Pull the pusher rod out until it locks into place.
4. Insert a strip of compatible staples (Door-type, U-type, or T-type) into the magazine with the staple points facing down.
5. Push the pusher rod back into the magazine until it clicks securely.

6. Упутство за употребу

6.1 Испаљивање хефталица

1. Once staples are loaded, position the nose of the staple gun firmly against the workpiece.
2. Ensure the tool is held perpendicular to the surface for optimal staple penetration.
3. Squeeze the handle firmly and completely to fire a staple.
4. Release the handle to reset the mechanism for the next staple.

6.2 Подешавање дубине спајања

This model features an adjustable knob (typically located on the top or rear) to control the staple driving force. Turn the knob clockwise for deeper penetration and counter-clockwise for shallower penetration. Test on a scrap piece of material to find the appropriate setting for your application.

7. Одржавање

• Чишћење: Regularly clean the tool with a dry cloth to remove dust and debris. Do not use solvents.
• подмазивање: Apply a small amount of light machine oil to moving parts periodically to ensure smooth operation.
• Складиштење: Store the staple gun in a clean, dry environment. Always unload staples before storing.
• инспекција: Periodically inspect the tool for any signs of wear, damage, or loose parts. Do not use a damaged tool.

КСНУМКС. Решавање проблема

8.1 Clearing a Staple Jam

1. Unload the tool: Remove all staples from the magazine.
2. Прегледајте: Carefully check the staple exit area and magazine for any bent or broken staples.
3. Уклони: Use pliers or tweezers to gently remove any jammed staples. Do not force them.
4. Освежи: Once clear, reload with new, undamaged staples.

9. Спецификације

10. Гаранција и подршка

For warranty information or technical support, please refer to the contact details provided on your product packaging or visit the official Total Tools webсајт. Сачувајте рачун као доказ о куповини за евентуалне рекламације по гаранцији.
