Aivituvin Extra Large Chicken Coop Instruction Manual

1. Производ је готовview

This manual provides instructions for the Aivituvin Extra Large Chicken Coop, an outdoor wooden hen house designed for poultry. It features a spacious living area, multiple nesting boxes, perches, and a secure run.

Image: Fully assembled Aivituvin Extra Large Chicken Coop.

2. Подешавање и монтажа

The Aivituvin Extra Large Chicken Coop requires assembly. It is recommended to assemble the coop in its final desired location, as moving it after assembly may compromise the structural integrity of the run.

2.1 Контролна листа пре монтаже

• Проверите да ли су сви делови и хардвер присутни према листи паковања.
• Ensure you have a Phillips head screwdriver.
• Choose a level and secure location for the coop.

2.2 Савети за монтажу

• Follow the provided step-by-step instructions carefully.
• Exercise caution during assembly, as the wood can be soft and may split if excessive force is applied.
• The coop features reinforced wooden corner strips for enhanced stability.
• The run panel extends under the nesting boxes to provide additional support and prevent sagging over time.

Image: Aivituvin chicken coop during or after assembly, showing its overall structure.

3. Упутство за употребу

3.1 Capacity and Space

This chicken coop is designed to accommodate 10-15 chickens. However, actual capacity may vary based on the size and breed of your chickens. For larger breeds, a smaller flock size (e.g., 6-8 chickens) may be more appropriate to ensure adequate space and comfort.

3.2 Nesting Boxes and Perches

• The coop includes two large nesting boxes, each divided into three individual sections, providing a total of six nesting areas.
• Four perches are located inside the main house, and two additional perches are built into the run area, offering ample roosting space.
• A waterproof PVC curtain is installed above the nesting boxes to prevent leakage.

Слика: Унутрашњост view of the coop highlighting the six nesting box sections.

Слика: Унутрашњост view of the sleeping area with perches and ventilation windows.

3.3 Приступ и безбедност

• The coop features nine access areas, including doors and hinged roofs, for convenient interaction with your flock and easy cleaning.
• Special custom locks are integrated to secure nesting boxes and prevent predator access.
• Galvanized wire walls and a series of locks on each access point ensure the safety of your poultry from predators.
• The chicken access door in the run is designed to support an automatic door opener (sold separately).
• A steel slide pole operates the sliding doors, allowing you to safely secure chickens within the coop.

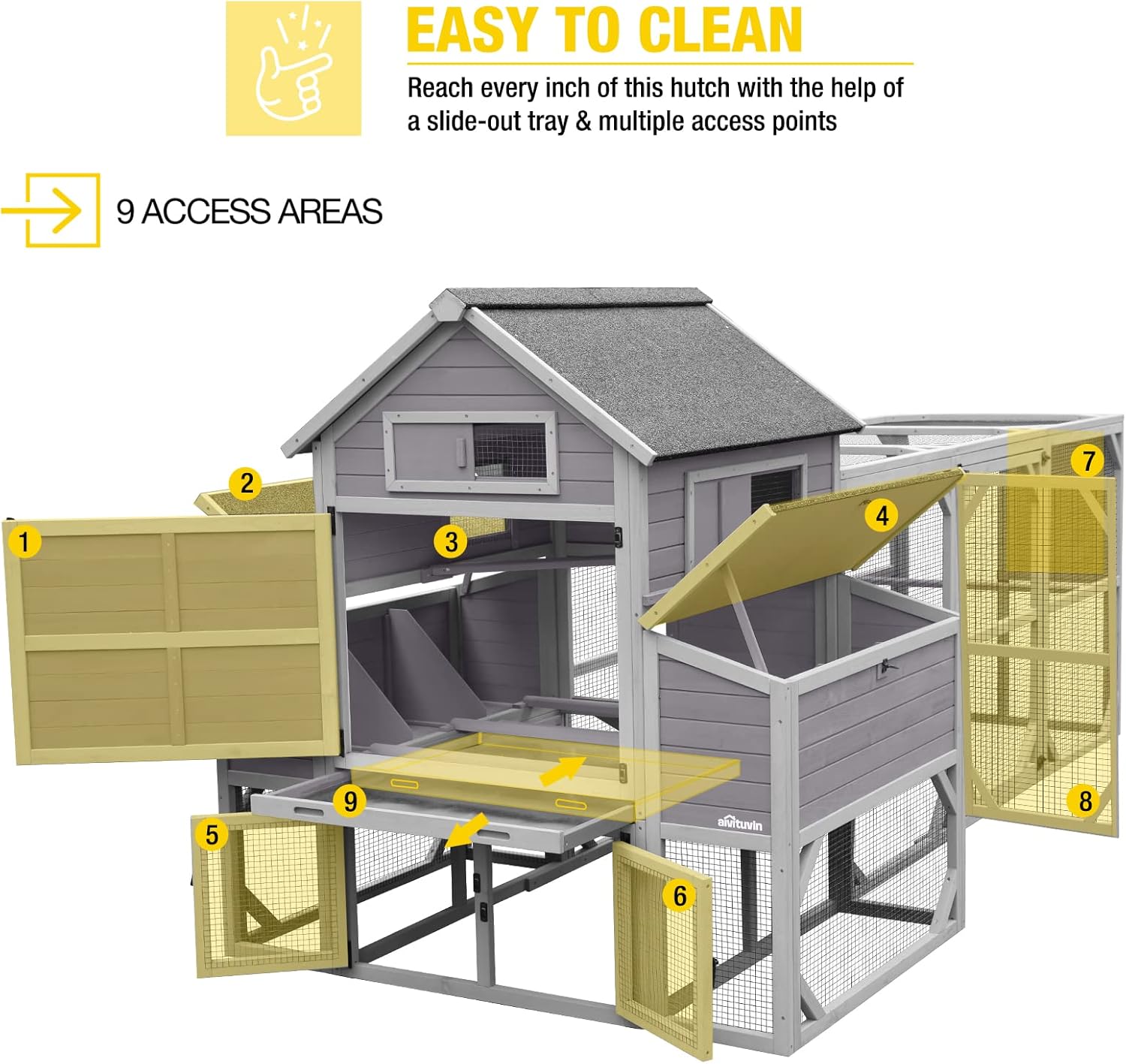

Слика: Спољашњост view highlighting the various access points of the chicken coop.

3.4 Вентилација

Three screened ventilation windows are located in the sleeping shelter to ensure proper airflow and a healthy environment for your chickens.

4. Одржавање

4.1 Чишћење

• The coop is equipped with large, removable sliding trays for easy cleaning of droppings and bedding.
• Utilize the multiple access points to reach all areas of the coop for thorough cleaning and maintenance.

КСНУМКС. Решавање проблема

• Wood Splitting During Assembly: Apply gentle and even pressure when driving screws. Pre-drilling small pilot holes can help prevent wood splitting, especially in softer wood sections.
• Flimsy or Misaligned Tray: Ensure the metal bottom interior tray is correctly seated within its designated grooves. Adjust its position if it does not sit properly.
• Gaps Allowing Cold Air: In colder climates, inspect the coop for any gaps between panels. These can be sealed with weather stripping or non-toxic, pet-safe caulk to improve insulation.
• Difficulty Moving Assembled Coop: The coop, particularly the run, is designed for stationary use once assembled. Attempting to move it after assembly may cause structural damage. If relocation is necessary, partial disassembly may be required.
• Coop Capacity Concerns: While rated for 10-15 chickens, consider the actual size and breed of your birds. For larger breeds, a smaller flock will ensure adequate space. Observe your chickens for signs of overcrowding.

6. Спецификације

Image: Diagram showing detailed dimensions of the chicken coop.

7. Информације о гаранцији

Specific warranty details for the Aivituvin Extra Large Chicken Coop are not provided in this manual. For information regarding product warranty, please contact the manufacturer directly or refer to the purchase documentation.

8. Подршка

If you encounter any issues or have questions regarding the assembly, operation, or maintenance of your Aivituvin Extra Large Chicken Coop, please contact Aivituvin customer support or the seller from whom you purchased the product for assistance.
