Titan Fitness X-3 Series Flat Foot Power Rack 91-in. H 30-in. D Instruction Manual

Увод

The X-3 Series Flat Foot Power Rack by Titan Fitness is offered in 82 and 91-inch models to fit your gym needs. Featuring heavy-duty 3 x 3-inch 11-gauge square steel uprights with Westside hole spacing through the bench and clean pull zone, 2-inch spacing above and below, 6-inch side hole spacing throughout entire upright, a bolt-together design, and a powder-coated black finish. Additionally, the power rack comes standard with a 1.25-inch pull-up bar, a 2-inch fat pull-up bar, and (2) reinforced J-Hooks. This power rack is designed for lifters and athletes seeking a high-quality solution without the need to bolt the rack to the floor.

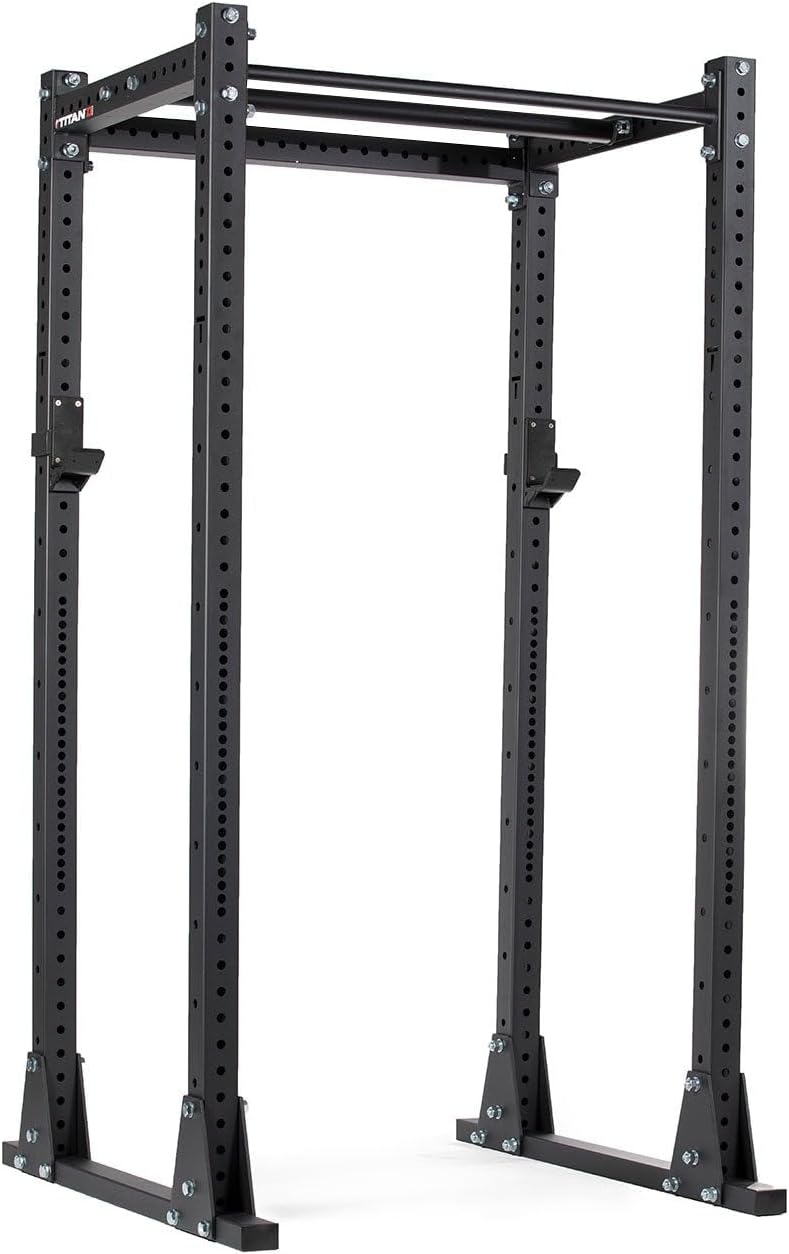

Фронт view of the Titan Fitness X-3 Series Flat Foot Power Rack, showcasinг његов робустан дизајн.

Безбедносне информације

• Увек се консултујте са здравственим радником пре него што започнете било који нови програм вежбања.
• Inspect all components for damage before each use. Do not use if any parts are damaged or missing.
• Ensure all bolts and fasteners are securely tightened before use. Regularly check and re-tighten as necessary.
• Maintain a clear area around the power rack during use to prevent accidents.
• Do not exceed the maximum weight capacities: Rackable Capacity: 1,650 lb., Whole Rack Capacity: 6,170 lb.
• Two-person assembly is recommended for safety.
• Keep children and pets away from the equipment during assembly and use.
• Use appropriate safety spotters or safety straps when lifting heavy weights.

Листа компоненти

Молимо вас да проверите да ли су сви делови присутни пре почетка монтаже.

• (4) Heavy-duty steel uprights (3 x 3-inch 11-gauge steel)
• (2) J-Hooks with UHMW plastic
• (1) 1.25-inch Single Pull-Up Bar
• (1) 2-inch Fat Pull-Up Bar
• Assembly Hardware (nuts, bolts, washers)
• (3) Topside Bracings
• Flat Foot Base components

Подешавање и монтажа

Tools required: Adjustable wrench or socket set.

1. Распакујте компоненте: Carefully remove all parts from the packaging and lay them out. Verify against the components list.
2. Саставите базу: Connect the flat foot base components to the bottom of the uprights using the provided hardware. Ensure the base is stable and level.


   Image showing the assembled base of the power rack with uprights.

3. Attach Uprights: Securely attach the four uprights to the assembled base. Ensure the Westside hole spacing (closer holes) is oriented correctly for bench and clean pull zones.


   Detail of the upright showing Westside hole spacing for precise adjustments.

4. Install Top Bracings: Connect the three topside bracings between the uprights at the top of the rack. This provides structural integrity.


   View of the top bracings and pull-up bars installed, securing the upper frame.
5. Mount Pull-Up Bars: Install the 1.25-inch single pull-up bar and the 2-inch fat pull-up bar to the designated positions on the top bracings. Choose the bar that best suits your grip preference.
6. Attach J-Hooks: Insert the J-Hooks into the desired holes on the uprights. Ensure the UHMW plastic is facing inwards to protect your barbell.


   A J-hook securely attached to an upright, ready for barbell placement.

7. Завршно затезање: Once all components are in place, systematically tighten all nuts and bolts. Do not overtighten, but ensure a secure fit.
8. Провера стабилности: Gently shake the assembled rack to ensure it is stable and does not wobble. Adjust as necessary.

Упутство за употребу

• Barbell Placement: Place your barbell securely onto the J-Hooks. Ensure the barbell is centered and stable before loading weights.


  A barbell with weight plates resting securely on a J-hook within the power rack.
• Adjusting J-Hooks: To adjust the height of the J-Hooks, remove the barbell, lift the J-Hook, pull it out, and re-insert it into the desired hole. Ensure both J-Hooks are at the same height.
• Using Pull-Up Bars: The 1.25-inch and 2-inch pull-up bars offer different grip challenges. Select the bar that suits your exercise. Ensure a firm grip before performing pull-ups.
• Компатибилност додатне опреме: The X-3 Series Power Rack is compatible with various Titan Fitness X-3 accessories (e.g., Pin and Pipe Safeties, Spotter Arms, Roller J-Hooks). Refer to the accessory's specific instructions for installation and use.


  The power rack set up with a barbell, weight plates, and a bench, demonstrating its versatility for various exercises.

Одржавање

• Редовна инспекција: Periodically inspect all bolts, nuts, and connections for tightness. Re-tighten as needed to ensure stability and safety.
• чистоћа: Обришите челични оквир огласомamp cloth to remove dust and sweat. Avoid abrasive cleaners that may damage the powder-coated finish.
• UHMW Plastic: Check the UHMW plastic on the J-Hooks for wear and tear. Replace if significantly damaged to protect your barbell.
• Складиштење: If disassembling for storage, keep all hardware organized to prevent loss.

Решавање проблема

Спецификације

Гаранција и подршка

For warranty information, please refer to the official Titan Fitness website or contact their customer support directly. The product comes with a 30-day easy returns policy.

For assistance with missing parts, assembly questions, or other inquiries, please contact Titan Fitness customer support. You can find their contact information on their official webсајт: ввв.титан.фитнесс

Customer Support is available for assistance.
