Parkside 20V 4Ah PAP 20 B3 Lithium-ion Battery Instruction Manual

1. Увод

Thank you for choosing the Parkside 20V 4Ah PAP 20 B3 Lithium-ion Battery. This powerful and reliable battery is designed to provide extended runtime and performance for your Parkside X 20V Team tools. It features a 3-stage charge status indicator for convenient monitoring and incorporates cell balancing technology to maximize its charging potential and prolong its lifespan.

This manual provides essential information for the safe and efficient use, operation, and maintenance of your battery. Please read it thoroughly before first use and keep it for future reference.

Слика 1.1: Фронт view of the Parkside 20V 4Ah PAP 20 B3 Lithium-ion Battery, showing the 'X 20V Team' branding and charge indicator.

2. Безбедносна упутства

Увек се придржавајте следећих мера предострожности приликом руковања и коришћења батерије:

• Прочитајте сва упутства: Before using the battery, charger, or power tool, read all instructions and cautionary markings on the battery, charger, and tool.
• Држати ван дохвата деце: Чувајте батерије ван домашаја деце.
• Do not short-circuit: Never short-circuit the battery terminals. This can cause severe burns, fire, and damage to the battery.
• Избегавајте екстремне услове: Do not expose the battery to water, rain, or extreme temperatures (above 50°C or below -10°C).
• Use compatible chargers: Only charge the battery with chargers specified by Parkside for the X 20V Team series. Using an incompatible charger can lead to fire or explosion.
• Do not open or modify: Never attempt to open, disassemble, or modify the battery pack. There are no user-serviceable parts inside.
• Handle damaged batteries with care: If the battery is damaged, do not use it. Contact customer support for proper disposal and replacement.
• Правилно одлагање: Dispose of batteries responsibly according to local regulations. Do not dispose of in household waste or by fire.

3. Производ је готовview

The Parkside PAP 20 B3 battery is a robust 20V Lithium-ion power source designed for the Parkside X 20V Team range of tools. Key features include:

• Индикатор статуса пуњења: А 3-сtage LED indicator allows you to quickly check the remaining battery charge.
• Балансирање ћелије: Integrated technology ensures even charging and discharging of individual cells, enhancing battery life and performance.
• Компатибилност: Fully compatible with all tools and chargers within the Parkside X 20V Team series.

Слика 3.1: Назад view of the battery, showing the technical specifications label and ventilation slots.

4. Подешавање

4.1 Почетно пуњење

1. Ensure you are using a compatible Parkside X 20V Team charger.
2. Уметните батерију у пуњач, водећи рачуна да се чврсто уклопи на своје место.
3. Укључите пуњач у одговарајућу утичницу.
4. Allow the battery to charge fully before its first use. The charger's indicator lights will show the charging status.

4.2 Причвршћивање на алат

1. Ensure the tool is switched off before attaching or removing the battery.
2. Align the battery with the battery slot on your Parkside X 20V Team tool.
3. Slide the battery into the slot until it clicks firmly into place. A secure click indicates proper connection.

4.3 Removing from a Tool

1. Уверите се да је алат искључен.
2. Press the battery release button, usually located on the side or front of the battery.
3. Slide the battery out of the tool's slot.

Слика 4.1: The Parkside battery ready for use with compatible tools.

5. Оперативни

5.1 Провера статуса наплате

Press the button on the battery to activate the 3-stage LED charge indicator. The number of illuminated LEDs indicates the remaining charge:

• 3 ЛЕД диоде: Потпуно пуњење
• 2 ЛЕД диоде: Средње пуњење
• 1 ЛЕД: Low charge, recharge soon
• Нема ЛЕД диода: Battery discharged, recharge immediately

5.2 Optimal Usage

• Avoid completely discharging the battery. Recharge it when the charge indicator shows one LED.
• For best performance, allow the battery to cool down after heavy use before recharging.
• Do not expose the battery to direct sunlight or heat sources during operation.

6. Одржавање

6.1 Чишћење

Wipe the battery with a clean, dry cloth. Do not use water, solvents, or abrasive cleaners. Keep the battery terminals clean and free from debris.

6.2 Складиштење

• Чувајте батерију на хладном и сувом месту, даље од директне сунчеве светлости и влаге.
• For long-term storage, it is recommended to store the battery with approximately 50-70% charge.
• Avoid storing the battery in temperatures below -10°C or above 50°C.
• If storing for extended periods, recharge the battery every 3-6 months to maintain its health.

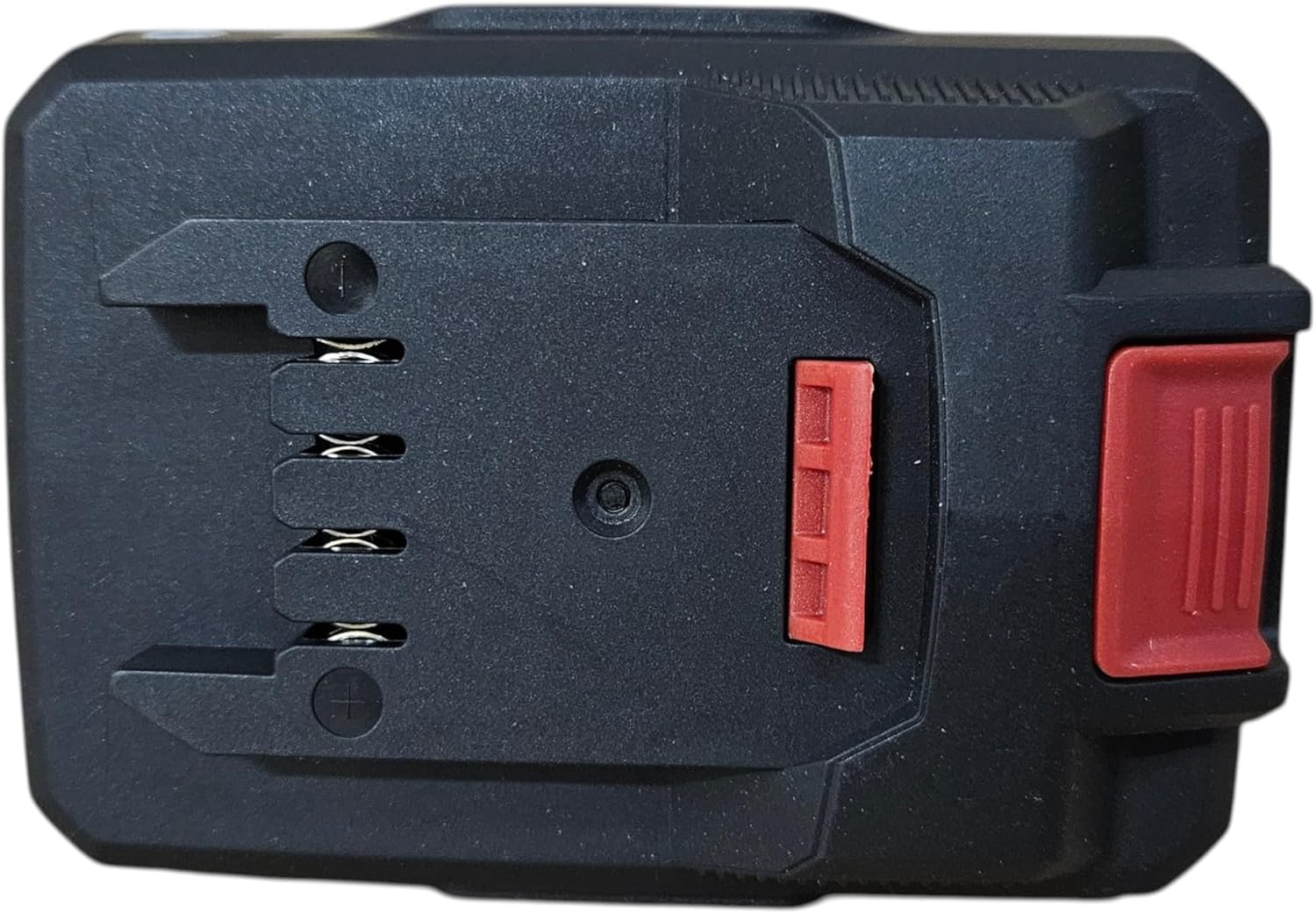

Слика 6.1: Дно view of the battery, highlighting the electrical contacts that should be kept clean.

КСНУМКС. Решавање проблема

8. Спецификације

• Број модела: ПАП 20 Б3
• Бренд: Парксиде
• Волtage: 20 Волтс
• Капацитет: 4 Ах (4 Ampере-сати)
• Састав батерије: Литијум-јонски
• Тежина: 400 грама
• Димензије (Д к Ш к В): 13.1 к 9 к 8.9 центиметара
• Поновна употреба: Пуњива
• Препоручена употреба: Електрични алат
• УПЦ: 4052916677056

9. Гаранција

Warranty information for the Parkside 20V 4Ah PAP 20 B3 battery is not explicitly provided in the product details. Please refer to the warranty terms provided with your purchase documentation or contact Parkside customer support for specific warranty details applicable to your region.

10. Подршка

For further assistance, technical support, or inquiries regarding your Parkside 20V 4Ah PAP 20 B3 battery, please contact Parkside customer service. You can typically find contact information on the official Parkside webсајту или унутар паковања вашег производа.

Always ensure you have your product model number (PAP 20 B3) and any purchase details ready when contacting support.
