Увод

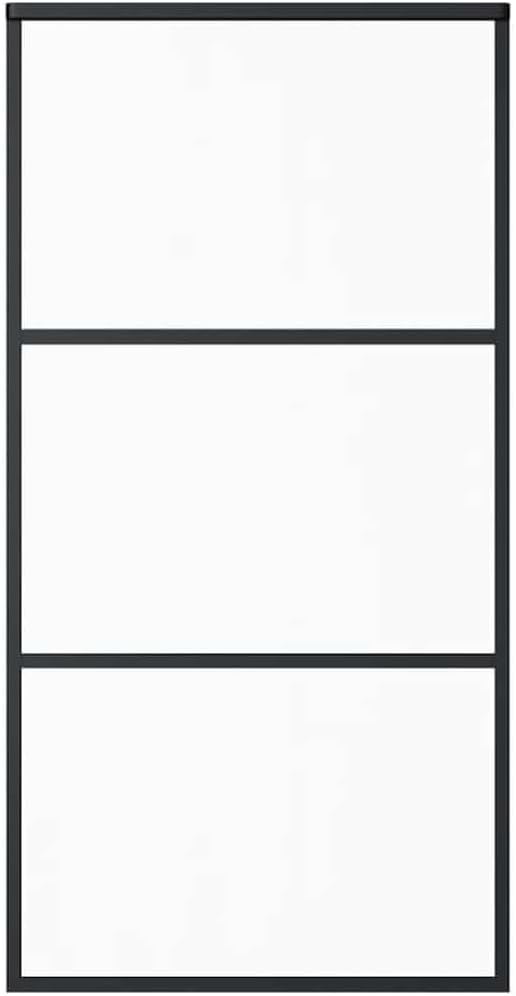

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your vidaXL Sliding Door ESG Glass and Aluminum. Please read these instructions carefully before beginning installation to ensure safe and correct usage. This sliding door is designed to create a graceful transition between spaces, featuring transparent ESG glass and a durable aluminum frame.
Безбедносне информације
- Always wear appropriate safety gear, including gloves and eye protection, during assembly and installation.
- Ensure the mounting surface is structurally sound and capable of supporting the door's weight (approximately 27.07 kg / 29.11 kg).
- Handle glass components with extreme care to prevent breakage and injury.
- Држите децу и кућне љубимце даље од радног простора током инсталације.
- Do not attempt to modify the product in any way not described in this manual.
- Professional installation is recommended if you are unsure about any steps.
Садржај пакета
Пре почетка монтаже, проверите да ли су сви делови присутни и да ли су неоштећени. Ако неки делови недостају или су оштећени, немојте настављати са монтажом и контактирајте корисничку подршку.
- ESG Glass Door Panel (102 x 205 cm)
- Компоненте алуминијумског рама
- Mounting Accessories (screws, anchors, etc.)
- Note: Hanging wheels and top sliding rails are not included and must be purchased separately. Refer to SKU: 145262-145263 for compatible hardware kits.
Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | видаКСЛ |
| Број модела | 151010 |
| Боја | Transparent and Black |
| Материјал | ESG Glass, Aluminum |
| Димензије врата (Ш x В) | 102 к 205 цм (40.2 к 80.7 инча) |
| Гласс Тхицкнесс | 5 мм |
| Дебљина врата | 2 цм |
| Тежина артикла | Approximately 27.07 kg (59.68 lbs) / 29.11 kg (64.18 lbs) |
| Обавезна монтажа | Да |
Подешавање и инсталација
This sliding door requires assembly and installation in conjunction with a compatible sliding door hardware kit (not included). Refer to the installation manual provided with your chosen hardware kit for specific mounting instructions. The following steps outline the general assembly of the door panel itself.
Step 1: Assemble the Door Frame
Image: Diagram illustrating the assembly sequence of the door frame and glass panels.
Carefully unpack all aluminum frame components and ESG glass panels. Assemble the frame according to the provided diagrams, ensuring all connections are secure. Insert the glass panels into the designated slots within the frame. Silicone may be required for secure assembly, as noted in some user experiences.
Step 2: Attach Hanging Wheels (Hardware Kit Dependent)
Image: Diagram showing how a hanging wheel is secured to the top edge of the door panel, ready for the sliding rail.
Once the door panel is assembled, attach the hanging wheels from your separate sliding door hardware kit to the top edge of the door. Ensure they are securely fastened and aligned correctly. The specific method will depend on your hardware kit.
Step 3: Install Floor Guide (Hardware Kit Dependent)
Image: Diagram illustrating the floor guide installation, showing the guide and mounting hardware.
Install the floor guide from your hardware kit to the floor, ensuring it is perfectly aligned with the intended path of the sliding door. This guide prevents the door from swinging outwards.
Step 4: Mount Door to Sliding Rail
Image: The vidaXL sliding door fully assembled and mounted on a sliding rail, separating two rooms.
Carefully lift the assembled door panel and hook the hanging wheels onto the top sliding rail (not included). Ensure the door engages with the floor guide. Adjust the door's position and levelness as needed to ensure smooth and quiet operation. The door soft stop feature, if part of your hardware kit, will allow for quiet opening and closing.
Image: The vidaXL sliding door installed, providing a clear view између соба.
Image: Technical drawing with dimensions of the sliding door (102 cm width, 205 cm height).
Упутство за употребу
To operate the vidaXL Sliding Door, gently push or pull the door panel along its track. The door is designed for smooth and quiet movement. Avoid forcing the door if it encounters resistance. If your hardware kit includes a soft-stop mechanism, the door will slow down and close/open gently at the ends of its travel.
- Отварање: Apply gentle pressure to slide the door along the top rail until it reaches the desired open position.
- Затварање: Apply gentle pressure to slide the door back along the top rail until it reaches the closed position.
Одржавање
- Чишћење стакла: Use a soft, lint-free cloth and a non-abrasive glass cleaner to clean the ESG glass panels. Avoid harsh chemicals that could damage the glass or frame.
- Оквир за чишћење: Обришите алуминијумски оквир огласомamp крпом и благим детерџентом. Темељно осушите.
- Одржавање стазе: Periodically inspect the sliding track and wheels for any debris or obstructions. Clean the track to ensure smooth operation. Lubricate wheels if necessary, following the recommendations of your hardware kit manufacturer.
- Провера хардвера: Regularly check all screws and fasteners for tightness. Tighten any loose connections to maintain stability and safety.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Врата се не померају глатко. | Debris in track, misaligned track, worn wheels. | Clean the track. Check track alignment and adjust if necessary. Inspect wheels for damage and replace if worn. |
| Door is noisy during operation. | Lack of lubrication, loose hardware, debris. | Lubricate wheels and track. Tighten all mounting hardware. Clean track. |
| Door does not stay in position. | Track not level, floor guide not installed or adjusted correctly. | Ensure the top rail is perfectly level. Adjust or install the floor guide to properly secure the door. |
Гаранција и подршка
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official vidaXL website. Ensure you have your model number (151010) and proof of purchase available when contacting support.
vidaXL Official Webсајт: www.vidaxl.com
