Dakota Alert PR-4000 Wireless Driveway Alarm Portable Receiver Instruction Manual

Увод

This manual provides detailed instructions for the setup, operation, and maintenance of your Dakota Alert PR-4000 Wireless Driveway Alarm Portable Receiver. The PR-4000 is designed to work seamlessly with any Dakota Alert 4000 Series transmitter, providing reliable alerts for property monitoring.

Производ је завршенview

The Dakota Alert PR-4000 is a portable, battery-powered receiver compatible with Dakota Alert 4000 Series transmitters. It features a long wireless range, a rechargeable lithium battery, and an LCD display for clear notifications.

Кључне карактеристике:

• Дуг бежични домет: Up to one mile wireless range with Dakota Alert 4000 Series transmitters.
• Пуњива батерија: Powered by a rechargeable lithium battery, offering 6-7 days of operation per charge.
• ЛЦД екран: Shows time, date, and the activated zone number.
• Multiple Zone Support: Can pair with up to 16 sensors.
• Дневник упозорења: Stores up to 200 activation logs per zone.
• Преносиви дизајн: Includes a belt clip for convenient carrying.

Image: The PR-4000 receiver, shown held in a hand, emphasizing its compact and portable design. Icons indicate its lightweight, wireless, portable (with belt clip), and rechargeable attributes.

Image: The PR-4000 receiver displaying signal rings, illustrating its powerful signal reception up to one mile away, even through obstacles like trees and walls.

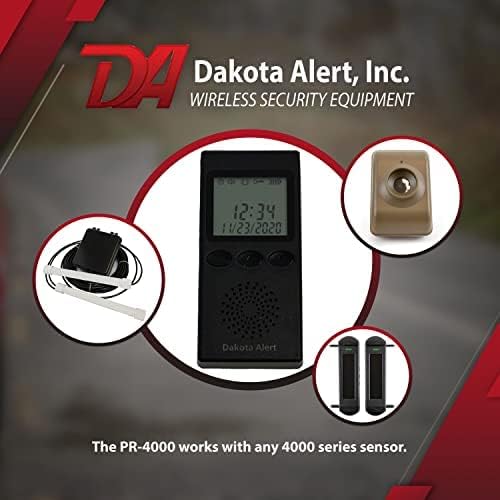

Image: The PR-4000 receiver displayed alongside several compatible Dakota Alert 4000 series sensors, including a motion sensor, a probe sensor, and a door/window sensor, demonstrating system expandability.

Сетуп

Садржај пакета:

• PR-4000 Alarm Receiver Unit
• Li-ion Battery (pre-installed or included separately)
• УСБ микро кабл
• Белт Цлип

Image: The PR-4000 receiver laid out with its essential accessories, including the USB charger, rechargeable Li-ion battery, and a belt clip, illustrating the complete package for convenience.

Powering Your Receiver:

1. Ensure the rechargeable lithium battery is correctly inserted into the receiver.
2. Connect the provided USB Micro cable to the receiver and plug the other end into a compatible USB power source (e.g., USB charger, computer USB port) to charge the battery.

Pairing with Transmitters:

The PR-4000 receiver is compatible with Dakota Alert 4000 Series transmitters. Follow the specific instructions provided with your 4000 Series transmitter for pairing. The receiver can connect with up to 16 different transmitters, each assigned to a unique zone.

1. Поставите пријемник и предајник један поред другог.
2. To set the tune and LED settings, refer to the 'Basic Setup' section in your user guide.
3. Притисните и држите МОДЕ button for three seconds until all LEDs flash and start blinking slowly.
4. Притисните тастер ВОЛУМЕ button repeatedly until you find the desired tune for the activated transmitter.
5. After choosing a tune, activate the transmitter (e.g., press its button or wave your hand over its motion sensor). The receiver will emit a short beep to confirm the transmitter has been coded.
6. If you are coding more than one transmitter, repeat steps 3-4 for each additional transmitter.
7. After all transmitters are coded, press and hold the МОДЕ дугме док ЛЕД диоде не престану да трепћу.

For 'Advanced Setup' involving exterior sensors using Relay 1, Relay 2, and 12 VDC terminals, consult the detailed user guide that came with your product.

Image: The PR-4000 receiver worn on a belt, illustrating its portability and ability to connect with up to 16 transmitters, providing alerts for each zone.

Упутство за употребу

Receiving Alerts:

When a paired Dakota Alert 4000 Series transmitter detects activity, it sends a signal to your PR-4000 receiver. The receiver will then:

• Emit an audible chime or silent vibration, depending on your settings.
• Display the activated zone number on the LCD screen.
• Show the current time and date of the activation.

Подешавање подешавања:

• Контрола јачине звука: Користите ВОЛУМЕ button to adjust the alert volume.
• Tune Selection: The receiver offers 16 different tunes. During setup or by re-entering pairing mode, you can cycle through these tunes using the ВОЛУМЕ button to select your preferred alert sound.
• Дневник упозорења: The PR-4000 maintains a log of the last 200 activations for each of the 16 zones, complete with time and date stamps. Consult your user guide for instructions on accessing and reviewing this log.

Одржавање

Одржавање батерије:

• The PR-4000 receiver is powered by a rechargeable lithium-ion battery. Charge the battery using the provided USB Micro cable when the battery indicator shows low power.
• A full charge typically lasts 6-7 days.
• За оптималан век трајања батерије, избегавајте често потпуно пражњење батерије.

Чишћење:

• Wipe the receiver with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ensure the device remains dry. While the receiver is portable, it is not designed for outdoor exposure to harsh weather conditions.

Решавање проблема

No Alert Received:

• Check if the receiver is powered on and the battery is charged.
• Verify that the transmitter is functioning correctly (e.g., check its battery, ensure it's detecting motion).
• Confirm that the receiver and transmitter are properly paired. Refer to the 'Pairing with Transmitters' section.
• Ensure the distance between the receiver and transmitter is within the specified one-mile range and that there are no excessive obstructions (e.g., thick walls, dense foliage) that could interfere with the signal.

Лажни аларми:

• Adjust the sensitivity settings on your Dakota Alert 4000 Series transmitter. High sensitivity can sometimes lead to false alarms from small animals or environmental factors.
• Ensure the transmitter is mounted securely and not subject to movement from wind or other external forces.

Лош домет:

• Obstacles such as dense trees, hills, and metal structures can reduce wireless range. Try repositioning the transmitter or receiver to minimize obstructions.
• Ensure the transmitter's battery is not low, as this can affect signal strength.

Спецификације

Гаранција и подршка

For warranty information, product support, or to inquire about replacement parts, please contact Dakota Alert directly. As a USA-based company with over 30 years of experience in the wireless driveway alarm industry, Dakota Alert is committed to providing quality products and customer service.

Контакт информације се обично могу наћи на званичном сајту произвођача webсајту или унутар паковања производа.
