Claymore V600+ Portable Rechargeable Fan User Manual

1. Производ је готовview

The Claymore V600+ is a versatile and portable rechargeable fan designed for both indoor and outdoor use. It features a robust battery, multiple speed settings, and an adjustable design for optimal airflow.

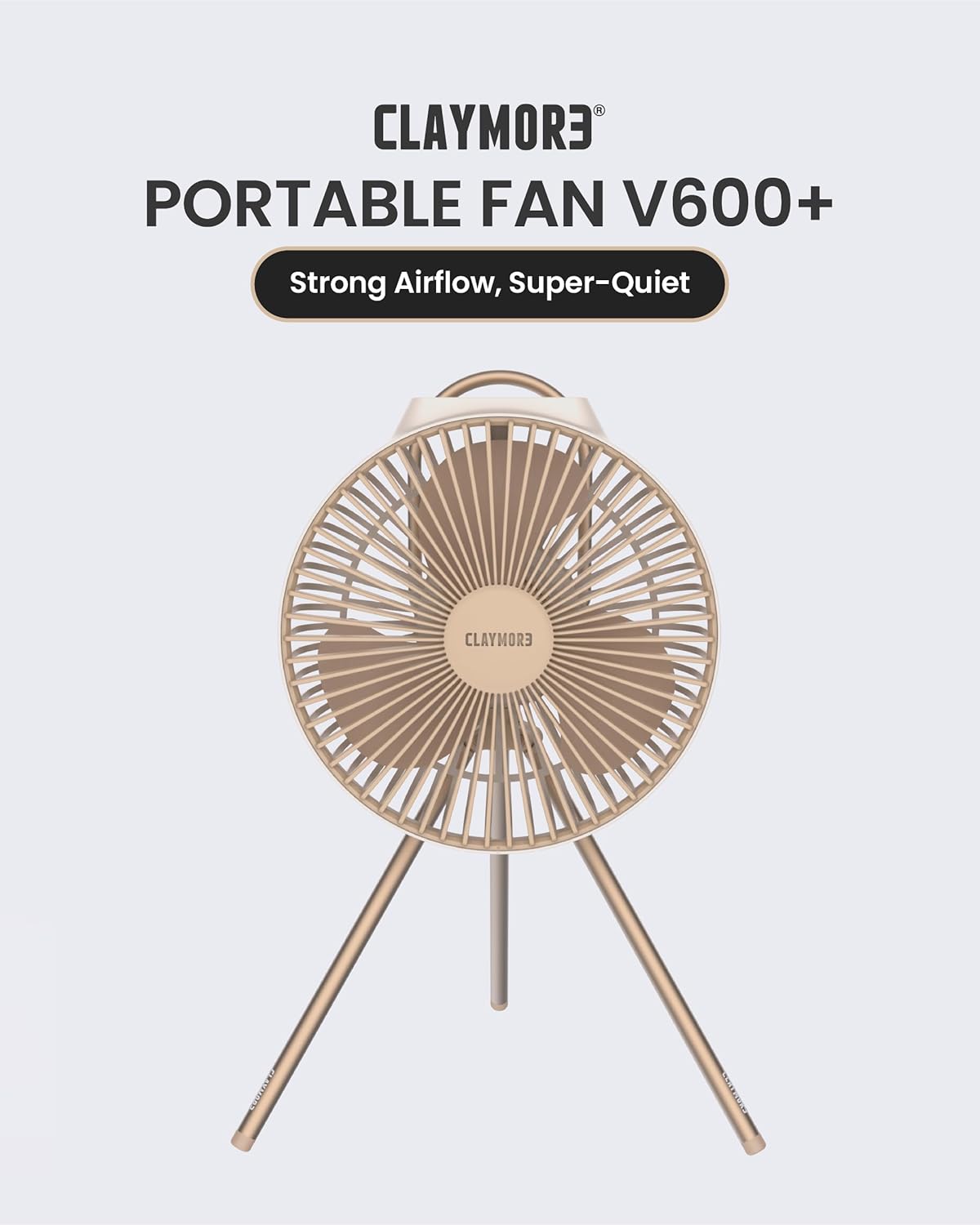

Image 1.1: Claymore V600+ Portable Rechargeable Fan in Sand Beige. This image shows the fan with its tripod stand, highlighting its compact and portable design.

2. Шта је у кутији

Before beginning setup, please ensure all components are present in the packaging.

• Claymore V600+ Fan Unit
• Статив за статив
• USB кабл за пуњење (тип C)
• Торбица за складиштење

Image 2.1: Contents of the Claymore V600+ package. This image displays the fan unit, tripod stand, USB-C charging cable, and storage pouch, confirming all included items.

3. Подешавање

3.1 Склапање вентилатора

1. Unpack the Claymore V600+ fan unit and the tripod stand from the storage pouch.
2. Locate the mounting screw on the top of the tripod stand.
3. Align the screw with the threaded hole at the bottom of the fan unit.
4. Gently screw the fan unit onto the tripod stand until it is securely fastened. Do not overtighten.

3.2 Почетно пуњење

It is recommended to fully charge the fan before its first use.

1. Connect the provided USB Type-C charging cable to the charging port on the fan.
2. Connect the other end of the USB cable to a compatible USB power adapter (5V/2A recommended, not included).
3. Индикаторска лампица пуњења ће се упалити. Потпуно пуњење траје отприлике 6.5 сат.
4. Once fully charged, the indicator light will change or turn off (refer to the specific light behavior in the operating section).

4. Упутство за употребу

The Claymore V600+ fan features touch controls and multiple settings for customized comfort.

Image 4.1: Key features of the Claymore V600+ fan. This graphic illustrates features such as 3 wide blades, an equipped handle, adjustable angle, timer function, USB Type-C rechargeability, and 4-speed levels.

4.1 Укључивање/искључивање и подешавање брзине

1. To power on the fan, press the power button (typically a push button or touch control on the fan unit).
2. Press the power button repeatedly to cycle through the 4 available speed levels.
3. To power off the fan, continue pressing the power button until the fan stops, or press and hold the power button for a few seconds.

Image 4.2: Visual representation of the Claymore V600+ fan's airflow. This image highlights the quiet yet powerful breeze generated by the fan's BLDC motor.

4.2 Подешавање угла

The fan head can be manually tilted to direct airflow as needed. Gently adjust the fan head to your desired angle. The fan is designed with an adjustable angle feature for optimal air circulation.

4.3 Функција тајмера

The fan includes a timer function for automatic shut-off. Refer to the specific button on the fan for timer activation. Typically, pressing the timer button will cycle through preset durations (e.g., 1 hour, 2 hours, 4 hours).

4.4 Battery Life and Charging Status

The fan is equipped with a 7,800mAh Li-Polymer battery, providing 7 to 32 hours of continuous use depending on the speed setting. Battery indicator lights on the control panel will show the remaining charge. Recharge the fan when the battery level is low.

Image 4.3: Illustration of the Claymore V600+ fan's long battery life. This image emphasizes the robust 7,800mAh battery, capable of providing up to 32 hours of operation on the lowest speed setting.

5. Одржавање

Regular maintenance ensures optimal performance and longevity of your Claymore V600+ fan.

5.1 Cleaning the Fan Blades and Grille

1. Ensure the fan is powered off and unplugged from any charging source before cleaning.
2. The front grille can be removed for easier cleaning. Gently twist or unclip the front grille as indicated by the design (refer to Image 5.1).
3. Користите меку, суву крпу или благо дamp cloth to wipe down the fan blades and the interior of the grille. Do not use abrasive cleaners or immerse the fan in water.
4. Once clean and dry, reattach the front grille securely.

Image 5.1: Claymore V600+ fan with the front grille detached. This image demonstrates how the front grille can be removed for cleaning the fan blades.

5.2 Одржавање батерије

• Избегавајте често потпуно пражњење батерије.
• Charge the fan regularly, even if not in use for extended periods, to maintain battery health.
• The battery is designed for approximately 800 charge/discharge cycles.

КСНУМКС. Решавање проблема

If you encounter issues with your Claymore V600+ fan, please refer to the following common solutions:

7. Спецификације

Detailed technical specifications for the Claymore V600+ Portable Rechargeable Fan:

• Модел: V600+ (CLFN-V610SB)
• Бренд: Claymore
• Димензије (Д к Ш к В): КСНУМКС к КСНУМКС к КСНУМКС цм (КСНУМКС к КСНУМКС к КСНУМКС инча)
• Тежина: Приближно 600 грама (1.32 фунти)
• Тип батерије: Ли-полимер 3.7В
• Капацитет батерије: 7,800мАх
• Улаз: УСБ Типе-Ц 5В/2А
• Време пуњења: Отприлике 6.5 сата
• Време непрекидног коришћења: 7 - 32 hours (depending on speed setting)
• Battery Charge/Discharge Cycles: Отприлике 800 пута
• Ниво буке: 15 децибела
• Број оштрица: 3
• Волtage: 5 Волтс
• Број нивоа снаге: 4
• Метод контроле: Додирните/притисните дугме
• Посебне карактеристике: Waterproof, Angle Adjustable, Timer Function, Equipped Handle
• Материјал: Пластика
• Унутрашња/спољна употреба: У затвореном, на отвореном

Image 7.1: Dimensional specifications of the Claymore V600+ fan. This image provides a visual reference for the fan's height, width, depth, and weight.

8. Гаранција и подршка

Information regarding the product warranty and customer support was not provided in the available data. For warranty details, technical support, or service inquiries, please refer to the official Claymore product packaging or visit the manufacturer's official webсајту.
